ID: 313597
Product code: BR700ELCD-FR
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

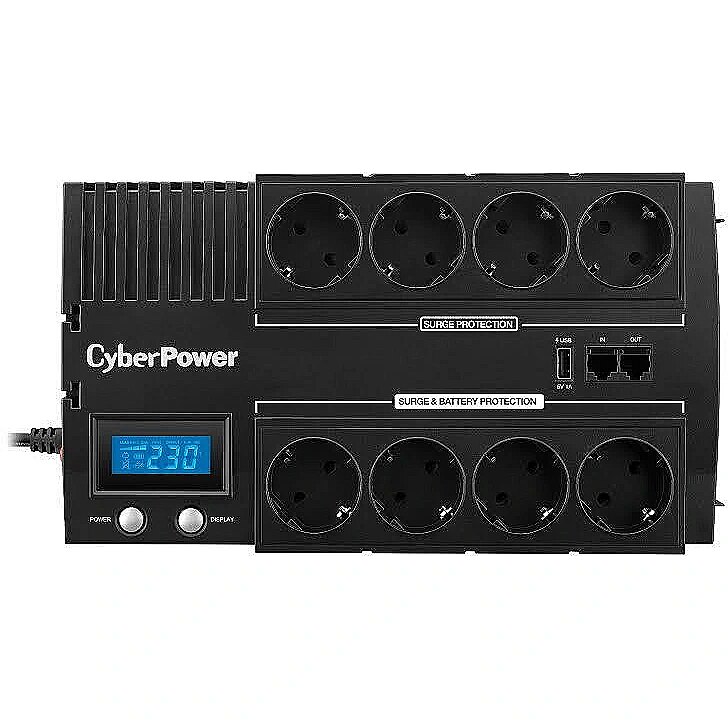

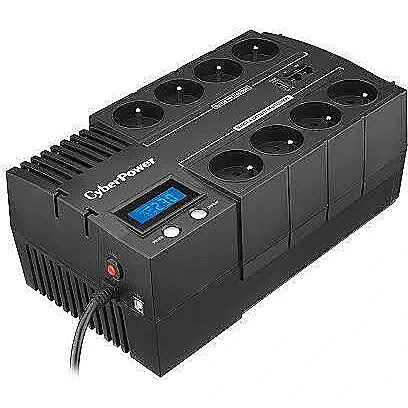

Cyberpower BR700ELCD-FR, 700VA 420W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 12.03.2025
- Delivery to Omniva parcel locker 1.99 €: 12.03.2025
- Courier delivery 3.99 €: 12.03.2025
Main product parameters All parameters
- Battery capacity (VA): 700 VA
- Output power (W): 420 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
700 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 8h
Output power (W)
: 420 W
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: Schuko
USB
: 2
More detailed specification
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Typical backup time at full load - 2 min
Battery - Typical backup time at half load - 6 min
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Design - Cable length - 1.5 m
Design - Certification - CE
Design - Display type - LCD
Design - Form factor - Compact
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
dimensionalWeight - 2392
Eans - 4712856271225
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 165 V
Features - Output frequency - 50/60 Hz
Features - Output power - 420 W
Features - Output power capacity - 0.7 kVA
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 125 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL)
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Name - CyberPower BR700ELCD-FR
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Modem (RJ-11) ports - 2
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Producer - CyberPower
producerCode - BR700ELCD-FR
ProducerCode - BR700ELCD-FR
productName - CyberPower BR700ELCD-FR uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 420 W 8 AC outlet(s)
productSize - Normal
ShortDescription -
sizeX - 325
sizeY - 230
sizeZ - 160
Technical details - Compliance certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 5880
Weight & dimensions - Depth - 288 mm
Weight & dimensions - Height - 118 mm
Weight & dimensions - Weight - 5.3 kg
Weight & dimensions - Width - 166 mm
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Typical backup time at full load - 2 min
Battery - Typical backup time at half load - 6 min
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Design - Cable length - 1.5 m
Design - Certification - CE
Design - Display type - LCD
Design - Form factor - Compact
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
dimensionalWeight - 2392
Eans - 4712856271225
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 290 V
Features - Input operation voltage (min) - 165 V
Features - Output frequency - 50/60 Hz
Features - Output power - 420 W
Features - Output power capacity - 0.7 kVA
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 125 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL)
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Name - CyberPower BR700ELCD-FR
Operational conditions - Non-operating altitude - 0 - 3000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Modem (RJ-11) ports - 2
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Producer - CyberPower
producerCode - BR700ELCD-FR
ProducerCode - BR700ELCD-FR
productName - CyberPower BR700ELCD-FR uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 420 W 8 AC outlet(s)
productSize - Normal
ShortDescription -
sizeX - 325
sizeY - 230
sizeZ - 160
Technical details - Compliance certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 5880
Weight & dimensions - Depth - 288 mm
Weight & dimensions - Height - 118 mm
Weight & dimensions - Weight - 5.3 kg
Weight & dimensions - Width - 166 mm
