Accessories included -
Active power - 900 W
Apparent power - 1000 VA
Backup time (100% load) - 5 min
Battery - Battery capacity - 7.2 Ah
Battery - Battery recharge time - 4 h
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 3
Battery capacity - 7.2 Ah
Brand - Legrand
BrandPartCode - 310170
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 0 s
Chassis type - Rack
Chassis type - Tower
Color - Black
Color - Gray
Description - Online with double conversion VFI-SS-111
Sinusoidal voltage waveform
Power factor PF = 0.9
Conventional UPS in RACK/TOWER 2U version
LCD panel
Graphic interface for the user
EPO
USB-RS232
6x IEC C13 output sockets
IEC C14 input socket
Automatic and manual bypass (variant)
High efficiency (up to 90%)
optional:
WEB SNMP
RACK KIT
EXTERNAL BATTERY PANELS
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 530 mm
dimension height - 560 mm
Dimensions - 440 x 88 x 405 mm
dimension weight - 16200 g
dimension width - 220 mm
ean - 3414970826923
Environment requirements - Working temperature 0-40°C
Degree of protection IP 21
Working humidity 20-80%
Sound intensity at a distance of 1m
Features - Auto shut-off - No
Features - Crest factor - 3:1
Features - Efficiency - 90%
Features - Efficiency (ECO mode) - 97%
Features - Emergency Power Off (EPO) - Yes
Features - Input current Total Harmonic Distortion (THD) - 3%
Features - Input frequency - 47/63 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 176 V
Features - Input power factor - 0.99
Features - Management protocols - Network management,Simple Network Management Protocol (SNMP)
Features - Noise level - 50 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 232 V
Features - Output operation voltage (min) - 228 V
Features - Output power - 900 W
Features - Output power capacity - 1 kVA
Features - Output power factor - 0.9
Features - Output voltage regulation - 1%
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Potential-free output - No
Features - Power source type - AC
Features - Surge energy rating - 1145 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 3414970826923
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 0 s
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C14
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Master (outer) case gross weight - 22.3 kg
Logistics data - Master (outer) case height - 220 mm
Logistics data - Master (outer) case length - 550 mm
Logistics data - Master (outer) case width - 520 mm
Logistics data - Pallet net height - 113.9 cm
Logistics data - Pallet net length - 100 cm
Logistics data - Pallet net weight - 223 kg
Logistics data - Pallet net width - 120 cm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet - 10 pc(s)

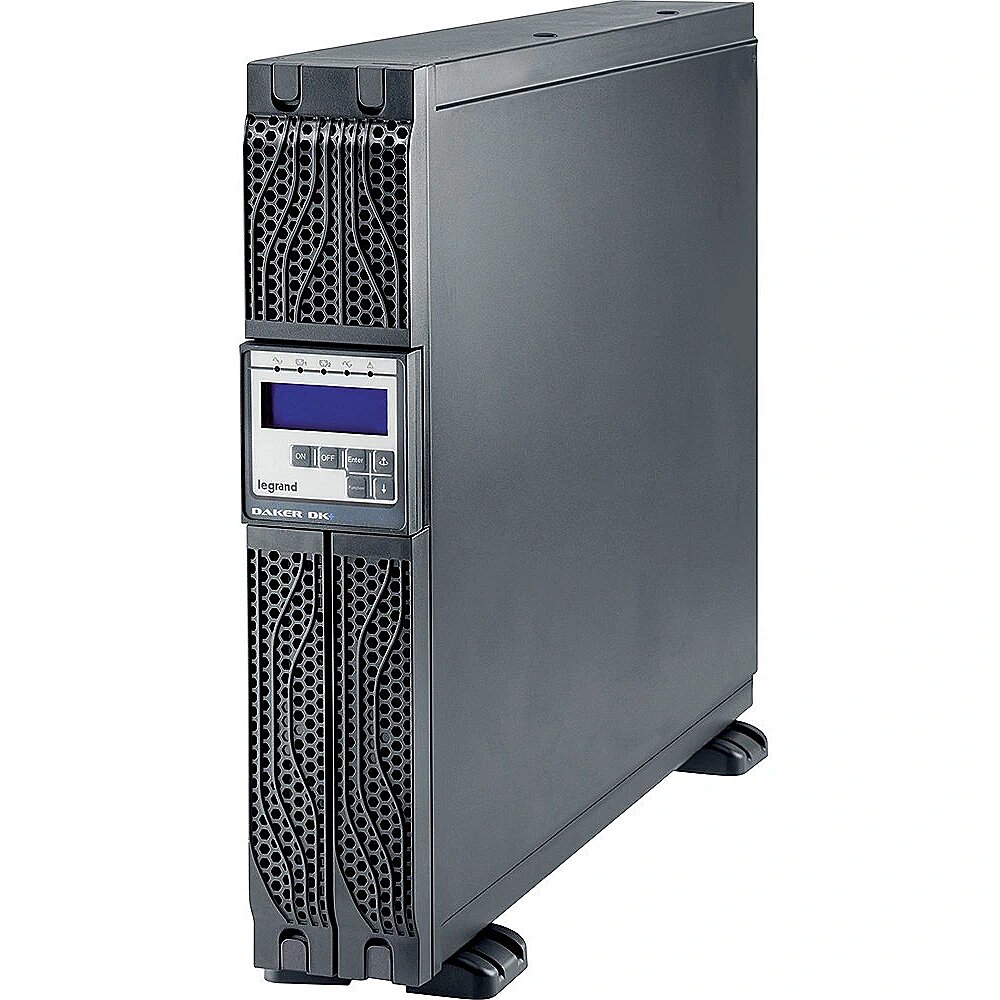

LongDesc - Daker DK UPS Plus is a single phase uninterruptible power supply with high frequency PWM technology, Double Conversion OnLine.It delivers a rated power of 1000-2000-3000-5000-6000-10000VA, equipped with valve-regulated, hermetically-sealed accumulator batteries, contained in a specific compartment inside the UPS or in one or more external cabinets.With the reversible screen, the Daker DK Plus UPS can be used in both tower and 19" rack configuration.
LongProductName - 19" Rack Type On-Line double conversion UPS designed for IT equipments, servers and voice/data networks. Legrand Daker DK+ has a rack/tower convertible chassis and screen.
LongSummaryDescription - Legrand Daker DK+ UPS DAKER DK PLUS 1000VA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 7.2 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 405 mm, Height: 88 mm
name - UPS DAKER DK+ 1KVA 310170
No. of batteries - 0
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Certifications: EN 62040-1, EN 62040-2, EN 62040-3
DAKER DK+ is managed by a microprocessor and is able to manage alarms and other functions described below via the control panel and LCD display:
Normal work
The output frequency is not synchronized with the input
Work on the battery
Work in Bypass mode
Damaged power module
Overload
General anomaly
Neutral connection with the ground
End of autonomy
Output power ports - 6 x IEC-C13
Packaging data - Package depth - 15.7 mm
Packaging data - Package height - 440 mm
Packaging data - Package weight - 21.2 kg
Packaging data - Package width - 88 mm
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB port - Yes
producer - Legrand
ProductName - UPS DAKER DK PLUS 1000VA
ShortSummaryDescription - Legrand Daker DK+ UPS DAKER DK PLUS 1000VA, Double-conversion (Online), 1 kVA, 900 W, Sine, 176 V, 280 V
Software - YES - for downloading from the site: http://ups.legrand.pl/software/
Special functions - EPO
Title - Legrand Daker DK+ UPS DAKER DK PLUS 1000VA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)
Transfer time (max) - 0 s
UPS Architecture - on-line double conversion
URL - https://ups.legrand.com/
vendpn - 310170
Voltage - 12 V
WarrantyInfo -
Weight - 16 kg
Weight & dimensions - Depth - 405 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 16 kg
Weight & dimensions - Width - 440 mm
