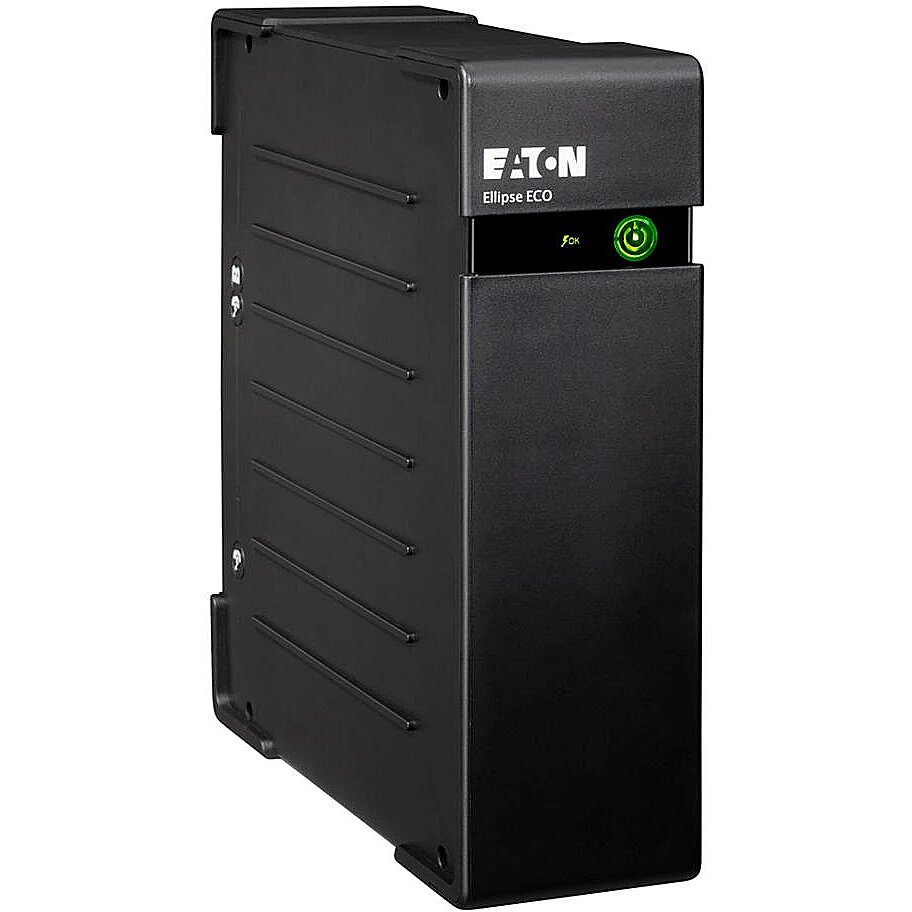

Eaton EL650FR, 650VA 400W

Name: Eaton EL650FR, 650VA 400W
Brand: Eaton
SKU: 209330
Price: 133.44 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 209330 Product code: EL650FR

Can be ordered 5 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost 1.99 €: 28.03.2025
Delivery to Omniva parcel locker 1.99 €: 28.03.2025
Courier delivery 3.99 €: 28.03.2025

Main product parameters All parameters

Battery capacity (VA): 650 VA
Output power (W): 400 W

Display characteristics

Display : Nav

Basic information

Battery capacity (VA) 650 VA

The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.

Battery type : Lead acid

Charging time (hours) : Nav norādīts

Output power (W) : 400 W

Ports and equipment

Number of nests (total) : 4

Number of sockets (Battery Backup) : 3

RJ-45 : 2

Socket type : Schuko

USB : 0

More detailed specification

Accessories included -
Active power - 400 W
Apparent power - 650 VA
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - RJ-11
Description - Eaton Ellipse ECO 650 FRThe Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Full specification: http://powerquality.eaton.com/EL650FR.aspx?CX=101
Designation - CE+WEEE
dimension depth - 140 mm
dimension height - 325 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 4170 g
dimension width - 285 mm
ean - 3553340620614
Eans - 3553340620614
Environment requirements -
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Name - Eaton Ellipse ECO 650 FR
name - Ellipse ECO 650 FR EL650FR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (6 minutes)
Output power ports - 4 x C/E type
producer - Eaton
Producer - Eaton
ProducerCode - EL650FR
ShortDescription - 650 VA / 400 W
Software -
Special functions - - Easy installation in an office environment
- Protecting data line
- Automatic switch
- Indicators LED + audible alarm
- Battery test
- Cold start
UPS Architecture - off-line (standby)
vendpn - EL650FR
Video -
Weight - 3.6 kg
