ID: 209329
Product code: EL500FR
Can be ordered 21 units Availability: 14 days after order approval
Warranty: 2 years

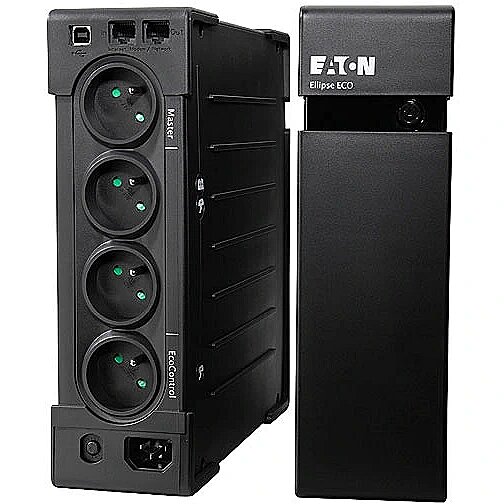

Eaton EL500FR, 500VA 300W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 02.05.2025
- Delivery to Omniva parcel locker 1.99 €: 02.05.2025
- Courier delivery 3.99 €: 02.05.2025
Main product parameters All parameters
- Battery capacity (VA): 500 VA
- Output power (W): 300 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
500 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Nav norādīts
Output power (W)
: 300 W
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: Schuko
USB
: 0
More detailed specification
Accessories included -
Active power - 300 W
Apparent power - 500 VA
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
Charging time - 4 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - RJ-11
Description - Eaton Ellipse ECO 500 FR The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Full specification avaiable at manufacturers website: http://powerquality.eaton.com/EL500FR.aspx?CX=101
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Designation - CE+WEEE
dimensionalWeight - 2553
dimension depth - 400 mm
dimension height - 140 mm
Dimensions - - Height: 263 mm
- Width: 81 mm
- Depth: 235 mm
dimension weight - 3438 g
dimension width - 360 mm
ean - 3553340620515
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Standby (Offline)
Filters / protection - Data line
Filters / protection - Overdischarge
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Input power ports - IEC-C14
Logistics data - Harmonized System (HS) code - 85078000
name - Ellipse ECO 500 FR EL500FR
Number of phases input - 1 (230V)
Other features - - Input voltage range: 184 - 264V
- 3 output sockets with backup and protection + 1 with protection
- Replaceable sealed lead-acid batteries
- Energy-efficient build
- Time: 50% (9 min), 70% (5 minutes)
Other features - Input connection type - FR
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
Output power ports - 4 x C/E type
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
producer - Eaton
producerCode - EL500FR
productName - Eaton Ellipse ECO 500 FR uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)
productSize - Normal
sizeX - 320
sizeY - 140
sizeZ - 285
Software -
Special functions - - Easy installation in an office environment
- Protecting data line
- Automatic switch
- LED indicators + audible alarm
- Battery test
- Cold start
UPS Architecture - off-line (standby)
vendpn - EL500FR
Video -
warrantyLength - 24
warrantyType - F
Weight - 2.9 kg
weight - 3510
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 2.9 kg
Weight & dimensions - Width - 81 mm
