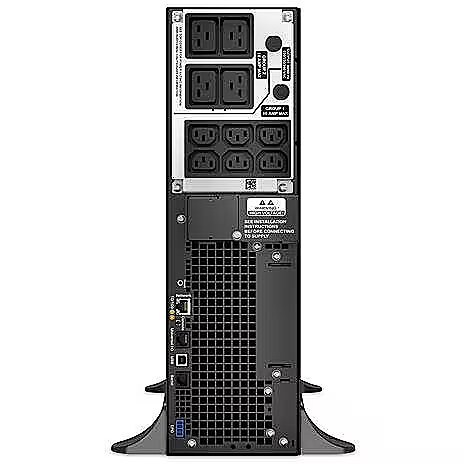

APC Smart-UPS SRT5KXLI 5000VA, 4500W

Accessories included - - Documentation CD
- Installation guide
- Removable support feet
- Warranty card
Active power - 4500 W
Apparent power - 5 kVA
ARTIKEL1 - APC SMART-UPS SRT 5000VA 230V
ARTIKEL2 - IN
Backup time (100% load) - 4 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 845 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SRT5KXLI
Breite - 0.65
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, CE Mark
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - Contact Closure
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - SmartSlot
Depth, mm - 719
Description - APC SMART-UPS SRT 5000VA 230V
Description - APC Smart-UPS SRT 5000VA 230VAPC Smart-UPS On-Line, 4500 Watts/5000 VA, Input 230V/Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Design - Certification - REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Design - Display type - LCD
Design - International Protection (IP) code - IP20
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 800 mm
dimension height - 450 mm
Dimensions - - Height: 432 mm
- Width: 130 mm
- Depth: 719 mm
dimension weight - 63600 g
dimension width - 200 mm
ean - 731304301615
EAN - 0731304301615
EANCode - 0731304301615
Eans - 731304301615
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95% no %
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95% no %
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 55.0 dBA
- Online thermal dissipation: 931.0 BTU/hr
- Protection Class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.1%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 4500 W
Features - Output power capacity - 5 kVA
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 55
Gross Weight Kg - 63,6
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304301615
GTIN - 0731304301615
guarantee - 36
guarantee_type - external
Height - 620.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.35
HSTNUMMER - SRT5KXLI
Input connection - Hard Wire 3 wire (1PH+N+G)
Input frequency, Hz - 45 - 65
Input power ports - Hard Wire 3-wire (1PH + N + G)
Laenge - 1
Length - 330.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
LongProductName - Smart-UPS SRT 5000VA 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 12 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Product colour: Black, Display type: LCD, LED indicators: Status. Width: 130 mm, Depth: 719 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT5KXLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT5KXLI
Maximum power, W - 4500
Name - APC Smart SRT5KXLI
name - SRT5KXLI Smart-UPS SRT 5000VA Tower 230V
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Nominal Input Voltage: 230V
- Input frequency: 40-70 Hz (auto sensing)
- Input Connections: Hard Wire 3 wire (1PH+N+G)
- Input voltage range for main operations: 160-275 V
- Input voltage adjustable range for mains operation: 100-275 (half load) V
- Other Input Voltages: 220, 240
- Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
- Surge energy rating: 480 Joules
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 2%
- Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
- Other Output Voltages: 220, 240
- Load Crest Factor: 3 : 1
- Topology: Double Conversion Online
- Waveform type: Sine wave
- Bypass: Internal Bypass (Automatic and Manual)
Other features - Packaging content - Comms cable
Removable support feet
Web/SNMP Management Card
Output interface - 6 x IEC 320 C13, 4 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 4500
Output power capacity (VA) - 5000
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 12 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
Producer - APC
ProducerCode - SRT5KXLI
ProductName - Smart-UPS On-Line
Runtime - 4 min (full load) / 12 min (half load)
ShortDescription -
Short description - APC Smart-UPS SRT 5000 VA SRT5KXLI
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V
Software -
Special functions - - LCD graphics display
- Flash upgradeable firmware
- Rack/Tower convertible
- Plug-and-Play external batteries
- Save time with easy and convenient remote accessibility.
- Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network
- Low operating and maintenance costs with proven reliability and intelligent battery management.
- Avoids costly power problems by keeping your IT equipment and data protected and available.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Cold-start capable
- Generator compatible
- Safety-agency approved
- Frequency and voltage regulation
- Resettable circuit breaker
- Input power factor correction
- Power conditioning
- Scalable runtime
- Temperature-compensated battery charging
- Automatic internal bypass
- Automatic restart of loads after UPS shutdown
- Hot-swappable batteries
- Intelligent battery management
- Automatic self-test
- User-replaceable batteries
- Disconnected battery notification
- Predicitive failure notification
- Audible alarms
- Serial connectivity
- LED status indicators
- SmartSlot
- InfraStruXure Manager Compatible
- Network manageable
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 480
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 12 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT5KXLI&tab=models
vendpn - SRT5KXLI
WarrantyInfo - 3 years
Weight - 30.500000
Weight - 54.55 kg
Weight & dimensions - Depth - 719 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 960 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 63.6 kg
Weight & dimensions - Package width - 610 mm
Weight & dimensions - Weight - 54.4 kg
Weight & dimensions - Width - 130 mm
Weight, kg - 54.55
Width - 960.000000
Width, mm - 130
