ID: 165183
Product code: SMT1000RMI2UC
In stock 9 units
Warranty: 3 years

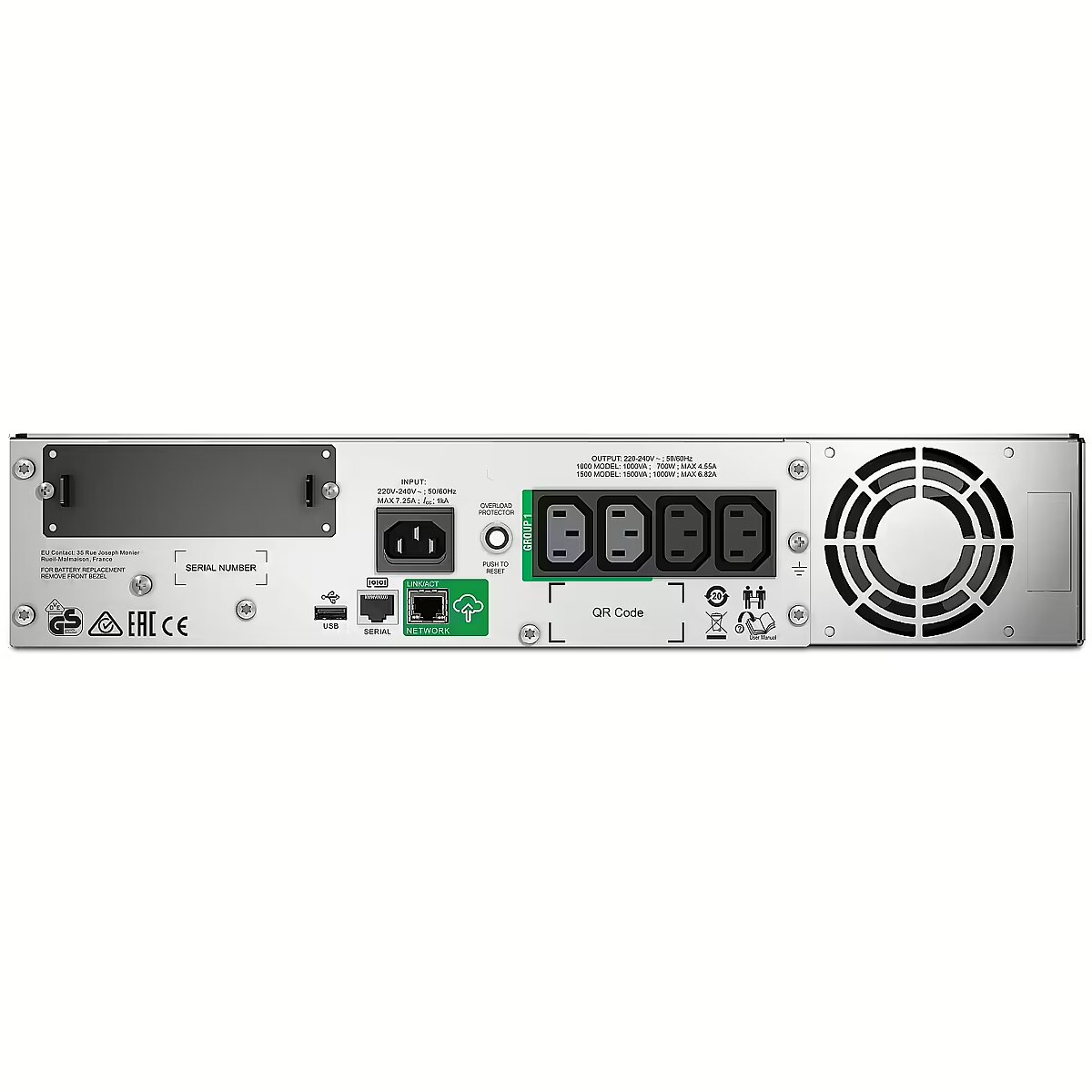

APC Smart-UPS SMT1000RMI2UC 1000VA, 700W, IEC, 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Courier delivery 3.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
- Battery capacity (VA): 1000 VA
- Output power (W): 700 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 3h
Output power (W)
: 700 W
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - Software CD Documentation CD Installation Guide Mounting rails for rack mounting Smart-UPS signaling cable USB cable
Active power - 700 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 1000 VA
ARTIKEL1 - APC SMART-UPS 1000VA LCD
ARTIKEL2 - RM 2U 230V WITH SMARTCONNECT IN
Backup time (100% load) - 8.7 min
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Replacement battery cartridge - APCRBC132
Battery recharge time, h - 3
BatteryType -Maintenance-free sealed Lead-Acid battery with suspended electrolyte leakproof
Brand - APC
BrandPartCode - SMT1000RMI2UC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , RCM , UL 1778 , VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 477 mm
Depth, mm - 457
Description - APC SMART-UPS 1000VA LCD RM 2U 230V WITH SMARTCONNECT
Description - APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design - Certification - EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 240 mm
dimension height - 605 mm
Dimensions - 86 x 432 x 477 mm
dimension weight - 31500 g
dimension width - 595 mm
ean - 731304332985
EAN - 0731304332985
EANCode - 0731304332985
Eans - 0731304332985
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the device 45.0dBA Heat dissipation in online mode 56.0BTU / hour.
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 700 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Response time - 10 ms
Features - Surge energy rating - 459 J
Features - Surge protection - Yes
Features - Temperature voltage compensation - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal
GrossWeight - 28.000 kg
Gross Weight Kg - 31,45
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304332985
GTIN - 0731304332985
guarantee - 24
guarantee_type - external
Height - 86 mm
Height - 250.000000
Height, mm - 89
HERSTELLER - APC
HSTNUMMER - SMT1000RMI2UC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
Input current, A - 0
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 160-286 V
Input voltage, V - 160 - 286
InterfacePorts - RJ-45 Serial, SmartSlot, USB
Length - 600.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongProductName - Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
LongSummaryDescription - APC SMT1000RMI2UC. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 477 mm, Height: 86 mm
Manufacturer - APC
Manufacturer Code - SMT1000RMI2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT1000RMI2UC
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-1000VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT1000RMI2UC?isCurrentSite=true
Maximum power, W - 700
MPN - SMT1000RMI2UC
Name - APC Smart-UPS Rack SMT1000RMI2UC 1000VA 700W 2HE LCD
Name - APC Smart SMT1000RMI2UC
name - Uninterruptible Power Supply SMT1000RMI2UC 1kVA/700W 2U SmartConne
Noise level, dB - 45
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Confirmation of conformity CSA, EAC, EN / IEC 62040-1, EN / IEC 62040-2, RCM, UL 1778, VDE
OutputConnections -(2) IEC Jumpers (Battery Backup) (4) IEC 320 C13 (Battery Backup)
OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 2 x IEC Jumpers (Battery Backup)
4 x IEC 320 C13 (Battery Backup)
Output power, W - 700
Output power capacity (VA) - 1000
Output power ports - 4 x IEC-C13
OutputVoltage - 220V, 230V, 240V
PackageContents -CD with software Documentation CD Installation guide Rack Mounting brackets USB cable
Packaging data - Cables included - RS-232, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
PowerVAW - 1000 VA
PowerW - 700 W
ProdDesc - APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT1000RMI2UC
ProductName - SMT1000RMI2UC
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT1000RMI2UC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - 31.3/8.7
ShortDescription -
Short description - APC Smart-UPS 1000 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC SMT1000RMI2UC, Line-Interactive, 1 kVA, 700 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 459
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC SMT1000RMI2UC uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 4 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/sk/en/products/APC-Smart-UPS-Line-Interactive-1000VA-Rackmount-2U-230V-4x-IEC-C13-outlets-SmartConnect-Port-SmartSlot-AVR-LCD/P-SMT1000RMI2UC
USB - Yes
vendpn - SMT1000RMI2UC
Warranty - 3 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 22.500 Kg
Weight - 27.1 kg
Weight - 32
Weight - 32.000000
Weight & dimensions - Depth - 477 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 603 mm
Weight & dimensions - Package height - 251 mm
Weight & dimensions - Package weight - 31.4 kg
Weight & dimensions - Package width - 594 mm
Weight & dimensions - Weight - 22.5 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 28.18
Width - 432 mm
Width - 600.000000
Width, mm - 432
Active power - 700 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 1000 VA
ARTIKEL1 - APC SMART-UPS 1000VA LCD
ARTIKEL2 - RM 2U 230V WITH SMARTCONNECT IN
Backup time (100% load) - 8.7 min
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Replacement battery cartridge - APCRBC132
Battery recharge time, h - 3
BatteryType -
Brand - APC
BrandPartCode - SMT1000RMI2UC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , RCM , UL 1778 , VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 477 mm
Depth, mm - 457
Description - APC SMART-UPS 1000VA LCD RM 2U 230V WITH SMARTCONNECT
Description - APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design - Certification - EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 240 mm
dimension height - 605 mm
Dimensions - 86 x 432 x 477 mm
dimension weight - 31500 g
dimension width - 595 mm
ean - 731304332985
EAN - 0731304332985
EANCode - 0731304332985
Eans - 0731304332985
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the device 45.0dBA Heat dissipation in online mode 56.0BTU / hour.
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 700 W
Features - Output power capacity - 1 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Response time - 10 ms
Features - Surge energy rating - 459 J
Features - Surge protection - Yes
Features - Temperature voltage compensation - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal
GrossWeight - 28.000 kg
Gross Weight Kg - 31,45
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304332985
GTIN - 0731304332985
guarantee - 24
guarantee_type - external
Height - 86 mm
Height - 250.000000
Height, mm - 89
HERSTELLER - APC
HSTNUMMER - SMT1000RMI2UC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
Input current, A - 0
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 160-286 V
Input voltage, V - 160 - 286
InterfacePorts - RJ-45 Serial, SmartSlot, USB
Length - 600.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongProductName - Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
LongSummaryDescription - APC SMT1000RMI2UC. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 477 mm, Height: 86 mm
Manufacturer - APC
Manufacturer Code - SMT1000RMI2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT1000RMI2UC
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-1000VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT1000RMI2UC?isCurrentSite=true
Maximum power, W - 700
MPN - SMT1000RMI2UC
Name - APC Smart-UPS Rack SMT1000RMI2UC 1000VA 700W 2HE LCD
Name - APC Smart SMT1000RMI2UC
name - Uninterruptible Power Supply SMT1000RMI2UC 1kVA/700W 2U SmartConne
Noise level, dB - 45
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Confirmation of conformity CSA, EAC, EN / IEC 62040-1, EN / IEC 62040-2, RCM, UL 1778, VDE
OutputConnections -
OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 2 x IEC Jumpers (Battery Backup)
4 x IEC 320 C13 (Battery Backup)
Output power, W - 700
Output power capacity (VA) - 1000
Output power ports - 4 x IEC-C13
OutputVoltage - 220V, 230V, 240V
PackageContents -
Packaging data - Cables included - RS-232, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
PowerVAW - 1000 VA
PowerW - 700 W
ProdDesc - APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT1000RMI2UC
ProductName - SMT1000RMI2UC
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT1000RMI2UC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - 31.3/8.7
ShortDescription -
Short description - APC Smart-UPS 1000 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC SMT1000RMI2UC, Line-Interactive, 1 kVA, 700 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 459
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC SMT1000RMI2UC uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 4 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/sk/en/products/APC-Smart-UPS-Line-Interactive-1000VA-Rackmount-2U-230V-4x-IEC-C13-outlets-SmartConnect-Port-SmartSlot-AVR-LCD/P-SMT1000RMI2UC
USB - Yes
vendpn - SMT1000RMI2UC
Warranty - 3 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 22.500 Kg
Weight - 27.1 kg
Weight - 32
Weight - 32.000000
Weight & dimensions - Depth - 477 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 603 mm
Weight & dimensions - Package height - 251 mm
Weight & dimensions - Package weight - 31.4 kg
Weight & dimensions - Package width - 594 mm
Weight & dimensions - Weight - 22.5 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 28.18
Width - 432 mm
Width - 600.000000
Width, mm - 432
