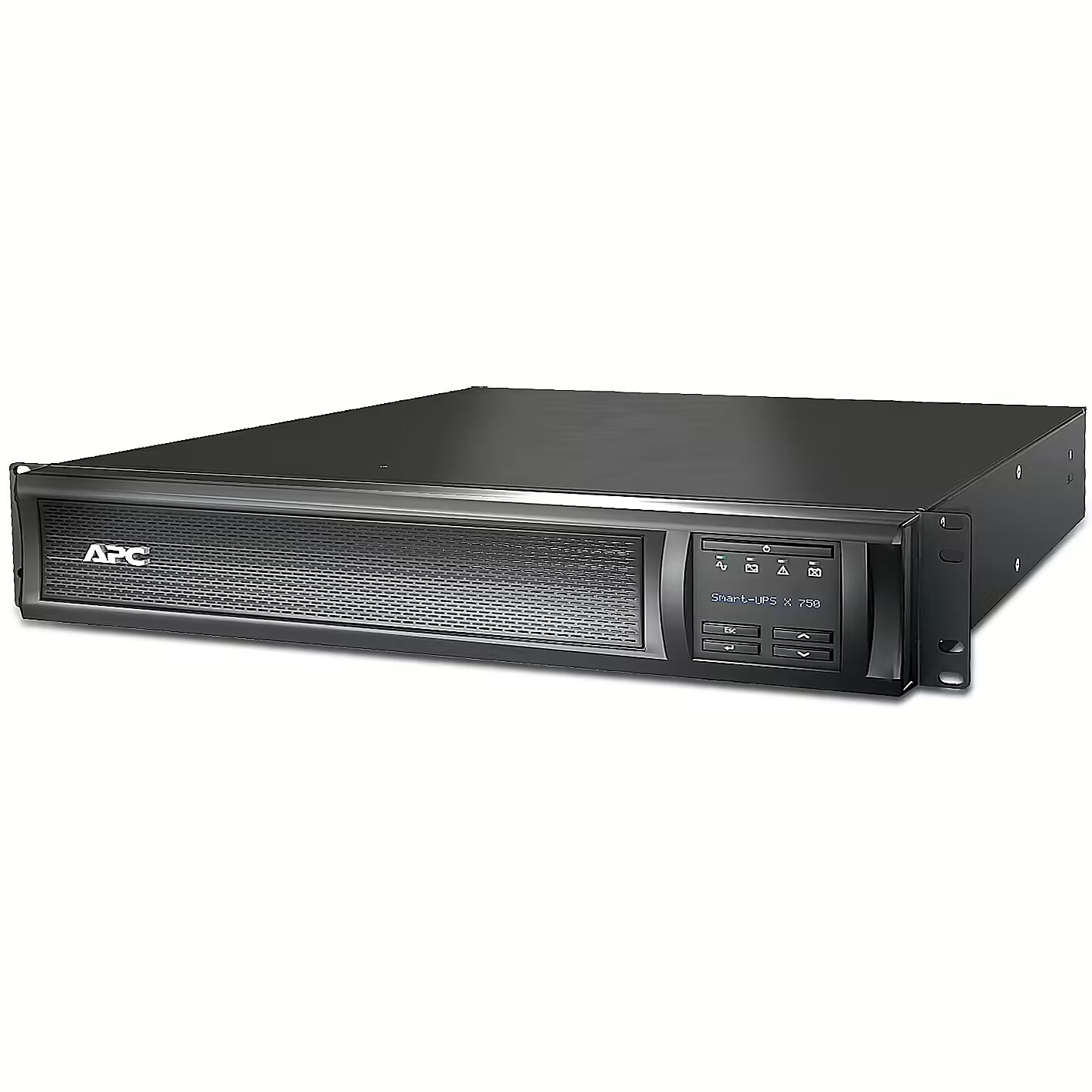

APC Smart-UPS X SMX750I 750VA, 600W, IEC, 2U

Accessories included - - CD with software
- Documentation CD
- Installation guide
- Rack Mounting brackets
- Removable support feet
- Smart UPS signalling RS-232 cable
- User Manual
Active power - 600 W
Alarm -

Alarm when on battery

distinctive low battery alarm

overload continuous tone alarm

Apparent power - 750 VA
ARTIKEL1 - APC SMART-UPS X 750VA
ARTIKEL2 - RACK/TOWER LCD 230V IN
Backup time (100% load) - 14.2 min
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMX750I
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - C-tick, CE, EN 50091-1, EN 50091-2, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - Smart-Slot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
ControlPanel - Multi-function LCD status and control console
Depth - 490 mm
Depth, mm - 490
Description - APC SMART-UPS X 750VA RACK/TOWER LCD 230V
Description - APC Smart-UPS X 750VA Rack/Tower LCD 230V
APC Smart-UPS,600 Watts /750 VA, Input 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U
Designation - CE+WEEE
dimension depth - 260 mm
dimension height - 600 mm
Dimensions - - Height: 89 mm
- Width: 432 mm
- Depth: 490 mm
- Rack Height 2U
dimension weight - 26180 g
dimension width - 620 mm
ean - 731304268581
EAN - 0731304268581
EANCode - 0731304268581
EAN_code - 0731304268581
Environment requirements - - Operating Environment: 0 - 40 °C
- Operating Relative Humidity: 0 - 95%
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95%
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 40.00 dBA
- Online Thermal Dissipation: 69.00 BTU/hr
Filters / protection - Overdischarge
Filters / protection - Overload
FormFactor -

Rack

Tower

Form factor - Rack / Tower
Frequency range, Hz - 47 - 63
Gewicht - 25
GrossWeight - 26.200 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304268581
GTIN - 0731304268581
guarantee - 36
guarantee_type - external
Height - 89 mm
Height - 242.000000
Height, mm - 89
HERSTELLER - APC
HSTNUMMER - SMX750I
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230V
InterfacePorts - -
Length - 588.000000
Logistics data - Total carbon footprint (kg of CO2e) - 1030.49
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This prevents data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX48RMBP2U).A runtime of several hours is even possible.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.Easy to useThis APC Smart-UPS SMX is easy to operate thanks to the LCD screen.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Easy to useThis APC Smart-UPS SMX is easy to operate thanks to the LCD screen.Rack/tower convertibleThe APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (2U) or place it upright. If you prefer to mount it on all four posts of the rack, order the optional SU032A.Extend the lifespanThe internal battery cartridge (APCRBC116) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX750I or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.Warranty extensionThe factory warranty of the SMX750I is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You can also switch off non-critical loads; this extends the runtime for critical equipment.This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
LongDesc - APC Smart-UPS, 600 Watts / 750 VA,Input 230V / Output 230V, Extended runtime model, Rack Height 2 U
LongProductName - APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable runtime
LongSummaryDescription - APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable runtime. Sustainability certificates: Green Premium
Manufacturer - APC
ManufacturerPartNumber - SMX750I
Manufacturer_code - SMX750I
MANUFDATASHEET - http://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX750I&tab=models
Maximum power, W - 600
MPN - SMX750I
Name - APC Smart-UPS 750VA SMX750I LCD
Name - APC Smart-UPS Rack/Tower SMX750I 750VA 600W
name - SMX750I SMART X 750VA USB/SERIAL/LCD/RT
No. of batteries - 1
Noise level, dB - 40
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Other features - - Output Power Capacity: 600 Watts
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 5%
- Waveform Type: Sine wave
- Output Connections: (2) IEC Jumpers
- Available SmartSlot™ Interface Quantity: 1
- Surge energy rating: 645 Joules
OutputConnections -

(8) IEC 320 C13

(2) IEC Jumpers

OutputFrequency - 47 - 63 Hz
Output interface - 8 x IEC 320 C13, 2 x IEC Jumpers
Output power, W - 600
Output power capacity (VA) - 750
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Installation guide

Rack Mounting brackets

Removable support feet

Smart UPS signalling RS-232 cable

User Manual

PeriodofWarranty - 3 Y
PowerVAW - 750 VA
PowerW - 600 W
ProdDesc - APC Smart-UPS X 750VA Rack/Tower LCD 230V
producer - APC
ProductName - APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable runtime
ProductPicture - http://www.tdbaltic.ee/images/ds/SMX750I.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds/SMX750I-2.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds/SMX750I-3.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds/SMX750I-4.jpg
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - -
Runtime - 37.8/14.2
ShortSummaryDescription - APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable runtime, Green Premium
SmartSlot - Yes
Software -
Special functions - - EPO
- High online efficiency
- Green mode
- High frequency design
- Energy meter
- Predictive replace battery date
- Intuitive LCD interface
- Auto recognition of external batteries
- Single switched outlet group
- Multiple switched outlet groups
- Pure sine wave output on battery
- Scalable runtime
- Cold-start capable
- Plug-and-Play external batteries
- Rack/Tower convertible
- SmartSlot
- Temperature-compensated battery charging
- Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Disconnected battery notification
- Network manageable
- Audible alarms
- LED status indicators
- Serial connectivity
- USB connectivity
- Disconnected battery notification
- User-replaceable batteries
- Hot-swappable batteries
- Predictive failure notification
- Resettable circuit breakers
- Battery failure notification
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Safety-agency approved
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 600
Sustainability - Sustainability certificates - Green Premium
Technical_details - Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime. Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter
Provides actual kilowatt hours of usage for energy conscious users. Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High online efficiency
Reduces utlility costs, generates less heat. EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation. Colour black Device Type Standalone UPS Design (Height Units) 2 Power Rating 750 VA / 600 Watt Input Voltage 160-285 V Buffering Time Full Load: 14.2 minute(s) Half Load: 37.8 minute(s) Outputs Type 1 8x IEC 320 C13 connected to Battery Yes Type 2 2x IEC Jumpers connected to Battery No Alert Messages optical: Multifunctionale LCD-Status- and Steuerungskonsole Operating Temperature Storage Temperature -15 - 45 °C Charging time to 95% (at half load) 3 hour(s) Output V 230 VAC Operating via Battery: 230 VAC (±5 VAC) Product dimensions 432x89x490 mm Weight 26.5 kg
Title - APC Smart-UPS X SMX750I - 750VA, 8x C13 output, USB, expandable runtime
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - -
vendpn - SMX750I
Voltage - 48 V
Warranty - 3 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 22.05 kg
Weight - 22.050 Kg
Weight - 24.95
Weight - 25.170000
Weight - 26,50
Weight, kg - 22.05
Width - 432 mm
Width - 620.000000
Width, mm - 432
