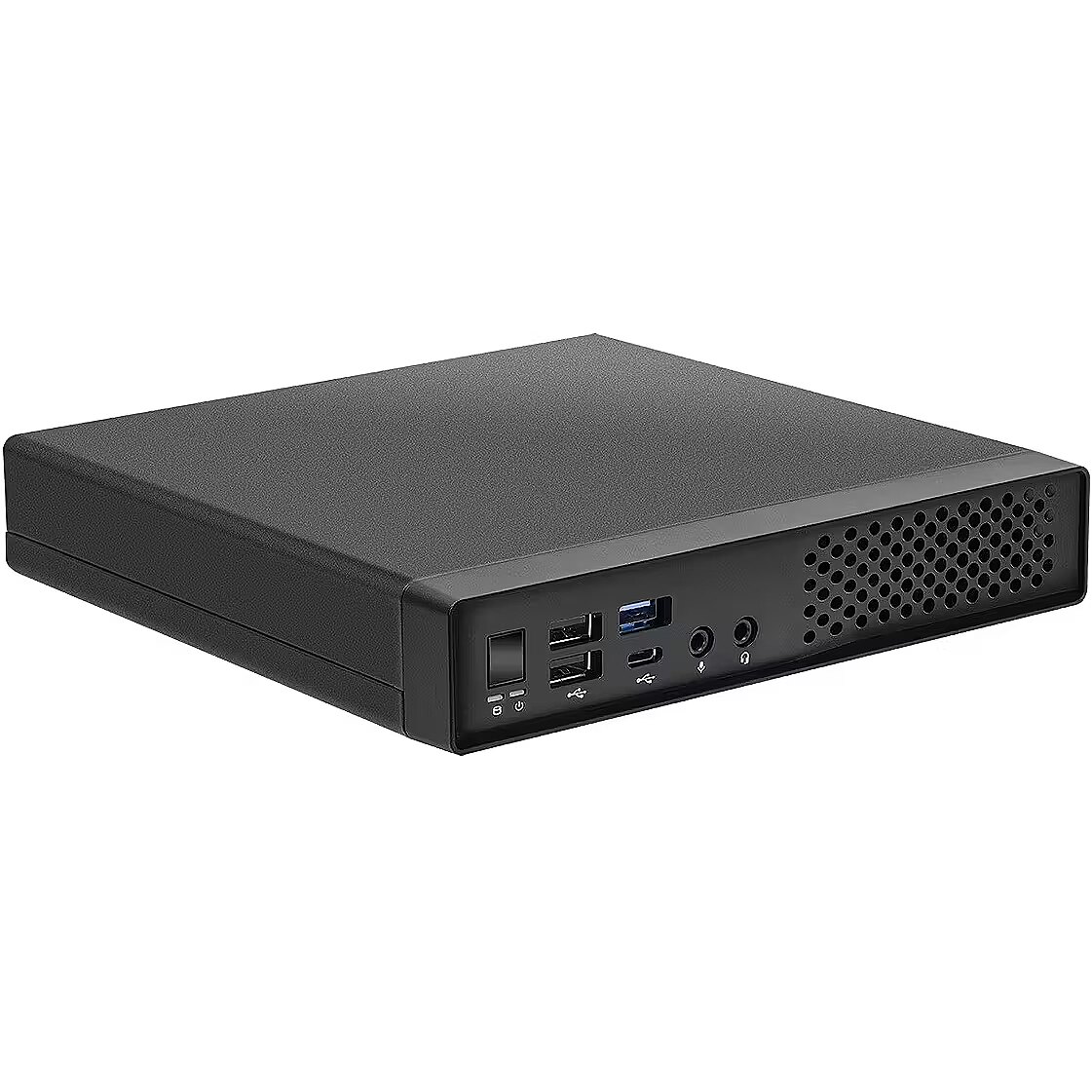

Shuttle Barebone NS02EV2 Black, RK3368, 2GB, 16GB SSD, Android 8.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 806691 Product code: NS02EV2
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
121.60 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 09.12.2024
  • Courier delivery 3.99 €: 09.12.2024
Main product parameters All parameters
  • Processor model: Rockchip RK3368
  • RAM (GB): 2 GB
  • SSD: 16 GB eMMC
  • Video card model: No information
  • OS: Android 8.1
Basic information
Formfactor : Mini-PC
Processor parameters
Processor model : Rockchip RK3368
Random-access memory (RAM)
RAM (GB) : 2 GB
Hard drive
HDD : 0 GB
SSD : 16 GB eMMC
Graphics card
Video card model : No information
Operating system
OS : Android 8.1
Ports and equipment
Optical drive : Nav
More detailed specification
Brand - Shuttle
BrandPartCode - PFB-NS02E041
Category - PCs/Workstations
Certificates - Certification - CE, FCC, BSMI, RCM, VCCI
Certificates - Compliance certificates - RoHS
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Nettop
Design - Housing material - Plastic
Design - Product colour - Black
Design - VESA mounting - Yes
Design - Volume - 0.577 L
EAN - 887993601540
Graphics - Discrete graphics card - No
Graphics - Discrete graphics card model - Not available
Graphics - Graphics card Open GL support - Yes
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - PowerVR SGX6110
Gross Weight Kg - 1,2
GTIN - 887993601540
GTIN - 0887993601540
Logistics data - Harmonized System (HS) code - 84715000
LongDesc - 0.5-litre fanless PC with Android supports HDMI 2.0 and PoE The Shuttle XPC nano NS02EV2 is one of the most affordable models Shuttle's product family of Mini PCs has on offer. It not only convinces by its stunning looks and reliable long-term performance alone, it also comes with an integrated Octa-Core ARM processor and pre-installed Android operating system. Featuring HDMI 2.0, 4x USB 2.0, Gigabit-LAN, WLAN-ac and a built-in card reader, they easily connect to diverse peripheral devices for different kinds of application. The NS02EV2 version includes Power-over-Ethernet (PoE). This product is particularly intended for digital signage and Thin Client applications.
LongProductName - Rockchip RK3368, 2GB DDR3L-SDRAM, 16GB eMMC, LAN, WLAN, Bluetooth, Android 8.1
LongSummaryDescription - Shuttle XPC nano NS02EV2. Processor family: Rockchip, Processor model: RK3368. Internal memory: 2 GB, Internal memory type: DDR3L-SDRAM. Total storage capacity: 16 GB, Storage media: eMMC, Card reader integrated. On-board graphics card model: PowerVR SGX6110. Wi-Fi. Operating system installed: Android 8.1. Power supply: 24 W. Chassis type: Nettop. Product type: Mini PC. Weight: 270 g. Product colour: Black
Manufacturer Code - NS02EV2
Manufacturer Name - Shuttle
Memory - Internal memory - 2 GB
Memory - Internal memory type - DDR3L-SDRAM
Memory - Maximum internal memory - 2 GB
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - LAN controller - Realtek RTL8211F-CG
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Display included - No
Packaging content - VESA mount included - Yes
Performance - Audio chip - Realtek ALC5640-VB
Performance - Password protection - Yes
Performance - Product type - Mini PC
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Line-out - Yes
Ports & interfaces - USB 2.0 ports quantity - 4
Power - Power supply - 24 W
Power - Power supply input frequency - 50 - 60 Hz
Power - Power supply input voltage - 100 - 240 V
Processor - Processor boost frequency - 1.5 GHz
Processor - Processor cores - 8
Processor - Processor family - Rockchip
Processor - Processor manufacturer - Rockchip
Processor - Processor model - RK3368
ProductName - NS02EV2
Short description - Shuttle Barebone NS02EV2 Black (Rockchip RK3368)
ShortSummaryDescription - Shuttle XPC nano NS02EV2, Rockchip, RK3368, 2 GB, DDR3L-SDRAM, 16 GB, Android 8.1
Software - Operating system installed - Android 8.1
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - SD, SDHC, SDXC
Storage - Optical drive type - No
Storage - Storage media - eMMC
Storage - Total storage capacity - 16 GB
Sustainability - Sustainability certificates - ErP
Title - Shuttle XPC nano NS02EV2 Rockchip RK3368 2 GB DDR3L-SDRAM 16 GB eMMC Android 8.1 Nettop Mini PC Black
URL - https://www.shuttle.eu/en/products/nano/ns02ev2
WarrantyInfo -
Weight & dimensions - Depth - 141 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Package weight - 650 g
Weight & dimensions - Weight - 270 g
Weight & dimensions - Width - 141 mm
