Audio - Built-in speaker(s) - Yes
Audio - Number of speakers - 2
Audio - RMS rated power - 2 W
Brand - Shuttle
BrandPartCode - X50V8U3 (BLACK)
Category - PC/Workstation Barebones
Category_1 - Computers and Laptops
Category_2 - Computers - Computers All in One
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - All-in-One
Design - Cooling type - Passive
Design - LED indicators - HDD, Power
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - All-in-One PC barebone
Design - VESA mounting - Yes
Display - Aspect ratio - 16:9
Display - Display brightness - 220 cd/m²
Display - Display diagonal - 39.6 cm (15.6")
Display - Display resolution - 1366 x 768 pixels
Display - HD type - HD
Display - Panel type - LCD
Display - Touchscreen - Yes
EAN_code - 0887993005089
Graphics - Graphics card family - Intel
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® UHD Graphics
GTIN - 887993005089
GTIN - 0887993005089
GTIN - 0887993005218
GTIN - 887993005218
Logistics data - Harmonized System (HS) code - 84713000

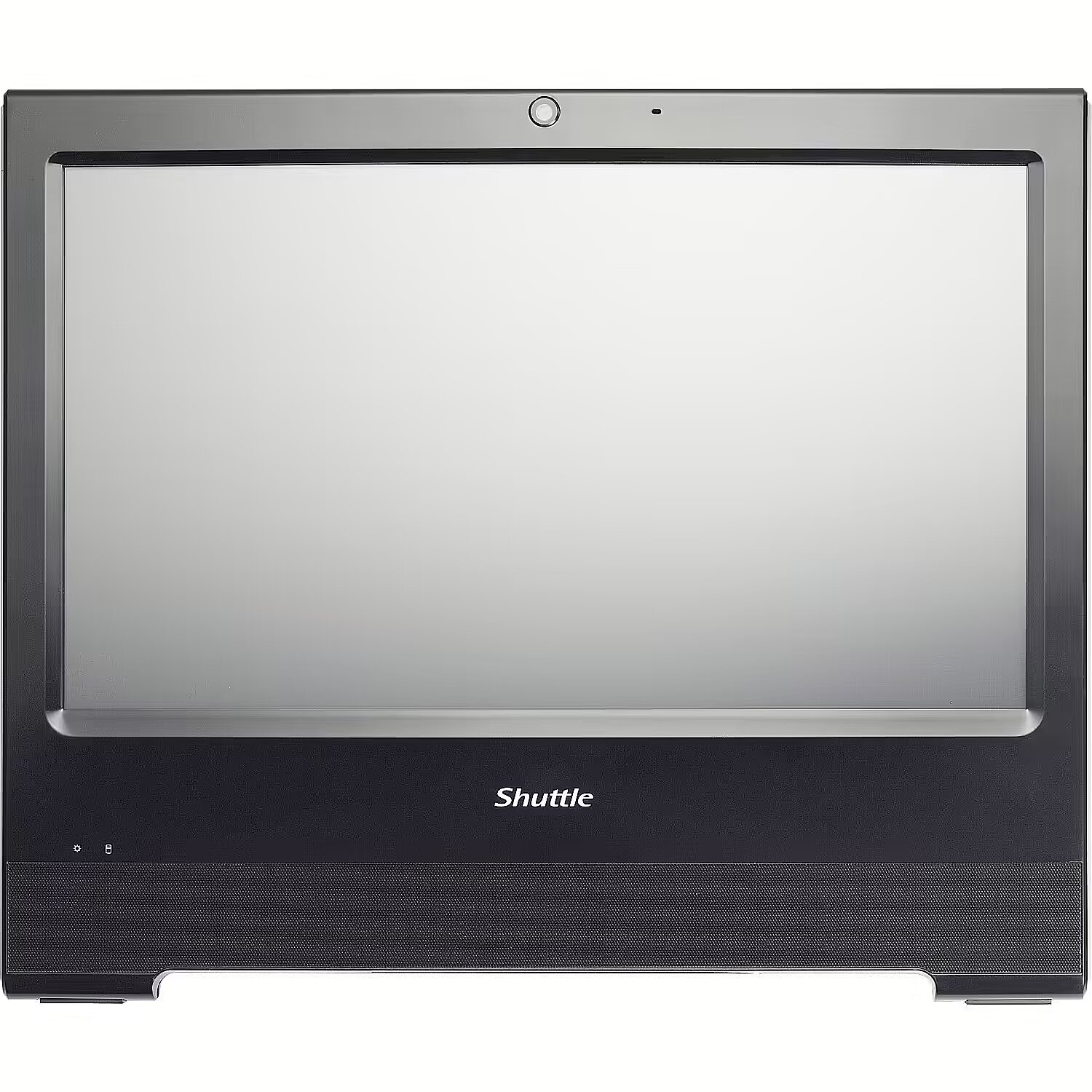

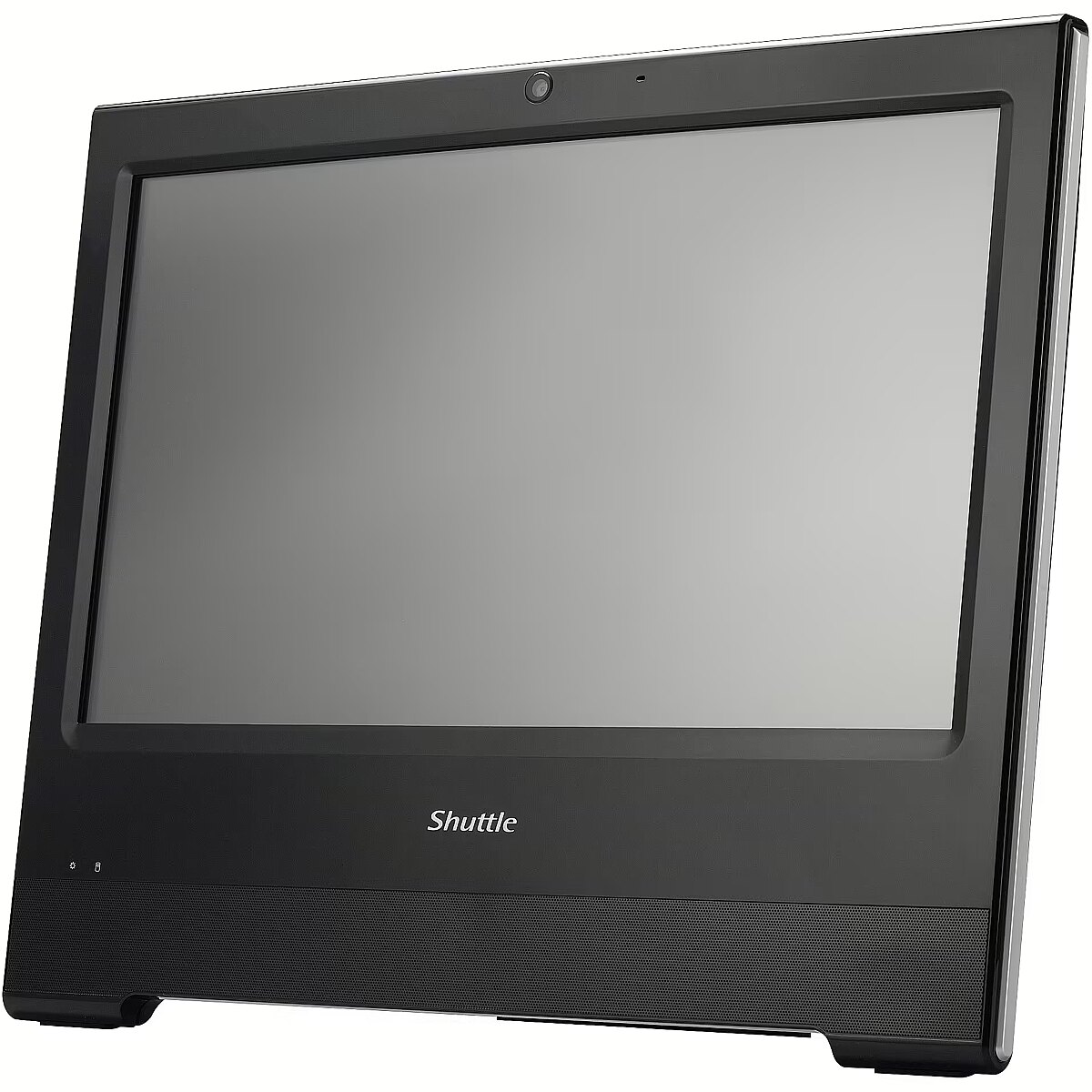

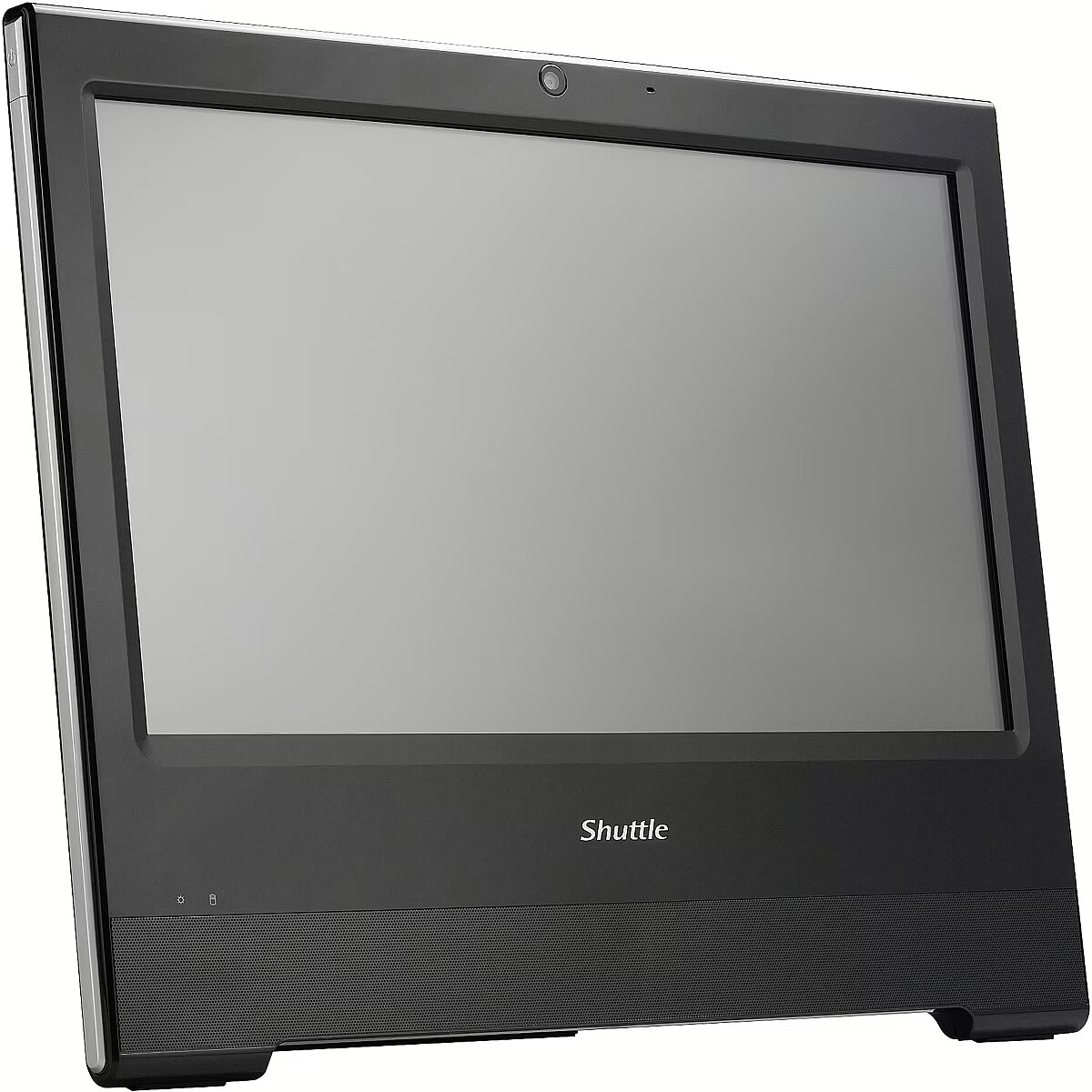

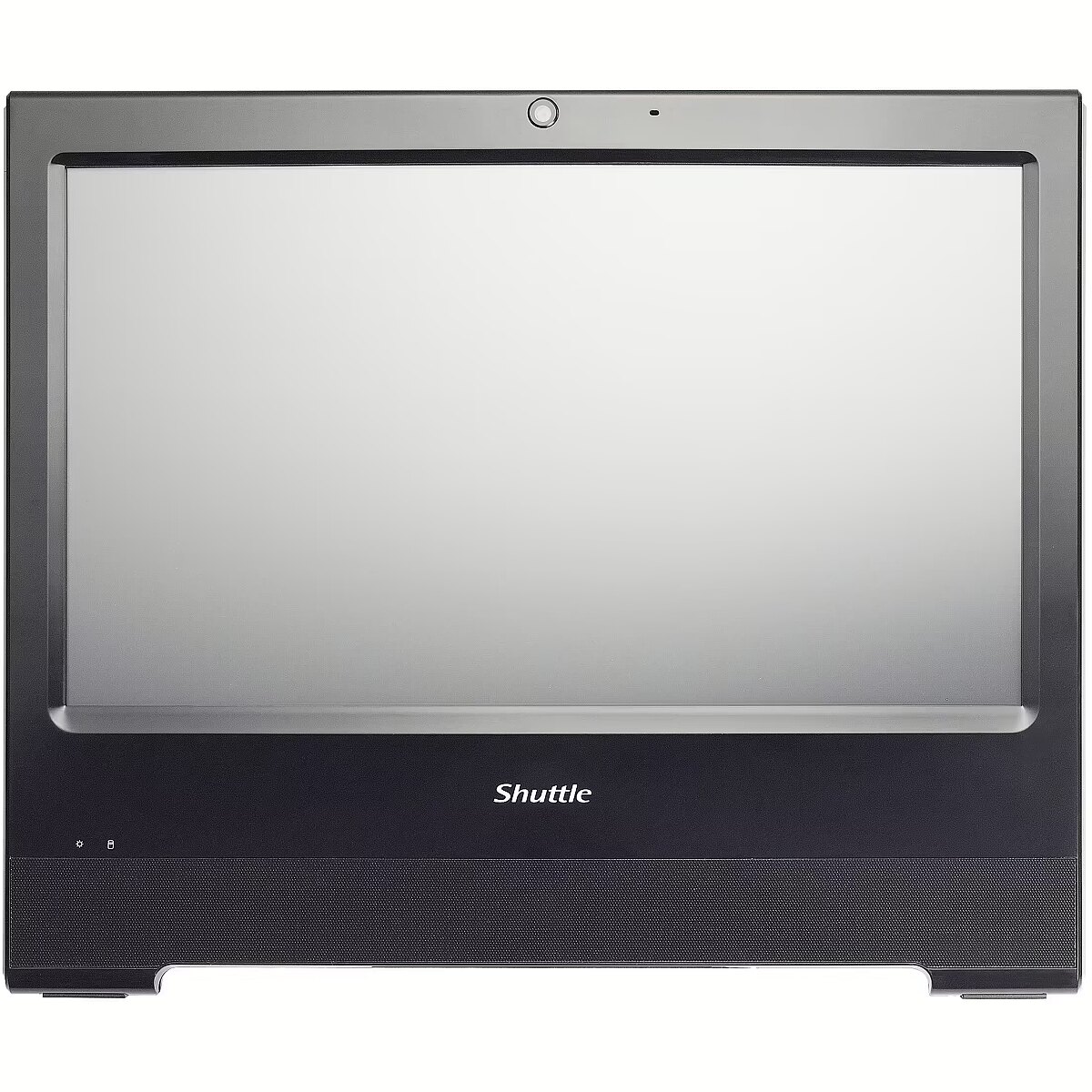

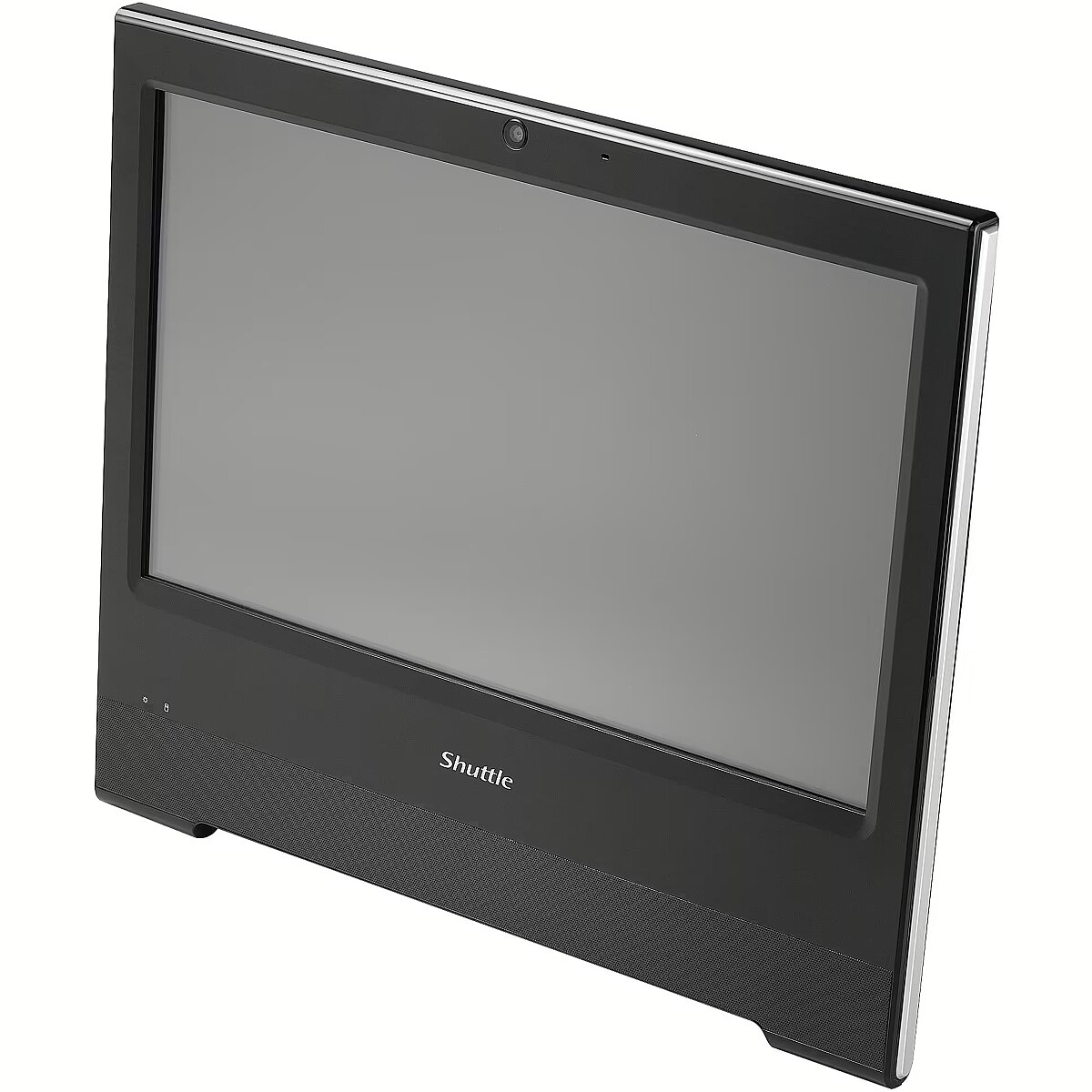

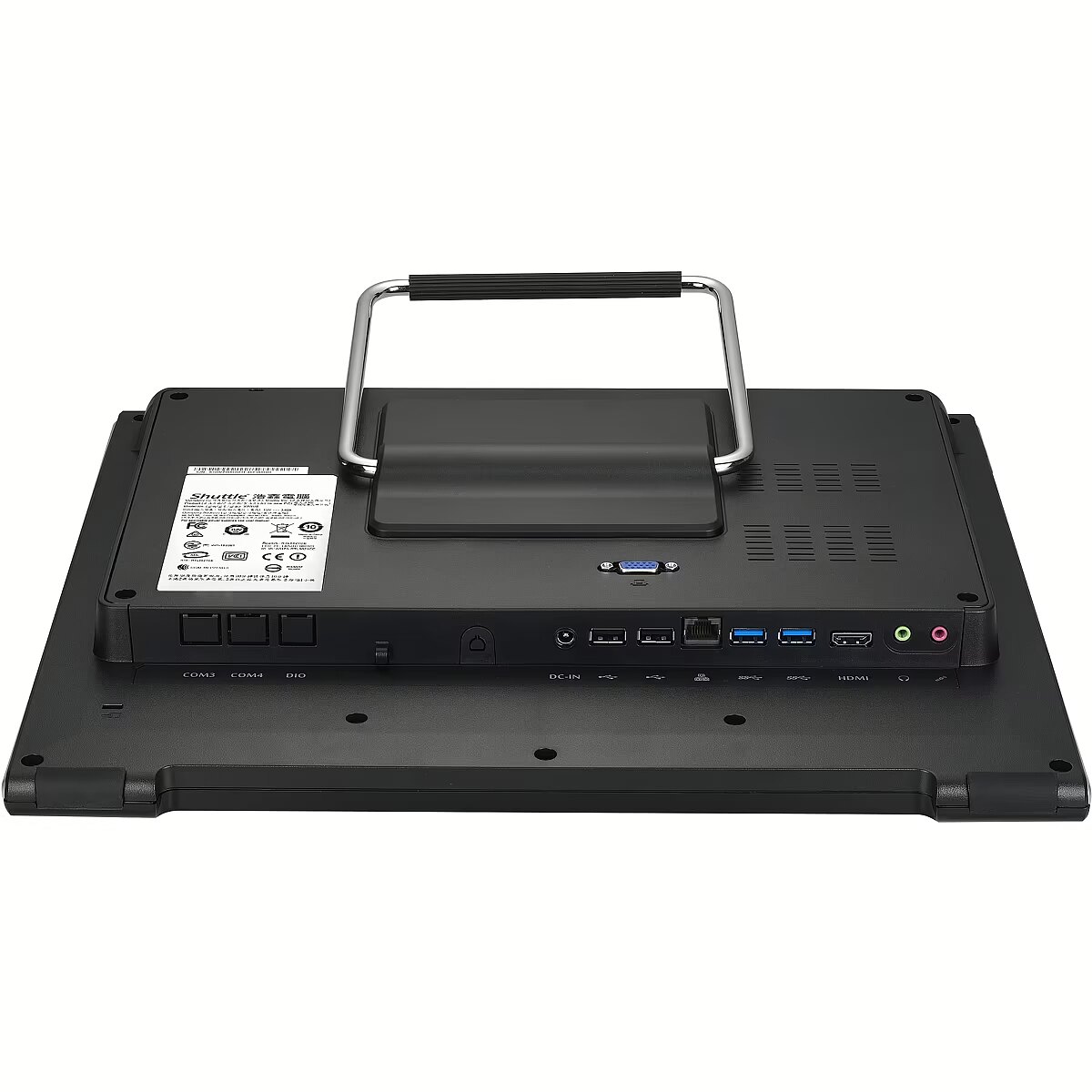

LongDesc - The Shuttle XPC all-in-one X50V8U3 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
LongProductName - Intel Core i3-10110U (ULV), 2x SO-DIMM DDR4-2666 max. 64GB, 15.6" HD 1366 x 768 Touch, Gigabit LAN, WLAN, Bluetooth, WebCam, 65W
LongSummaryDescription - Shuttle All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation. Chassis type: All-in-One, Product type: All-in-One PC barebone. BIOS type: AMI. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Bluetooth version: 4.2. Cooling type: Passive. Power supply: 65 W
Manufacturer - Shuttle
Manufacturer_code - X50V8U3
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - SO-DIMM
Memory - Memory voltage - 1.2 V
Memory - Non-ECC - Yes
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory types - DDR4-SDRAM
Name - Shuttle XPC all-in-one X50V8U3 (black, without operating system)
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - WLAN controller model - Realtek RTL8821CE
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - AC adapter included - Yes
Packaging content - Drivers included - Yes
Packaging content - Power cord included - Yes
Packaging content - Quick start guide - Yes
Performance - BIOS type - AMI
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0

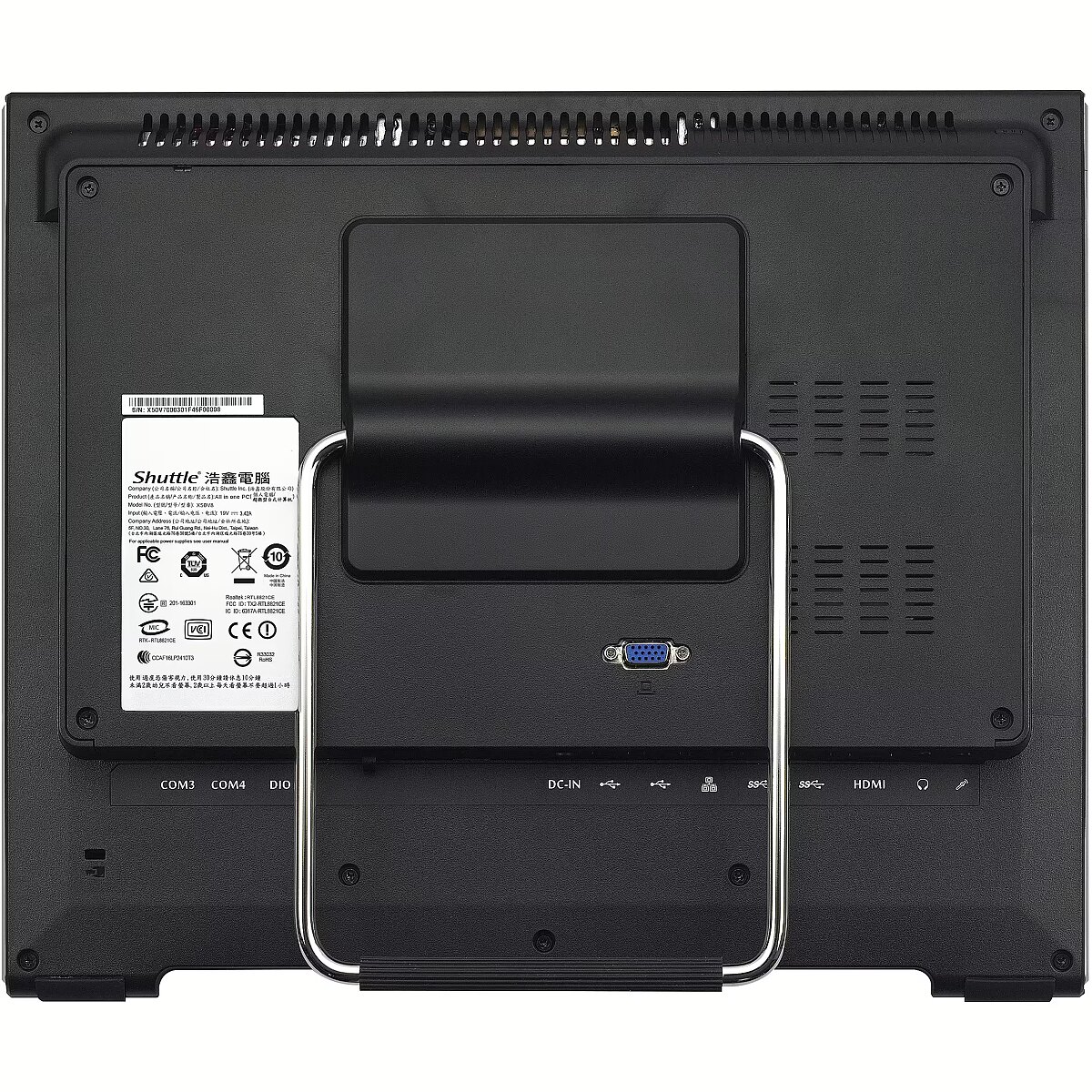

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4a
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 2

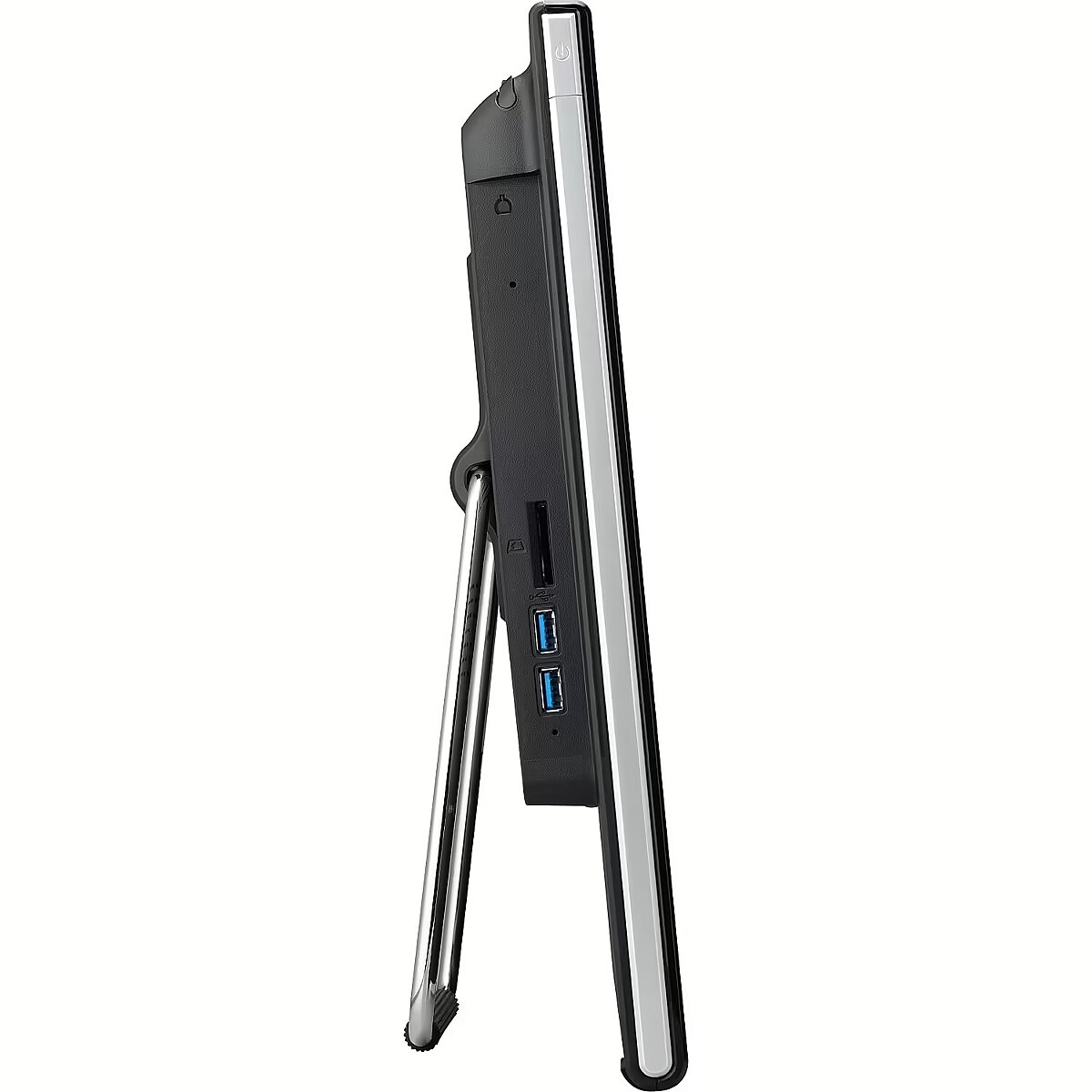

Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output current - 3.42 A
Power - AC adapter output voltage - 19 V
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power supply - 65 W
Power - Power supply type - External AC adapter
Processor - Built-in processor - Yes
Processor - CPU configuration (max) - 1
Processor - Processor boost frequency - 4.1 GHz
Processor - Processor cache - 4 MB
Processor - Processor cores - 2
Processor - Processor family - Intel® Core™ i3
Processor - Processor frequency - 2.1 GHz
Processor - Processor generation - 10th gen Intel® Core™ i3
Processor - Processor lithography - 14 nm
Processor - Processor manufacturer - Intel
Processor - Processor model - i3-10110U
Processor - Processor threads - 4
Processor - Thermal Design Power (TDP) - 15 W
Processor special features - Embedded options available - No
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Execute Disable Bit - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Clear Video Technology - Yes
Processor special features - Intel Flex Memory Access - Yes
Processor special features - Intel Stable Image Platform Program (SIPP) - No
Processor special features - Intel Trusted Execution Technology - No
Processor special features - Intel TSX-NI - No
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
ProductName - All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation
ShortSummaryDescription - Shuttle All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation, All-in-One, All-in-One PC barebone, DDR4-SDRAM, Serial ATA III, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 65 W
Software - Linux operating systems supported - Yes
Software - Operating system installed - No
Software - Windows operating systems supported - Windows 10, Windows 11
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - SD, SDHC, SDXC
Storage - Number of storage drives supported - 1
Storage - SSD form factor - 2.5"
Storage - Storage drive interface - Serial ATA III
Storage - Storage drive sizes supported - 2.5"
Storage - Supported storage drive types - HDD & SSD
Title - Shuttle All-In-One Barebone X50V8U3, 15.6" Single-Touch-Screen (resistive),Intel Core i3-10110U, Wifi, IP54, fanless, 24/7 permanent operation
URL - https://www.shuttle.eu/en/products/aio/x50v8u3
WarrantyInfo -
Weight - 3,50
Weight & dimensions - Depth - 42 mm
Weight & dimensions - Height - 327 mm
Weight & dimensions - Package weight - 4.2 kg
Weight & dimensions - Weight - 3.5 kg
Weight & dimensions - Width - 391 mm
