MSI Cubi NUC 1MG-007BDE, Core 7 150U

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1204850 Product code: 936-B0B111-007
Can be ordered 61 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
716.42 €
Delivery options
  • Delivery to Smartpost 1.99 €: 24.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 24.04.2025
  • Courier delivery 3.99 €: 24.04.2025
Main product parameters All parameters
  • Processor model: Intel Core 7 150U
  • RAM (GB): 0 MB
  • SSD: 0 GB
  • Video card model: Intel Graphics
  • OS: Nav
Display characteristics
Screen resolution : Nav
Screen size : Nav
Touchscreen : Nav
Type of screen panel : Nav
Basic information
Colour : Melna
Formfactor : Mini-PC
Processor parameters
Number of processor efficient cores : 8
Number of processor performance cores : 2
Number of processor threads : 12
Processor manufacturer : Intel
Processor model : Intel Core 7 150U
Processor series : Intel Core 7
Random-access memory (RAM)
Free memory slots : 2
Max. op. memory (GB) : 64
Operational memory type : DDR5
RAM (GB) : 0 MB
RAM frequency (MHz) : 5600
Hard drive
HDD : 0 GB
SSD : 0 GB
Graphics card
Video card manufacturer : Intel
Video card model : Intel Graphics
Videocard series : Intel Graphics
Operating system
OS : Nav
Functionality
Speakers : Nav
Ports and equipment
Optical drive : Nav
Wireless connections
Bluetooth : 5.3
Wi-Fi : Wi-Fi 6E (ax)
Camera properties
Webcam : Nav
LCD Monitors
More detailed specification
Audio - Built-in speaker(s) - No
Brand - MSI
BrandPartCode - CUBI NUC 1MG-007BDE
Category - PC/Workstation Barebones
Category 1 - PC-Systeme
Category 2 - Mini-PC / Barebones

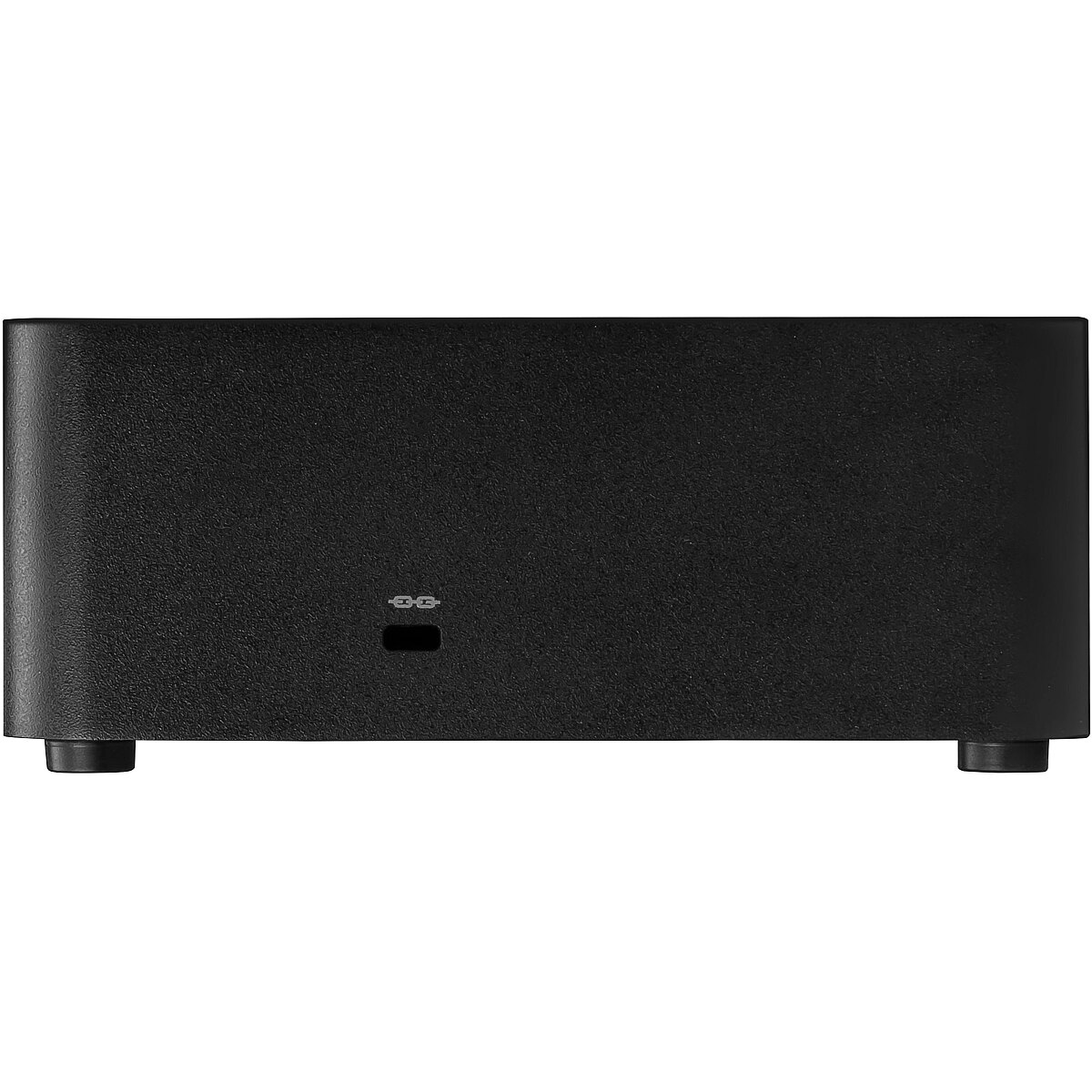

Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - 0.84L sized PC
Design - Cooling type - Active
Design - Housing material - Plastic
Design - On/off switch - Yes
Design - Panel mounting interface - 75 x 75,100 x 100 mm
Design - Product colour - Black
Design - Product type - Mini PC barebone
Design - VESA mounting - Yes
EAN - 4711377220958
Expansion slots - Number of M.2 (M) slots - 2
Graphics - Graphics card family - Intel
Graphics - Number of displays supported - 4
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel Iris Xe Graphics
GTIN - 4711377220958
LongDesc -
LongProductName - Intel Core 7 150U (12MB Cache), Intel Iris Xe Graphics, LAN, WLAN, Bluetooth, No OS
LongSummaryDescription - MSI Cubi NUC 1MG-007BDE. Chassis type: 0.84L sized PC, Product type: Mini PC barebone. Motherboard chipset: Intel SoC. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
Manufacturer - MSI
Memory - Maximum internal memory - 64 GB
Memory - Memory slots type - SO-DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 5200 MHz
Memory - Supported memory types - DDR5-SDRAM
MPN - 936-B0B111-007
Name - MSI Barebone Cubi NUC 1MG-007BDE Intel i7-150U black ohne OS
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I226-V
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Packaging content - AC adapter included - Yes
Packaging content - Display included - No
Packaging content - Keyboard included - No
Packaging content - Mouse included - No
Packaging content - Power cord included - Yes
Packaging content - Quick start guide - Yes
Performance - Motherboard chipset - Intel SoC
Performance - Motherboard form factor - NUC
Performance - Number of processors supported - 1
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0

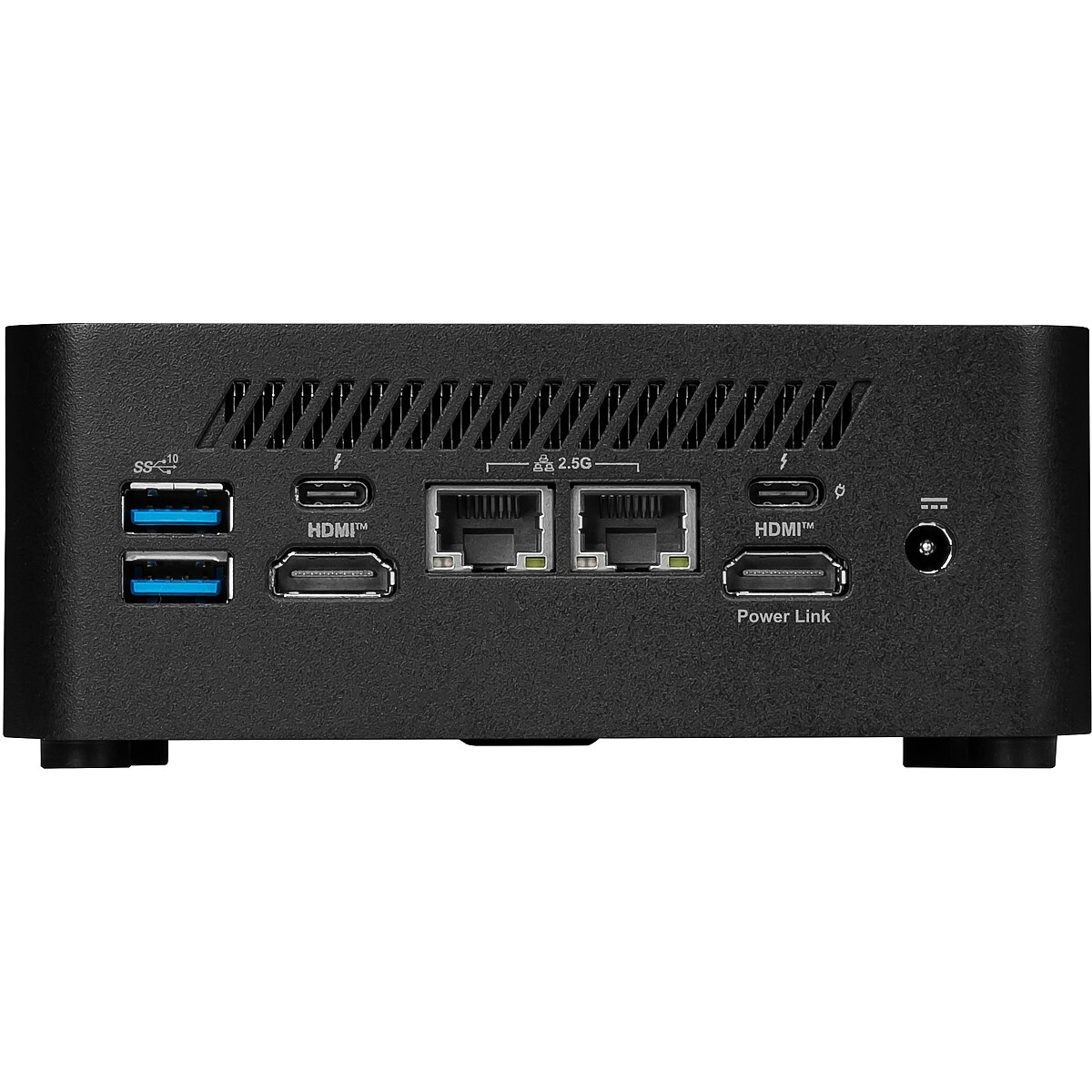

Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4b/2.1
Ports & interfaces - Microphone in - No
Ports & interfaces - Thunderbolt 4 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Power - Power supply - 120 W
Power - Power supply type - External AC adapter
Processor - Built-in processor - Yes
Processor - Efficient-core base frequency - 1.2 GHz
Processor - Efficient-core Max Turbo Frequency - 4 GHz
Processor - Efficient cores - 8
Processor - Performance-core base frequency - 1.8 GHz
Processor - Performance-core Max Turbo Frequency - 5.4 GHz
Processor - Performance cores - 2
Processor - Processor cache - 12 MB
Processor - Processor cores - 10
Processor - Processor family - Intel Core 7
Processor - Processor generation - Intel Core (Series 1)
Processor - Processor manufacturer - Intel
Processor - Processor model - 150U
Processor - Processor threads - 12
ProductName - Cubi NUC 1MG-007BDE
ShortSummaryDescription - MSI Cubi NUC 1MG-007BDE, 0.84L sized PC, Mini PC barebone, Intel SoC, DDR5-SDRAM, M.2, 120 W
Software - Operating system installed - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Number of storage drives supported - 3
Storage - NVMe - Yes
Storage - SSD form factor - M.2
Storage - Storage drive interface - M.2
Storage - Storage drive sizes supported - 2.5,M.2
Storage - Supported storage drive types - HDD & SSD
Title - MSI Cubi NUC 1MG-007BDE 0.84L sized PC Black 150U Intel SoC
URL - https://www.msi.com/index.php
WarrantyInfo -
Weight & dimensions - Depth - 135.6 mm
Weight & dimensions - Height - 50.1 mm
Weight & dimensions - Package depth - 220 mm
Weight & dimensions - Package height - 94 mm
Weight & dimensions - Package weight - 1.38 kg
Weight & dimensions - Package width - 205 mm
Weight & dimensions - Weight - 630 g
Weight & dimensions - Width - 132.5 mm
716.42 €
MSI Cubi NUC 1MG-007BDE, Core 7 150U
