ID: 1120991
Product code: E3C252D4U
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 3 years

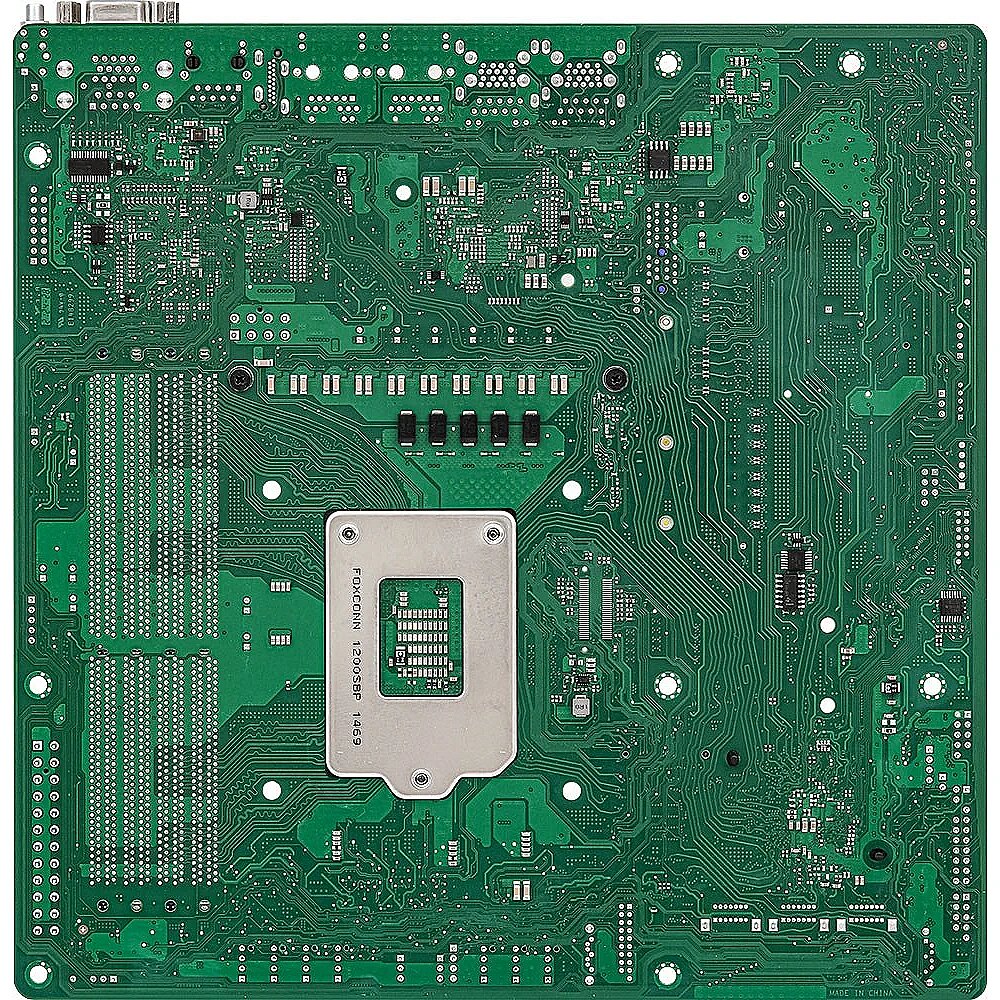

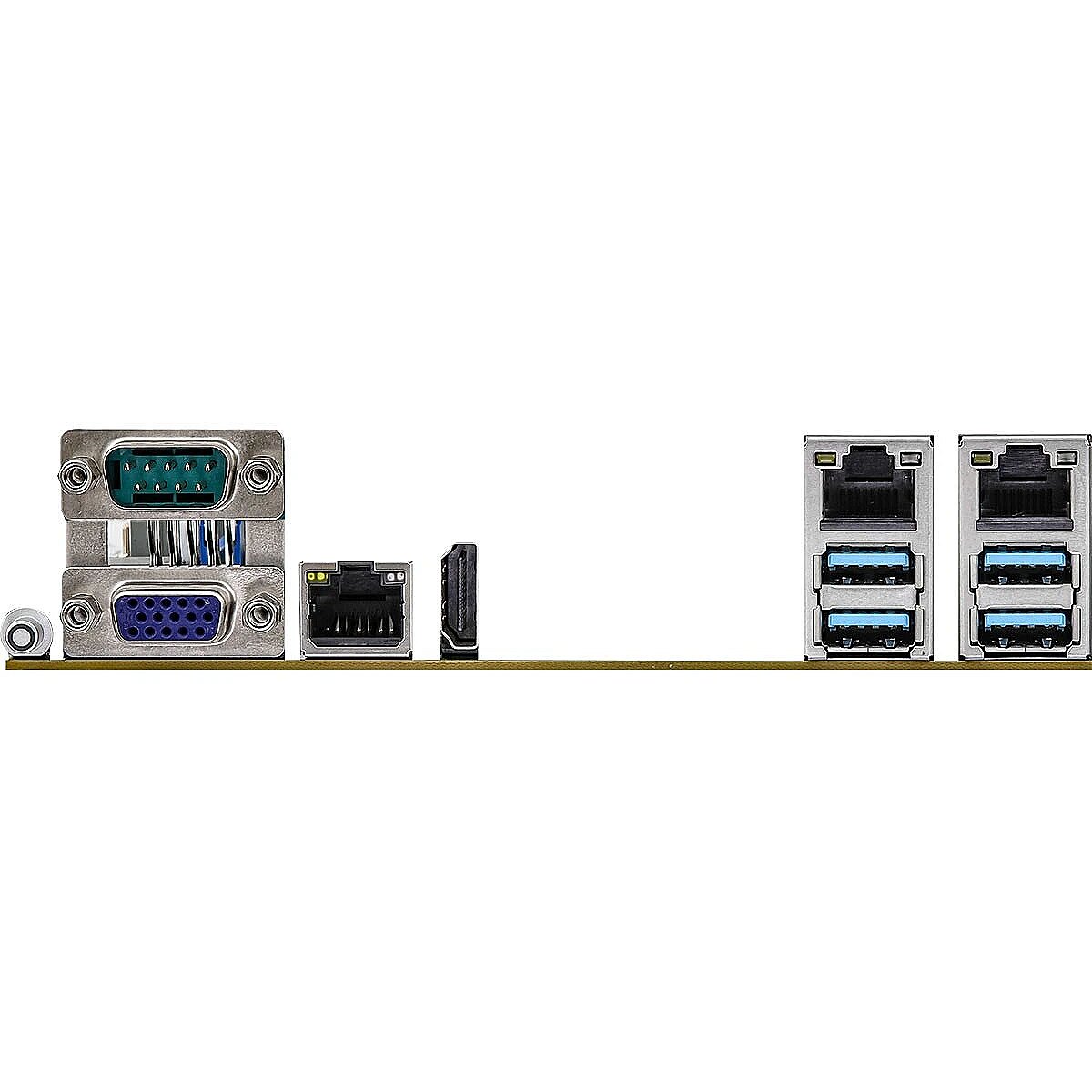

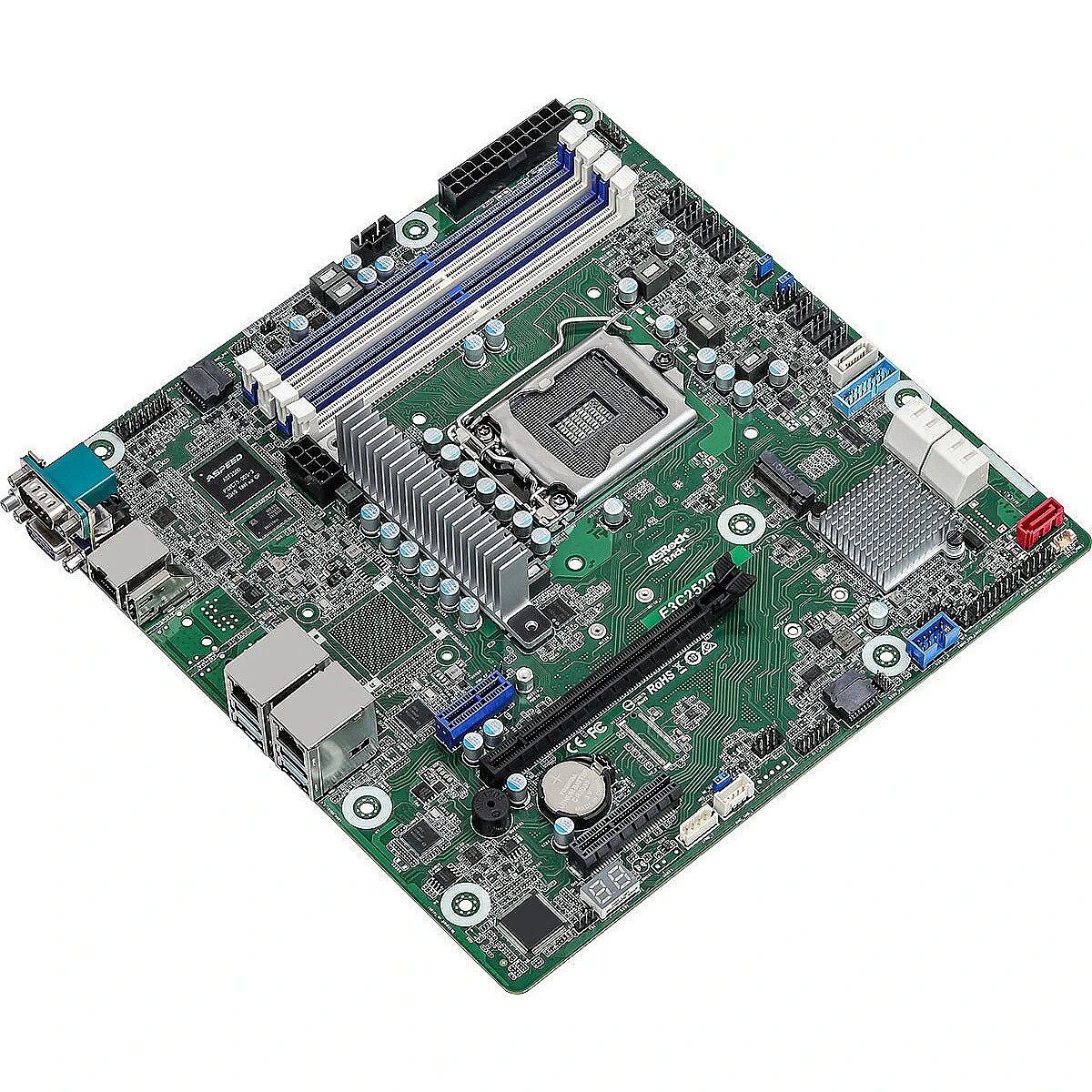

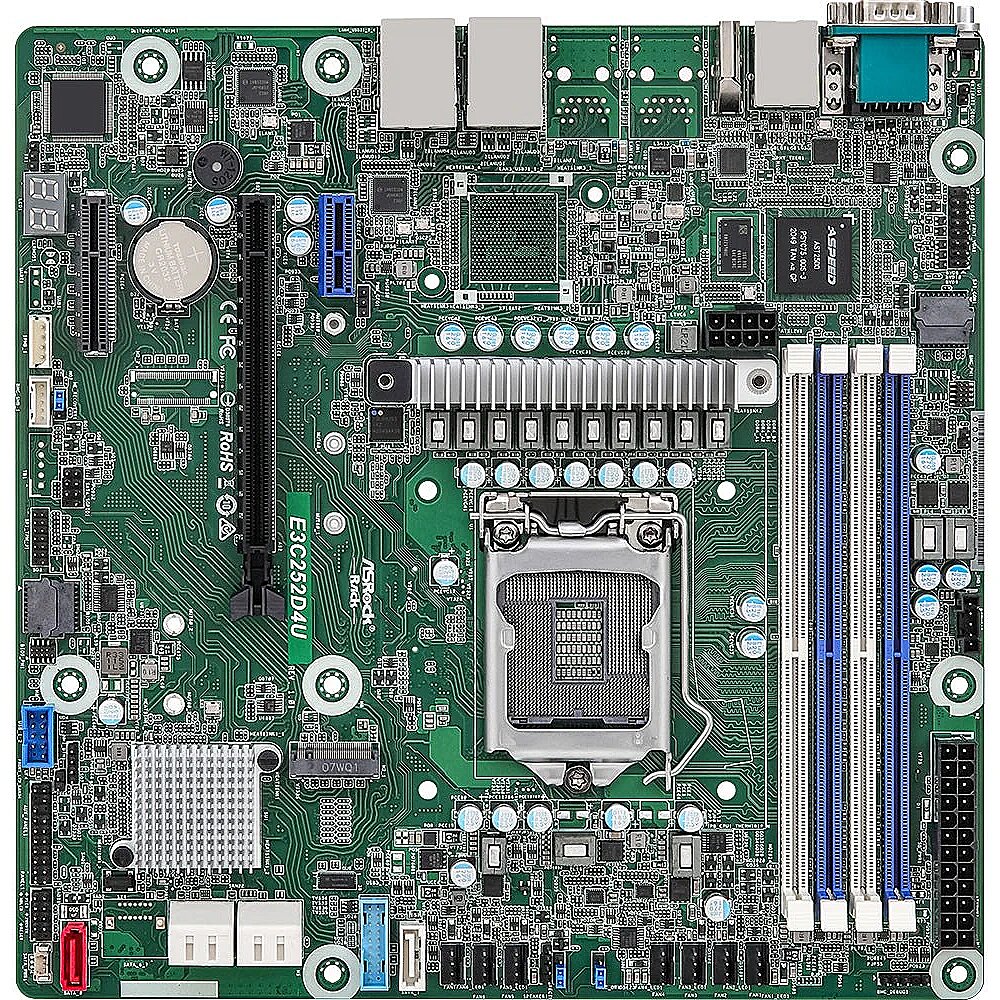

Asrock E3C252D4U motherboard Intel C252 LGA 1200 (Socket H5) micro ATX
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 15.05.2025
- Delivery to Omniva parcel locker 1.99 €: 15.05.2025
- Courier delivery 3.99 €: 15.05.2025
More detailed specification
BIOS - ACPI version - 6.2
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.3
dimensionalWeight - 1326
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Component for - PC
Features - Motherboard chipset - Intel C252
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Graphics - Graphics card - AST2500
Graphics - Graphics card family - ASPEED
Graphics - On-board graphics card memory - 256 MB
Graphics - On-board graphics card model - Aspeed AST2500
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Memory - ECC - Yes
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 32 GB
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 2666 MHz
Memory - Supported memory types - DDR4-SDRAM
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I210
Network - Wi-Fi - No
Processor - Compatible processor series - Intel® Xeon®
Processor - Intel Xeon series - E-2300
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
producerCode - E3C252D4U
productName - Asrock E3C252D4U motherboard Intel C252 LGA 1200 (Socket H5) micro ATX
productSize - Normal
sizeX - 305
sizeY - 290
sizeZ - 75
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
warrantyLength - 36
warrantyType - G
weight - 1015
