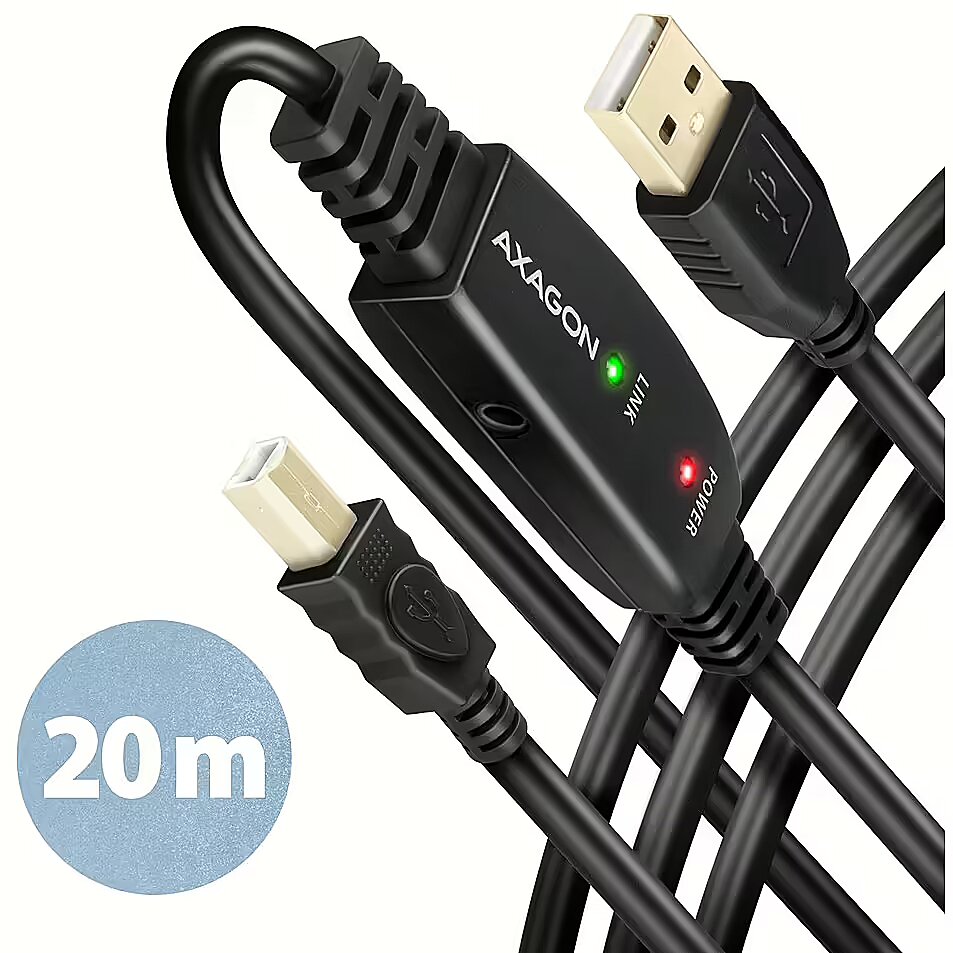

Axagon ADR-220B, USB-A to USB-B, 20m

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 964386 Product code: ADR-220B
In stock 4 units
Warranty: 2 years
34.86 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Thursday, 28.11.2024
  • Courier delivery 3.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Length: 20m
  • Type: USB-A to USB-B
All parameters
Colour : Melna
Length : 20m
Type : USB-A to USB-B
More detailed specification
Accessories included - USB 2.0 A-M > B-M active repeater 20 m long, USB-A / 3.5 mm power cable, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA, packed in a cardboard box.
Box Weight Brutto (kg) - 17 kg
Brand - Axagon
BrandPartCode - ADR-220B
Cable Features - Plug&Play
Cable Functionality - USB to microUSB
Cable Length - 20 m
Cable length - 20 m
Cable Technology - Shielded
category - PC Components|Cables & Adapters|External Cables|USB|Connection Cables
Category - USB Cables
code - ADR-220B
Color - Black
Connectors #1 - USB Type A Male
Connectors #2 - USB Type B Male
Description - With the active USB 2.0 connecting cable AXAGON ADR-220B, 20 meters long, you will be able to connect, for example, a printer, scanner, plotter or other USB-B device to your computer. The active USB repeater cable strengthens the passing signal and allows you to connect a significantly more distant USB device than the passive cables. The range of the cable can be further extended, for example, by using AXAGON ADR-210 USB extension cable A great advantage of the ADR-220B extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem.  The remarkably compact body of the repeater cable allows trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference. Input:
USB 2.0 for connection to a computer
USB Type A (M) male connector Output:
USB 2.0 for connecting a remote USB device
USB Type B (M) male connector
transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed) Power supply:
Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA). For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required. The active part of the cable includes a connector ( 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5V/ 1-2 A. The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16.    Other features:
Fully compatible with USB 2.0 and backward compatible with USB 1.1.  Full Plug and Play and Hot Plug support.  Two LEDs indicating power and USB device connection.  Behind the active USB cable, a common passive USB cable can also be used. Dimensions of active part with are 95 x 22 x 13 mm, cable length 20 m.  Weight 674 g. Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher.
Note: Drivers are included with supported operating systems and will be installed automatically.  No other drivers need to be installed and are not even available. Package contains:

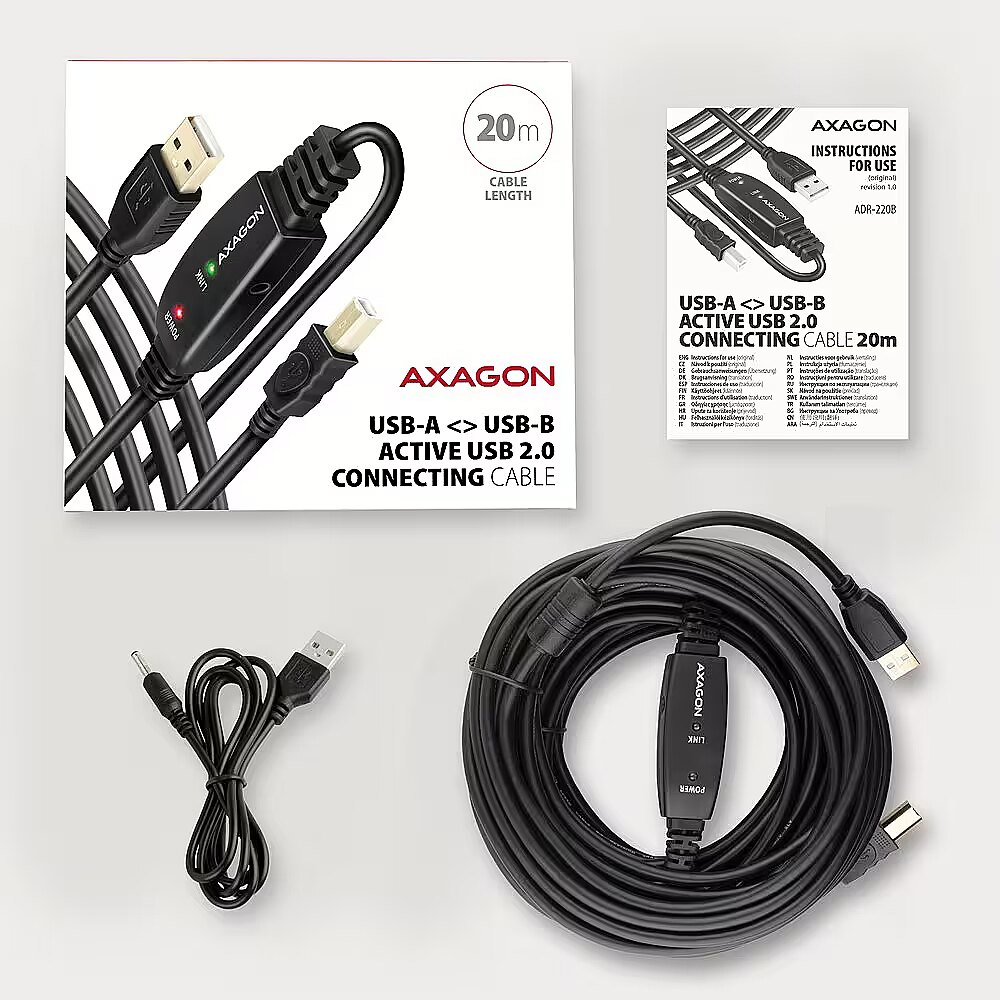

USB 2.0 A-M > B-M active repeater 20 m long,
USB-A / 3.5 mm power cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
dimension depth - 90 mm
dimension height - 150 mm
Dimensions - 95 x 22 x 13 mm
dimension weight - 830 g
dimension width - 170 mm
ean - 8595247907233
EAN Code - 8595247907233
External Color - Melna
Features - Certification - CE
Features - Connector 1 - USB A
Features - Connector 1 gender - Male
Features - Connector 2 - USB B
Features - Connector 2 gender - Male
Features - Maximum data transfer rate - 0.48 Gbit/s
Features - Plug and Play - Yes
Features - Product colour - Black
Features - USB version - USB 2.0
GTIN - 8595247907233
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230620160011824664.jpg
Left Connector - USB Type A (Male)
LongDesc - With the active USB 2.0 connecting cable AXAGON ADR-220B, 20 meters long, you will be able to connect, for example, a printer, scanner, plotter or other USB-B device to your computer. The active USB repeater cable strengthens the passing signal and allows you to connect a significantly more distant USB device than the passive cables. The range of the cable can be further extended, for example, by using AXAGON ADR-210 USB extension cableA great advantage of the ADR-220B extension is an integrated auxiliary power supply connector. In most cases, USB bus power is sufficient, but for devices with larger power consumption the USB power supply may be inadequate and auxiliary power from the mains may resolve the problem. The remarkably compact body of the repeater cable allows trouble-free use in electrical installation strips or cable systems. The use of a high-quality shielded cable ensures high communication speed and minimal undesirable interference.Input:• USB 2.0 for connection to a computer• USB Type A (M) male connectorOutput:• USB 2.0 for connecting a remote USB device• USB Type B (M) male connector • transmission rate 480 / 12 / 1.5 Mbit/s (high / full / low speed)Power supply:• Power supply of the cable and connected devices via USB bus (bus-power mode 5V - 500mA).• For most connected USB devices, the power supply via USB bus is sufficient and no auxiliary power is required.• The active part of the cable includes a connector (Ø 3.5 x 1.3 mm outer x internal diameter) for additional external power supply of 5V/ 1-2 A.• The power cable USB A-M / 3.5 mm jack, 1.2 m long is included. The cable allows powering from a standard mobile phone charger with USB-A output 5V / min. 1A, e.g. AXAGON ACU-DS16. Other features:• Fully compatible with USB 2.0 and backward compatible with USB 1.1. • Full Plug and Play and Hot Plug support. • Two LEDs indicating power and USB device connection. • Behind the active USB cable, a common passive USB cable can also be used.• Dimensions of active part with are 95 x 22 x 13 mm, cable length 20 m. • Weight 674 g.Supported OS: • MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit Windows versions supported), Mac OS X 10.x and higher Linux with 2.6.x kernel and higher. • Note: Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.Package contains:• USB 2.0 A-M > B-M active repeater 20 m long,• USB-A / 3.5 mm power cable,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,• packed in a cardboard box.
LongProductName - ADR-220B USB repeater cable 20 m
LongSummaryDescription - Axagon ADR-220B USB 2.0 A-M -> B-M active connecting/repeater cable 20m - Kabel - Digital/Daten. Cable length: 20 m. Connector 1: USB A, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Product colour: Black
name - AXAGON ADR-220B aktives USB 2.0 Verbindungskabel, USB-A auf USB-B - 20m
name - AXAGON ADR-220B USB 2.0 A-M -> B-M act 20m cabl
Other features -
Package Type - Retail
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 152 mm
Packaging data - Package height - 91 mm
Packaging data - Package type - Box
Packaging data - Package weight - 823 g
Packaging data - Package width - 172 mm
Packs in Box - 20
Pack Weight Brutto (kg) - 0.82 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230620062237471510&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - ADR-220B
ProductDescription - Axagon Active connection USB 2.0 A-M > B-M cable, 20 m long. Power supply option.
ProductName - ADR-220B USB 2.0 A-M -> B-M active connecting/repeater cable 20m - Kabel - Digital/Daten
ProductType - Adaptors
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Right Connector - Micro USB (Type B) (Male)
ShortSummaryDescription - Axagon ADR-220B USB 2.0 A-M -> B-M active connecting/repeater cable 20m - Kabel - Digital/Daten, 20 m, USB A, USB B, USB 2.0, 0.48 Gbit/s, Black
Standard - USB 1.1
Standard - USB 2.0
System Requirements -
Terminator Type - Active
Title - Axagon ADR-220B USB 2.0 A-M -> B-M active connecting/repeater cable 20m - Kabel - Digital/Daten USB cable USB A USB B Black
Type - Adapter
Type - Cable
URL - https://www.axagon.eu/en/produkty/adr-220b
Usage - Computer
Vendor - AXAGON
vendpn - ADR-220B
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 674 g
Weight & dimensions - Cable length - 20 m
