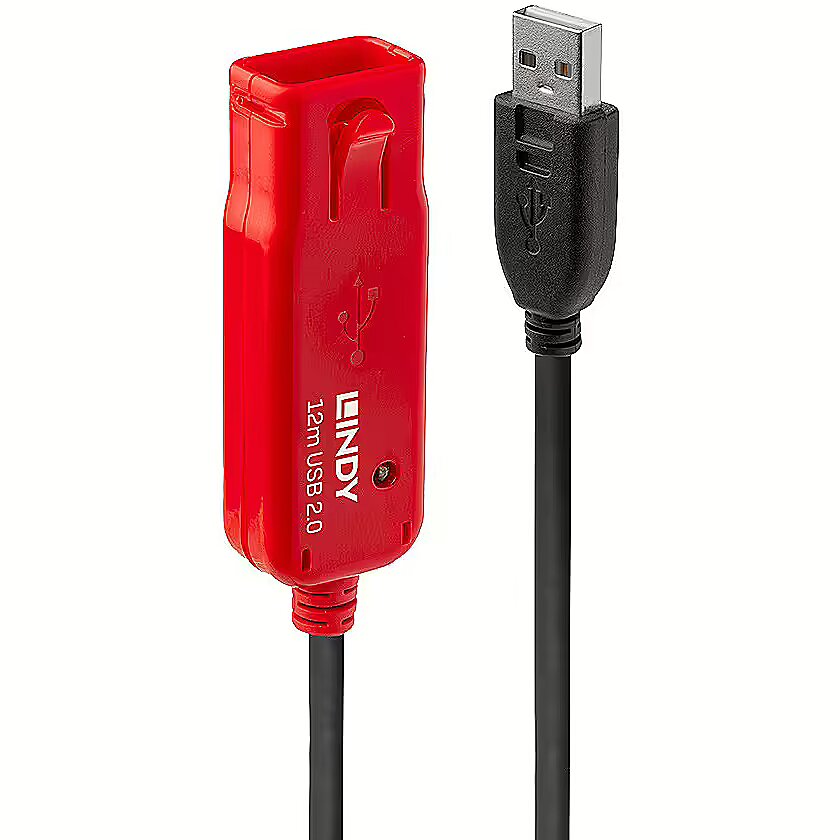

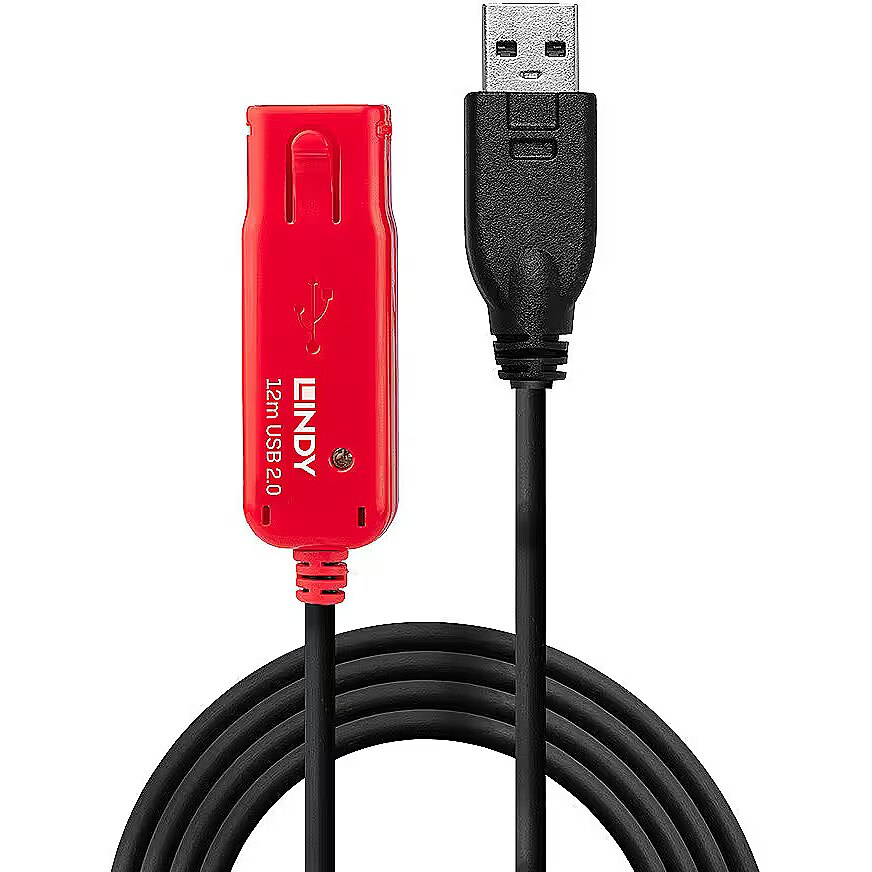

Lindy Active USB-A 2.0 Extension Cable Pro, 12m

Brand - Lindy
BrandPartCode - 42782
Cable length - 12m
Category - USB Cables
Category Code - UCB
Category_1 - Cables
Category_2 - USB Cables
Colour - Black / Red
Connectors - USB / USB
Description - 12m USB 2.0 Active Extension Pro Extend USB 2.0 connections up to 60m
EAN_code - 4002888427821
Features - AWG wire size - 26/20
Features - Cable jacket material - Polyvinyl chloride (PVC)
Features - Cable type - Round cable
Features - Certification - CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Features - Conductor material - Tinned copper
Features - Connector 1 - USB A
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - USB A
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Female
Features - Connector contacts plating - Gold
Features - Connector housing material - Plastic
Features - Connector material - Gold/Nickel
Features - Connector shield material - Aluminium
Features - Contact material - Brass
Features - Maximum data transfer rate - 0.48 Gbit/s
Features - Maximum data transfer rate - 480 Mbit/s
Features - Nominal attenuation - 0.064 MHz, -0.08 dB
0.256MHz, -0.11 dB
0.512MHz, -0.13 dB
0.772 MHz, -0.15 dB
1 MHz, -0.2 dB
4 MHz, -0.39 dB
8 MHz, -0.57 dB
12 MHz, -0.76 dB
24 MHz, -0.95 dB
48 MHz, -1.35dB
96 MHz, -1.9 dB
200 MHz, -3.2 dB
400 MHz, -5.8 dB
Features - Product colour - Black
Features - Transmission medium - Twisted pair
Features - USB version - USB 2.0
Full Description Line - Connectors USB / USB|2xUSB 2.0|Colour Black / Red
GTIN - 4002888427821
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
LongProductName - 12m USB 2.0 Active Extension Pro
LongSummaryDescription - Lindy 12m USB 2.0 Active Extension Pro. Cable length: 12 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Manufacturer - Lindy
Manufacturer_code - 42782
Name - Lindy USB 2.0 Active Extension Cable Pro (black/red, 12 meters)
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Compatible operating systems - Win ME, 2000, XP, Vista
Mac OS
Linux
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 202 mm
Packaging data - Package height - 66 mm
Packaging data - Package type - Box
Packaging data - Package weight - 597 g
Packaging data - Package width - 238 mm
ProductName - 12m USB 2.0 Active Extension Pro
Product Type - Cable
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.59 kg
Shipping Box Width Shipping/Package Box Dimensions - 20 cm
ShortSummaryDescription - Lindy 12m USB 2.0 Active Extension Pro, 12 m, USB A, USB A, USB 2.0, 0.48 Gbit/s, Black
Title - Lindy 12m USB 2.0 Active Extension Pro
Unit Box Height - 0.065
Unit Box Length - 0.235
Unit Box Width - 0.2
Unit Brutto Volume - 0.003055 cubm
Unit Gross Weight - 0.59 kg
Unit Net Weight - 0.29 kg
URL - https://www.lindy.co.uk/usb-c4/12m-usb-2-0-active-extension-pro-p508
USB/Lightning cable type - USB to USB
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.lindy-international.com/12m-USB-2-0-Active-Extension-Pro-.htm?websale8=ld0101.ld021102&pi=42782&ci=50
Warranty - 24 months
WarrantyInfo -
Weight - 0,60
Weight & dimensions - Bend radius (min) - 2.6 cm
Weight & dimensions - Cable diameter - 5 mm
Weight & dimensions - Cable length - 12 m
Weight & dimensions - Connector 1 dimensions (WxDxH) - 15 x 43 x 8 mm
Weight & dimensions - Connector 2 dimensions (WxDxH) - 20 x 64 x 13 mm
Weight & dimensions - Weight - 420 g
