ARTIKEL1 - DR-24G DENTAL MONITOR
ARTIKEL2 - 23.8IN 1920X1080 LED-BACKLIT
Brand - AG Neovo
BrandPartCode - DR24G0A1E0100
Breite - 0
Category - Computer Monitors
Design - Front bezel colour - White
Design - Glass thickness - 3 mm
Design - Housing material - Metal
Design - Market positioning - Medical
Design - Product colour - White
Display - Anti-glare screen - Yes
Display - Aspect ratio - 16:9
Display - Backlight type - LED
Display - Colour gamut standard - NTSC
Display - Contrast ratio (dynamic) - 20000000:1
Display - Digital horizontal frequency - 24 - 83 kHz
Display - Digital vertical frequency - 50 - 75 Hz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Haze rate - 40%
Display - HD type - Full HD
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 72%
Display - Panel type - VA
Display - Pixel pitch - 0.274 x 0.274 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739597332
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - No
Ergonomics - Panel mounting interface - 75 x 75,100 x 100 mm
Ergonomics - Picture-in-Picture - Yes
Ergonomics - VESA mounting - Yes
Ergonomics - X-ray film viewing mode - Yes
GRUPPE1 - Displays
GRUPPE2 - Led Small Format
GTIN - 4710739597332
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0
HSTNUMMER - DR24G0A1E0100
Laenge - 0

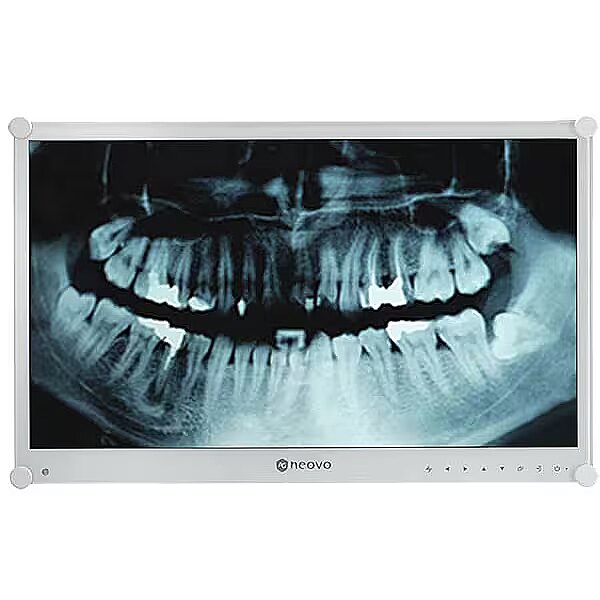

LongDesc - DR-24GThe AG Neovo DR-24G is a 24-inch dental monitor that features a quick switch to X-ray illuminator mode for dental X-ray film viewing without using another X-ray view box. With advanced gamma correction, black-level alignment adjustability, and high contrast ratio, the dentists can verify the patient’s condition of teeth, jaw placement, and facial bone before dental treatment. The NeoV™ Optical Hard Glass Screen and white metal casing design meet an array of medical level cleaning requirements, allowing dental professionals to clean and sanitise the monitors.EASY CLEAN AND ROBUST PROTECTIONThe special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.QUICK SWITCH TO X-RAY VIEWING MODEThe DR-24G 24-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box.DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTIONDesigned with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 certified ensures safety, performance, and reliable operation in any professional medical environment.PIP/PBP SUPPORTPiP/PbP functions enable viewing and comparing two images simultaneously from different sources and enhance work efficiency for multitasking.GREAT MOBILITYThis 24-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on the dental chair.
LongProductName - DR-24G, 24", 1920 x 1080p, Full HD, 250 cd/m2, 16.7M, Dental Monitor, NeoV Optical Glass, IEC / EN60601-1, White
LongSummaryDescription - AG Neovo DR-24G. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Compliance certificates - CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Other features - Display surface reflectivity (typical) - 1%
Other features - Glass screen - NeoV Optical
Other features - Light sensor - Yes
Other features - Picture-by-Picture (PbP) - Yes
Other features - Protection features - Dust resistant, Waterproof
Other features - Transmission rate - > 97%
Packaging content - Cables included - AC, Audio (3.5mm), VGA
Packaging content - Power adapter included - Yes
Packaging content - Power cable length - 5 m
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 249 mm
Packaging data - Package height - 517 mm
Packaging data - Package type - Box
Packaging data - Package weight - 10.6 kg
Packaging data - Package width - 672 mm
Packaging data - Warranty card - Yes
Performance - AMD FreeSync - No
Performance - Flicker-free technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - Composite video in - 2
Ports & interfaces - Composite video out - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Micro HDMI ports quantity - 1
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - USB Type-A downstream ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 24 V
Power - Energy consumption (SDR) per 1000 hours - 18 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Input current - 2.71 A
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 18 W
Power - Power supply type - External
ProductName - DR-24G
ShortSummaryDescription - AG Neovo DR-24G, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, White
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Sustainability - Sustainability compliance - Yes
Title - AG Neovo DR-24G LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD White
URL - https://www.agneovo.com/global/monitors/healthcare/dr-series/dr-24g
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 56.2 mm
Weight & dimensions - Height (without stand) - 352.6 mm
Weight & dimensions - Weight (without stand) - 7.4 kg
Weight & dimensions - Width (without stand) - 562.4 mm
