Brand - Epson
BrandPartCode - C11CF39402A0
Category - Dot Matrix Printers
Code - C11CF39402A0
EAN - 8715946649856
Endurance - Mean time between failures (MTBF) - 25000 h
Endurance - Print head - 24-pin
Endurance - Print head life - 400 million characters
Features - Buffer size - 128 KB
Features - Country of origin - Indonesia
Features - Product colour - Black
Features - Sound pressure level (printing) - 55 dB
Features > Colour of product - Black
Features > Media type - Single sheet front and rear, Continuous media front and rear, Paper output rear
Features > Product type - Dot matrix printer
Gross weight - 9.4 kg
GTIN - 8715946651361
Link - https://www.epson.eu/products/printers/dot-matrix-printers/lq-590iin#specifications
Logistics data - Harmonized System (HS) code - 84433210
Logistics data - Pallet gross height - 7.43 m
Logistics data - Pallet gross length - 120 cm
Logistics data - Pallet gross width - 80 cm
Logistics data - Pallet height (UK) - 7.43 m
Logistics data - Pallet length (UK) - 120 cm
Logistics data - Pallet width (UK) - 100 cm
Logistics data - Products per pallet - 14 pc(s)
Logistics data - Products per pallet (UK) - 28 pc(s)
Logistics data - Products per pallet layer - 2 pc(s)
Logistics data - Products per pallet layer (UK) - 4 pc(s)

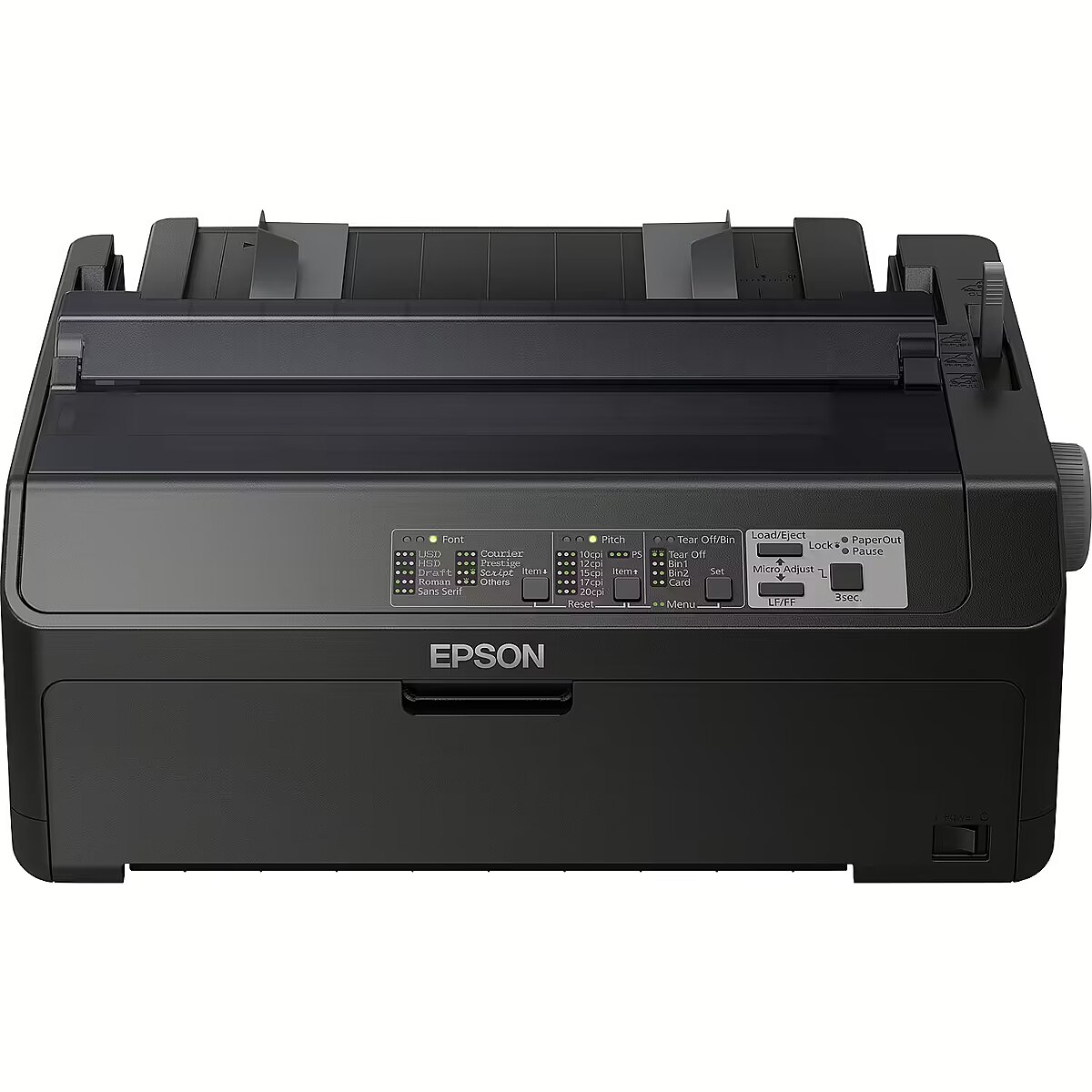

LongDesc - The LQ-590IIN is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers built-in network capability with an incredibly low TCO.Fast print speedThe LQ-590IIN offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.Increased reliabilityEpson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.Same consumablesThis printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.Network capabilityThis is a network model which supports both serial and Ethernet connections for enhanced connectivity.
LongProductName - LQ-590IIN, Impact dot matrix, 24 pins, 24 needles, 550 chars/s, USB 2.0, 437x375x177 mm
LongSummaryDescription - Epson LQ-590IIN. Maximum print speed: 550 cps, Character pitch: 10 cpi, Maximum number of copies: 6 copies. Paper tray media types: Envelopes, Labels, Roll, Continuous paper thickness range: 0.065 - 0.49 mm, Label thickness range: 0.16 - 0.19 mm. Product colour: Black, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Ethernet, Parallel, USB 2.0. Print head: 24-pin, Print head life: 400 million characters, Mean time between failures (MTBF): 25000 h
Name - Epson LQ-590IIN | Mono | Dot matrix | Dot matrix printer | Black
Networking > Ethernet LAN - No
Networking > Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Other features - Compatible operating systems - Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 R2, Windows Server 2016, Windows Vista, Windows XP
Other features - Connectivity technology - Wired
Other features - Needles - 24 Needles
Other features - Print technology - Dot matrix
Other features - Standard media sizes - Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Other features > Dimensions (WxDxH) - 437 x 375 x 177 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 530 mm
Package features > Gross height (mm) - 280 mm
Package features > Gross width (mm) - 445.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26 pc(s)
Package features > Paper/Pasteboard - 1700.00 g
Package features > PET - 114.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 2.00 kg
Package features > Volume (m3) - 0.066038 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Package features > Wooden - 1413.00 g
Packaging data - Package depth - 340 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 9.28 kg
Packaging data - Package width - 40 mm
Packaging data - Quantity per pack - 1 pc(s)
Paper handling - Continuous paper thickness range - 0.065 - 0.49 mm
Paper handling - Label thickness range - 0.16 - 0.19 mm
Paper handling - Multi-part paper thickness range - 0.12 - 0.46 mm
Paper handling - Paper tray media types - Envelopes, Labels, Roll
Paper handling - Single sheet thickness range - 0.065 - 0.14 mm
Performance > Faxing - No
Performance > Printing - Mono
Performance > Print technology - Dot matrix

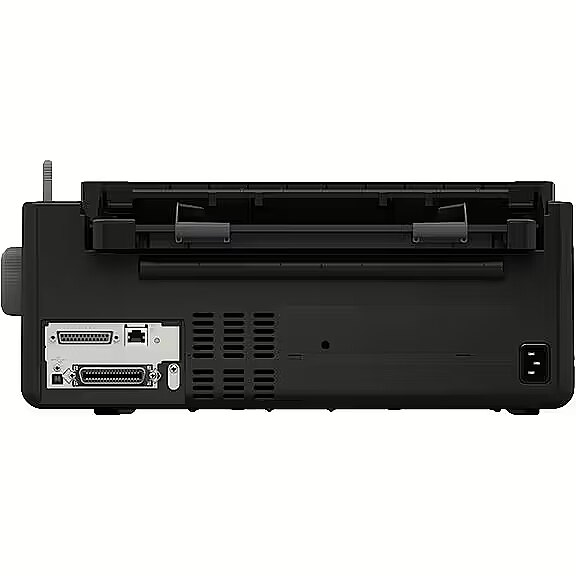

Ports & interfaces - Standard interfaces - Ethernet, Parallel, USB 2.0
Ports & interfaces > Interface - Hi-Speed USB - compatible with USB 2.0 specification, Parallel, Wired Network
Printing - Built-in barcodes - Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Printing - Character pitch - 10 cpi
Printing - Character sets - PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic
Printing - Colour - No
Printing - Maximum number of copies - 6 copies
Printing - Maximum printing width (columns) - 80
Printing - Maximum print speed - 550 cps
Printing - Print speed - Ultra Speed-Draft: 10 cpi: 550 chars/s
Producer product name - LQ-590IIN
ProductName - LQ-590IIN
ShortSummaryDescription - Epson LQ-590IIN, 550 cps, 10 cpi, 6 copies, Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic, Envelopes, Labels, Roll
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2016
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Technical details - Sustainability certificates - ENERGY STAR
Technical details > Functions - Print
Technical details > Net weight - 7.4 kg
Technical details > Other features - Number of Pins 24 pins. Increased reliability: Mean time between failure of 25,000 power-on hours. Increased number of copies: Now original plus six copies.
Technical details > Producer - Epson
Title - Epson LQ-590IIN dot matrix printer 550 cps
URL - https://www.epson.eu/products/printers/dot-matrix-printers/lq-590iin
Warranty - 12
Warranty - 12 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 375 mm
Weight & dimensions - Height - 177 mm
Weight & dimensions - Weight - 7.2 kg
Weight & dimensions - Width - 437 mm
