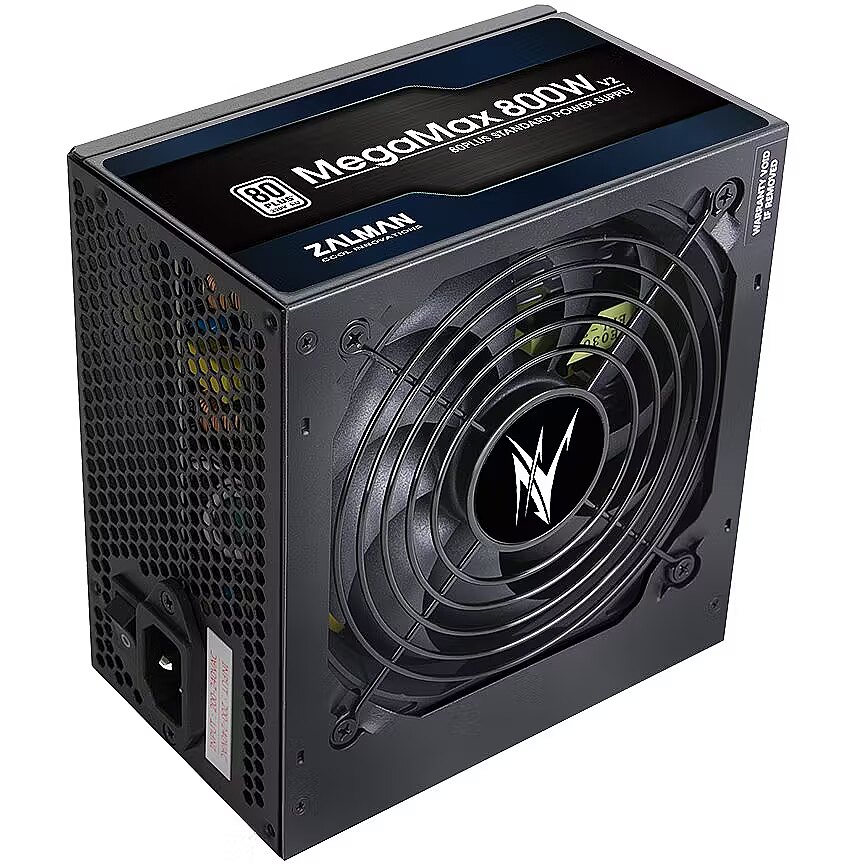

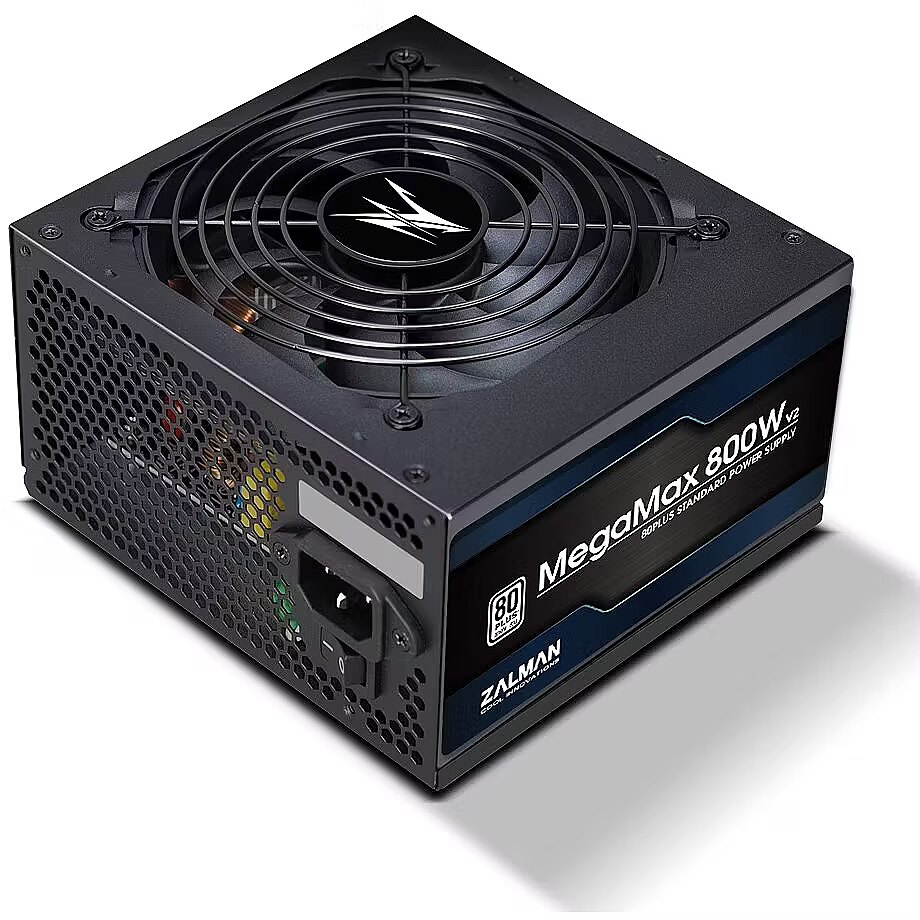

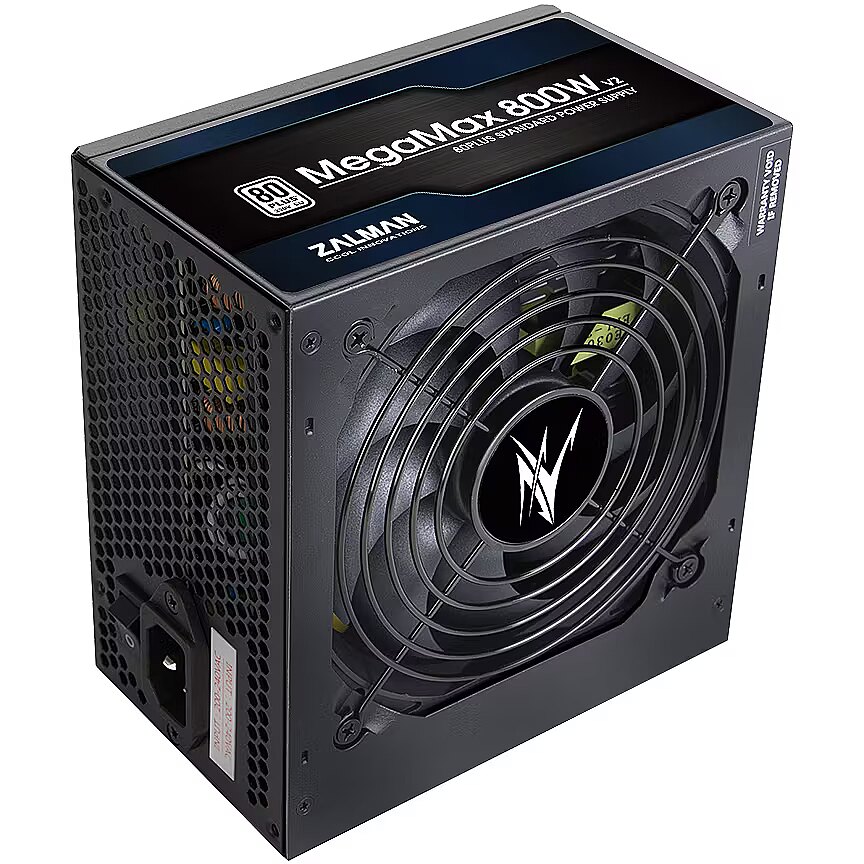

Zalman MegaMax, 800W, 80PLUS
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 10.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 10.12.2024
- Kulleri kohaletoimetamine 3,99 €: 10.12.2024
- Tootja: Zalman
- Võimsus: 800W
- 80 PLUS certification: 80 PLUS (White)
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Pakume ostmiseks Zalman 800W toiteallikat, mis on saanud 80 PLUS (White) energiatõhususe sertifikaadi.
toiteallikas on mõeldud suure jõudlusega mänguriarvuti või tööjaama jaoks. See annab toite tipptasemel protsessorile (võimalik, et ületaktitud), tipptasemel videokaardile (näiteks RTX 4070 Ti SUPER), mitmele kõvakettale (SSD/HDD) ja vesijahutusele.
120 mm120 mm entilaatoriga, mis on tööstusharu standard vaikse töö tagamiseks keskmistes arvutites. Kui soovid ülivaikset toiteallikat, otsi 135 mm või 140 mm läbimõõduga ventilaatorit.
Sellele toiteallikale antud energiatõhususe sertifikaat tagab vähemalt 80% tõhususe. Teisisõnu, iga 100 W võimsuse kohta, mida toiteallikas vooluvõrgust võtab, läheb vähemalt 80 W teie arvuti komponentidesse ja ülejäänud 20 W läheb soojuseks.
Melna See on varustatud lamedate kaablitega, mille värvus on MelnaMelna
See toiteallikas on ATX 2.0 standardiga. See tähendab, et toiteallikas on varustatud ainult 6-poolsete ja 8-poolsete pordidega, mis pakuvad vastavalt 75W ja 150W võimsust. ATX 2.0 toitepordid ei ole ette nähtud kaasaegsete videokaartide suure võimsusvajadusega toimetulekuks. Kui ehitad süsteemi väga võimsa GPU-ga, nagu näiteks RTX 4070, on vaja ATX 3.* standardile vastavat toiteallikat.
Sellel toiteallikal ei ole eemaldatavaid kaableid ja kõik kaablid on kinnitatud toiteallika külge. See on lihtsa konstruktsiooniga, kuid töötab sama hästi kui moodulikaablitega toiteallikas.
Accessories included -
Brand - Zalman
BrandPartCode - ZM800-TXII
Category - Power Supply Units
Certificates 80+ - 80 PLUS
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Product colour - Black
dimension depth - 185 mm
dimension height - 280 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2040 g
dimension width - 100 mm
ean - 8809213762727
Fan - 12 cm
Fan speed (max) - 2500 rpm
Floppy power connectors - 1
GTIN - 8809213762727
guarantee - 36
guarantee_type - normal
LongDesc - Zalman ZM800-TXII MegaMax, 80PLUS 230V80PLUS 230V EU standard certifiedThe MegaMax guarantees stable performance and efficiency certified 80 PLUS Standard.Active PFC with up to 98% maximum power factorBy applying an active PFC (Power Factor Correction) circuit that maximizes energy efficiency, it provides electromagnetic wave reduction and energy efficiency, while preventing reverse current.HDB (Hydro-Dynamic Bearing) Powerful and safe HDB bearingQuiet and smooth operation with HDB bearings. Durability is improved and life expectancy is extended. It reduces noise and minimizes heat generation.120mm cooling fan for quiet and powerful cooling performance120mm Low-Noise Fan delivers a powerful spin even at low rpm to quickly remove heat from the power supply for optimum cooling performance.High-quality, performance-oriented parts used to be durable and reliableIt provides a smooth power supply to the PC and reduces unnecessary power consumption by using quality parts that are durable and reliable.SpecificationsModel: ZM800-TXIIEfficiency: Max 85% @ 230VAC, typical loadDimensions: 140 (L) x 150 (W) x 86 (H) mmMTBF: 100,000 hoursWeight: 1.85 kgOperating temperature: 10 ∼ 45 °CPFC: Active PFCRegulation: KC, CE, CB, RoHS, EACType: Intel ATX 12V Ver2.31Protection: OPP / OVP / UVP / SCPInput voltage: 220-240VACInput Current: 7AInput Frequency: 50-60HzFan Size: 120mmFan Bearing: Hydraulic Dynamic BearingRated Speed: 2500RPMCables (connector): Motherboard 20 + 4 pin (1), CPU 4 + 4 pin (1), CPU 8 pin (1), PCI-E 6 + 2 pin (4), S-ATA (8), IDE ( 4), FDD (1)
LongProductName - Zalman ZM800-TXII MegaMax, 80PLUS 230V EU STANDARD Certified high efficiency / PCI-E Connectors support up to dual CrossFire & SLI / Compliance with Intel ATX12V Ver2.31 standards. / Interleaved Active PFC
LongSummaryDescription - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E. Total power: 800 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 4
name - Power supply MegaMax 800W V2 80+ STD EU ZM700-TXII
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 10 - 45 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 1
Performance - 80 PLUS certification - 80 PLUS
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 220 - 240 V
Power - Input current - 7 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 800 W
Power supply - 800 W
producer - Zalman
ProductName - ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E
SATA power connectors - 8
ShortSummaryDescription - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E, 800 W, 220 - 240 V, 50 - 60 Hz, 7 A, Active, Non-Modular
Title - Zalman ZM800-TXII MegaMax 80PLUS 230V EU STANDARD Certified high efficiency PCI-E power supply unit 800 W ATX Black
URL -
vendpn - ZM800-TXII
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.85 kg
Weight & dimensions - Width - 150 mm
