ID: 970288
Tootekood: R-PX850G-FC0B-EU
Laos 30 üksused
Garantii: 2 aastat

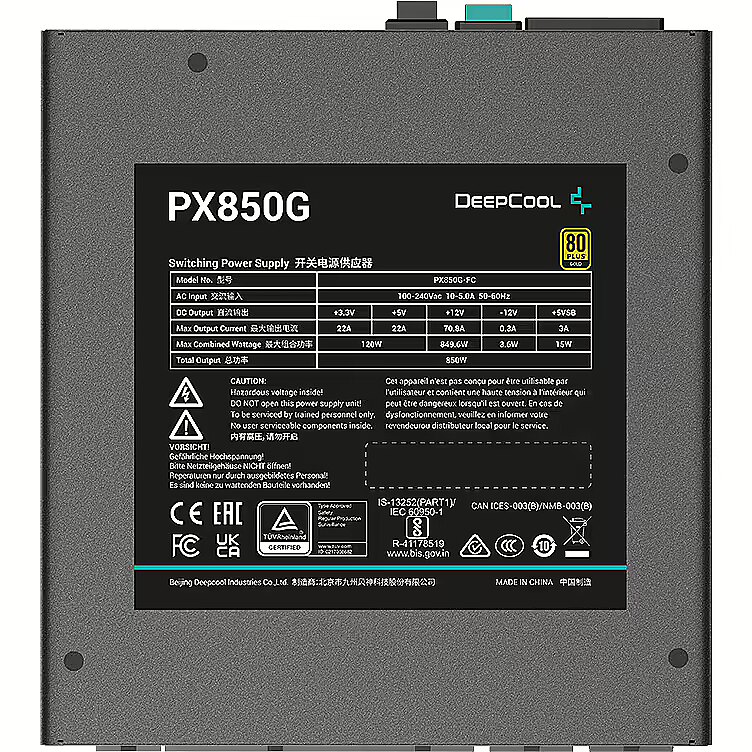

Deepcool PX850G, 850W, 80PLUS Gold, PCI-E 5.0
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 19.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 19.11.2024
- Kulleri kohaletoimetamine 3,99 €: 19.11.2024
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Deepcool
- Võimsus: 850W
- 80 PLUS certification: 80 PLUS Gold
- Ventilaatori Läbimõõt: 135 mm
- Modulaarkaablid: Fully-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Kirjeldus
Saadaval Deepcool Toode on saanud 80 PLUS Gold energiatõhususe sertifikaadi.
toiteallikas sobib võimsale tööjaamale või mänguriarvutile. See annab toite tipptasemel videokaardile (nt RTX 4070 Ti SUPER), mitmele kõvakettale (SSD/HDD), vesijahutusele ja tipptasemel protsessorile (võimalik, et ületaktitud).
jahutusventilaatori suur läbimõõt teeb selle toiteallika keskmisest oluliselt vaiksemaks. Tänu ventilaatori suuremale tiivapinnale annab ventilaator vajaliku õhuvoolu väiksema ventilaatori kiiruse juures, vähendades seega üldist müra- ja vibratsioonitaset.
Sellele toiteallikale antud energiatõhususe sertifikaat tagab vähemalt 90% tõhususe 50% koormuse juures. Teisisõnu, iga 100 W võimsuse kohta, mida toiteallikas vooluvõrgust võtab, läheb vähemalt 90 W teie arvuti komponentidesse, ülejäänud 10 W aga läheb soojuseks.
1 x 600W 12VHPWR2 x 600W 12VHPWR-pistik, millega see toiteallikas on varustatud, on mõeldud kasutamiseks kaasaegsete graafikakaartidega, nagu Nvidia GeForce RTX 4070 ja ülespoole (RTX 4060 ja allapoole kasutavad tavalist 8-poolset porti).
Melna Plokil on lamedad kaablid, mille värv on Melna.
See toiteallikas on ATX 3.0 standardile vastav. Sellel on 16-poolne (12VHPWR) port, mis suudab varustada viimase põlvkonna (RTX 30 ja 40 seeria) PCIe 5.0 graafikakaarte kuni 600 W võimsusega. ATX 3.0 võimaldab ka 200% voolutugevuse suurendamist millisekundi kohta, et tagada komponentidele stabiilsem toitmine.
Cybenetics A - mürataseme sertifikaat - toiteallikast lähtuv müra on 25-30 detsibelli.
Tänu modulaarsetele kaablitele saate kõvakettaid, videokaarte ja muid komponente ühendada vastavalt vajadusele, kasutades erinevaid kaasasolevaid kaableid. See tähendab, et arvutis on vähem juhtmeid, mis parandab ventilatsiooni ja välimust (eriti kasulik neile, kes eelistavad poolläbipaistvat korpust).
Deepcool Kõik Deepcool toodetud toiteallikad leiate siit.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Cybenetics A -
Cybenetics tõhususe sertifitseerimine
: Cybenetics Gold
Toiteallika tüüp
: ATX
Võimsus
850W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Gold
Kogu voolutugevus (+12V)
: 70.8A
Ventilaatori Läbimõõt
: 135 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Fully-Modular
Sadamad ja seadmed
PCI-E 5.0
: 1 x 600W 12VHPWR
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA pistikud
: 8
Molex PATA lisamoodulid
: 4
Täpsem spetsifikatsioon
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|PCIe 5.0
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80Plus GOLD/Cybenetics_GOLD
Code - R-PX850G-FC0B-EU
code - R-PX850G-FC0B-EU
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 135mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 3 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2079
EAN - 6933412716716
ean - 6933412716716
EAN_code - 6933412716716
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_109055_1.jpg
LargeDescHTML -
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PX850G-ATX-3.0-80-Plus-Gold-Power-Supply/2023/16807.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PX850G-FC0B-EU
Name - Barošanas bloks DeepCool PX850G 850W
Name - DeepCool PX850G 850W, PC power supply (black, cable management, 850 watts)
name - DeepCool PX850G Netzteil, 80 Plus Gold, ATX 3.0, PCIe 5.0 - 850 Watt
Name - Deepcool | PSU | PX850G | 850 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features > Dimensions (WxDxH) - 150 x 160 x 86 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross depth master carton - 250 mm
Package features > Gross height (mm) - 125 mm
Package features > Gross height master carton - 282 mm
Package features > Gross width (mm) - 305 mm
Package features > Gross width master carton - 355 mm
Package features > Net weight master carton - 9.2 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 51 pc(s)
Package features > Paper/Pasteboard - 260 g
Package features > Plastic (No PET) - 40 g
Package features > Tare weight (kg) - 0.3 kg
Package features > Tare weight master carton - 0.425 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - AC, PCIe, CPU, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - Cybenetics Gold
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - FDB
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 800
Ports & interfaces - Peripheral (Molex) power cable length - 950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 650 mm
Ports & interfaces - SATA power cable length - 800 mm
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 849.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Maximum input current (@110V) - 5 A
Power - Maximum input current (@220V) - 10 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under power
Power - Total power - 850 W
Power > Nominal power - 850 W
producerCode - R-PX850G-FC0B-EU
Producer product family - PSU
Producer product name - PX850G
productName - DeepCool PX850G power supply unit 850 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 350
sizeY - 220
sizeZ - 135
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.4 kg
Technical details > Net weight - 1.1 kg
Technical details > Other features - Fan size 135mm
Technical details > Producer - Deepcool
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 120
warrantyType - G
Weight - 3,70
weight - 3330
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
