Gigabyte UD850GM PG5, 850W, 80PLUS Gold, PCIe 5.0

Brand - GIGABYTE
BrandPartCode - GP-UD850GM PG5
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - GP-UD850GM PG5 2.0
Colour - Black

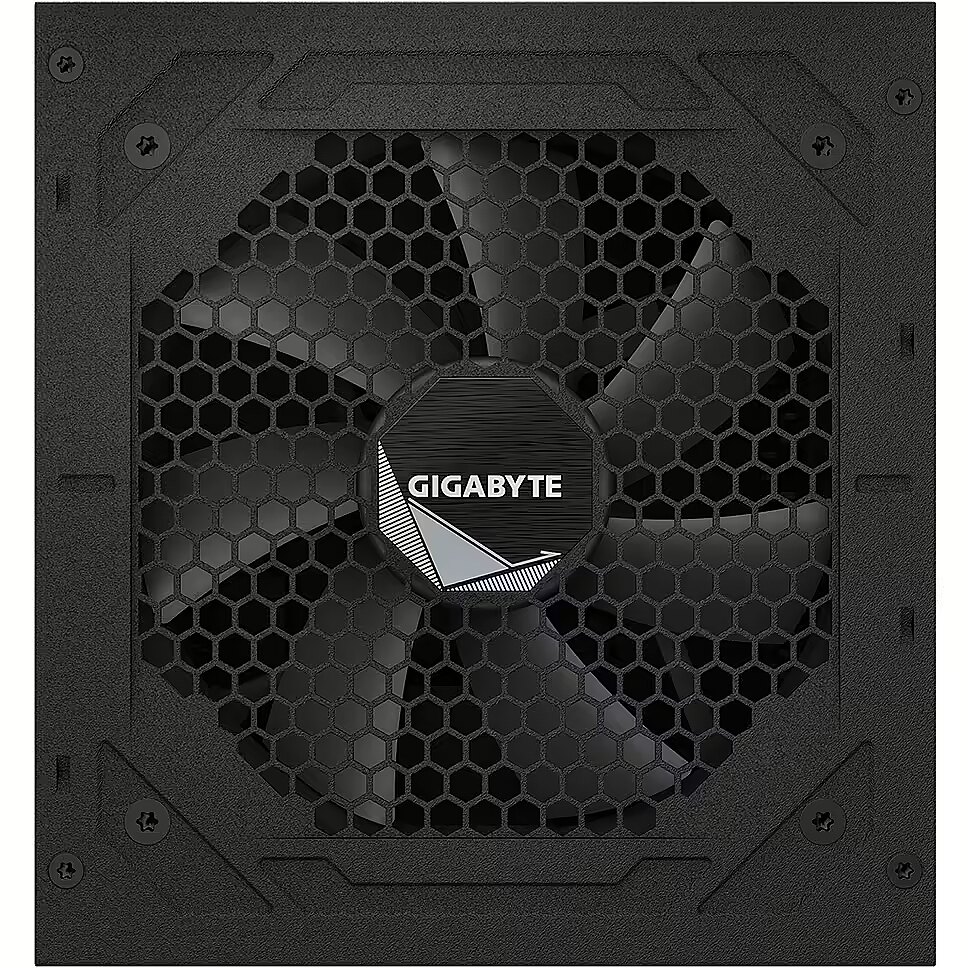

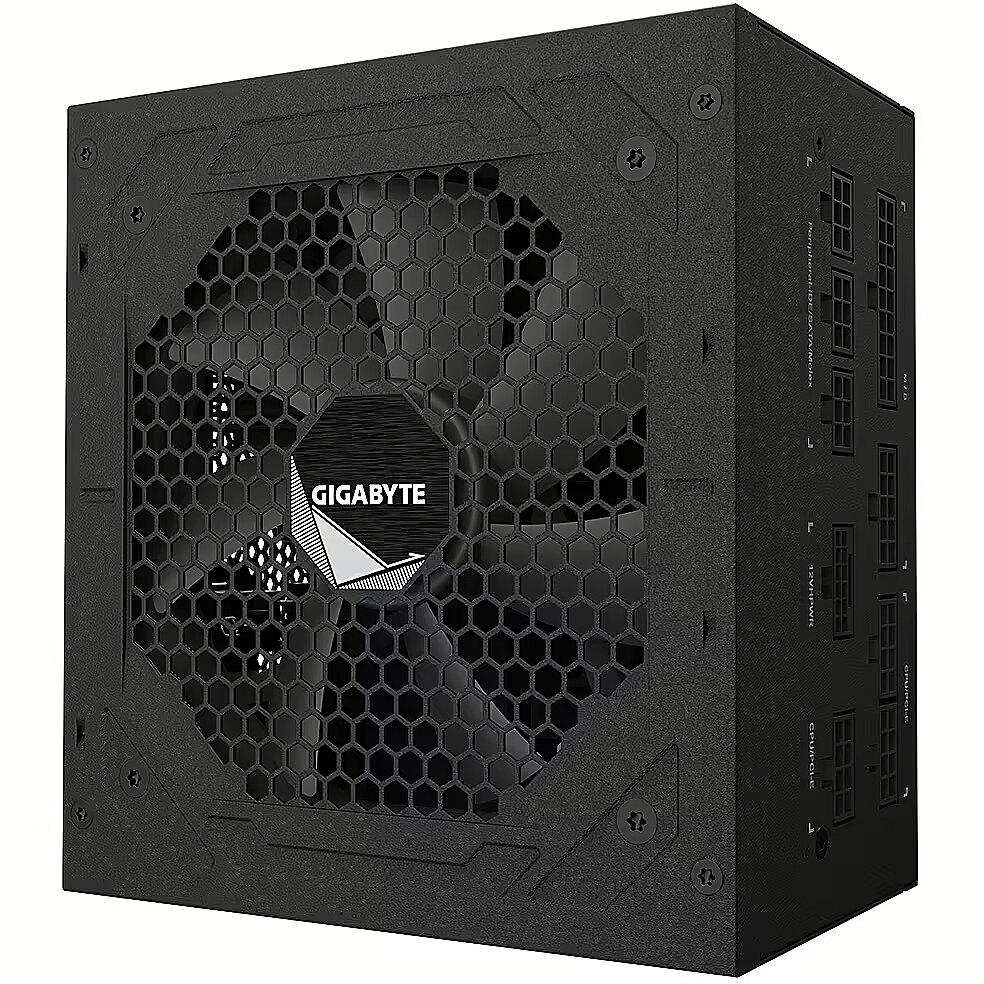

Cooling System - 12cm fan
Description - - Ultra Durable + Main Japanese capacitors + Enhanced thermal solution + 120mm smart hydraulic bearing (HYB) fan + OVP/OPP/SCP/UVP/OCP/OTP protection -Support PCIe Gen 5.0 graphics card -High-quality native 16-pin cable supports 600W output -80 PLUS Gold certified -Fully modular design -Compact design Support PCIe Gen 5.0 graphics card The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card. ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. HIGH QUALITY JAPANESE CAPACITORS The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. PLENTIFUL POWER SUPPLY The +12VHPWR and the +12V can provide a total of 850W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card. COMPACT DESIGN With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 150 x 140 x 86 mm
ean - 4719331553104
Eans - 4719331553104
EAN_code - 4719331553104
Efficiency - 80 PLUS GOLD
Full Description Line - ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331553104
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMAL SOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 850W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.COMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongProductName - ATX 12V, Active PFC, 100-240 Vac, 12-6A, 60-50 Hz, 850W, 150 x 140 x 86 mm, 120mm Hydraulic Bearing(HYB)fan, 100-150ms
LongSummaryDescription - GIGABYTE GP-UD850GM PG5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PATA, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer_code - GP-UD850GM PG5 2.0
Model - GP-UD850GM PG5
MTBF - 100000 hours
Name - Gigabyte GP-UD850GM PG5
Name - GIGABYTE GP-UD850GM PG5 850W rev.2.0, PC power supply (black, 3x PCIe, cable management, 850 watts)
name - Gigabyte UD850GM PG5 2.0 Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 850 Watt

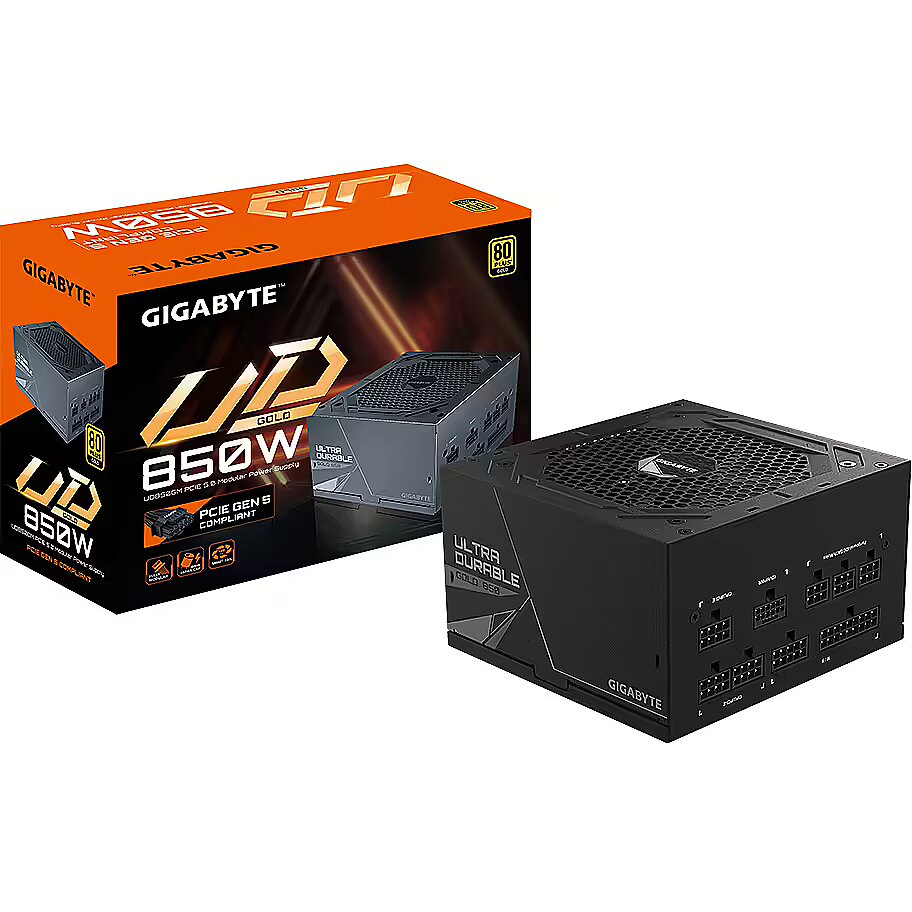

Packaging content - Cables included - CPU, PATA, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 40 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active

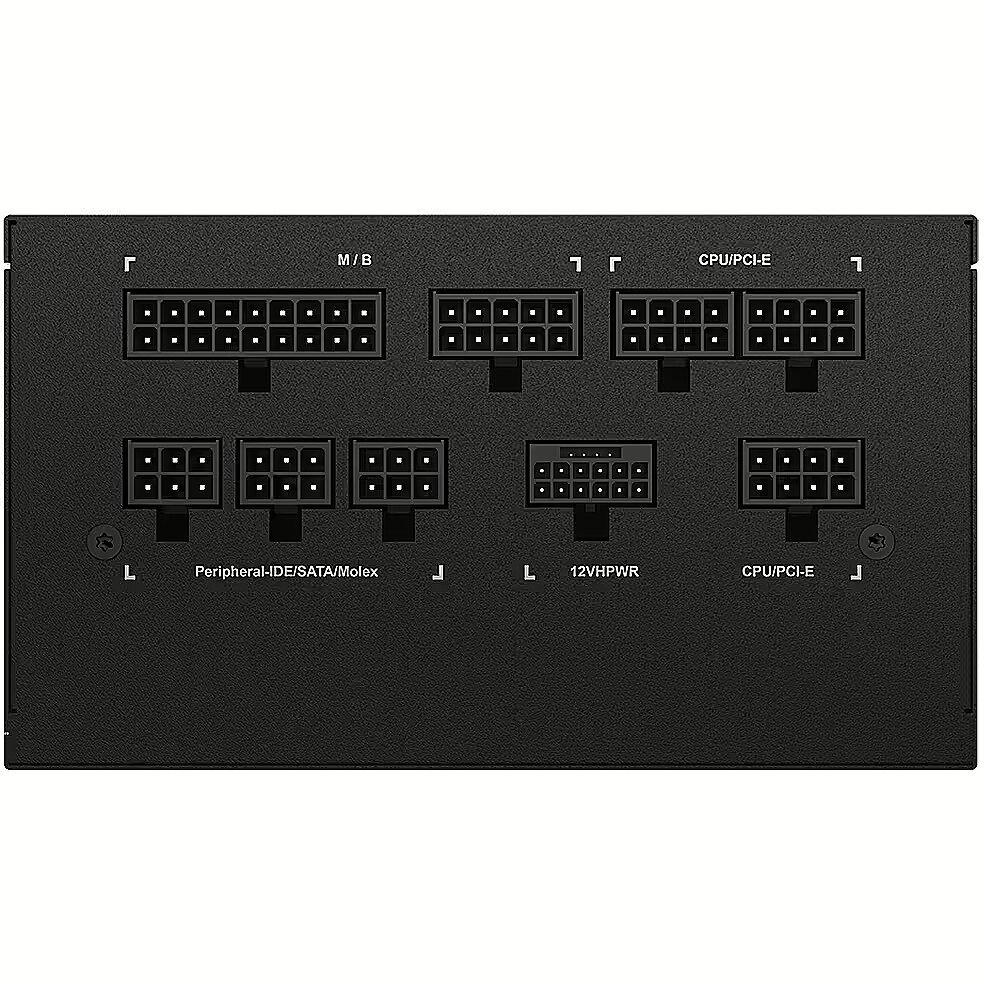

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 200,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,600 mm

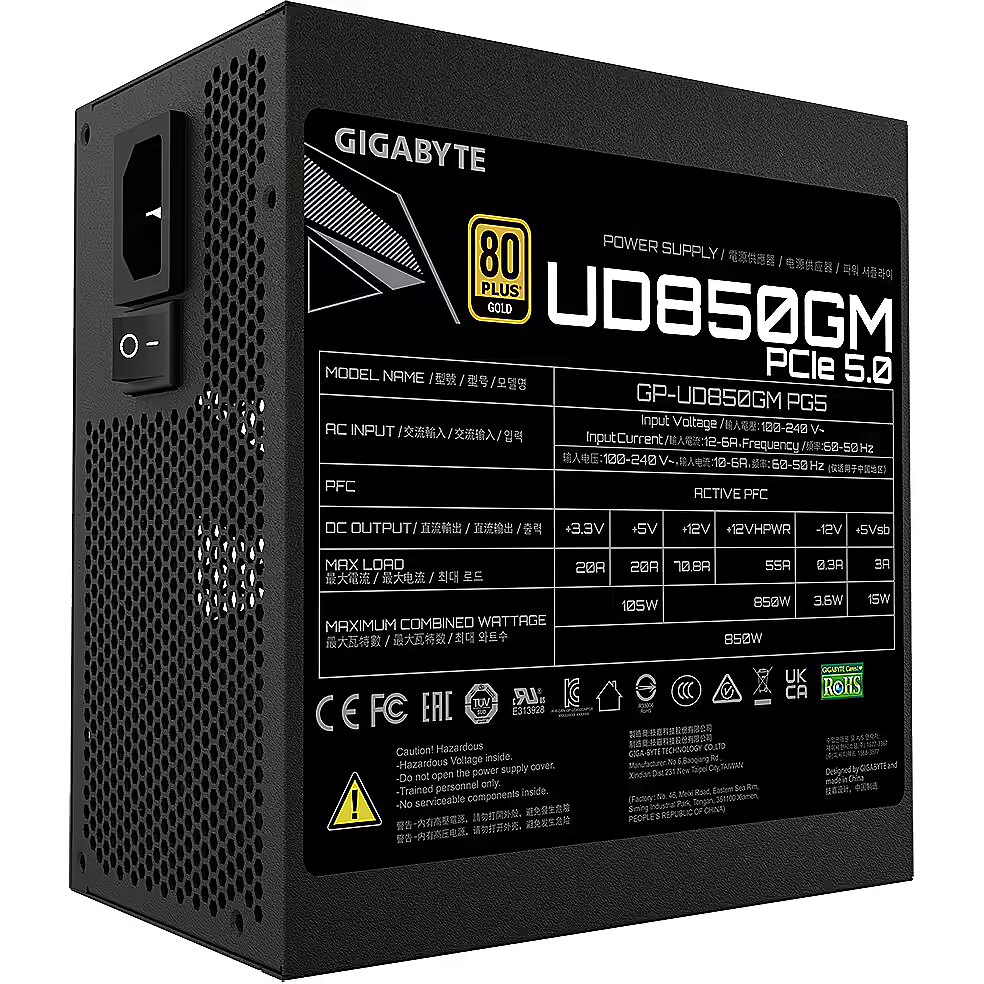

Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6 A
Power - Maximum input current (@110V) - 6 A
Power - Maximum input current (@220V) - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
Producer - Gigabyte
ProducerCode - GP-UD850GM PG5
ProductName - GP-UD850GM PG5
PSU - ATX 3.0
PSU Output Power - 850 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.678 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE GP-UD850GM PG5, 850 W, 100 - 240 V, 50 - 60 Hz, 12 - 6 A, 6 A, 12 A
Technical details - Compliance certificates - CCC, CE, Federal Communications Commission (FCC), RoHS
Technical details - Warranty period - 5 year(s)
Title - GIGABYTE GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.26
Unit Box Width - 0.21
Unit Brutto Volume - 0.006552 cubm
Unit Gross Weight - 2.68 kg
Unit Net Weight - 2.5 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5/sp#sp
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD850GM-PG5/sp#sp
Warranty - 36 months
WarrantyInfo -
Weight - 2,68
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Width - 150 mm
