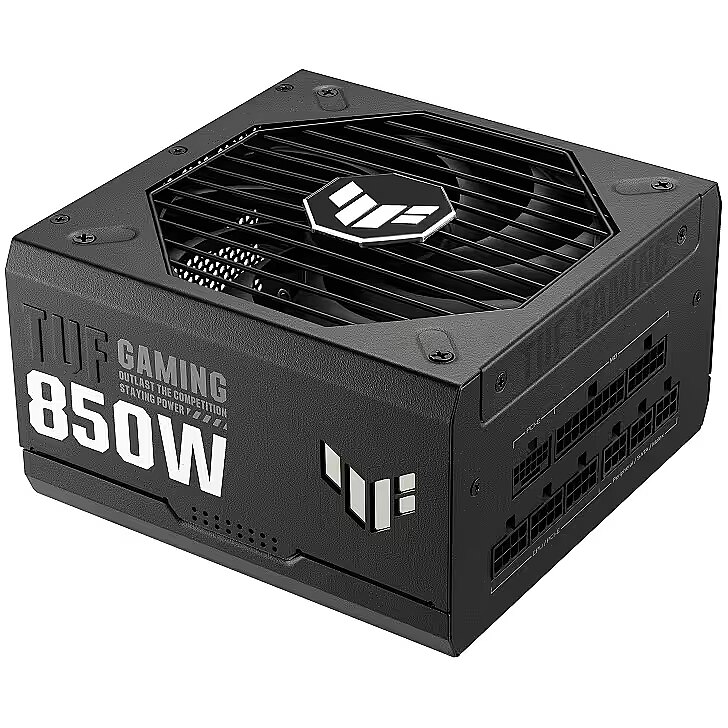

Asus TUF Gaming, 850W, ATX 3.0, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included - Power cord Motherboard power cable (610 mm) 2 x CPU Cable (650 mm) PCI-E 16-pin Gen 5 cable (675 mm) PCI-E cable (16-pin to 8-pin-8-pin)(675 mm) PCI-E 1 to 1 cable (675 mm) SATA 1 to 2 cable (400+120 mm) SATA 1 to 3 cable (400+120+120 mm) Peripheral cable 1 to 4 (400+150+150+150 mm) 3 x TUF Gaming Cable Ties User manual
Brand - ASUS
BrandPartCode - 90YE00S2-B0NA00
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
code - 90YE00S2-B0NA00
Colour - Black
Cooling System - 13.5cm fan
Description - The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul. - Capacitors and chokes pass demanding tests to achieve Military-grade Certification. - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - A protective PCB coating protects against moisture, dust, and extreme temperatures. - An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components. - Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. - Fully modular etched cables keep your rig neat and tidy.
Description - TUF Gaming 850W 80+ Gold ATX 3.0 power supply TUF Gaming 850W Gold is an efficient, durable and reliable power unit that is designed for long life. Capacitors and chokes undergo demanding tests, which allowed them to obtain a military-grade durability certificate. Fans with double ball bearings guarantee twice as long service life compared to solutions with flange bearings. A protective coating on the circuit board protects against moisture, dust and extreme temperatures. 80 Plus Gold certification was achieved thanks to the use of Japanese capacitors and other top-class components. The Axial-tech fan has a smaller hub with longer blades and a locking ring to increase downward air pressure. Fully modular cables with an etched structure allow you to create an orderly system. 10 years warranty included in the package.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1364
dimension depth - 100 mm
dimension height - 310 mm
Dimensions - 150 x 150 x 86 mm
Dimensions - 150 x 150 x 86 mm
dimension weight - 3405 g
dimension width - 370 mm
ean - 4711081786573
Eans - 4711081786573
EAN_code - 4711081786573
Efficiency - 80 PLUS GOLD
Fan - 13.5 cm
Floppy power connectors - 0
Full Description Line - TUF Gaming 850W Gold|For gaming|ATX 3.0|850 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
GTIN - 4711081786573
guarantee - 120
guarantee_type - normal
LongDesc - The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.Built For The Long HaulThe ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.TUF ComponentsTop marksWith military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.​80 Plus Gold CertificationHeart of goldThe TUF Gaming 850W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​10-year WarrantyA decade of power​We're so confident about the reliability of the TUF Gaming 850W Gold that we back it with a 10-year worldwide warranty.​
LongProductName - 850 watt, fully modular power supply, ATX 3.0 compatible, Axial-tech fan, PCB coating, double ball bearings
LongSummaryDescription - ASUS TUF Gaming 850W Gold. Total power: 850 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 130 W. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00S2-B0NA00
MB power connector - 20 + 4 pin
Model - TUF-GAMING-850G
Model name - TUF Gaming 850W Gold
Modular power supply - Yes
MOLEX power connectors - 4
Name - ASUS TUF-GAMING-850G
Name - ASUS TUF Gaming 850W Gold, PC power supply (black, 4x PCIe, cable management, 850 watts)
name - ASUS TUF Gaming 850W Gold 80 PLUS Gold Netzteil, modular - 850 Watt
name - Power supply TUF Gaming 850W 80+ Gold ATX 3.0
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Other features -
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.07 kg
Packaging data - Package width - 310 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active

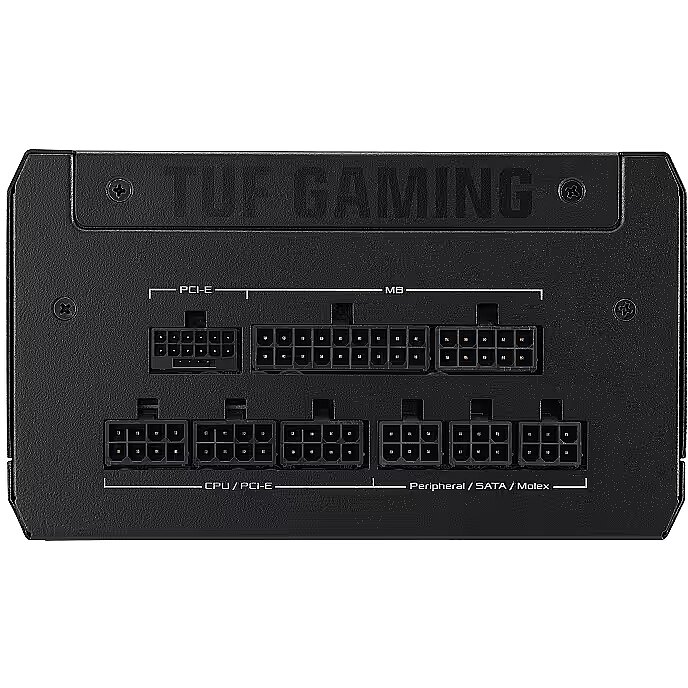

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120 mm
Ports & interfaces - SATA power cable length - 120,400 mm
Ports & interfaces - SATA power cable length - 400
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.8 A
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power supply - 850 W
producer - Asus
Producer - Asus
producerCode - 90YE00S2-B0NA00
ProducerCode - 90YE00S2-B0NA00
productName - ASUS TUF Gaming 850W Gold power supply unit 24-pin ATX ATX Black
ProductName - TUF Gaming 850W Gold
productSize - Normal
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
SATA power connectors - 5
Shipping Box Depth Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 20.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.09 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - 850 | ATX | 135mm | 20 + 4 pin |150 x 150 x 86 | 80 PLUS GOLD |
ShortSummaryDescription - ASUS TUF Gaming 850W Gold, 850 W, 100 - 240 V, 130 W, 850 W, 130 W, 9.6 W
sizeX - 110
sizeY - 200
sizeZ - 310
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Title - ASUS TUF Gaming 850W Gold power supply unit 24-pin ATX ATX Black
Unit Box Height - 0.205
Unit Box Length - 0.315
Unit Box Width - 0.11
Unit Brutto Volume - 0.007103 cubm
Unit Gross Weight - 3.09 kg
Unit Net Weight - 2.38 kg
URL - https://www.asus.com/Motherboards-Components/Power-Supply-Units/TUF-Gaming/TUF-GAMING-850G/
Vendor Homepage - www.asus.com/motherboards-components/power-supply-units/tuf-gaming/tuf-gaming-750g/techspec/
vendpn - 90YE00S2-B0NA00
Warranty - 36 months
WarrantyInfo - 10-year warranty included
warrantyLength - 120
warrantyType - G
Weight - 2,40
weight - 3100
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.38 kg
Weight & dimensions - Width - 150 mm
