ID: 863631
Tootekood: GPU-1200FC
Laos 1 üksused
Garantii: 2 aastat

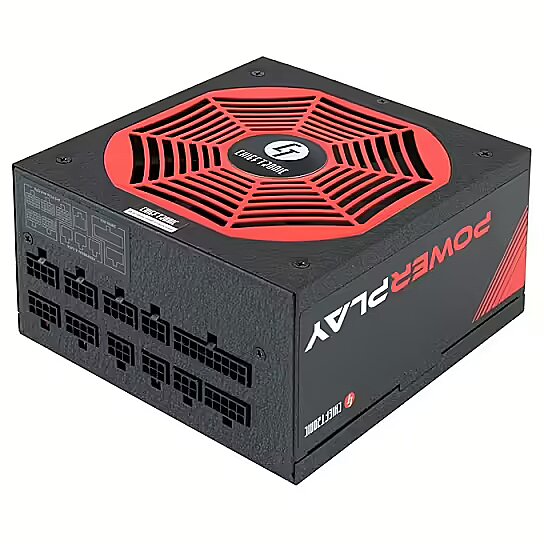

Chieftec PowerPlay GPU-1200FC, 1200W, 80PLUS Platinum
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 02.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 02.12.2024
- Kulleri kohaletoimetamine 3,99 €: 02.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Chieftec
- Võimsus: 1200W
- 80 PLUS certification: 80 PLUS Platinum
- Ventilaatori Läbimõõt: 140 mm
- Modulaarkaablid: Fully-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 8 x 6+2pin
Kirjeldus
Pakume ostmiseks Chieftec 1200W toiteallikat, mis on saanud 80 PLUS Platinum energiatõhususe sertifikaadi.

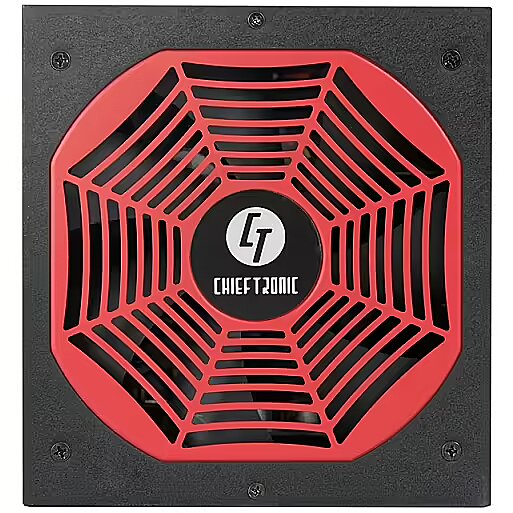

140 mm jahutusventilaatorile on see toiteallikas palju vaiksem kui tavaline seade. Ventilaatoril on suurem tiibade pindala, mis tagab vajaliku õhuvoolu ka madalamatel ventilaatori pööretel, hoides seega üldise vibratsiooni ja mürataseme minimaalsena.
80 PLUS Platinum energiatõhususe sertifikaat, mis tagab vähemalt 92% tõhususe 50% koormuse juures. See tähendab, et iga 100 W võimsuse kohta, mille toiteallikas saab elektrivõrgust, antakse teie arvutikomponentidele vähemalt 92 W, ülejäänud 8 W läheb soojusena kaduma.
Melna,Sarkana Kaablite värvus on Melna ja need on lamedad.
See toiteallikas on ATX 2.0 standardiga. See tähendab, et toiteallikas on varustatud ainult 6-poolsete ja 8-poolsete pordidega, mis pakuvad vastavalt 75W ja 150W võimsust. ATX 2.0 toitepordid ei ole ette nähtud kaasaegsete videokaartide suure võimsusvajadusega toimetulekuks. Kui ehitad süsteemi väga võimsa GPU-ga, nagu näiteks RTX 4070, on vaja ATX 3.* standardile vastavat toiteallikat.

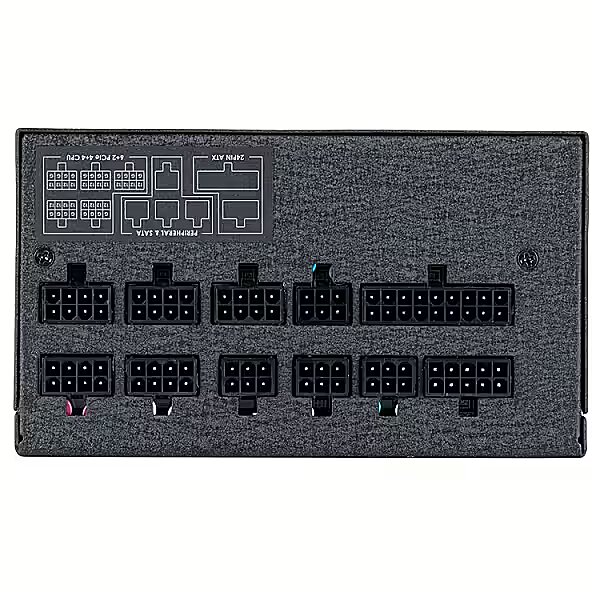

Sellel toiteallikal on täielikult modulaarsed kaablid - kõiki kaasasolevaid kaableid saab ühendada ja lahti ühendada vastavalt vajadusele, vähendades segadust ja parandades ventilatsiooni. See on kasulik neile, kellel on poolläbipaistev arvutikapp ja kes lähtuvad esteetilistest kaalutlustest.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
1200W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Platinum
Kogu voolutugevus (+12V)
: 100A
Ventilaatori Läbimõõt
: 140 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must, Punane
Modulaarkaablid
: Fully-Modular
Sadamad ja seadmed
PCI-E 5.0
: Nav
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 8 x 6+2pin
SATA pistikud
: 9
Molex PATA lisamoodulid
: 3
Täpsem spetsifikatsioon
Brand - Chieftec
BrandPartCode - GPU-1200FC
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Black, Red
Design - Product colour - Red
dimensionalWeight - 1955
EAN_code - 0753263077677
GTIN - 0753263077677
GTIN - 753263077677
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.
LongProductName - 1200W, 100-240V 13.0A, 47-63Hz, 20+4-pin ATX, ATX 12V 2.53, 80 PLUS Platinum, 160x150x87 mm
LongSummaryDescription - Chieftec GPU-1200FC. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
Manufacturer - Chieftronic
Manufacturer_code - GPU-1200FC
Name - Chieftronic GPU-1200FC, PC power supply (black/red, 8x PCIe, cable management, 1200 watts)
Packaging data - Package weight - 3.87 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.53
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,700 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 14 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - GPU-1200FC
productName - Chieftec GPU-1200FC power supply unit 1200 W 20+4 pin ATX ATX Black, Red
ProductName - GPU-1200FC
productSize - Normal
ShortSummaryDescription - Chieftec GPU-1200FC, 1200 W, 100 - 240 V, 47 - 63 Hz, 14 A, Active, 130 W
sizeX - 239
sizeY - 132
sizeZ - 310
Technical details - Compliance certificates - CE
Technical details - Sustainability certificates - CE
Technical details - Sustainability compliance - Yes
Title - Chieftec GPU-1200FC power supply unit 1200 W 20+4 pin ATX ATX Black, Red
URL - https://www.chieftec.eu/products-detail/323/PowerPlay_Platinum_SERIES/524/GPU-1200FC
WarrantyInfo - 5 Years
warrantyLength - 24
warrantyType - G
Weight - 3,87
weight - 3606
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 3.46 kg
Weight & dimensions - Width - 150 mm
