ID: 771782
Tootekood: PPS-1250FC
Saab tellida 15 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat

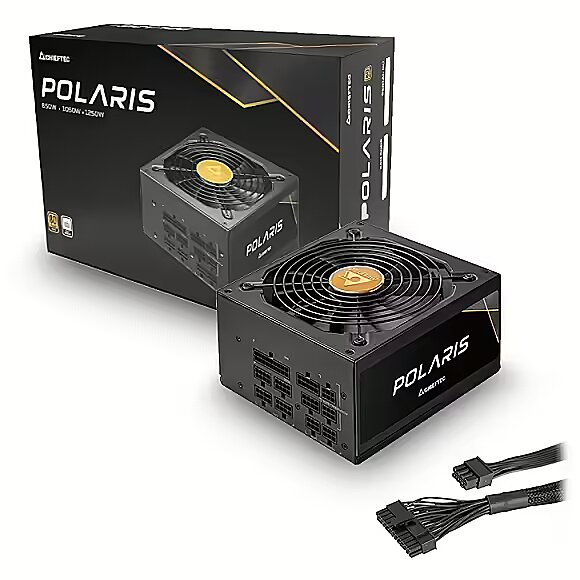

Chieftec Polaris Series, 1250W, 80PLUS Gold
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 20.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 20.12.2024
- Kulleri kohaletoimetamine 3,99 €: 20.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Chieftec
- Võimsus: 1250W
- 80 PLUS certification: 80 PLUS Gold

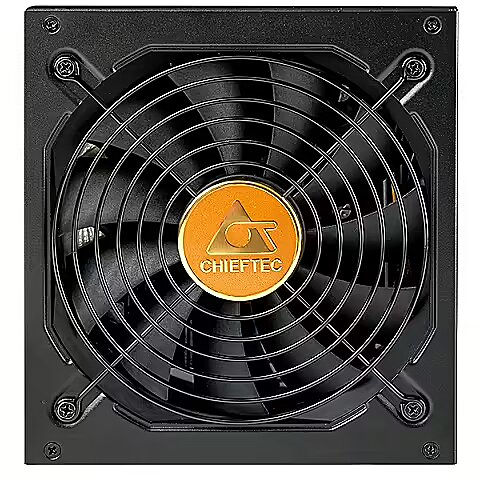

- Ventilaatori Läbimõõt: 135 mm
- Modulaarkaablid: Fully-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Kirjeldus
Sellel Chieftec kaubamärgiga toiteallikal on 80 PLUS Gold energiatõhususe sertifikaat ja 1250W võimsus.
135 mm135 mm entilaatoriga. Tänu suuremale tiibade suurusele tagab see parema õhuvoolu madalamatel kiirustel ja vaiksema töö võrreldes tavaliste 120 mm ventilaatoritega.
80 PLUS Gold energiatõhususe sertifikaat, mis tagab vähemalt 90% tõhususe 50% koormuse juures. See tähendab, et iga 100 W võimsuse kohta, mille toiteallikas saab vooluvõrgust, jõuab vähemalt 90 W teie arvuti komponentideni, ülejäänud 10 W läheb soojusena kaduma.
Melna Kaablite värvus on Melna ja need on lamedad.
See on ATX 2.0 standardile vastav toiteallikas. Toiteallikal on ainult 6-poolsed ja 8-poolsed pordid, mis suudavad töödelda vastavalt ainult 75 W ja 150 W. Tänapäeva videokaartide suured energiavajadused ületavad ATX 2.0 pordid. Kui ehitate süsteemi väga võimsa GPU-ga, nagu RTX 4070, vajate ATX 3.* standardile vastavat toiteallikat.
Tänu modulaarsetele kaablitele saate kõvakettaid, videokaarte ja muid komponente ühendada vastavalt vajadusele, kasutades erinevaid kaasasolevaid kaableid. See tähendab, et arvutis on vähem juhtmeid, mis parandab ventilatsiooni ja välimust (eriti kasulik neile, kes eelistavad poolläbipaistvat korpust).
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
1250W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Gold
Kogu voolutugevus (+12V)
: 104.1A
Ventilaatori Läbimõõt
: 135 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Fully-Modular
Sadamad ja seadmed
PCI-E 5.0
: Nav
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA pistikud
: 12
Molex PATA lisamoodulid
: 4
Täpsem spetsifikatsioon
Brand - Chieftec
BrandPartCode - PPS-1250FC
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Product colour - Black
Eans - 753263077516
EAN_code - 0753263077516
GTIN - 753263077516
GTIN - 0753263077516
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size. Cable lengths of 650mm ensure that these power-supplies can be used evenin large builds.
LongProductName - 1250W, 140mm silent fan, 80 PLUS® Gold, fully modular, LLC Half-Bridge
LongSummaryDescription - Chieftec Polaris 1250W. Total power: 1250 W, AC input voltage: 100 - 240 V, Peak power: 1250 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 160 mm, Depth: 150 mm, Height: 86 mm
Manufacturer - Chieftec
Manufacturer_code - PPS-1250FC
Name - Chieftec Polaris 1250W
Name - Chieftec PPS-1250FC 1250W ATX23 - PPS-1250FC
Packaging data - Package weight - 3.5 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.3
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1250 W
Power - Combined power (-12V) - 0.3 W
Power - Input current - 15 - 8 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 104.1 A
Power - Max output current (-12V) - 3.6 A
Power - Peak power - 1250 W
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1250 W
Producer - Chieftec
ProducerCode - PPS-1250FC
ProductName - 1250W
ShortDescription - 1250 | ATX | 140 mm | 20 + 4 pin |160mm x 86mm x 150mm | 80 Plus GOLD | modularny|
ShortSummaryDescription - Chieftec Polaris 1250W, 1250 W, 100 - 240 V, 1250 W, 50 - 60 Hz, 15 - 8 A, Active
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability certificates - ErP
Technical details - Sustainability compliance - Yes
Title - Chieftec Polaris 1250W power supply unit 20+4 pin ATX Black
URL - https://www.chieftec.eu/products-detail/498/POLARIS_SERIES/501/PPS-1250FC
WarrantyInfo - 24 Months
Weight - 3,40
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.7 kg
Weight & dimensions - Width - 160 mm
