Aerocool LUX, 650W, 80PLUS Bronze

8-pin 12V power connectors - 0
Accessories included -
Brand - Aerocool
BrandPartCode - LUX650
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Description - Power supply LUX 650W 80+ Bronze ATX 80Plus 230V EU Bronze Certified for up to 88%+ efficiency Built-in APFC (Active Power Factor Correction) rates > 0.9 OPP/OVP/UVP/SCP electrical protection included 30% Increased ventilation area in the body of the PSU allows for increased air flow Silent 12cm black fan with optimized thermal fan speed control Compatible with all Intel form factors up to ATX12V Ver.2.4 Soft, black, flat cables allow for more convenient cable management
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 960
dimension depth - 95 mm
dimension height - 200 mm
Dimensions -
dimension weight - 1770 g
dimension width - 235 mm
ean - 4718009156241
Eans - 4718009156241
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4718009156241
guarantee - 24
guarantee_type - normal
Logistics data - Master (outer) case height - 215 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 250 mm
LongDesc - Up To 88%+ Efficiency80Plus 230V EU Bronze Certified for high efficiency performance.Stylish, Elegant DesignFeaturing a stylish, elegant design, the LUX PSU is the perfect balance between power and luxury.This power supply elevates the look and feel of your rig while delivering maximum efficiency power.Improved Air Ventilation30% Increased ventilation area in the body of the PSU allows for increased air flow and circulation, preventing your system from overheating.Optimized Fan RPM12cm silent black fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperaturesConvenient Cable Management Soft, black, flat cables allow for more convenient cable management and easier installation.CompatibilityCompatible with all Intel form factors up to ATX12V Ver.2.4.
LongProductName - 650W, 120mm, 20+4-pin, 12V 4+4-pin, 5x SATA, 3x PATA, 2x PCIe 6+2-pin, 80 PLUS Bronze
LongSummaryDescription - Aerocool LUX650 PC Power Supply 650W 80 Plus Bronze 230V 88% Efficiency Black. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 550,700,850 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL PGS LUX 650W 80+ Bronze PSU
name - Power supply LUX 650W 80+ Bronze ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Other features - Manual - Yes
Packaging content - Cables included - AC
Packaging data - Cables included - AC
Packaging data - Manual - Yes
Packaging data - Package depth - 195 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,700,850 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V

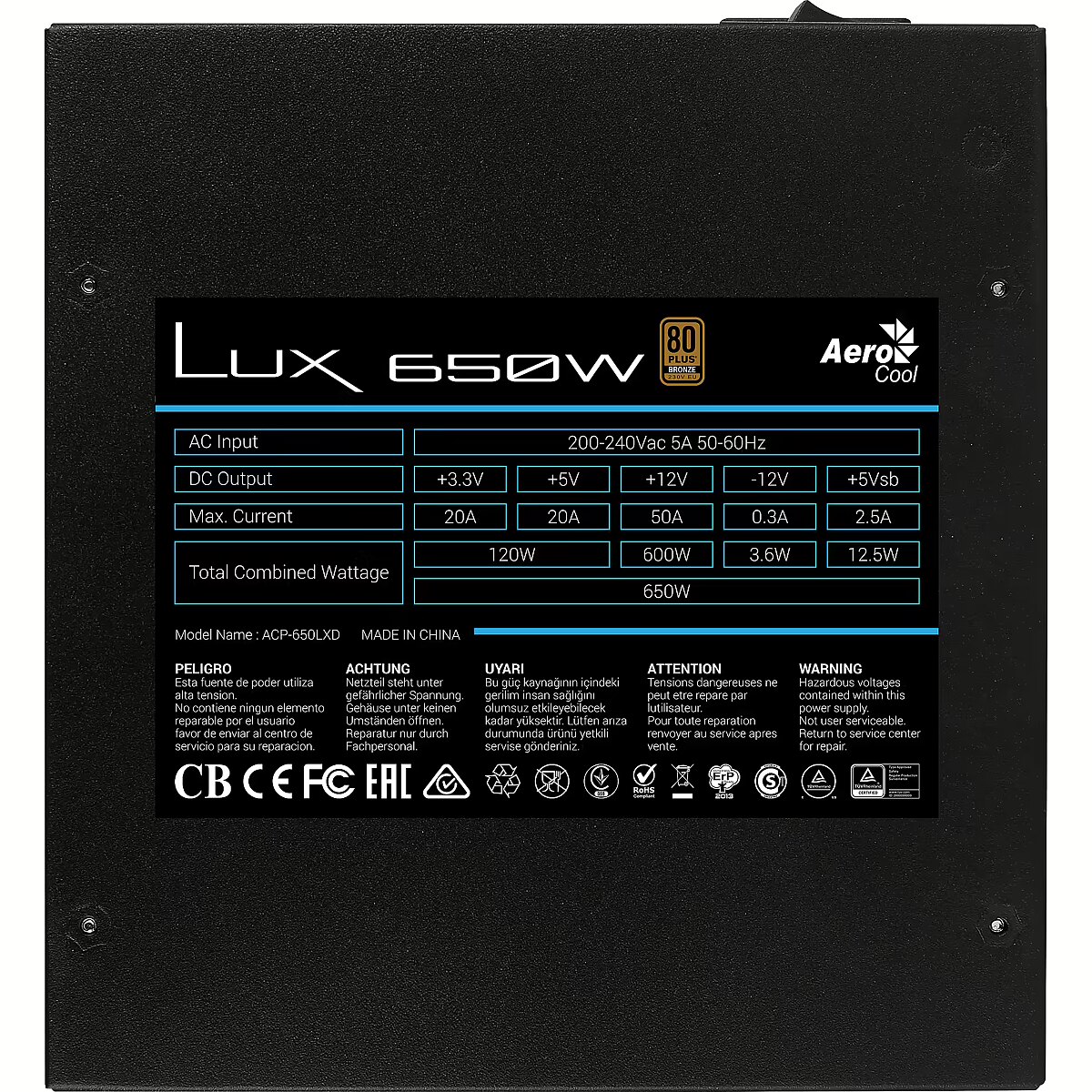

Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 650 W
Power supply - 650 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROLUX-650-80BRONZE
ProducerCode - AEROLUX-650-80BRONZE
productName - Aerocool LUX 650W power supply unit 20+4 pin ATX ATX Black
ProductName - LUX650 PC Power Supply 650W 80 Plus Bronze 230V 88% Efficiency Black
productSize - Normal
SATA power connectors - 5
ShortDescription - 650 | ATX | 120 mm | 20 + 4 pin | 150 x 86 x 140 mm | 80 Plus Bronze|
ShortSummaryDescription - Aerocool LUX650 PC Power Supply 650W 80 Plus Bronze 230V 88% Efficiency Black, 650 W, 220 - 240 V, 50 - 60 Hz, 5 A, Active, 120 W
sizeX - 200
sizeY - 100
sizeZ - 240
Title - Aerocool LUX650 PC Power Supply 650W 80 Plus Bronze 230V 88% Efficiency Black
URL - https://www.aerocool.com.tw/en/psu/lux/lux650w
vendpn - AEROLUX-650-80BRONZE
WarrantyInfo - 2 years
warrantyLength - 24
warrantyType - G
weight - 1775
