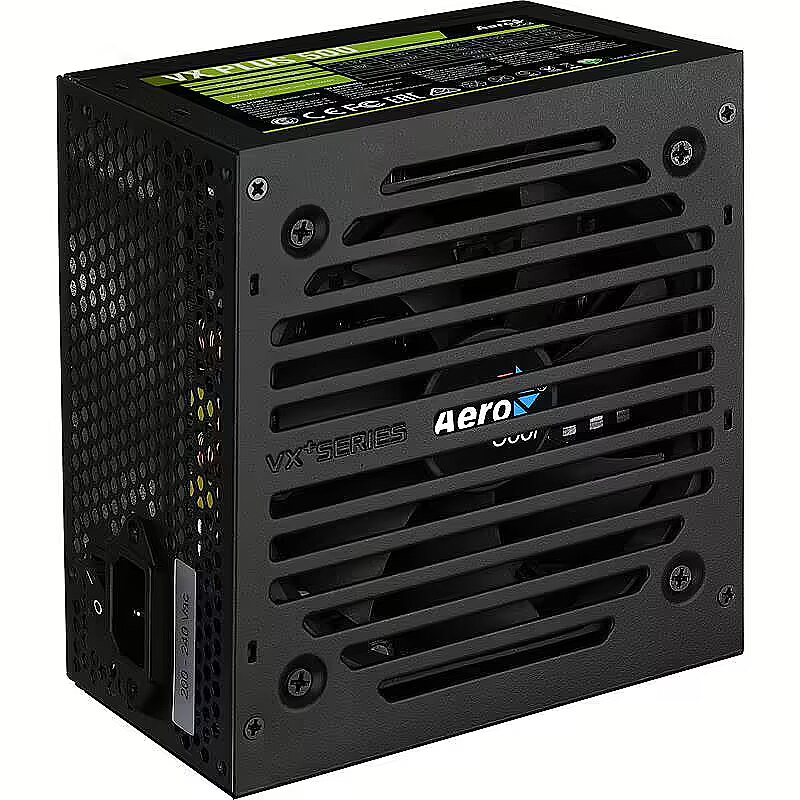

Aerocool VX 500 PLUS, 500W

8-pin 12V power connectors - 0
Accessories included -
Brand - Aerocool
BrandPartCode - AEROPGSVX-500PLUS-80
Category - Power Supply Units
Certificates 80+ - None
Description - Zasilacz VX PLUS 500W ATX Koncentrując się na dostarczaniu zasilacza o najlepszej wartości, VX PLUS umożliwia łatwą instalację, zapewniając jednocześnie niezawodną jakość i doskonałą wydajność, co czyni go idealnym zasilaczem dla początkujących konstruktorów systemów. Jest wyposażony w ulepszony transformator i 12-centymetrowy wentylator ze zoptymalizowaną termiczną kontrolą prędkości. Najlepszy zasilacz dla początkujących konstruktorów systemów Kompatybilny z ATX 12V 2.3 Zmodernizowany transformator pozwala na obsługę ciężkich systemów ładowania 12V Potężna pojedyncza linia +12V oferuje kompatybilne wyjście DC Cichy wentylator 12 cm ze zoptymalizowaną termiczną kontrolą prędkości wentylatora Zabezpieczenie elektryczne OPP/OVP/UVP/SCP/SIP w zestawie
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Fan speed - 700 - 1700 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 920
dimension depth - 95 mm
dimension height - 235 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1283 g
dimension width - 200 mm
ean - 4718009159341
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4718009159341
guarantee - 24
guarantee_type - normal
Logistics data - Country of origin - China
LongDesc - Focused on delivering the best value power supply unit, the VX PLUS allows for easy installation while delivering reliable quality and excellent performance, making this the perfect PSU for entry-level system builders. Comes equipped with an upgraded transformer and a 12cm fan with optimized thermal fan speed control.UNBEATABLE VALUEVX PLUS offers the best value you could ask for in a power supply with easy installation and top-notch performance, making this the perfect starting PSU for entry-level system builders.IMPROVED DESIGNEquipped with a unique, top cover design, the VX PLUS looks better than ever and enhances the entire look and feel of any proper gaming setup.UPGRADED TRANSFORMERUpgraded transformer improves balance between 12V, 3.3V, and 5V voltage regulations and enhances the stability, allowing for heavy 12V loading system support.OPTIMIZED FAN RPMSilent 12cm fan with optimized smart fan speed control. Fan runs in startup speed before reaching 50% load at 25℃ ambient temperatures.
LongProductName - 500 W, 230 V, ATX 12V 2.3
LongSummaryDescription - Aerocool VX Plus 500. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 300 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PATA, PCIe, SATA
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
name - Power supply VX PLUS 500W ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
Packaging content - Cables included - CPU, PATA, PCIe, SATA
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS
Performance - ATX power connector (20+4 pin) - Yes
Performance - ATX version - 2.3
Performance - Connector(s) - FDD
Performance - CPU power connector (4+4 pin) - Yes
Performance - Number of SATA power connectors - 3
Performance - PCI Express power connectors (6+2 pin) - 1
Performance - Peripheral (Molex) power connectors (4-pin) - 3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 75 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 450,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 300 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 115 - 230 V
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 4 - 8 A
Power - Input current - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.4 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 38 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power supply - 500 W
producer - AeroCool
producerCode - AEROPGSVX-500PLUS-80
productName - Aerocool VX-500W ATX power supply module Black
ProductName - VX Plus 500
productSize - Normal
SATA power connectors - 3
ShortSummaryDescription - Aerocool VX Plus 500, 500 W, 230 V, 47 - 63 Hz, 4 A, 120 W, 456 W
sizeX - 230
sizeY - 200
sizeZ - 100
Title - Aerocool VX Plus 500 power supply unit 500 W 20+4 pin ATX ATX Black
URL - https://aerocool.io/product/vx-plus-500/
vendpn - AEROPGSVX-500PLUS-80
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1276
