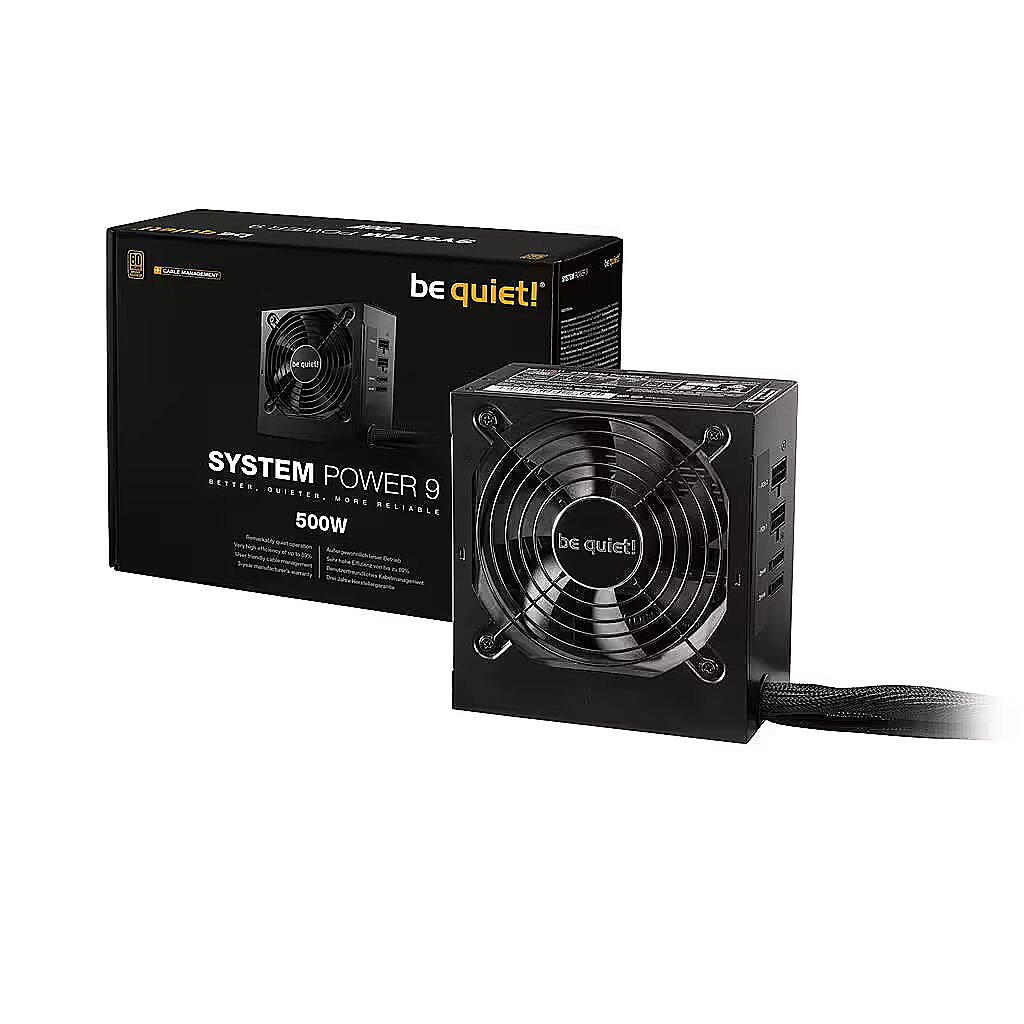

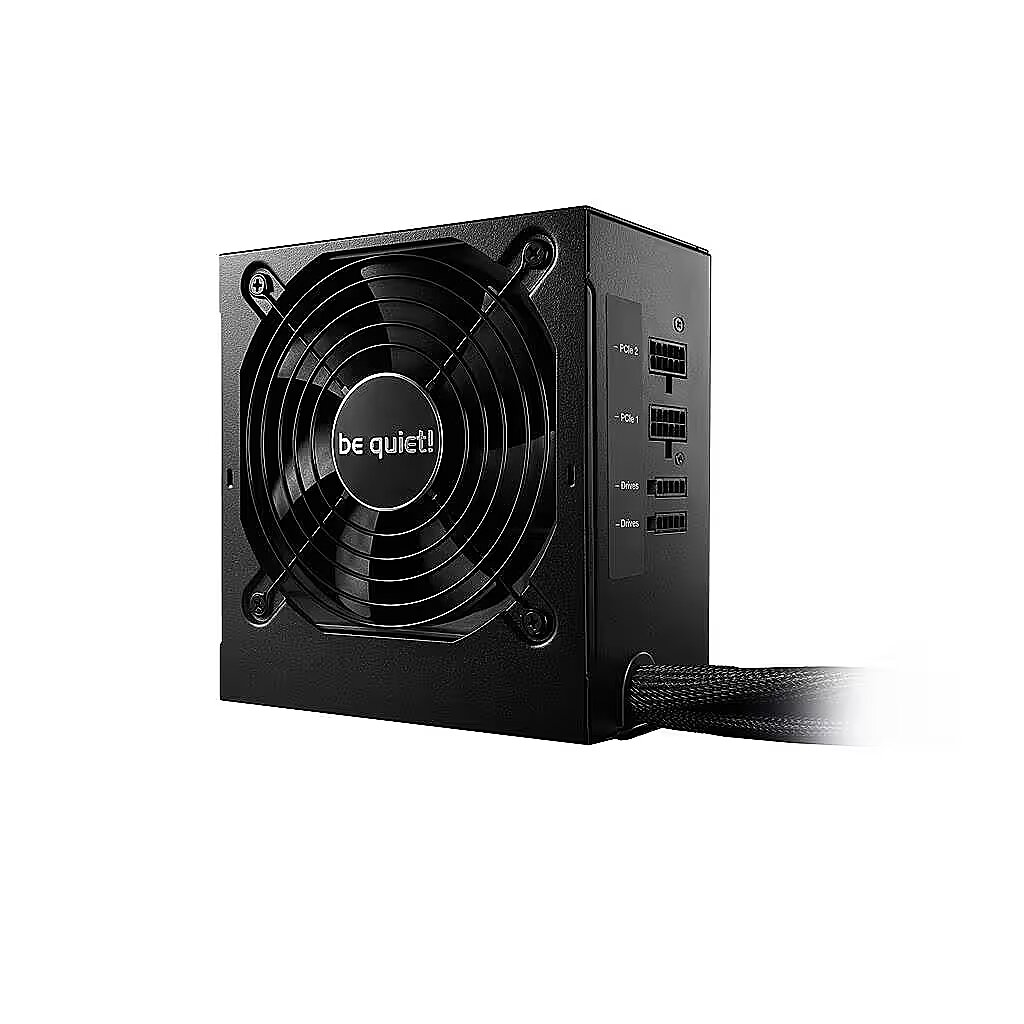

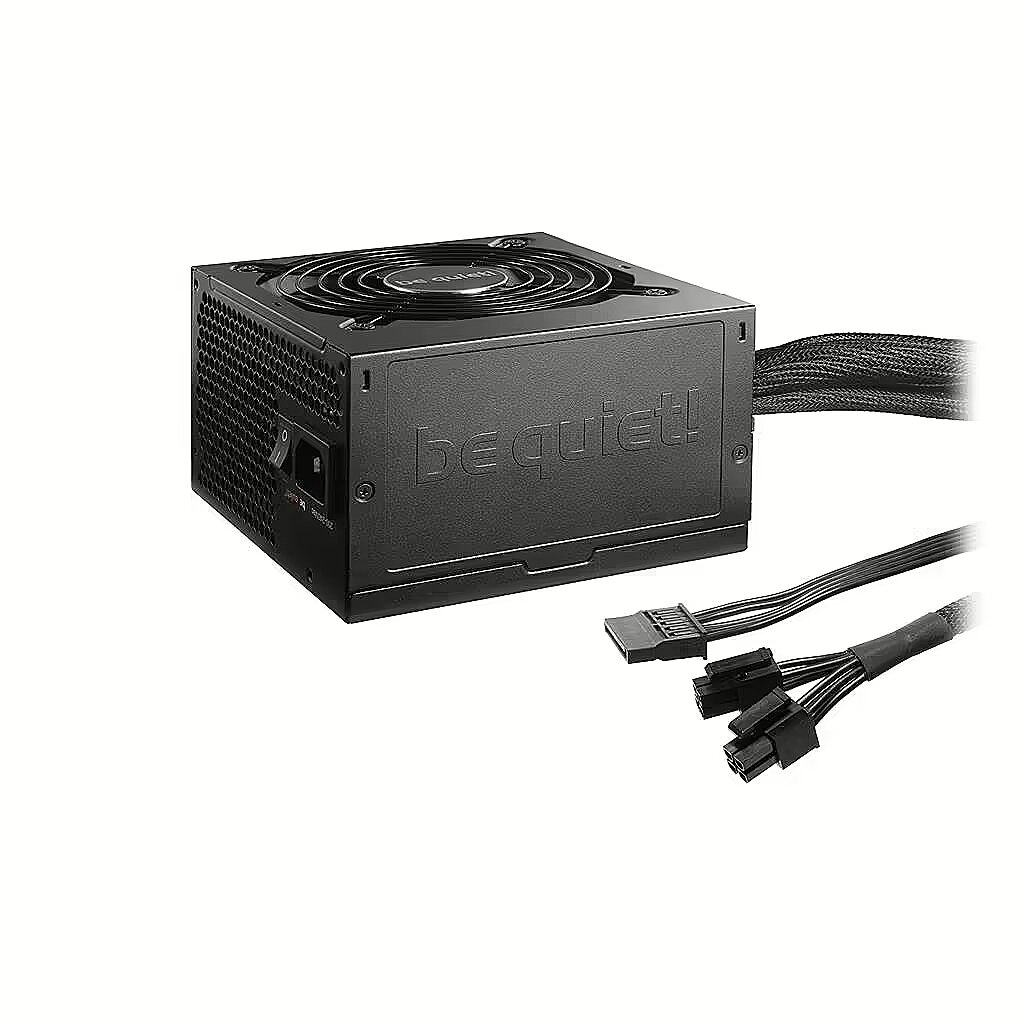

Be Quiet System Power 9 CM, 500W, 80PLUS Bronze

Accessories included -
ARTIKEL1 - SYSTEM POWER 9 500W CM
ARTIKEL2 - 80PLUS BRONZE POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN301
Breite - 0.2
category - Energy Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
code - BN301
Colour - Black
Cooling System - 12cm fan
Description - be quiet! System Power 9 CM 500W offers renowned be quiet! reliability and quietness for cost-effective and reliable systems. Rock-solid stability with 2 strong 12V-rails DC-to-DC technology for tight voltage regulation 2 PCIe connectors for powerful GPUs Temperature-controlled 120mm fan reduces system noise Stand-by drain of less than 0.15 watts 80 PLUS® Bronze efficiency (up to 89%) Semi-modular, high-quality sleeved and flat cables All-in-one cable with S-ATA, HDD and FDD connectors Complete suite of top safety features Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
Description - PROVEN RELIABILITY AND GOOD PERFORMANCE System Power 9 CM 500W from be quiet stands for reliability and silence for cost-effective systems.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1080
dimension depth - 97 mm
dimension height - 270 mm
Dimensions -
Dimensions - 140 x 150 x 86mm
dimension weight - 2215 g
dimension width - 195 mm
ean - 4260052187227
EAN - 4260052187227
EANCode - 4260052187227
Eans - 4260052187227
EAN_code - 4260052187227
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Full Description Line - System Power 9 CM|ATX 2.51|500 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 2.21
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052187227
guarantee - 36
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.1
HSTNUMMER - BN301
Laenge - 0.27
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 14 kg
Logistics data - Master (outer) case height - 556 mm
Logistics data - Master (outer) case length - 215 mm
Logistics data - Master (outer) case width - 311 mm
Logistics data - Products per master (outer) case - 6 pc(s)
LongDesc - Proven Reliability and Good EfficiencySpecially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 500W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
LongProductName - 500 W, ATX 2.51, 200-240 VAC, 6 A, 120mm fan
LongSummaryDescription - be quiet! System Power 9 | 500W CM. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,670 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PCIe, SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN301
MB power connector - 20 + 4 pin
Model - BN301
Model name - System Power 9 CM
Modular power supply - Semi
MOLEX power connectors - 2
MPN - BN301
MTBF - 100000 hours
Name - 500W be quiet! System Power 9 CM |Kabelmanagement
Name - be quiet! System Power 9 500W CM
name - be quiet! System Power 9 CM - 500 Watt
Name - be quiet! System Power 9 CM 500W ATX24
name - System Power 9 CM 500W BN301
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - Security: OCP OPP OTP OVP SCP UVP
Other features - Noise level (full-load mode, 100%) - 24.4 dB
Other features - Noise level (quiet mode, 50%) - 11.5 dB
Other features - Noise level (silent mode, Other features - Screws included - Yes
Packaging content - Cables included - PCIe, SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 195 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.22 kg
Packaging data - Package width - 97 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.51
Performance - Bearing technology - Sleeve
Performance - Certification - CE, CB, TÜV, RCM, CU
Performance - Compatible products - Intel C6/C7
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,670 mm
Ports & interfaces - SATA power cable length - 670 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 89%
Power - Hold time - 17 ms
Power - Input current - 4 A
Power - Max output current (+3.3V) - 24 A
Power - Max output current (+5V) - 15 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 24 A
Power - Max output current (+12V2) - 20 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.95
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power supply - 500 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN301
ProducerCode - BN301
productName - be quiet! System Power 9 | 500W CM
ProductName - System Power 9 | 500W CM
productSize - Normal
PSU - ATX 2.51
PSU Output Power - 500 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 20 cm
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | 80 PLUS Bronze
ShortSummaryDescription - be quiet! System Power 9 | 500W CM, 500 W, 200 - 240 V, 50 Hz, 4 A, Active, 110 W
sizeX - 270
sizeY - 100
sizeZ - 200
Stck_Kart - 6
Stck_Pal - 60
Storno - Y
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - RoHS, ENERGY STAR
Technical_details - Fan(s): 120mm, 2100rpm Volume: 9.7-24.4dB(A) (Manufacturer) Cable Management: partially modular Connectors: 1x 20/?24-Pin, 1x 4/?8-Pin ATX12V, 2x 6/?8-Pin PCIe, 6x SATA, 2x IDE, 1x Floppy average efficiency: 87% (80 PLUS, 230V EU) Certificates: 80 PLUS Bronze (230V EU) Dimensions (WxHxD): 150x86x140mm Warranty: three years Quantity of 12V-Rails: 2 +3.3V: 24A +5V: 15A +12V: 24A, 20A -12V: 0.3A +5Vsb: 3A PFC: active Form factor: ATX PS/?2 Special features: ErP Lot 6, supports "Haswell" C6/?C7 Low-Power States Note: System Power Power Supplies are exclusive for Systembuilder conceived
Title - be quiet! System Power 9 | 500W CM
Unit Box Height - 0.1
Unit Box Length - 0.27
Unit Box Width - 0.2
Unit Brutto Volume - 0.0054 cubm
Unit Gross Weight - 2.2 kg
Unit Net Weight - 2 kg
URL - https://www.bequiet.com/en/powersupply/system-power-9/1274
Vendor Homepage - www.bequiet.com/en/powersupply/1694
vendpn - BN301
Warranty - 24 months
WarrantyInfo - 3-year manufacturer’s warranty
warrantyLength - 36
warrantyType - G
Weight - 2,19
Weight - 2.2
weight - 2195
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.56 kg
Weight & dimensions - Width - 150 mm
