ID: 153815
Tootekood: BDF-500S
Saab tellida 4 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat

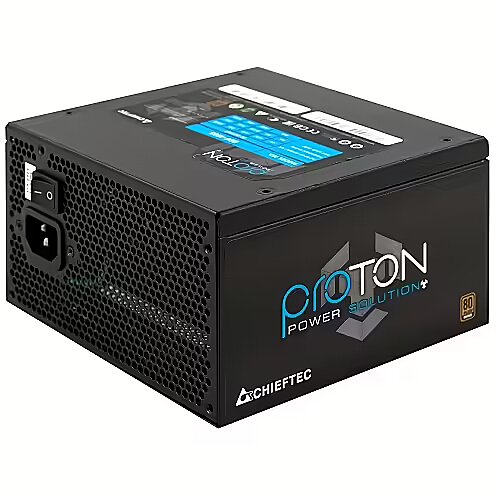

Chieftec PROTON Series, 500W, 80PLUS Bronze
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 09.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 09.12.2024
- Kulleri kohaletoimetamine 3,99 €: 09.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Chieftec
- Võimsus: 500W
- 80 PLUS certification: 80 PLUS Bronze
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kirjeldus
Sellel Chieftec kaubamärgiga toiteallikal on 80 PLUS Bronze energiatõhususe sertifikaat ja 500W võimsus.
ventilaatori läbimõõt on 120 mm120 mm
Sellele toiteallikale antud energiatõhususe sertifikaat tagab vähemalt 85% tõhususe 50% koormuse juures. Teisisõnu, iga 100 W võimsuse kohta, mida toiteallikas vooluvõrgust võtab, läheb vähemalt 85 W teie arvutikomponentidesse, ülejäänud 15 W aga soojuseks.
Melna Plokil on lamedad kaablid, mille värv on Melna.
Sellele toiteallikale määratudATX2.0 standard tagab, et toiteallikas on varustatud ainult 6-poolsete ja 8-poolsete pordidega (vastavalt 75W ja 150W). Väga võimsa graafikakaardiga süsteem (nagu RTX 4070) nõuab ATX 3.* standardiga toiteplokki ja ATX 2.0-st ei piisa.
Sellel toiteallikal ei ole eemaldatavaid kaableid ja kõik kaablid on kinnitatud toiteallika külge. See on lihtsa konstruktsiooniga, kuid töötab sama hästi kui moodulikaablitega toiteallikas.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
500W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Bronze
Kogu voolutugevus (+12V)
: 41.68A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Ei ole
Sadamad ja seadmed
PCI-E 5.0
: Nav
Protsessori pistikprogramm
: 1 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA pistikud
: 6
Molex PATA lisamoodulid
: 3
Täpsem spetsifikatsioon
Brand - Chieftec
BrandPartCode - BDF-500S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Colour - Black
Cooling System - 14cm fan
Description - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1537
Dimensions - 140x150x87 mm
Eans - 4710713231269
Efficiency - 80 PLUS BRONZE
Full Description Line - ATX 2.3|500 Watts|Cooling System 14cm fan|80 PLUS BRONZE|PFC Active|Colour Black
GTIN - 4710713231269
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
LongProductName - BDF-500S - 500W, 115-230V, 50-60Hz, ATX 12V 2.3, PS II
LongSummaryDescription - Chieftec BDF-500S. Total power: 500 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Name - Chieftec BDF-500S
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Packaging data - Warranty card - Yes
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 90 W
Power - Combined power (+5V) - 90 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 41.68 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Producer - Chieftec
producerCode - BDF-500S
ProducerCode - BDF-500S
ProductName - BDF-500S
productName - Chieftec BDF-500S power supply unit 500 W PS/2 Black
productSize - Normal
PSU - ATX 2.3
PSU Output Power - 500 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 18 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.91 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 87mm x 140mm | 80PLUS BRONZE
ShortSummaryDescription - Chieftec BDF-500S, 500 W, 115 - 230 V, 50 - 60 Hz, Active, 90 W, 90 W
sizeX - 250
sizeY - 205
sizeZ - 150
Title - Chieftec BDF-500S power supply unit 500 W 24-pin ATX PS/2 Black
Unit Box Height - 0.18
Unit Box Length - 0.25
Unit Box Width - 0.1
Unit Brutto Volume - 0.0045 cubm
Unit Gross Weight - 1.91 kg
Unit Net Weight - 1 kg
URL - https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-500s.html
Vendor Homepage - www.chieftec.eu/en/psus/ps-2/proton-series/bdf-500s.html
Warranty - 24 months
WarrantyInfo - 24 Month
warrantyLength - 24
warrantyType - R
weight - 2000
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
