ID: 125233
Tootekood: ZIC2500W12CMFA
Saab tellida 29 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat

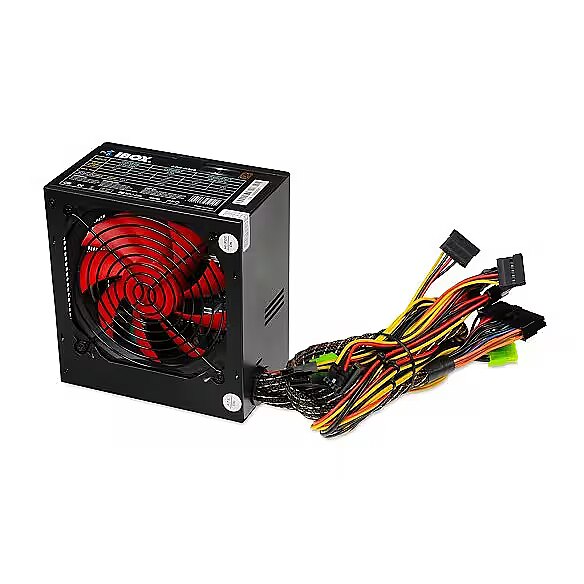

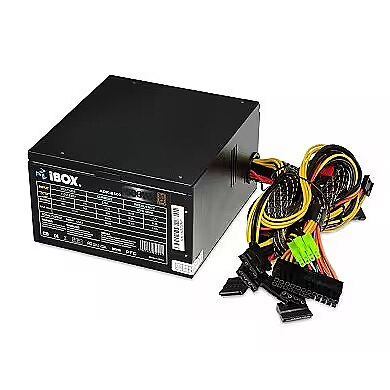

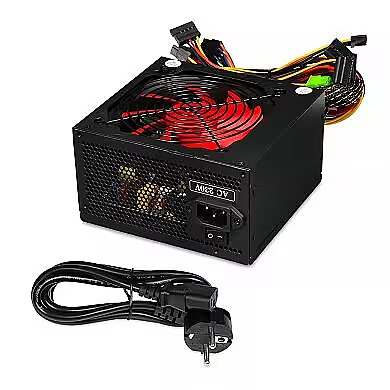

iBOX 500W, CUBE II, 120mm Fan
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Peamised tooteparameetrid Kõik parameetrid
- Tootja: iBOX
- Võimsus: 500W
- 80 PLUS certification: Ei ole
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 1 x 4-pin EPS
- PCI-E: Ei ole
Kirjeldus
Saadaval iBOX koos 500W toiteallikaga.
120 mm entilaator, millega see toiteallikas on varustatud, tagab vaikse töö vastavalt tööstusstandarditele. Toiteallika eriti vaikseks tööks soovitame 135 mm või 145 mm läbimõõduga ventilaatorit.
Sudraba See on varustatud lamedate kaablitega, mille värvus on RaibaRaiba
Sellele toiteallikale määratudATX2.0 standard tagab, et toiteallikas on varustatud ainult 6-poolsete ja 8-poolsete pordidega (vastavalt 75W ja 150W). Väga võimsa graafikakaardiga süsteem (nagu RTX 4070) nõuab ATX 3.* standardiga toiteplokki ja ATX 2.0-st ei piisa.
Sellel toiteallikal ei ole eemaldatavaid kaableid ja kõik kaablid on kinnitatud toiteallika külge. See on lihtsa konstruktsiooniga, kuid töötab sama hästi kui moodulikaablitega toiteallikas.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
500W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: Ei ole
Kogu voolutugevus (+12V)
: 0
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Kirju
Valgustus
: Ei ole
Värv
: Hõbedane
Modulaarkaablid
: Ei ole
Sadamad ja seadmed
PCI-E 5.0
: Nav
Protsessori pistikprogramm
: 1 x 4-pin EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: Ei ole
SATA pistikud
: 3
Molex PATA lisamoodulid
: 4
Täpsem spetsifikatsioon
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description - Power supply 500 W CUBE II 12 CM FAN
ATX 2.2 power supply with 500W power. A large number of protections, including: UVP (undervoltage) / OVP (overvoltage) / SCP (short-circuit) / OPP (overload) / OCP (overcurrent) / OTP (thermal) and AFC (automatic fan speed control). It has a detachable power plug (20 + 4) enabling connection to the main boards with 20-pin and 24-pin power supply. It has a four-pin EPS plug.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Silver
dimensionalWeight - 516
dimension depth - 150 mm
dimension height - 85 mm
Dimensions - 150 x 140 x 85 mm
dimension weight - 1220 g
dimension width - 210 mm
ean - 5901443051978
Eans - 5901443051978
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - external
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 4
Name - iBox Cube 2 500W
name - Power Supply 500 W CUBE II 12 CM FAN
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 0
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.2
Performance - Certification - CE, RoHS, PFC
Performance - Noise level - 20 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Passive
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express connector - No
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input voltage - 12 V
Power - Total power - 500 W
Power supply - 500 W
producer - iBOX
Producer - iBOX
producerCode - ZIC2500W12CMFA
ProducerCode - ZIC2500W12CMFA
productName - iBox CUBE II power supply unit 500 W 20+4 pin ATX ATX Silver
productSize - Normal
SATA power connectors - 3
ShortDescription - 500 | ATX | 120mm | 20 + 4 pin | 150mm x 80mm x 140mm | standard |
sizeX - 190
sizeY - 160
sizeZ - 85
Technical details - Sustainability certificates - RoHS
vendpn - ZIC2500W12CMFA
warrantyLength - 24
warrantyType - G
weight - 1190
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Width - 140 mm
