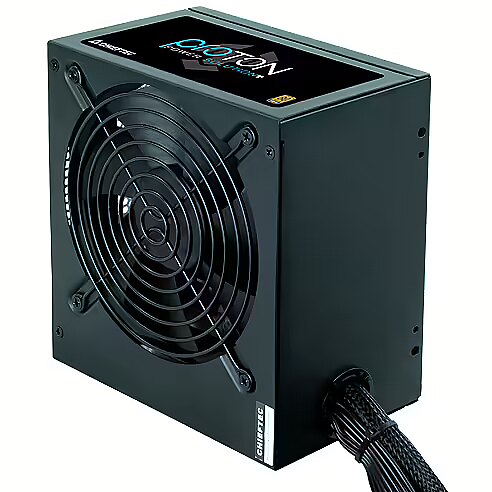

Chieftec PROTON Series, 400W, 80PLUS Bronze

- Tarne Smartpostile 1,99 €: 15.05.2025
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 15.05.2025
- Kulleri kohaletoimetamine 3,99 €: 15.05.2025

- Tootja: Chieftec
- Võimsus: 400W
- 80 PLUS certification: 80 PLUS Bronze
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6pin
Saadaval on Chieftec toodetud toiteplokk, mille väljundvõimsus on 400W. Tootele on antud 80 PLUS Bronze energiatõhususe sertifikaat.
Selle toiteploki ventilaatori läbimõõt on 120 mm, mis tagab vaikse töö keskmise tasemega arvutites. Eriti vaikse toiteploki töö tagamiseks soovitame valida ventilaatori, mille läbimõõt on 135 mm või 140 mm.
80 PLUS Bronze energiatõhususe sertifikaat, mille see toiteplokk on saanud, garanteerib vähemalt 85% tõhususe 50% koormuse juures. Teisisõnu, igast 100 W energiast, mida toiteplokk saab elektrivõrgust, läheb vähemalt 85 W teie arvutikomponentidele, samal ajal kui ülejäänud 15 W kaob soojusena.
Selle toiteploki värv on Melna. Kaabli värv on Melna ja need on lamedad.
See toiteplokk vastab ATX 2.0 standardile. See tähendab, et seade on varustatud ainult 6-pin ja 8-pin pistikutega, pakkudes vastavalt 75W ja 150W energiat. Oluline on märkida, et see seade on ühilduv RTX 4070 ja võimsamate kaartidega, kuid teil tuleb kasutada graafikakaardiga kaasas olevat 2x8-pin to 16-pin 12VHPWR adapterit. ATX 2.0 toitepistikud ei ole mõeldud kaasaegsete graafikakaartide suurte võimsuskõikumiste talumiseks; seetõttu, kui ehitate süsteemi, millel on võimas GPU, näiteks RTX 4070, soovitame valida toiteploki, millel on ATX 3.* standard ja 12VHPWR (PCIe 5.0) pistik.
Sellel toiteallikal ei ole eemaldatavaid kaableid ja kõik kaablid on toiteallika külge kinnitatud. Sellel on lihtne disain, kuid see töötab sama hästi kui modulaarsete kaablitega toiteallikas.
BrandPartCode - BDF-400S
Category - Power Supply Units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4710713231252
GTIN - 4710713231252
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
LongProductName - BDF-400S - 400W, 115-230V, 50-60Hz, ATX 12V 2.3, PS II
LongSummaryDescription - Chieftec BDF-400S. Total power: 400 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
MPN - BDF-400S
Name - 400W Chieftec PROTON Serie BDF-400S
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 90 W
Power - Combined power (+5V) - 90 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 33.36 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 400 W
ProductName - BDF-400S
ShortSummaryDescription - Chieftec BDF-400S, 400 W, 115 - 230 V, 50 - 60 Hz, Active, 90 W, 90 W
Title - Chieftec BDF-400S power supply unit 400 W 24-pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-400s.html
WarrantyInfo - 24 Month
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
