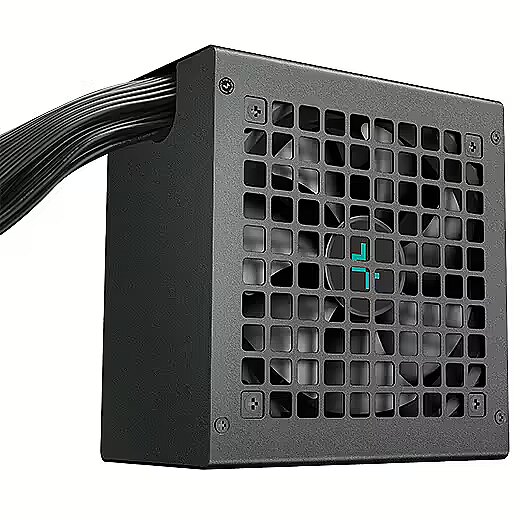

Deepcool PL800D V2, 800W, 80 PLUS Bronze, PCI-E 5.0

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
ID: 1178674 Tootekood: R-PL800D-FC0B-EU-V2
Saab tellida 195 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat
93.43 €
Tarnevõimalused
  • Tarne Smartpostile 1,99 €: 14.05.2025
  • Omniva pakiautomaati kohaletoimetamine 1,99 €: 14.05.2025
  • Kulleri kohaletoimetamine 3,99 €: 14.05.2025
Peamised tooteparameetrid Kõik parameetrid
  • Tootja: Deepcool
  • Võimsus: 800W
  • 80 PLUS certification: 80 PLUS Bronze
  • Ventilaatori Läbimõõt: 120 mm
  • Modulaarkaablid: Ei ole
  • Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Kirjeldus

Sellel Deepcool kaubamärgi toiteplokil on 80 PLUS Bronze energiatõhususe sertifikaat ja 800W võimsus.

800W toiteallikas sobib võimsale tööjaamale või mänguarvutile. See varustab vooluga tippklassi videokaardi (näiteks RTX 4070 Ti SUPER), mitme kõvaketta (SSD/HDD), veekülmutuse ja tippklassi protsessori (võimalik, et ülekiirendatud).

120 mm ventilaatorid, millega see toiteplokk on varustatud, tagavad tööstusstandardi vaikse töö. Eriti vaikse toiteploki töö tagamiseks soovitame osta 135 mm või 145 mm läbimõõduga ventilaatorit.

80 PLUS Bronze energiatõhususe sertifikaat, mille see toiteplokk on saanud, garanteerib vähemalt 85% tõhususe 50% koormuse juures. Teisisõnu, igast 100 W energiast, mida toiteplokk saab elektrivõrgust, läheb vähemalt 85 W teie arvutikomponentidele, samal ajal kui ülejäänud 15 W kaob soojusena.

Toiteallika värv on Melna. See on varustatud lamedate kaablitega, mille värv on Melna.

Sellel toiteallikal ei ole eemaldatavaid kaableid ja kõik kaablid on toiteallika külge kinnitatud. Sellel on lihtne disain, kuid see töötab sama hästi kui modulaarsete kaablitega toiteallikas.

Seda toiteplokki tootis Deepcool. Kõiki Deepcool toiteplokke saab vaadata siin.

Põhiteave
Cybenetics Mürataseme sertifitseerimine : Nav
Cybenetics tõhususe sertifitseerimine : Cybenetics Silver
Toiteallika tüüp : ATX
Võimsus 800W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification : 80 PLUS Bronze
Kogu voolutugevus (+12V) : 0
Ventilaatori Läbimõõt : 120 mm
Funktsionaalsus
Kaabli värvus : Must
Valgustus : Ei ole
Värv : Must
Modulaarkaablid : Ei ole
Sadamad ja seadmed
PCI-E 5.0 : 1 x 450W 12V-2X6
Protsessori pistikprogramm : 2 x 8-pin(4+4) EPS
Emaplaadi pistik : 20+4pin
PCI-E : 3 x 6+2pin
SATA pistikud : 8
Molex PATA lisamoodulid : 2
Juhtum
Täpsem spetsifikatsioon
Certificates - Certification - CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - WEEE
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1344
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 650
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 9 - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 800 W
producerCode - R-PL800D-FC0B-EU-V2
productName - DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 280
sizeY - 200
sizeZ - 120
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
warrantyLength - 24
warrantyType - G
weight - 2500
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
