Gigabyte GP-P650SS ICE, 650W, 80PLUS Silver

Brand - GIGABYTE
BrandPartCode - GP-P650SS ICE EU
Category - Power Supply Units
Category Code - PSU
Code - GP-P650SS ICE GEU1
Colour - White
Description - GIGABYTE P650SS ICE + Ice white aesthetics + 80 PLUS Silver certified (230V EU) + Support Intel ATX 3.0 standard + 120mm Fluid Dynamic Bearing (FDB) Fan + Flat cable design + Powerful single +12V rail + OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS SILVER CERTIFIED The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise. Support Intel ATX 3.0 standard The P650SS ICE can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. 120MM FLUID DYNAMIC BEARING(FDB) FAN High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise. RELIABLE FLAT CABLE DESIGN The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis. PROTECTION To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
Design - Cooling type - Active

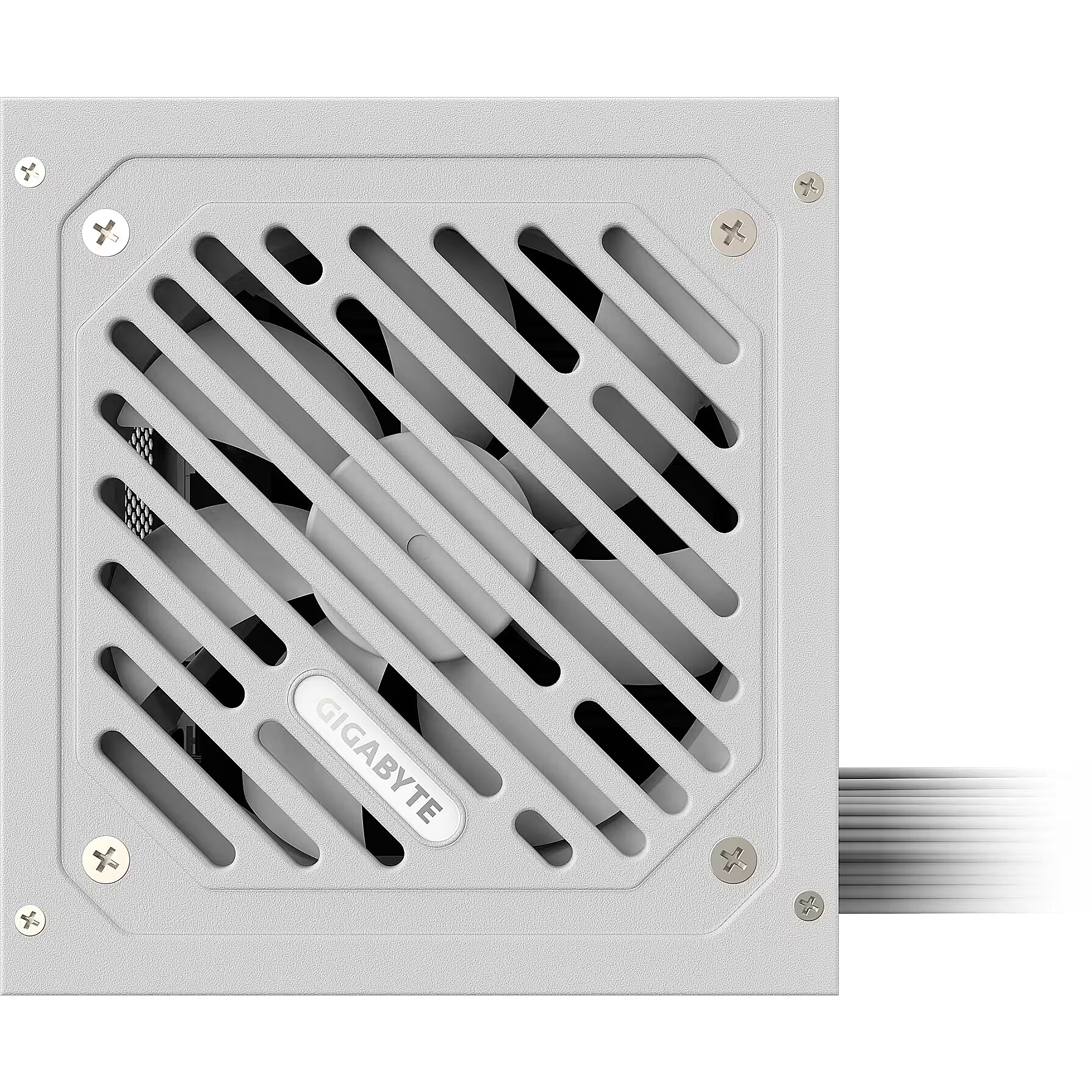

Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
Dimensions - 150 x 140 x 86 mm
EAN - 4719331554927
Efficiency - 80 PLUS SILVER
Full Description Line - GP-P650SS ICE|For gaming|ATX 3.0|650 Watts|80 PLUS SILVER|PFC Active|MTBF 100000 hours|Colour White
GTIN - 4719331554927
Link - https://www.gigabyte.com/Power-Supply/GP-P650SS-ICE#kf
Logistics data - Warranty period - 3 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 650 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Model name - GP-P650SS ICE
MTBF - 100000 hours
Name - Gigabyte PSU | GP-P650SS ICE GEU1 | 650 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 457 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.19 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.6 kg
Packaging data - Package width - 254 mm
Performance - 80 PLUS certification - 80 PLUS Silver
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 65 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 120,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 120,500 mm

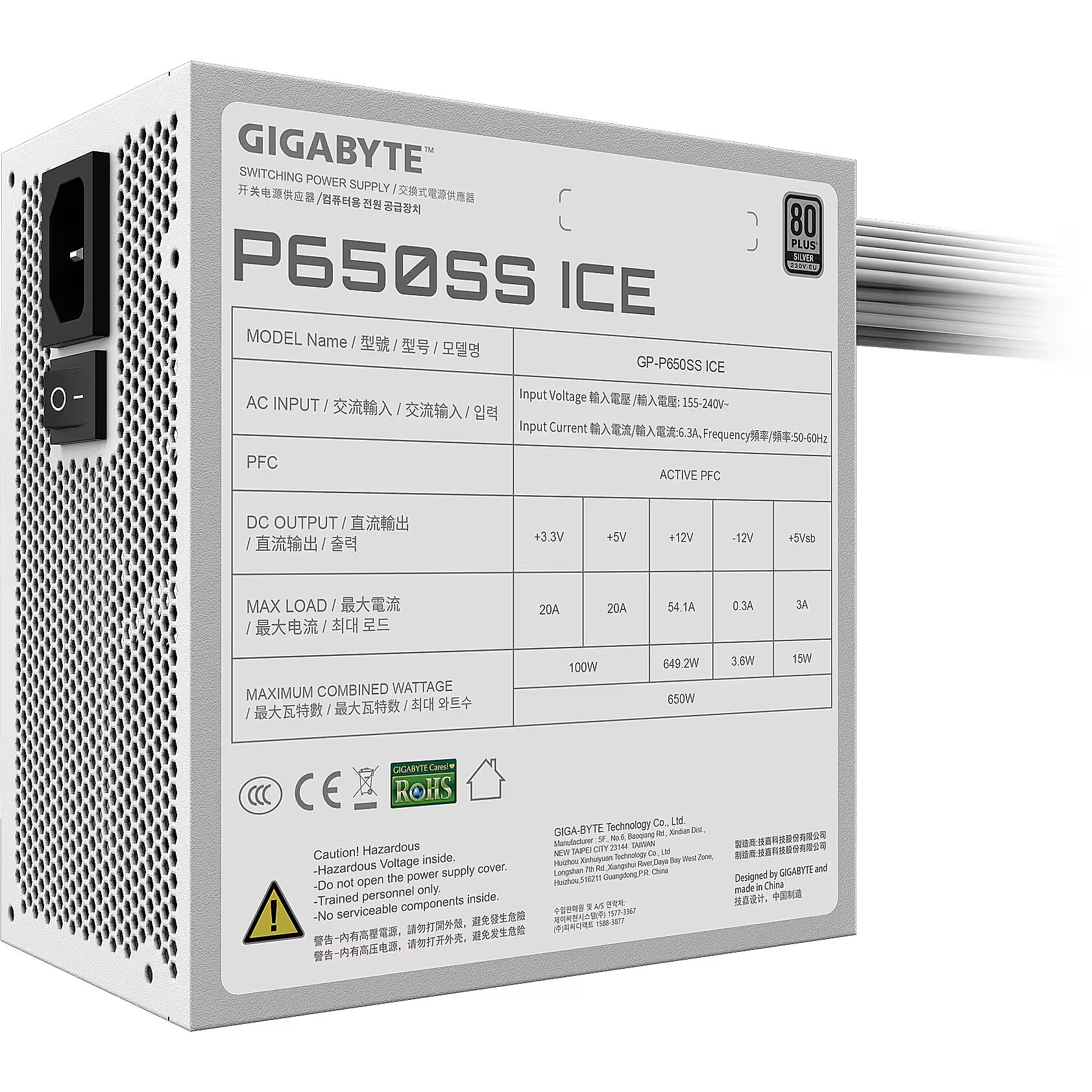

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 155-240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 649.2 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54.1 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over power, Overcharge, Short circuit, Under voltage
Power - Total power - 650 W
Power > Nominal power - 650 W
ProductName - P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 650 Watts
Shipping box quantity - 1
ShortSummaryDescription - GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 650 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W
Technical details > Gross weight - 2.19 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - PSU
Technical details > Producer product name - GP-P650SS ICE GEU1
Title - GIGABYTE P650SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
Unit Brutto Volume - 0.007577 cubm
Unit Gross Weight - 2.24 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P650SS-ICE#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.23 kg
Weight & dimensions - Width - 140 mm
