ID: 1150295
Tootekood: SSR-750FM
Laos 30 üksused
Garantii: 2 aastat

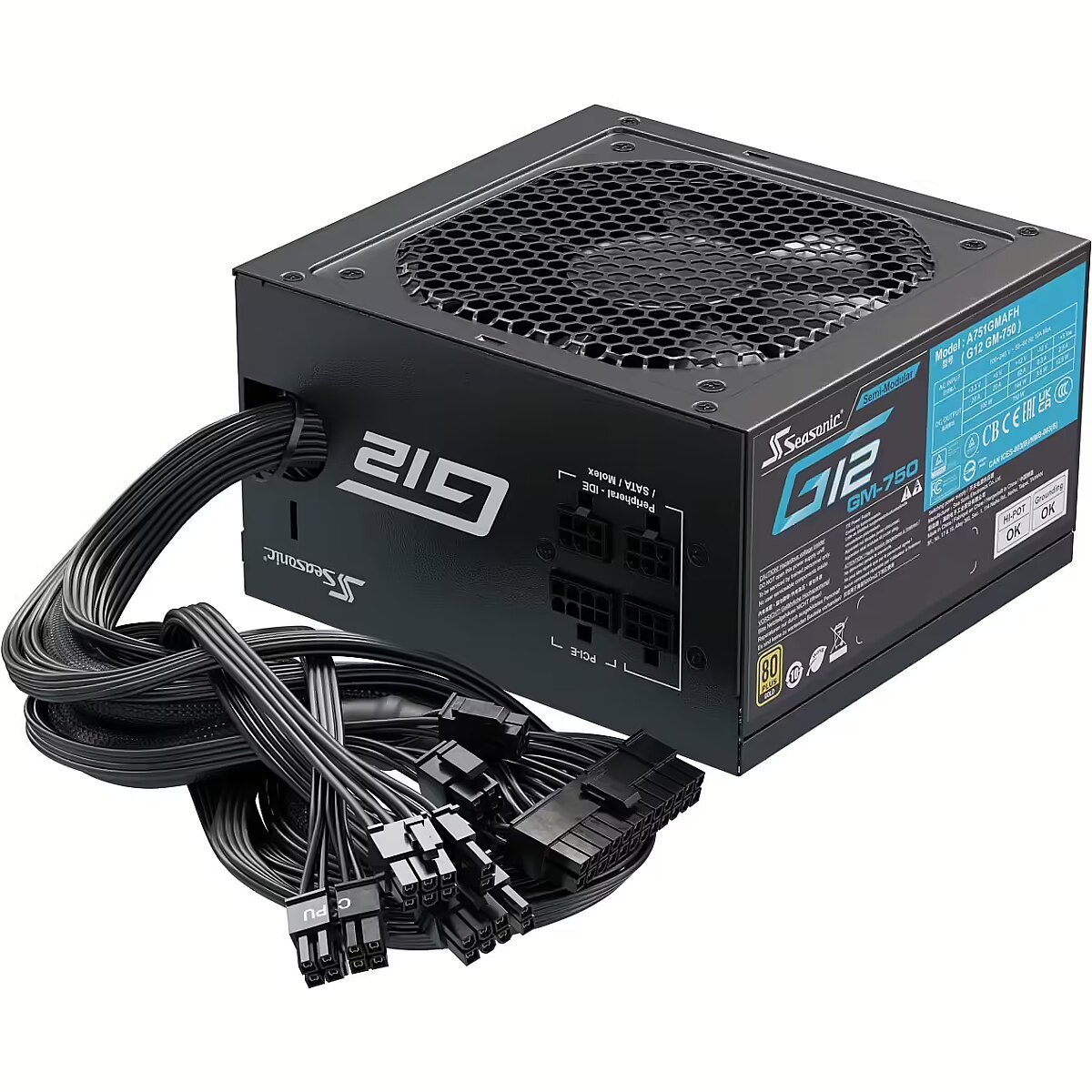

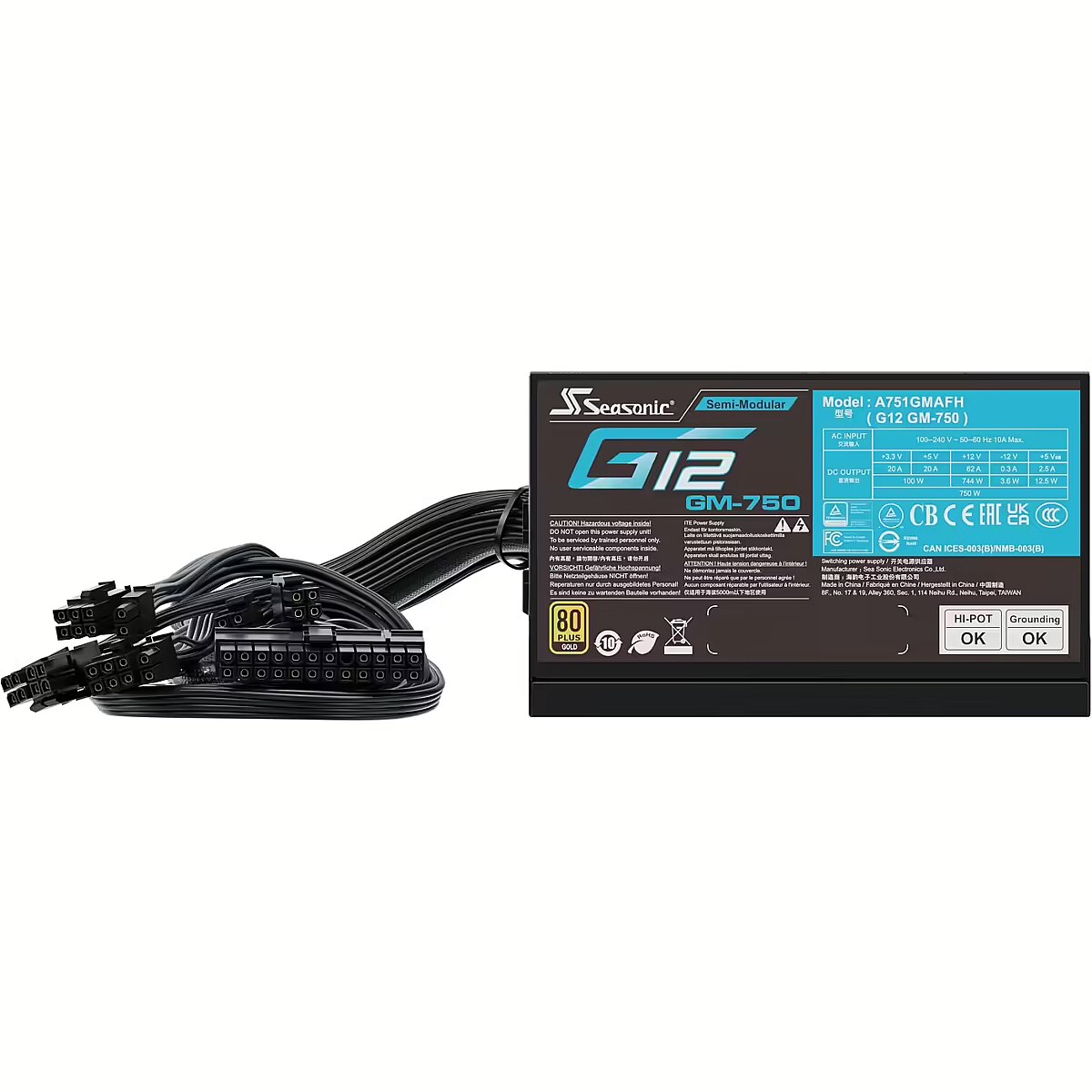

Seasonic G12-GM, 750W, 80PLUS Gold
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Tarne Smartpostile 1,99 €: esmaspäeval, 31.03.2025
- Omniva pakiautomaati kohaletoimetamine 1,99 €: esmaspäeval, 31.03.2025
- Kulleri kohaletoimetamine 3,99 €: esmaspäeval, 31.03.2025
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Seasonic
- Võimsus: 750W
- 80 PLUS certification: 80 PLUS Gold
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Semi-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Kirjeldus
Saadaval on Seasonic toodetud toiteplokk, mille väljundvõimsus on 750W. Tootele on antud 80 PLUS Gold energiatõhususe sertifikaat.
750W võimsusega piisab heaks kesktaseme mängukogemuseks. Toiteplokk suudab käivitada arvuti, milles on tippklassi protsessor, tugev kesktaseme graafikakaart (näiteks, RTX 4070) ja mitu draivi (SSD/HDD).
See toiteplokk on varustatud 120 mm ventilaatoriga, mis on tööstuse standard vaikse töö tagamiseks tavalistes arvutites. Kui soovite eriti vaikset seadet, siis otsige üks, mille ventilaatori läbimõõt on 135 mm või 140 mm.
Toiteallikale on antud 80 PLUS Gold energiatõhususe sertifikaat, mis tagab vähemalt 90% tõhususe 50% koormuse juures. See näitab, et vähemalt 90 W 100 W-st toiteallikast elektrivõrgust võetud võimsusest jõuab arvutikomponentideni, ülejäänud 10 W kaob soojusena.
Toiteallika värv on Melna. See on varustatud lamedate kaablitega, mille värv on Melna.
See on toiteallikas, mis vastab ATX 2.0 nõuetele. Toiteallikal on ainult 6-pin ja 8-pin pistikud, mis suudavad vastavalt 75 W ja 150 W võimsust käsitleda. Kaasaegsete graafikakaartide kõrged energiavajadused ületavad ATX 2.0 pistikute võimekust. Kui ehitad süsteemi väga võimsa GPU-ga, nagu näiteks RTX 4070, vajad ATX 3.* standardi toiteallikat.
Toiteploki kaablid on osaliselt modulaarsed. Mõned kaablid saab vajadusel külge panna või eemaldada, samas kui teised on fikseeritud. See seade on mõeldud neile, kes soovivad teatud tasemel paindlikkust, kuid ei soovi täielikult modulaarsüsteemi.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
750W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Gold
Kogu voolutugevus (+12V)
: 62A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Semi-Modular
Sadamad ja seadmed
PCI-E 5.0
: Nav
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA pistikud
: 6
Molex PATA lisamoodulid
: 3
Täpsem spetsifikatsioon
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category 1 - Netzteile
Category Code - PSU
Certificates - Certification - WEEE, ErP Lot 6, REACH
Certificates - Compliance certificates - RoHS
code - SSR-750FM
Cooling System - 12cm fan
Description - High Efficiency, 80 PLUS Gold Certified Semi-modular Compact ATX Size [140 mm deep] Smart and Silent Fan Control Tight Voltage Regulation (12 V, 5 V, 3.3 V) [± 3 %] Ample +12 V Output
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1246
Dimensions - 140 × 150 × 86 mm
ean - 4711173878506
EAN - 4711173878506
Efficiency - 80 PLUS GOLD
Full Description Line - G12 GM-750|750 Watts|Cooling System 12cm fan|80 PLUS GOLD|MTBF 100000 hours
Manufacturer - Sea Sonic
Model - SSR-750FM
Model name - G12 GM-750
MPN - SSR-750FM
MTBF - 100000 hours
Name - 750W SSR-750M 80+ Gold
name - Seasonic G12 GM 80 PLUS Gold Netzteil, halbmodular - 750 Watt, schwarz
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Other features - Cable ties included - Yes
Other features - Number of screws - 4
Other features - Screws included - Yes
Other features - Warranty card - Yes
Packaging content - Cables included - AC
Packaging data - Cable storage bag included - Yes
Packaging data - Case badge included - Yes
Packaging data - Manual - Yes
Packaging data - Number of straps - 3
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 10.1 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 5 - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overcharge
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
producerCode - NESE-185
productName - Seasonic Focus Gold 750 power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
PSU Output Power - 750 Watts
Safety regulation & standards - Safety - cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 19 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.67 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
sizeX - 190
sizeY - 278
sizeZ - 118
Technical details - Sustainability certificates - ENERGY STAR
Unit Box Height - 0.19
Unit Box Length - 0.275
Unit Box Width - 0.12
Unit Brutto Volume - 0.00627 cubm
Unit Gross Weight - 2.67 kg
Unit Net Weight - 2.5 kg
Vendor Homepage - seasonic.com/g12-gm/
Warranty - 84 months
warrantyLength - 24
warrantyType - G
Weight - 3
weight - 2600
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
