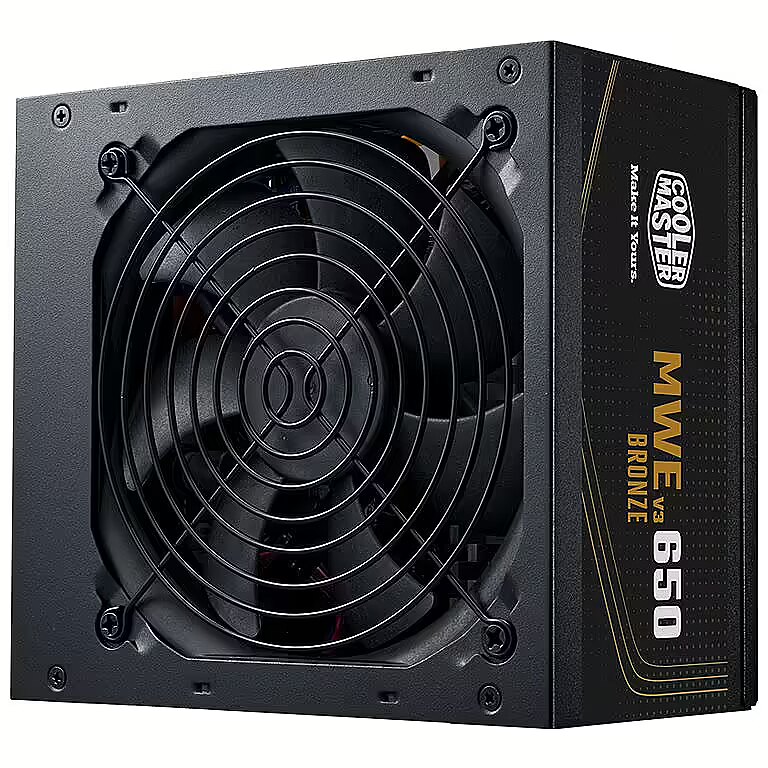

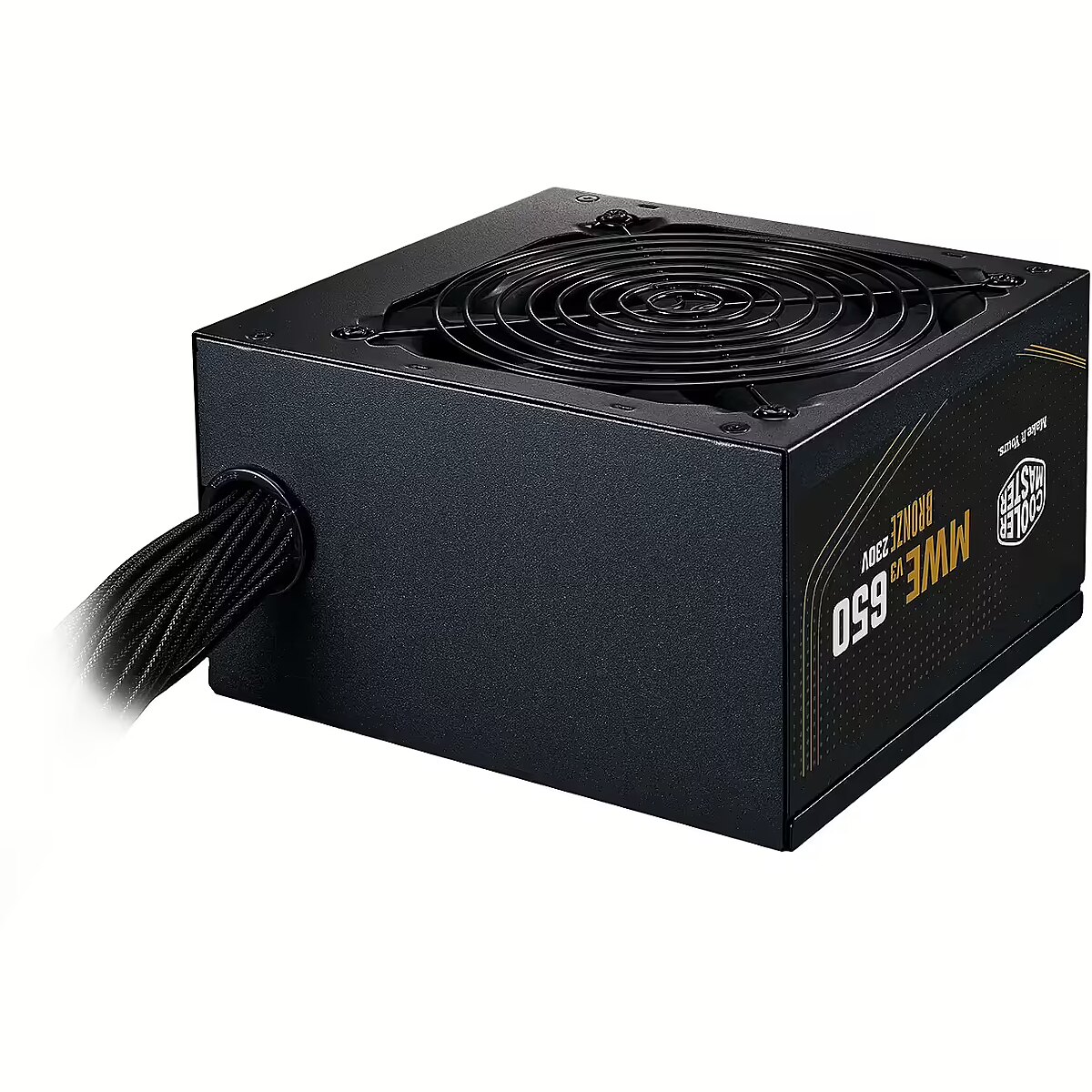

Cooler Master MWE Bronze V3, 650W, ATX 3.1, 80PLUS Bronze
- Tarne Smartpostile 1,99 €: 05.02.2025
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 05.02.2025
- Kulleri kohaletoimetamine 3,99 €: 05.02.2025
- Tootja: Cooler Master
- Võimsus: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Pakkume osta Cooler Master toiteploki võimsusega 650W, mis on saanud 80 PLUS Bronze energiatõhususe sertifikaadi.
650W võimsus on piisav veebis surfamiseks, Microsoft Office'i kasutamiseks ja lihtsate arvutimängude mängimiseks. Toiteplokk suudab käitada arvutit ühe või kahe kõvaketta, keskmise tasemega graafikakaardi (näiteks GTX 1650) ja keskmise tasemega protsessoriga. Kui sa oled tõsine arvutimängude entusiast, osta võimsam toiteplokk.
Selle toiteploki ventilaatori läbimõõt on 120 mm, mis tagab vaikse töö keskmise tasemega arvutites. Eriti vaikse toiteploki töö tagamiseks soovitame valida ventilaatori, mille läbimõõt on 135 mm või 140 mm.
Toiteallikas on saanud 80 PLUS Bronze energiatõhususe sertifikaadi, mis garanteerib vähemalt 85% tõhususe 50% koormusel. See tähendab, et iga 100W võimsuse kohta, mida toiteallikas võtab elektrivõrgust, tarnitakse teie arvutikomponentidele vähemalt 85W, samas kui ülejäänud 15W kaob soojusena.
Bloki värvus on Melna. Blokil on lamedad kaablid, mille värvus on Melna.
See on toiteallikas, mis vastab ATX 2.0 nõuetele. Toiteallikal on ainult 6-pin ja 8-pin pistikud, mis suudavad vastavalt 75 W ja 150 W võimsust käsitleda. Kaasaegsete graafikakaartide kõrged energiavajadused ületavad ATX 2.0 pistikute võimekust. Kui ehitad süsteemi väga võimsa GPU-ga, nagu näiteks RTX 4070, vajad ATX 3.* standardi toiteallikat.
Toiteplokk ei oma modulaarseid kaableid; kõik kaablid on toiteploki küljes ja neid ei saa eemaldada. Sellest hoolimata töötab see sama hästi kui modulaarsete kaablitega toiteplokk.
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze
Code - MPE-6501-ACABW-3BEU
Cooling > Fan diameter - 12 cm
Description - Introducing the MWE Bronze V3 230V, the evolutionary ne xt step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC to DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience Together, these design choices deliver an advanced PSU that is highly efficien t and reliabl e. With an embossed cable, exceptional temperature resilience and a 5 year warranty, the MWE Bronze V3 will evolve your machine.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1200
dimension depth - 110 mm
dimension height - 190 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1820 g
dimension width - 250 mm
EAN - 4719512145227
ean - 4719512145227
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Link - https://www.coolermaster.com/en-global/products/mwe-bronze-650-v3-230v/
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 0
Name - Cooler Master MWE Bronze V3 | MPE-6501-ACABW-3BEU | 650 W
name - Zasilacz MWE Bronze 650W V3 ATX 3.1
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 3
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions > Operating temperature (T-T) - 0-40 °C
Other features -
Other features - EPS cable length - 67 cm
Other features > Number of SATA connectors - 6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 160 pc(s)
Package features > Paper/Pasteboard - 340.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging data - Package depth - 245 mm
Packaging data - Package height - 110 mm
Packaging data - Package weight - 2.05 kg
Packaging data - Package width - 190 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Certification - ErP 2014 Lot 3
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Performance > ATX version - ATX 12V Ver. 3.1
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 62 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 400
Ports & interfaces - Peripheral (Molex) power cable length - 550 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 700
Ports & interfaces > ATX Power connector (24-pin) - 1

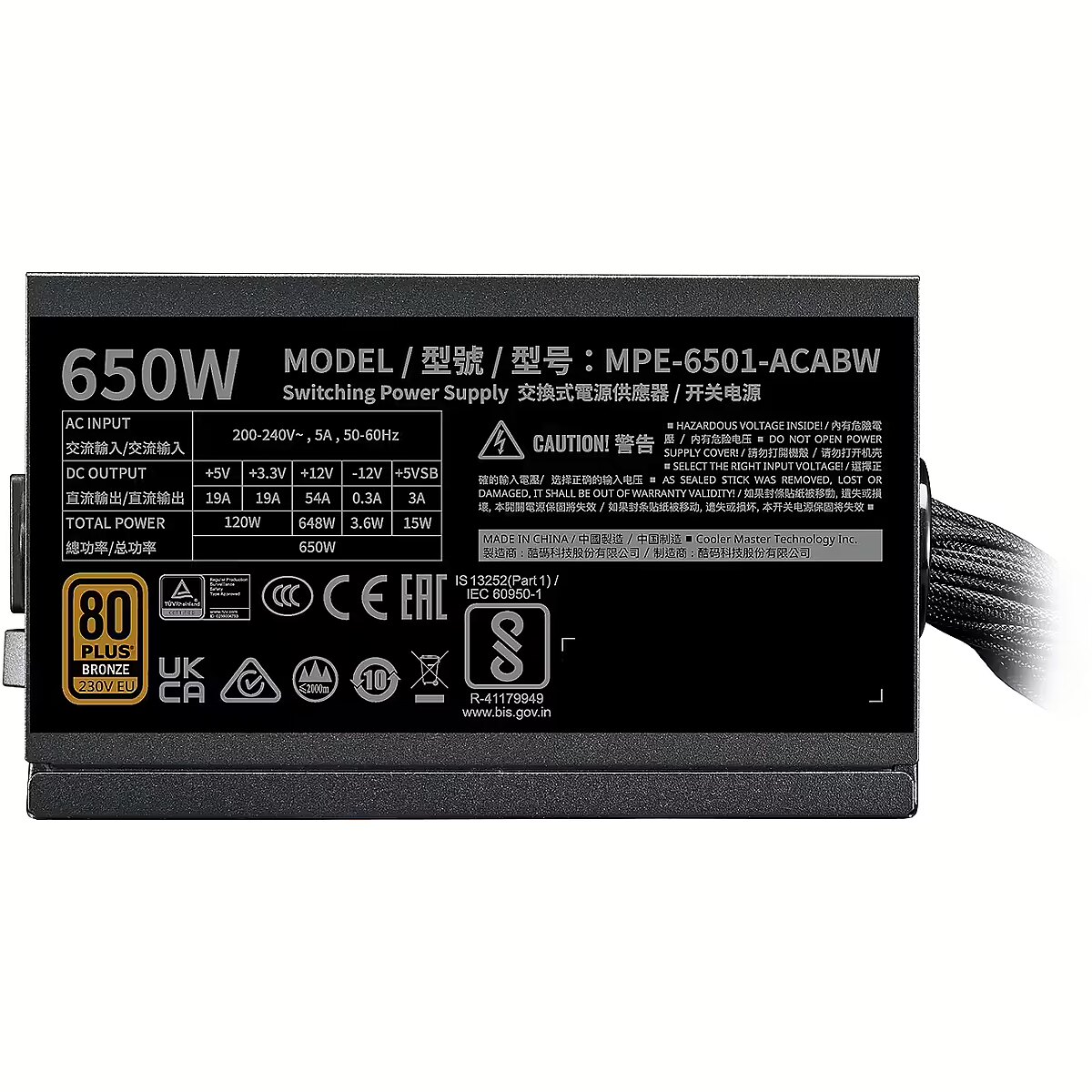

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 5 A
Power - Max output current (+3.3V) - 19 A
Power - Max output current (+5V) - 19 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Power > Input current - 5 A
Power > Nominal power - 650 W
Power supply - 650 W
producer - Cooler Master
producerCode - MPE-6501-ACABW-3BEU
productName - Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
sizeX - 120
sizeY - 200
sizeZ - 250
Technical details - Compliance certificates - BIS
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - China Compulsory Certification (CCC)
Technical details - Compliance certificates - EAC
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RCM
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - UKCA
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
Technical details > Producer product family - MWE Bronze V3
Technical details > Producer product name - MPE-6501-ACABW-3BEU
vendpn - MPE-6501-ACABW-3BEU
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 1950
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.65 kg
Weight & dimensions - Width - 150 mm
