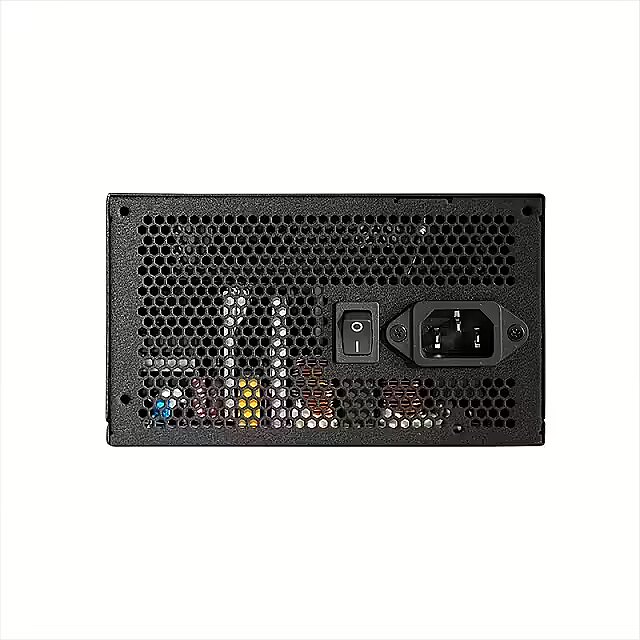

Chieftec SteelPower Series, 550W, 80PLUS Bronze

Brand - Chieftec
BrandPartCode - BDK-550FC
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1809
GTIN - 753263077417
GTIN - 0753263077417
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.
LongProductName - 550W, FDB 12cm fan, 80 PLUS® Bronze
LongSummaryDescription - Chieftec BDK-550FC. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Packaging data - Package weight - 2.17 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Bearing technology - FDB
Performance - Certification - EAC
FCC
CB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 8 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
producerCode - BDK-550FC
ProductName - BDK-550FC
productName - Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
productSize - Normal
ShortSummaryDescription - Chieftec BDK-550FC, 550 W, 100 - 240 V, 47 - 63 Hz, 8 A, Active, 100 W
sizeX - 128
sizeY - 228
sizeZ - 310
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/504/SteelPower_SERIES
WarrantyInfo - 60 Months
warrantyLength - 24
warrantyType - G
weight - 2384
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.62 kg
Weight & dimensions - Width - 150 mm
