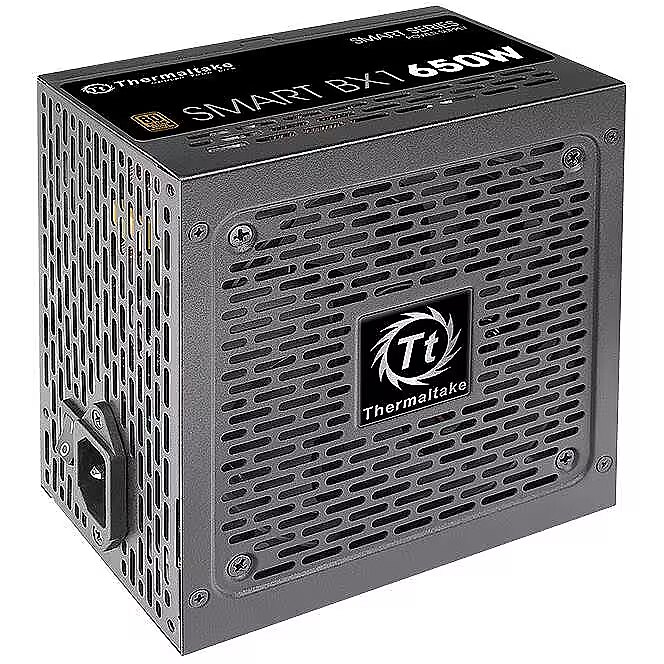

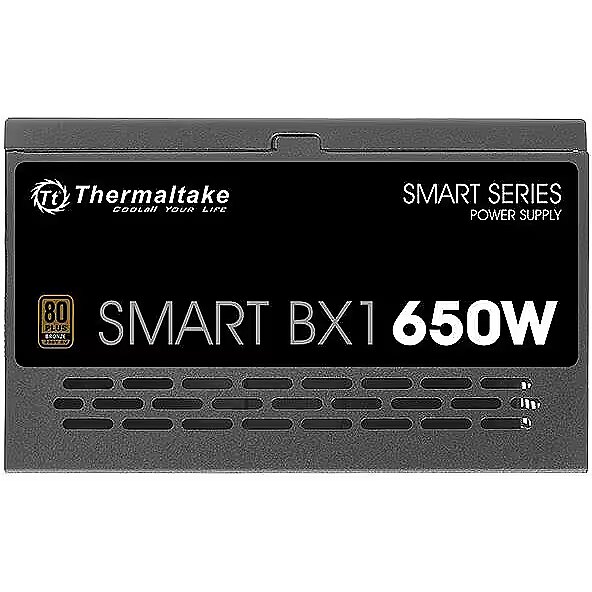

Thermaltake Smart BX1, 650W, 80PLUS Bronze

Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1000
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 204 g
dimension width - 200 mm
ean - 4711246875258
Fan - 12 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 4
name - Power Supply Smart BX1 650W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 1 mm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 576 W
Power - Combined power (-12V) - 6 W
Power - Input current - 12 A
Power - Max output current (+3.3V) - 23 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 48 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 80 W
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 650 W
Power supply - 650 W
producer - Thermaltake
producerCode - PS-SPD-0650NNSABE-1
productName - Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
sizeX - 250
sizeY - 200
sizeZ - 100
vendpn - PS-SPD-0650NNSABE-1
warrantyLength - 60
warrantyType - G
weight - 2050
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
