Brand - FSP
BrandPartCode - 9PA6507503
Category - Power Supply Units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224525377
GTIN - 4713224525377
LongDesc - The new HYPER 80+ Pro PSUs comply fully ATX 12 v2.52 standard and latest safety 62368 regulation as well, and features with all black and high-grade ribbon cables, will give your PC a polished look. The HYPER 80+ Pro series is characterized by a powerful single +12V rail design that continually delivers maximum performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus™ rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.80 Plus® 230V EU White CertificationHYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.DC-to-DC Module DesignWith a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.450V 105C, Heavy-duty capacitorThe bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.Energy Related ErP/Eup 2013Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.Keep in Compliance IEC 62368FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.Intelligent Fan Speed ControlAn advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.All Black Round CablesThe all black coating round cables give your system a superior look rather so many entry-level power supplies.

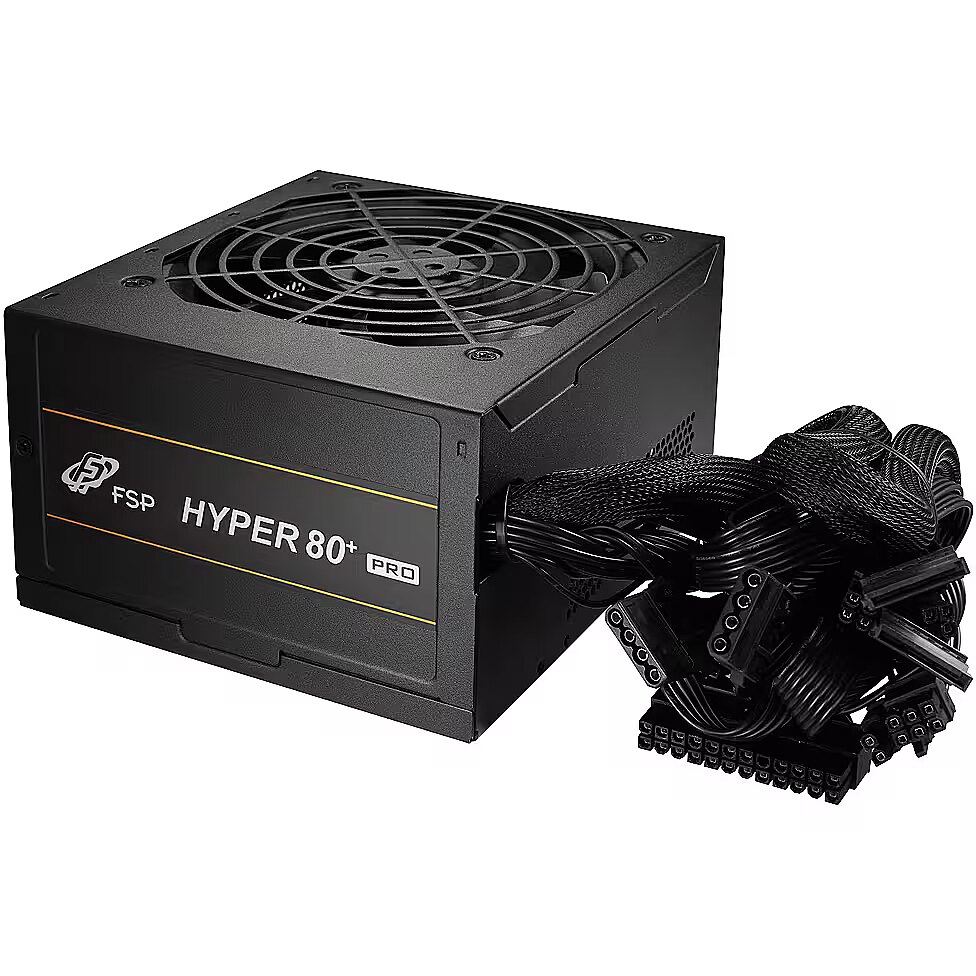

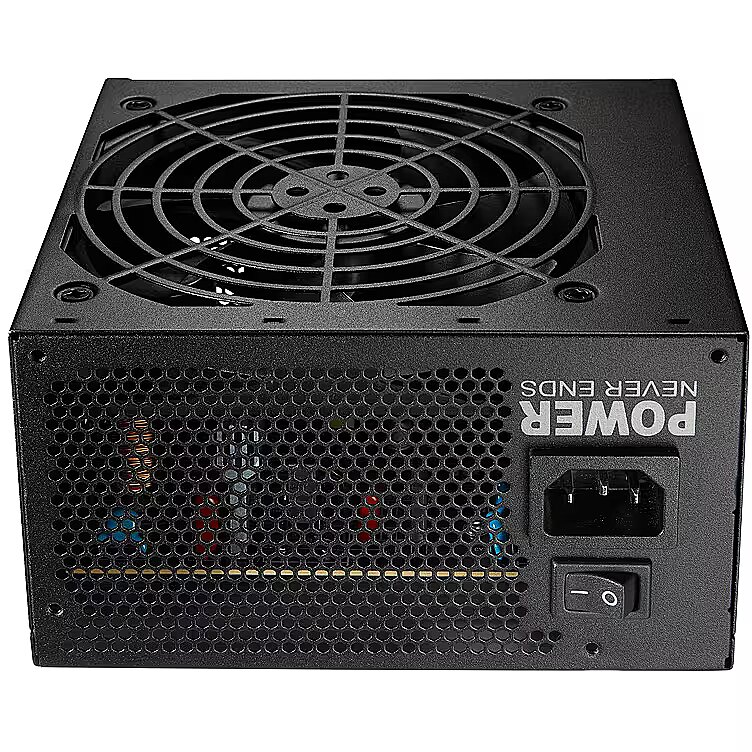

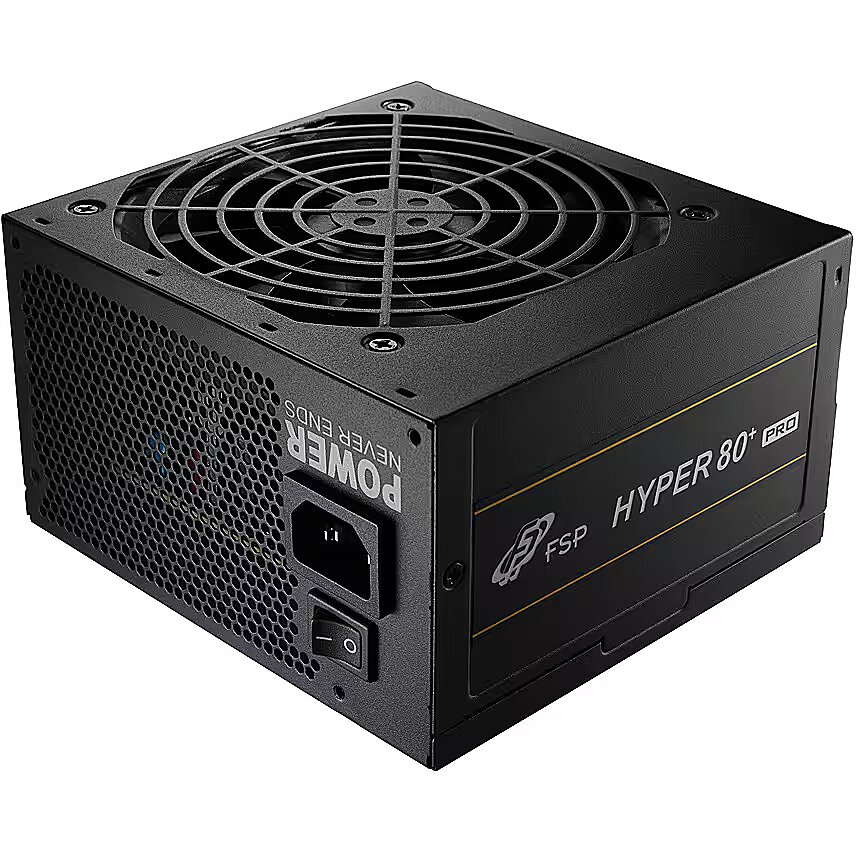

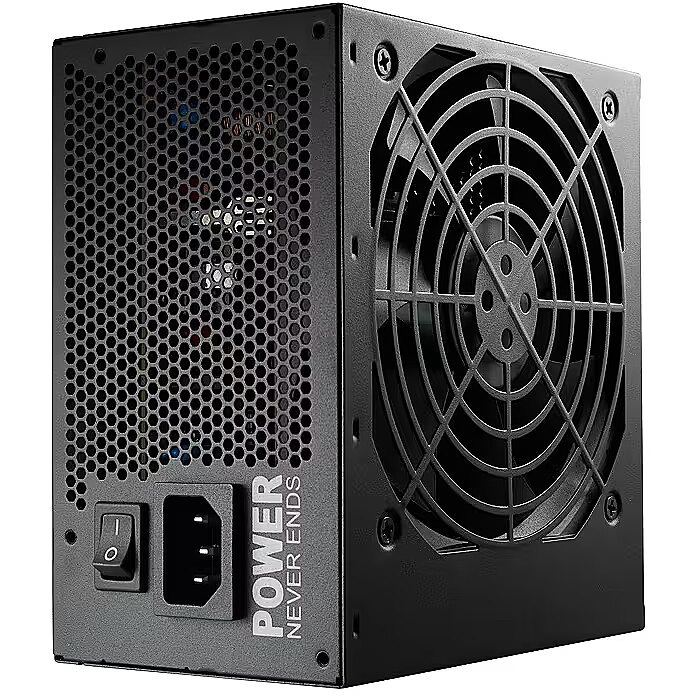

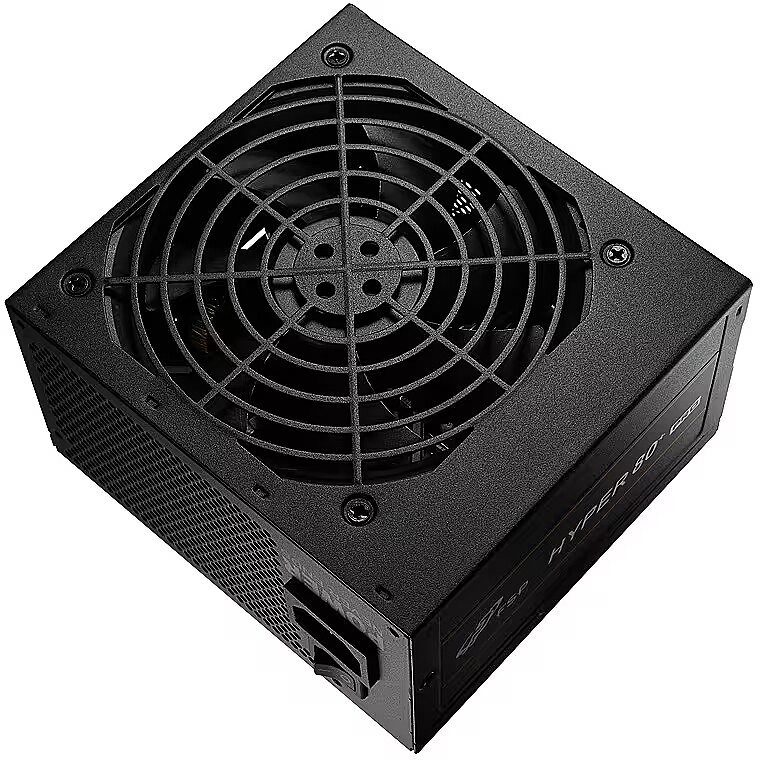

LongProductName - HYPER 80+ PRO 650W, ATX, 120mm Sleeve Fan, 80 Plus® 230V EU White
LongSummaryDescription - FSP HYPER 80+ PRO 650W. Total power: 650 W, AC input voltage: 220 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - FSP
MPN - 9PA6507503
Name - 650W FSP Hyper PRO Bulk
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Sleeve
Performance - Certification - IEC 62368
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 649.2 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 17 ms
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54.1 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 650 W
ProductName - HYPER 80+ PRO 650W
ShortSummaryDescription - FSP HYPER 80+ PRO 650W, 650 W, 220 - 240 V, 50/60 Hz, 5 A, Active, 100 W
Technical details - Sustainability certificates - ErP
Technical details - Sustainability compliance - Yes
Title - FSP HYPER 80+ PRO 650W power supply unit 24-pin ATX ATX Black
URL - https://www.fsplifestyle.com/en/product/HYPER80plusPRO650W.html
WarrantyInfo -
Weight - 1.54
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.46 kg
Weight & dimensions - Width - 140 mm
