ID: 1014774
Tootekood: CPX-750FC
Laos 2 üksused
Garantii: 2 aastat

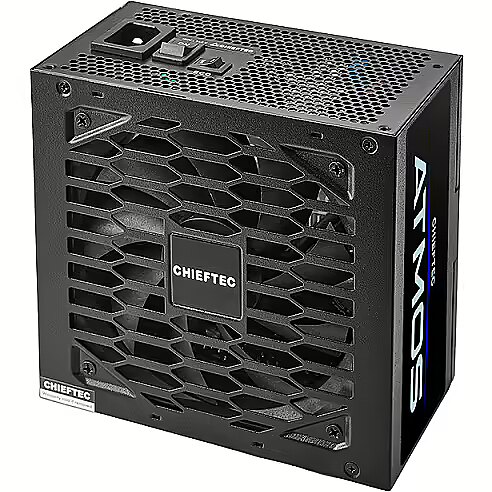

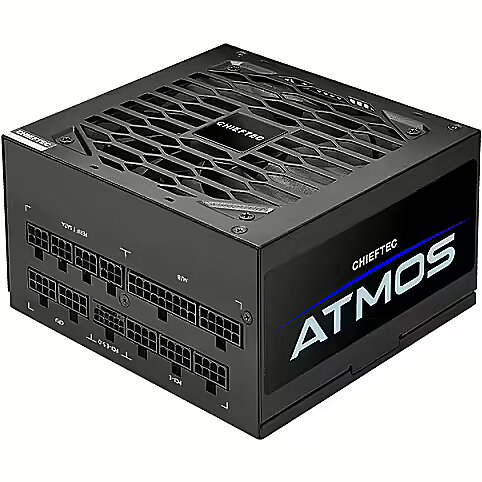

Chieftec ATMOS Series, 750W, 80PLUS Gold, PCI-E 5.0
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 29.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 29.11.2024
- Kulleri kohaletoimetamine 3,99 €: 29.11.2024
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Chieftec
- Võimsus: 750W
- 80 PLUS certification: 80 PLUS Gold
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Fully-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kirjeldus
Sellel Chieftec kaubamärgiga toiteallikal on 80 PLUS Gold energiatõhususe sertifikaat ja 750W võimsus.
750W susega toiteallikas. See toiteallikas suudab toita arvutit, millel on võimas keskklassi graafikakaart (nt RTX 4070), mitu SSD-d ja kõvaketast ning kõrgekvaliteediline protsessor.
120 mm entilaator, millega see toiteallikas on varustatud, tagab vaikse töö vastavalt tööstusstandarditele. Toiteallika eriti vaikseks tööks soovitame 135 mm või 145 mm läbimõõduga ventilaatorit.
80 PLUS Gold energiatõhususe sertifikaat, mis tagab vähemalt 90% tõhususe 50% koormuse juures. See tähendab, et vähemalt 90 W 100 W võimsusest, mille toiteallikas saab vooluvõrgust, jõuab arvuti komponentideni, ülejäänud 10 W läheb soojusena kaduma.
1 x 450W 12VHPWR pistikuga, mis on mõeldud kasutamiseks kaasaegsete graafikakaartidega - Nvidia GeForce RTX 4070 ja uuemad. RTX 4060 kasutab tavalist 8-poolset pesa.
Melna See on varustatud lamedate kaablitega, mille värvus on MelnaMelna
See on ATX 3.0 standardile vastav toiteallikas. See tähendab, et sellel on 16-poolne (12VHPWR) port, mis suudab varustada viimase põlvkonna (RTX 30 ja 40 seeria) PCIe 5.0 graafikakaarte kuni 600 W võimsusega. Lisaks võimaldab ATX 3.0 voolutugevuse 200% kasvu millisekundis, mis tagab komponentidele sujuvama toitejuhtimise.
Tänu modulaarsetele kaablitele saate kõvakettaid, videokaarte ja muid komponente ühendada vastavalt vajadusele, kasutades erinevaid kaasasolevaid kaableid. See tähendab, et arvutis on vähem juhtmeid, mis parandab ventilatsiooni ja välimust (eriti kasulik neile, kes eelistavad poolläbipaistvat korpust).
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
750W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: 80 PLUS Gold
Kogu voolutugevus (+12V)
: 62.5A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Fully-Modular
Sadamad ja seadmed
PCI-E 5.0
: 1 x 450W 12VHPWR
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA pistikud
: 9
Molex PATA lisamoodulid
: 4
Täpsem spetsifikatsioon
Brand - Chieftec
BrandPartCode - CPX-750FC
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Colour - Black
Cooling System - 13.5cm fan
Description - The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional performance up to 850W. The ATMOS series features a state-of-the-art technical design including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability. The ATMOS‘ 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operations at low loads. CHIEFTEC’s multiple security protection technology are designed to keep your system safe at all times.
Design - Fan diameter - 12 cm
Design - On/off switch - Yes
Design - Product colour - Black
Dimensions - 140 mm x 150 mm x 86 mm
Eans - 753263078391
EAN_code - 0753263078391
Efficiency - 80 PLUS GOLD
Full Description Line - CPX-750FC|ATX 3.0|750 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
GTIN - 753263078391
GTIN - 0753263078391
LongDesc - The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supportsPCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptionalperformance up to 850W. The ATMOS series features a state-of-the-art technicaldesign including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability.The ATMOS 120mm FDB silent fan optimizes the balance between coolingand noise with excellent durability, while the ECO fan mode enables fanlessoperations at low loads. CHIEFTEC’s multiple security protection technology isdesigned to keep your system safe.
LongProductName - Chieftec Atmos Series CPX-750FC, ATX 3.0, 80PLUS Gold
LongSummaryDescription - Chieftec Atmos . Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,650,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - Chieftec
Manufacturer_code - CPX-750FC
Model - ATMOS 750W
Model name - CPX-750FC
Name - Chieftec CPX-750FC
Name - Chieftec CPX-750FC, PC power supply (black, 1x 12VHPWR, 4x PCIe, cable management, 750 watts)
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 550,650,750,850 mm
Ports & interfaces - SATA power cable length - 550,650,750 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 9 - 4.5 A
Power - Maximum input current (@110V) - 9 A
Power - Maximum input current (@220V) - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over voltage, Short circuit, Surge and inrush
Power - Total power - 750 W
Producer - Chieftec
ProducerCode - CPX-750FC
ProductName - ATMOS
PSU - ATX 3.0
PSU Output Power - 750 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 30.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.02 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm| 80 PLUS GOLD |
ShortSummaryDescription - Chieftec Atmos , 750 W, 100 - 240 V, 50/60 Hz, 9 - 4.5 A, 9 A, 4.5 A
Title - Chieftec Atmos power supply unit 750 W 20+4 pin ATX ATX Black
Unit Box Height - 0.22
Unit Box Length - 0.305
Unit Box Width - 0.125
Unit Brutto Volume - 0.008388 cubm
Unit Gross Weight - 3.02 kg
Unit Net Weight - 1.49 kg
URL - https://www.chieftec.eu/products-detail/562/ATMOS_Series/563/CPX-750FC
Vendor Homepage - www.chieftec.eu/products-detail/562/ATMOS_Series
Warranty - 24 months
WarrantyInfo - 5 Years
Weight - 3,40
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.49 kg
Weight & dimensions - Width - 150 mm
