1GbE Ports - 7
2.5GbE Ports - 1
Accessories included -
Antenna > Antennas quantity - No antenna
brand - MikroTik
category - MikroTik > Ethernet rūteri > RouterBoard
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates > Certification - CE, EAC, ROHS
Code - RB5009UG+S+IN
Color - Black
Description - RB5009UG+S+IN Najwyższej klasy router do domowego laboratorium z interfejsem USB 3.0, 1G i 2.5G Ethernet oraz klatką 10G SFP+. Możesz zamontować cztery z tych nowych routerów w pojedynczej przestrzeni montażowej 1U w stelażu! Niespotykana moc obliczeniowa w tak małej obudowie.
Płyta posiada 9 przewodowych portów i pełnowymiarowe USB 3.0. Siedem portów to Gigabit Ethernet, kolejny to 2,5 Gigabit Ethernet, a ostatni to klatka 10G SFP+. Wszystkie porty są połączone z potężnym układem przełączającym z rodziny Marvell Amethyst z linią 10 Gb/s w pełnym dupleksie, prowadzącą do czterordzeniowego procesora Marvell Armada ARMv8 1,4 GHz. Zarówno procesor, jak i chip przełącznika znajdują się na spodzie płyty dzięki czemu obudowa działa jak ogromny radiator! RB5009UG+S+IN może być zasilany na 3 różne sposoby: Wejście PoE z portu Ethernet #1 Gniazdo prądu stałego 2-pinowy zacisk z boku Płyty są dostarczane z 1GB pamięci RAM DDR4 i 1GB pamięci NAND. Ta kombinacja portów i komponentów, w porównaniu z innymi naszymi produktami o podobnym współczynniku kształtu, zapewnia prawie dwukrotnie wyższą wydajność w konfiguracjach z dużym obciążeniem procesora.
Za pomocą prostego zestawu akcesoriów montażowych możesz zamontować cztery z tych routerów w jednej przestrzeni montażowej 1U!
Description - RB5009UG+S+IN The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor. Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
dimension depth - 55 mm
dimension height - 130 mm
Dimensions -
Dimensions - 220 x 21.5 x 125 mm
dimension weight - 600 g
dimension width - 310 mm
EAN - 4752224007148
ean - 4752224007148
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Flash memory capacity - 1GB
Full Description Line - RB5009UG+S+IN|Network Device Type Router|1x2.5GbE|1xSFP+|7x1GbE|1xUSB 3.0|Memory (RAM) 1GB|Flash memory capacity 1GB|Power supply requirements DC jack, PoE-IN, 2-pin terminal|Power consumption 20 Watts|Operating temperature range -40°C to +60°C|Dimensions 220 x 21.5 x 125 mm
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 1000 MB
height - 0.06 m
I/O ports - 1 x 10Gbit SFP/SFP+
I/O ports - 7 x 10/100/1000 Mbit/s
length - 0.31 m
Link - https://help.mikrotik.com/docs/pages/viewpage.action?pageId=44761173
Link - https://help.mikrotik.com/docs/pages/viewpage.action?pageId=78086262
Management, monitoring, configuration -
Management features > Reset button - Yes
Manufacturer - MikroTik
Memory (RAM) - 1GB
Model - RB5009UG+S+IN
mpn - RB5009UG+S+IN
MPN - RB5009UG+S+IN

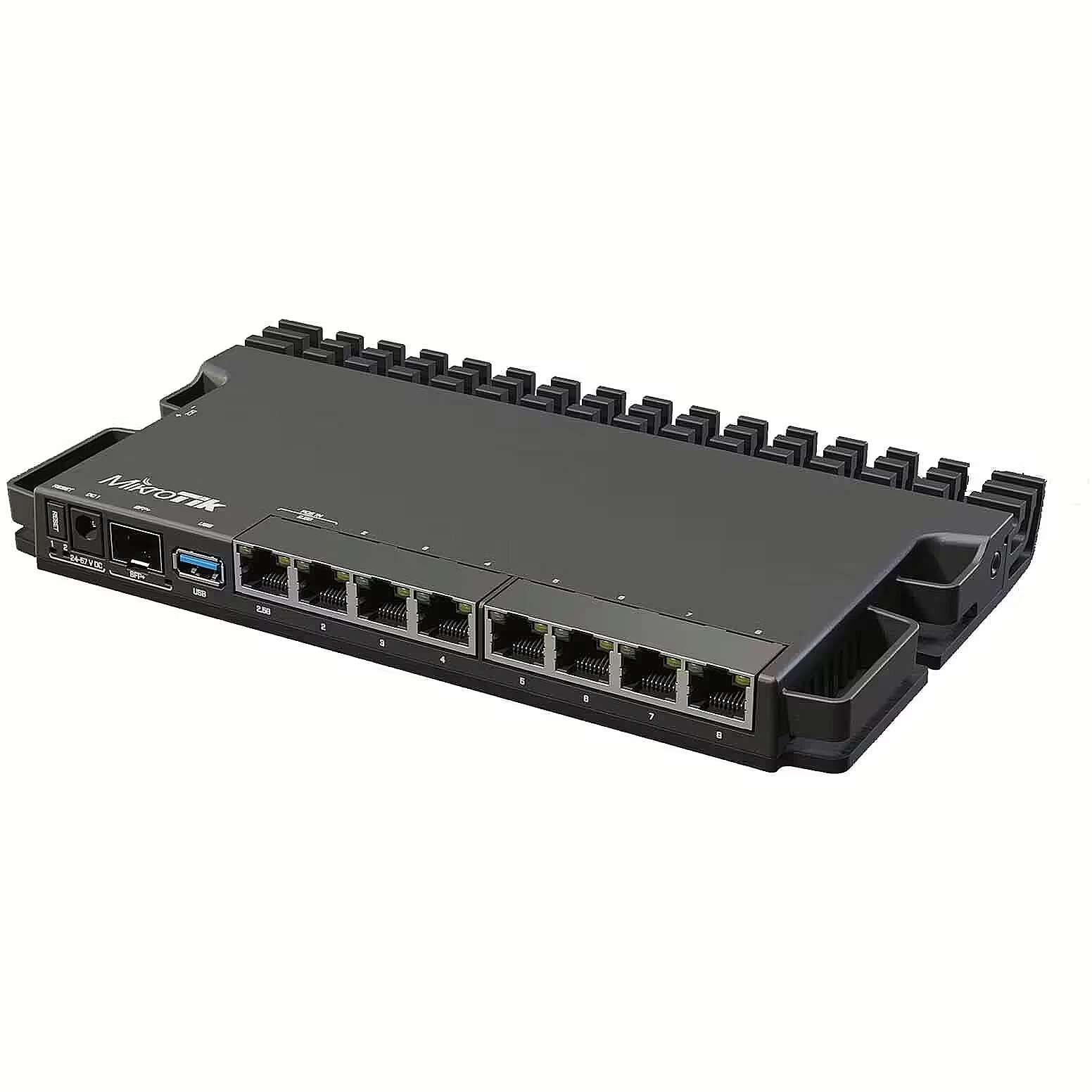

Name - Mikrotik RB5009UG+S+IN
name - MikroTik Router xDSL 10xGbE PoE RB5009UG+S+IN
Name - MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1x2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5 | Wired Ethernet Router | RB5009UG+S+IN | No Wi-Fi | Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 7 | Mesh Support No | MU-MiMO No | No mobile broadband | Antenna type | 1 | 12 month(s)
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > CPU frequency - 350-1400 (auto) MHz
Networking > PoE in - 802.3af/at
Operating temperature range - -40°C to +60°C
Operational conditions > Operating temperature (T-T) - -40°C to 60°C °C
Other features - Architektura: 64-bitowe ARM Procesor: 88F7040 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 350-1400 (auto) MHz Licencja RouterOS: 5 System operacyjny: RouterOS (tylko v7) Rozmiar pamięci RAM: 1 GB Rozmiar pamięci: 1 GB Typ pamięci: NAND MTBF: około 200 000 godzin w 25C Testowana temperatura otoczenia: od -40°C do 60°C
Other features > Ethernet LAN (RJ-45) ports - 7
Other features > USB ports quantity - 1
Other features > USB version - USB 3.0 type A
Other features > Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310 mm
Package features > Gross depth master carton - 510 mm
Package features > Gross height (mm) - 48 mm
Package features > Gross height master carton - 340 mm
Package features > Gross width (mm) - 130 mm
Package features > Gross width master carton - 275 mm
Package features > Net weight master carton - 16.08 kg
Package features > Packing quantity - 20 pc(s)
Package features > Palette Qty - 720 pc(s)
Package features > Paper/Pasteboard - 315 g
Package features > Plastic (No PET) - 35 g
Package features > Tare weight (kg) - 0.35 kg
Package features > Tare weight master carton - 0.811 kg
Package features > Volume (m3) - 0.0019344 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content > AC adapter included - Yes (24V 1.5A power adapter)
PDF - https://www.blobs.lt/products/2/3/4/2/4/3/39cff3ab884885c9fa491286b15f105b/original.pdf
PDF - https://www.blobs.lt/products/2/3/4/2/4/3/7080d506069da23846ff7e63a5160771/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Internal memory - 1000 MB
Performance > Memory type - NAND
Performance > Processor cores - 4
Performance > Processor frequency - 1400 MHz
Ports & interfaces > SFP+ ports quantity - 1
Power > Power consumption (max) - 20 W
Power > Voltage - (PoE in input Voltage) 24-57 V
Power consumption - 20 Watts
Power supply - Liczba wejść DC: 3 (gniazdo DC, PoE-IN, złącze 2-pinowe) Napięcie wejściowe gniazda DC: 24-57 V Wejście 2-pinowe Napięcie: 24-57 V Maksymalny pobór mocy: 20 W Maksymalny pobór mocy bez załączników: 14 W FAN count: Passive PoE in: 802.3af/at Napięcie wejściowe PoE: 24-57 V
Power supply requirements - DC jack, PoE-IN, 2-pin terminal
Processor > Processor model - 88F7040
producer - Mikrotik
Producer product family - Wired Ethernet Router
Producer product name - RB5009UG+S+IN
Product model code - RB5009UG+S+IN
Security -
SFP+ Ports - 1
Shipping Box Depth Shipping/Package Box Dimensions - 31 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
Storage > Total storage capacity - 1 GB
System Requirements -
Technical details > Gross weight - 0.804 kg
Technical details > Net weight - 0.454 kg
Technical details > Other features - Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (v7 only)
Technical details > Warranty - 12 month(s)
title - MikroTik RB5009UG+S+IN
Type - xDSL
Unit Box Height - 0.05
Unit Box Length - 0.31
Unit Box Width - 0.13
Unit Brutto Volume - 0.002015 cubm
Unit Gross Weight - 0.78 kg
Unit Net Weight - 0.6 kg
USB 3.0 Ports - 1
Vendor Homepage - mikrotik.com/product/rb5009ug_s_in
vendpn - RB5009UG+S+IN
Warranty - 12
Warranty - 12 months
Weight - 0.7
weight - 0.9 kg
width - 0.14 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
