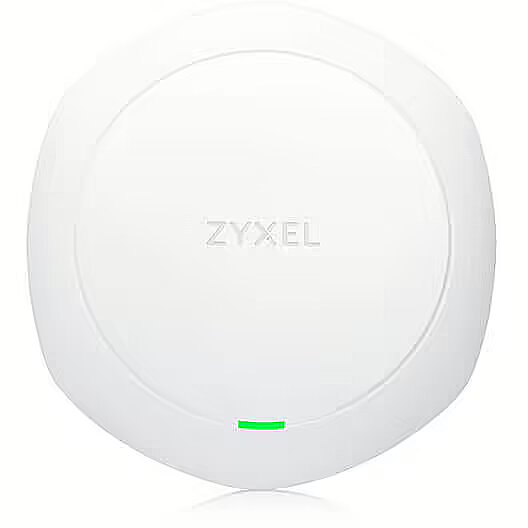

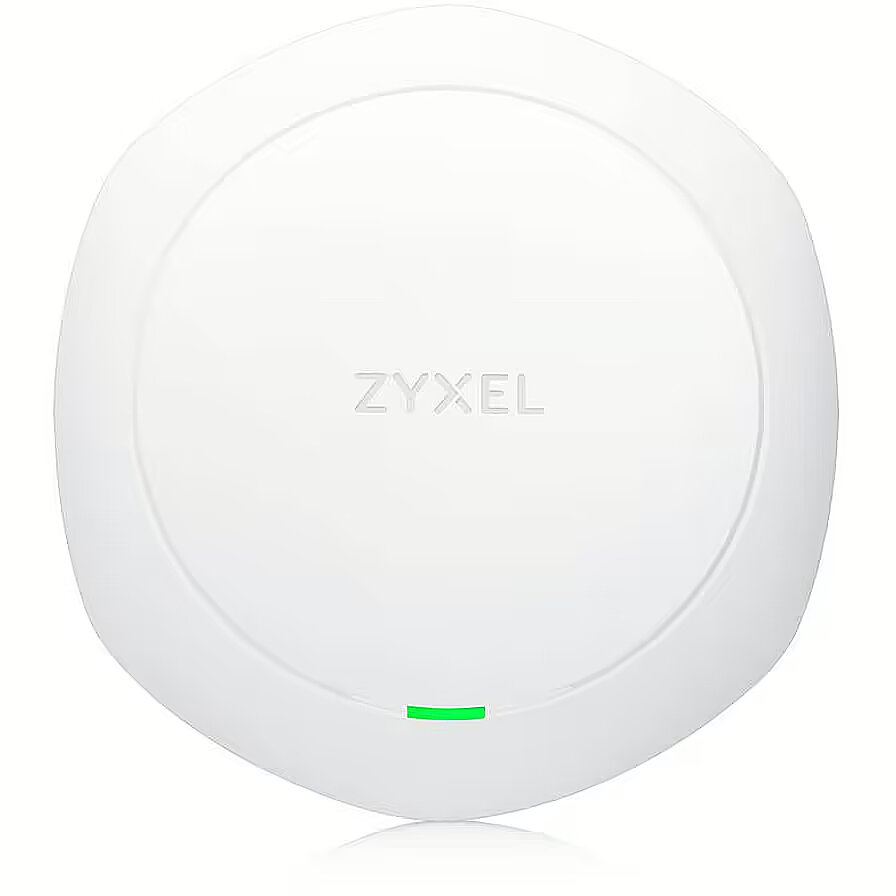

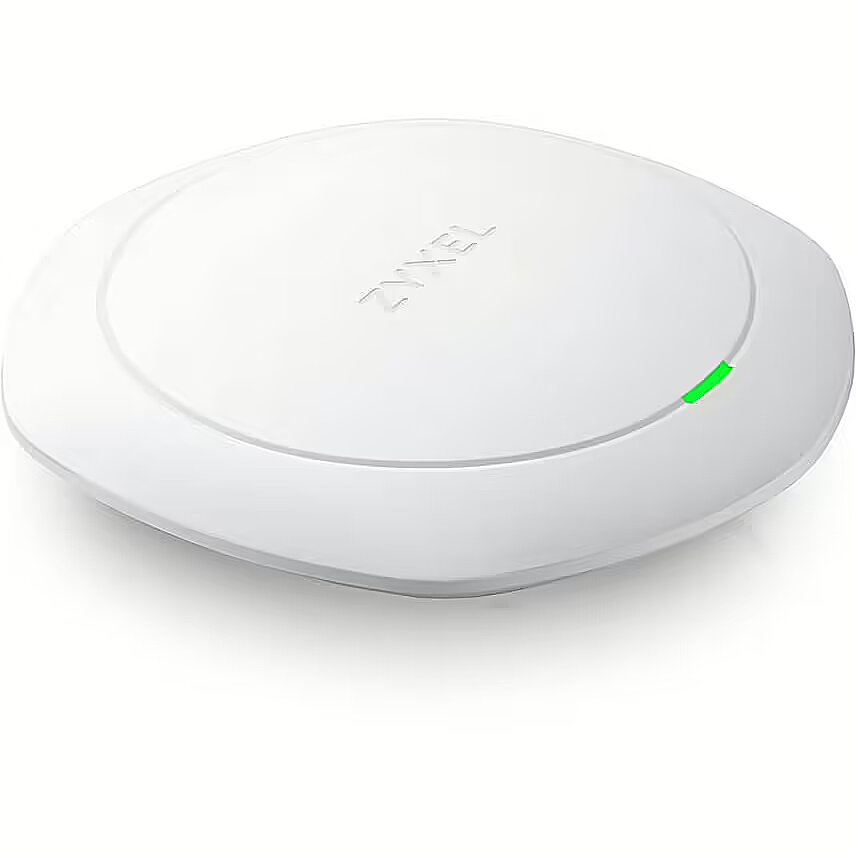

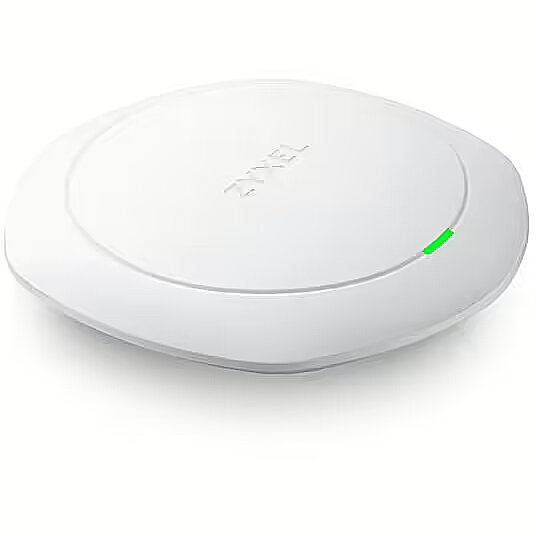

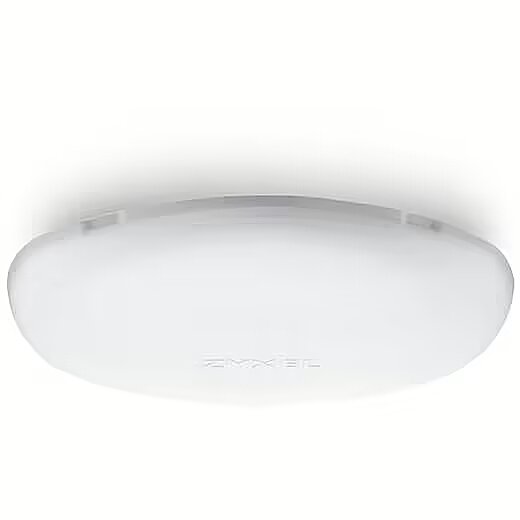

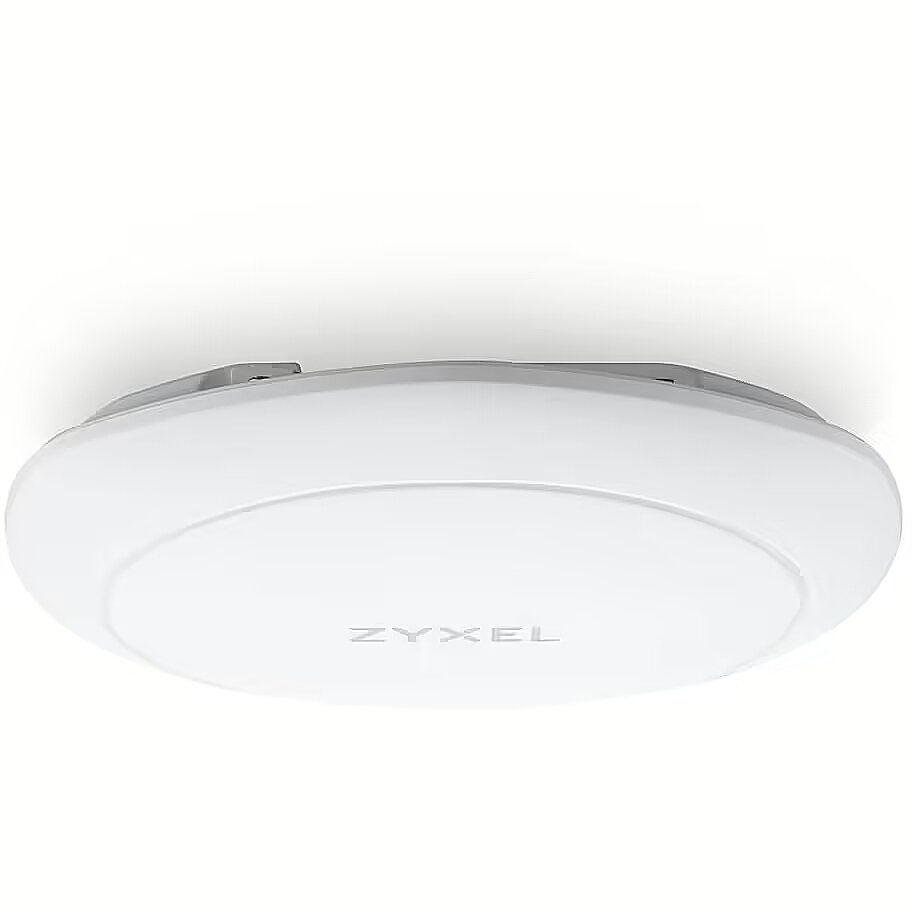

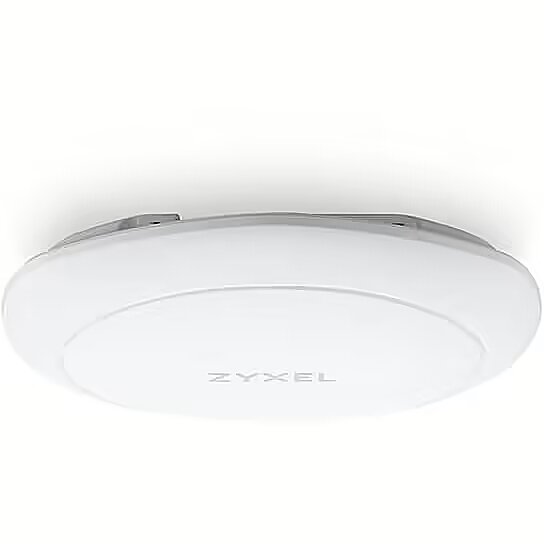

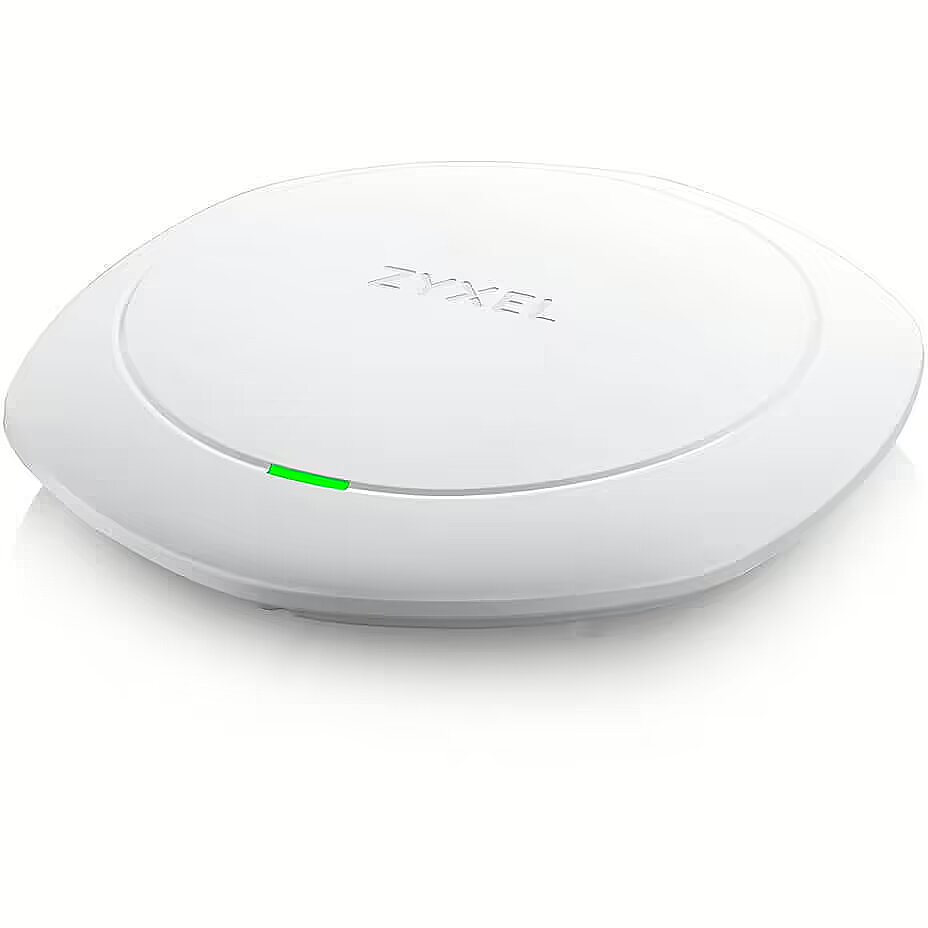

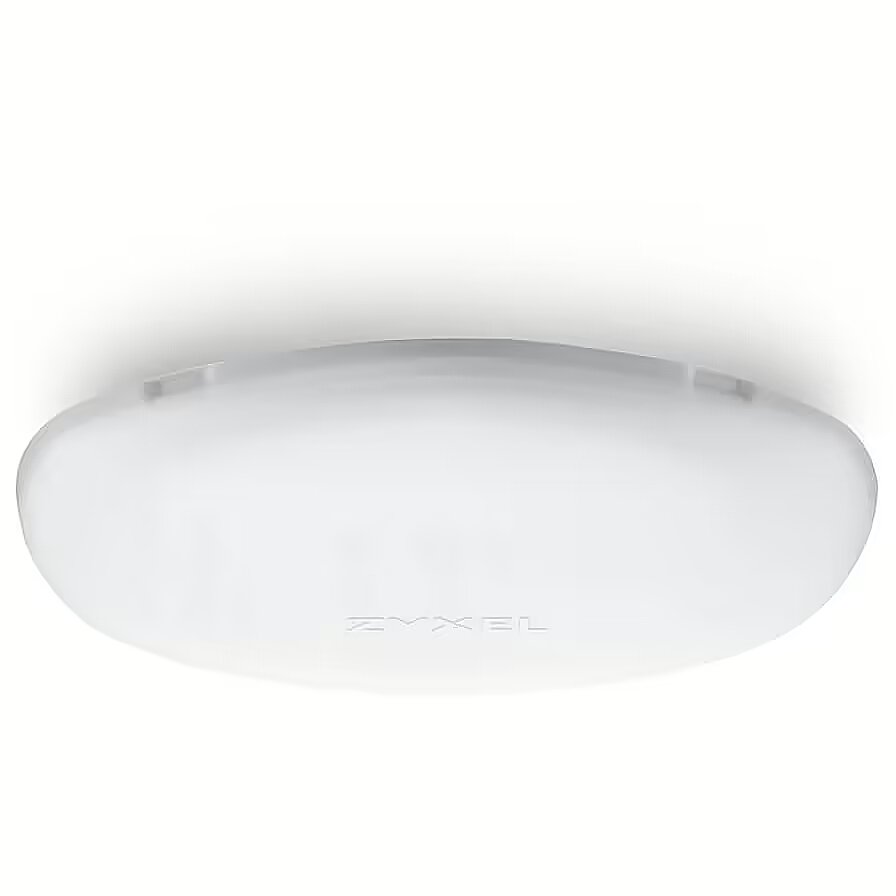

Zyxel 802.11ac Wave 2 Dual-Radio Unified Pro Access Point

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
ID: 1035891 Tootekood: WAC6303D-S-EU0101F
Saab tellida 8 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat (Garantii ettevõtjatele 1 aasta)
276.01 €
Tarnevõimalused
  • Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 11.12.2024
  • Omniva pakiautomaati kohaletoimetamine 1,99 €: 11.12.2024
  • Kulleri kohaletoimetamine 3,99 €: 11.12.2024
Peamised tooteparameetrid Kõik parameetrid
  • Kiiruse indeks: 1300
  • seadme tüüp: Access Point
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Põhiteave
Kiiruse indeks : 1300
seadme tüüp Access Point

Access Point - juhtmevaba juurdepääsupunkt, mis tagab kaabelvõrgu laiendatud ülekandmise juhtmevabasse võrku, kasutades üht LAN ühenduskohta. Access point ei ole ruuter ja ei suuda jaotada üht internetiühenduse aadressi mitme arvuti vahel, seetõttu see seade ühendage alles pärast olemasoleva kaabli ruuterit.

Router, ehk ruuter - juhtmevaba juurdepääsupunkt, mis tagab ühe internetiühenduse jaotamise mitme arvuti vahel, nii võrgukaablite kui ka juhtmevaba võrgu kaudu. Tavaliselt juhtmevabal ruuteril on ühe kaabliga interneti ühenduspesa, neli arvutite ühenduspesa (mida võib täiendada, kasutades switch kommutaatorit) ja antenn, mis tagab ülekande arvutitele ja muudele WiFi seadmetele.

Range Extender - juhtmevaba võrgu saatekauguse võimendaja. On ette nähtud olemasoleva signaali võimendamiseks, selleks, et suurendada vastuvõtu- ja saatekaugust.

Wifi adapter - Juhtmevaba võrgukaart, on ette nähtud arvuti ühendamiseks juhtmevaba WiFi ruuteriga või ühenduspunktiga. PCI, PCI-E on ette nähtud lauaarvutitele, omakorda PCMCIA ja USB - sülearvutitele. Siinjuuures peab lisama, et suurem osa sülearvuteid juba tehases komplekteeritakse juhtmevabade võrgukaartidega.

USB võrgukaart on viimane valik, kuna USB2.0 läbilaskvuse kiirus on suhteliselt madal ~22MB/s, mis tähendab, et ei ole ära kasutatud juhtmevaba võrgu maksimaalne võimalik kiirus. Juhul, kui on võimalust, on parem valida mingi muu ühendusmoodus.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Funktsionaalsus
3G tugi Ei ole

Võimalus ruuterisse sisestada mobiilioperaatorite SIM kaarti, või ka USB Dongle adapterit, mis tagab juurdepääsu 3G mobiilsele internetile.

Enne, kui soetada ruuterit, mil on 3G tugi, palume tootja kodulehel veenduda, kas antud seade toetab konkreetse mobiilside operaatori 3G USB Dongle vastuvõttu.

Band mode Dual-Band

SingleBand on standardne 2.4GHz juhtmevaba tehnoloogia, mis on iseloomulik kõigile tänapäeva juhtmevaba seadmetele.

DualBand on 2.4GHz koos täiendava 5.0GHz kanaliga, mis tagab parema signaali vastuvõtmise ja stabiilsema kiiruse töötamisel. Selleks, et kasutada seda funktsiooni mõlema seadme jaoks - ruuter ja juhtmevaba kaart peavad toetama DualBand režiimi.

Ethernet 100/1000

LAN ehk ethernet kaabelühenduse toimimise režiim.

10/100 MB.s on standardkiirus, mis iseloomustab praktiliselt kõiki ruutereid.

10/100/1000 MB.s, jeb GigaBit on kümme korda kiirem standard kui ühendus GigaBit LAN võrgukaardiga, annab suure andme-edastuskiiruse eelised sisevõrku ühendatud arvutite vahel. Selline lahendus tavaliselt on vajalik büroodes, kus arvutite vahel toimub sageli suuremahuliste failide kopeerimine või kasutatakse kiiret internetiühendust (alates ~30 MB/s) mitmes arvutis üheaegselt.

Sadamad ja seadmed
LAN-port : 2
Traadita
Täpsem spetsifikatsioon
Accessories included -
Antenna - Built-in
Antenna - Antenna gain level (max) - 4 dBi
Antenna gain - 4 dBi
Brand - Zyxel
BrandPartCode - WAC6303D-S-EU0101F
Category - Wireless Access Points
Color - White
Description - Network administrators managing complex facilities must understand how users want to use Wi-Fi and how difficult it is to meet specific requirements within a limited budget.
Zyxel offers an affordable access point with three times higher performance 3X3: 3 MU-MIMO WAC6303D-S, which has been equipped with an Intelligent Antenna to reduce inter-channel interference in a large number of devices. The built-in BLE Beacon function provides comprehensive user service. Thanks to this, the WAC6303D-S not only confronts the current challenges, but also provides a solution for the constantly developing future mobile needs
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Internal - No
Design - Placement - Ceiling, Wall
Design - Product colour - White
dimensionalWeight - 660
dimension depth - 50 mm
dimension height - 350 mm
Dimensions - 211 x 223 x 39 mm
dimension weight - 1200 g
dimension width - 210 mm
ean - 4718937594603
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Channel bandwidth - 80 MHz
Features - Cyclic Shift Diversity (CSD) - Yes
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Maximal-Ratio Combining (MRC) - Yes
Features - Maximum data transfer rate - 1300 Mbit/s
Features - Maximum Likelihood Detection (MLD) - Yes
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Modulation - 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK
Features - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u
Features - Quality of Service (QoS) support - Yes
Features - Receiver sensitivity - -103 dBm
Features - Throughput data rate - 1600 Mbit/s
Features - VLAN support - Yes
Features - Wi-Fi data rate (max) - 1300 Mbit/s
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GTIN - 4718937594603
guarantee - -1
guarantee_type - external
I/O ports - 2 x 10/100/1000 Mbit/s
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Networking administrators managing busy venues must understand how visitors longed for WiFi and how challenging it is to meet the demands within limited budgets.Zyxel brings affordable and triple-performance 3x3:3 MU-MIMO access point WAC6303D-S which is built with Smart antenna to mitigate co-channel interference in high-density environment. And its embedded BLE Beacon provides insight into your consumers, WAC6303D-S not only resolves the challenge today it thinks for the ever-growing mobility demands tomorrow.MU-MIMO, New Definition of Wi-FiStepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.Next Generation Transmit Beamforming benefits overall networkingTransmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.Optimal Wireless ExperienceWAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.Built for Superior performanceThe WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.Optimized wireless experience with advanced featuresTo provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.Unified access point- Fits all businessesStay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.
LongProductName - WAC6303D-S - 802.11ac Wave 2 Dual-Radio Unified Pro Access Point
LongSummaryDescription - Zyxel WAC6303D-S. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1300 Mbit/s. Security algorithms: 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration -
name - WAC6303D-S Wave2 3x3Smart Antenna noPSU 802.11AC WAC6303D-S-EU01F
Network architecture - GigabitEthernet
Number of antennas - 3
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging data - Package depth - 247 mm
Packaging data - Package height - 55 mm
Packaging data - Package weight - 1.04 kg
Packaging data - Package width - 251 mm
Ports & interfaces - DC-in jack - Yes

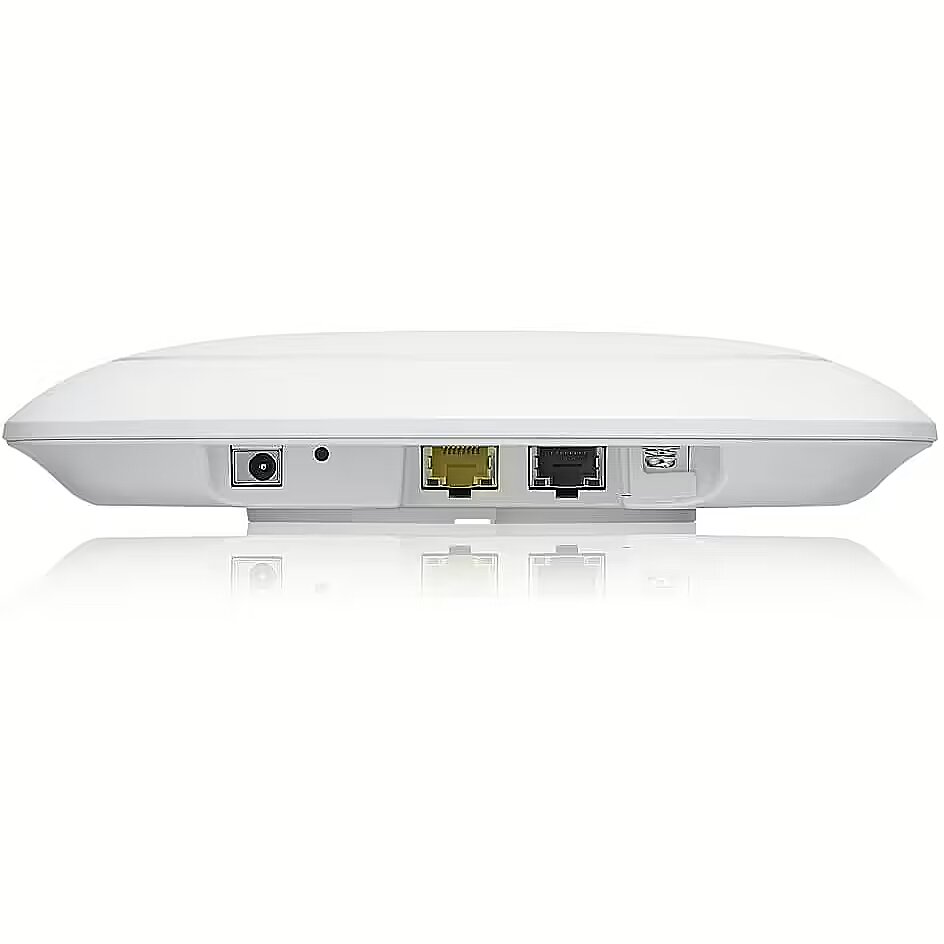

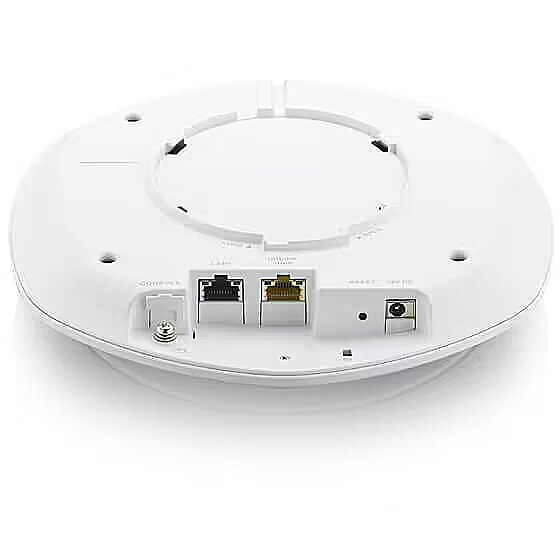

Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 2 A
Power - Output voltage - 12 V
Power - Power over Ethernet (PoE) - Yes
Power supply - Input: AC 100-240V, 50~60Hz
producer - Zyxel
producerCode - WAC6303D-S-EU0101F
productName - Acces Point Wi-Fi 5 Zyxel WAC6303D-S 2.4GHz(2x2)/5GHz(3x3) PoE/PoE+ 2x1G
ProductName - WAC6303D-S
productSize - Normal
Protocols - DHCP client - Yes
Protocols - Management protocols - SNMP v2c/v3
Security - - WPA/WPA2-PSK
- WPA/WPA2-Enterprise
- WLAN access control list
- EAP type
- IEEE 802.1X
- MAC filtering
- Web authentication
- Layer-2 isolation
- RADIUS authentication
- Microsoft AD authentication
- LDAP authentication
- MAC authentication
- Rogue AP detection
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Security algorithms - 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK
ShortSummaryDescription - Zyxel WAC6303D-S, 2.4 GHz, 5 GHz, 1300 Mbit/s, 802.1x RADIUS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s
sizeX - 240
sizeY - 250
sizeZ - 55
Software -
Special functions -
Standards - 802.3
Standards - 802.3af
Standards - 802.3at
Standards - 802.3az
Standards - 802.3u
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Title - Zyxel WAC6303D-S 1300 Mbit/s White Power over Ethernet (PoE)
URL - https://www.zyxel.com/products_services/802-11ac-Wave-2-Dual-Radio-Unified-Pro-Access-Point-WAC6303D-S/overview
vendpn - WAC6303D-S-EU0101F
WarrantyInfo -
warrantyType - W
Weight - 1.76 kg
weight - 1080
Weight & dimensions - Depth - 223 mm
Weight & dimensions - Height - 39 mm
Weight & dimensions - Weight - 800 g
Weight & dimensions - Width - 211 mm
