Benq EH620

AspectRatio - 16:9
Audio - Yes
AudioFeatures - 2 x 5W
Brand - BenQ
BrandPartCode - 9H.JPT77.34E
Category - Data Projectors
Category - Root/Electronics/PC peripherals/Projectors and screens/Projectors
Code - 9H.JPT77.34E
CompressedResolution - -
ComputerCompatibility - VGA(640 x 480) to Full HD(1920 x 1080)
ContrastRatio - 15,000:1
Depth - 263 mm
Design - Market positioning - Business
Design - Product colour - White
Design - Product type - Standard throw projector
Design > Colour of product - White
Design > Producer product family - Projector
Display - Built-in display - No
DisplayType - DLP
EAN - 4718755087998
Eans - 4718755087998
Features - HDCP - Yes
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level (economic mode) - 30 dB
Frequency - 15-102 kHz
FrequencyVertical - 23-120 Hz
GrossWeight - 5.850 kg
GTIN - 4718755087998
Height - 127 mm

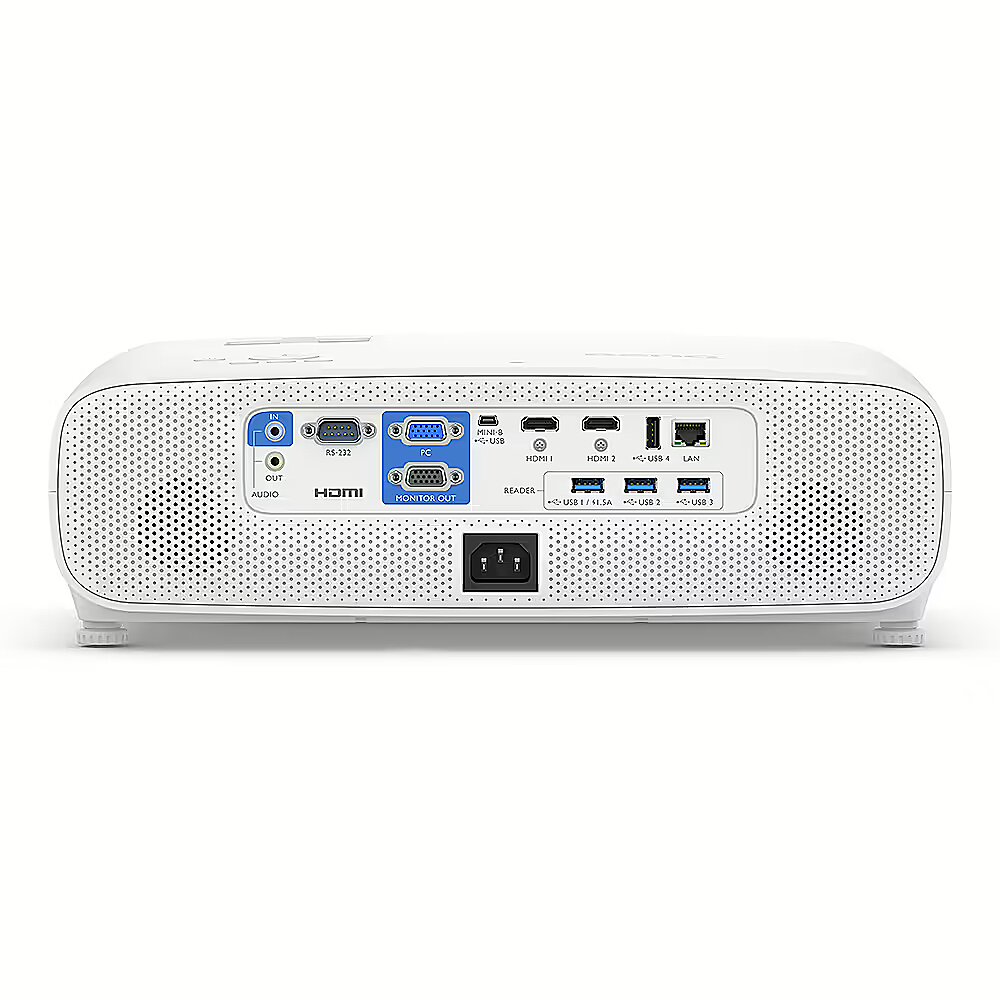

InputOutput -

2x VGA

2x HDMI

RJ-45

3x USB 3.0

2x USB 2.0

USB Type-B

RS-232

Audio in

Audio out

LampLife -

Normal: 4,000 hours

Economic: 10,000 hours

SmartEco: 15,000 hours

LampWarranty - -
Lens - F/# = 1.84 ~ 2.47, f = 12 ~ 15.6 mm
Lens system - Aperture range (F-F) - 1.84 - 2.47
Lens system - Focal length range - 12 - 15.6 mm
Lens system - Focus - Manual
Lens system - Offset - 105%
Lens system > Throw ratio - 1.13~1.47
Light source - Light source type - Lamp
Light source - Service life of light source - 4000 h
Light source - Service life of light source (economic mode) - 10000 h
Link - https://www.benq.eu/es-es/business/projector/eh620/specifications.html#tab-anchor
LongDesc -
LongSummaryDescription - BenQ EH620. Projector brightness: 3400 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 12 - 15.6 mm, Aperture range (F-F): 1.84 - 2.47. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA). Serial interface type: RS-232, HDMI version: 1.4a
Lumens - 3400 ANSI lumens
MANUFDATASHEET - https://www.benq.eu/en-eu/business/projector/eh620/specifications.html#tab-anchor
MountingCapability - Yes
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 10 W
Name - BenQ EH620 z Windows 11
Name - Benq | EH620 | Full HD (1920x1080) | 3400 ANSI lumens | White | Wi-Fi
NativeResolution - 1920 x 1080
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet LAN - No
Network - Smart TV - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking > Wi-Fi - Yes
Networking > Wi-Fi connection - Yes (integrated)
Networking > Wi-Fi standards - 802.11 a/b/g/n/ac
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features > Aspect ratio - 16:9
PackageContents -

Wireless USB dongle: 5201BS

Remote Control w/ Battery: RCI023

Power Cord (1.8m)

VGA(D-sub 15pin) Cable (1.5m)

Quick Start Guide

Warranty Card

Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 263.00 mm
Package features > Gross height (mm) - 127.00 mm
Package features > Gross width (mm) - 380.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 68 pc(s)
Package features > Paper/Pasteboard - 350.00 g
Package features > Plastic (No PET) - 150.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Remote control included - Yes
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4a
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Ports & interfaces - Mini-USB 2.0 ports quantity - 1
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 350 W
Power - Power source - AC
ProdDesc - PROJECTOR EH620 WHITE
Producer - BenQ
ProducerCode - 9H.JPT77.34E
Producer product name - EH620
ProductName - EH620
ProductPicture - http://www.tdbaltic.ee/images/ds4/9H.JPT77.34E-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/9H.JPT77.34E-02.jpg
ProductPicture3 -
ProductPicture4 -
ProjectionSize - -
ProjectionSizeMax - -
Projector - Contrast ratio (typical) - 15000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, vertical - -40 - 40°
Projector - Native aspect ratio - 16:9
Projector - Number of colours - 1.07 billion colours
Projector - Projection technology - DLP
Projector - Projector brightness - 3400 ANSI lumens
Projector - Projector native resolution - 1080p (1920x1080)
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
ShortDescription - 1920 x 1080 | DLP | 3400 lm | 1 x HDMI | contrast 15 000:1 | 2 x HDMI | USB | WiFi | Bluetooth | Windows 11
ShortSummaryDescription - BenQ EH620, 3400 ANSI lumens, DLP, 1080p (1920x1080), 15000:1, 16:9, 1.07 billion colours
Storage - Card reader integrated - No
Technical details > Brightness - 3400 ANSI lumens
Technical details > Contrast ratio - 15000:1
Technical details > Gross weight - 4.70 kg
Technical details > Maximum resolution - Full HD (1920x1080)
Technical details > Net weight - 4.20 kg
Technical details > Producer - Benq
ThrowDistance - -
ThrowDistanceMax - -
Title - BenQ EH620 Standard throw projector 3400 ANSI lumens DLP 1080p (1920x1080) 3D White
UserControls - -
Video - 3D - Yes
Video - Full HD - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1200 (WUXGA)
VideoCompatibility - -
Warranty - 3 years
Warranty - 36
Warranty - 36 month(s)
Weight - 4.200 kg
Weight & dimensions - Depth - 263 mm
Weight & dimensions - Height - 127 mm
Weight & dimensions - Weight - 4.2 kg
Weight & dimensions - Width - 380 mm
Width - 380 mm
Wireless - Yes
WirelessInterface -

802.11 a/b/g/n/ac (2.4G/5G)

Bluetooth 4.2
