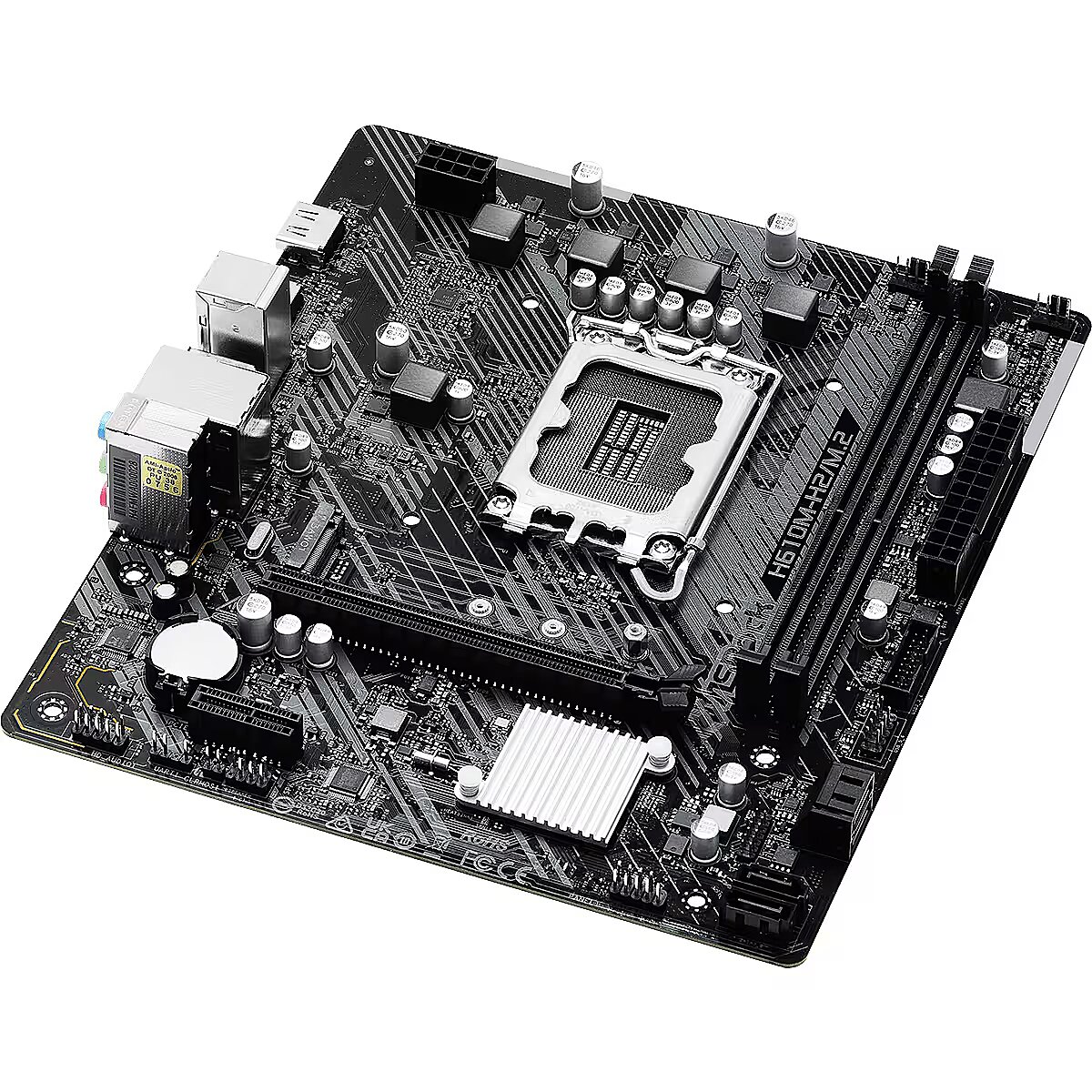

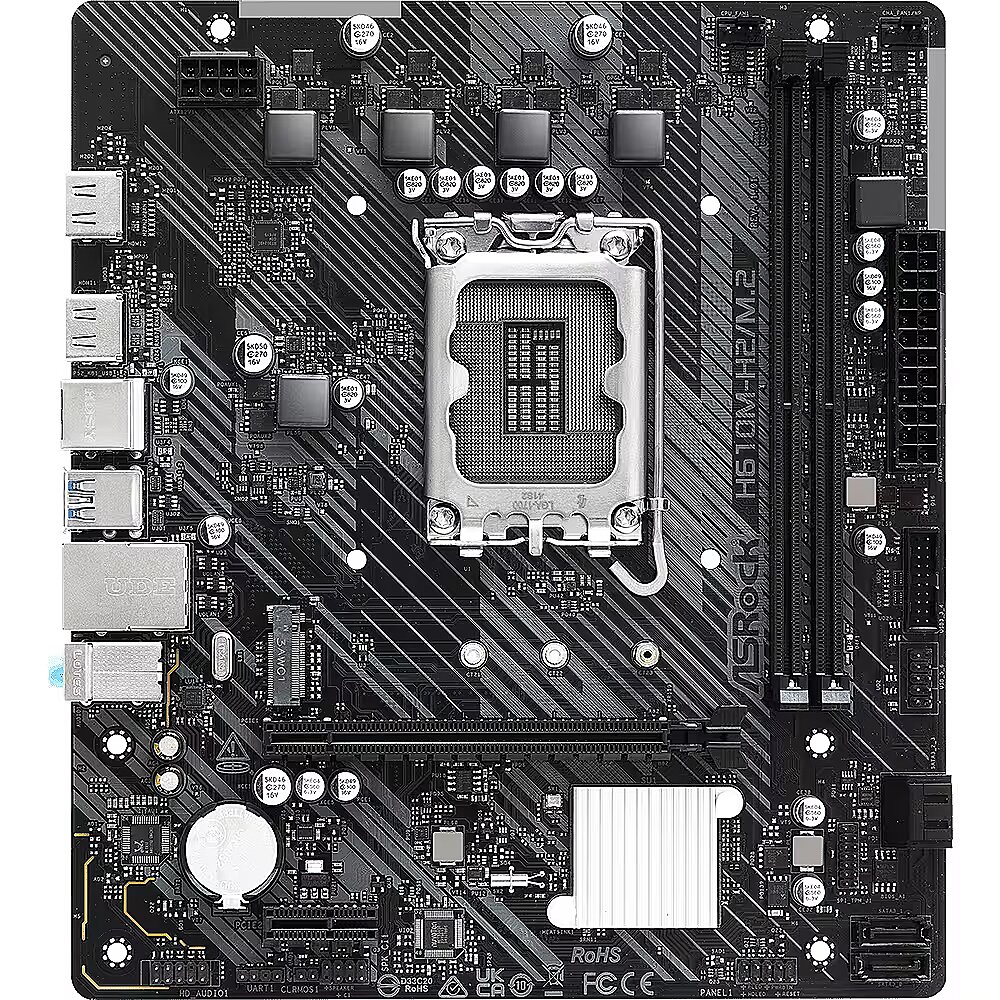

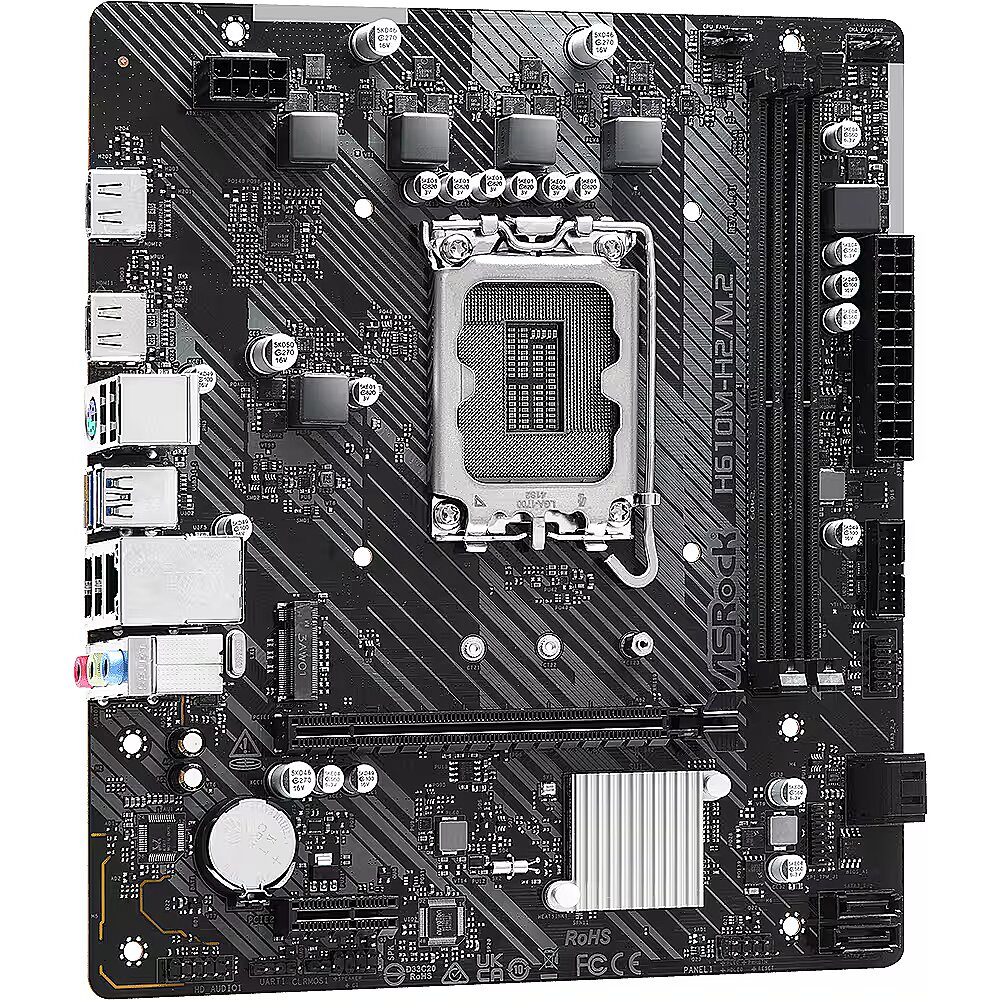

Asrock H610M-H2/M.2

Audio port Input/Output connectors - 3
BIOS - BIOS type - UEFI AMI
Category Code - MBI
Chipset - Intel H610
Description - H610M-H2/M.2 Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 3+1+1 Phase Power Design 2 x DDR4 DIMMs Supports Dual Channel, up to 3200 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: 2 HDMI Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN
dimensionalWeight - 765
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|2xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - HDCP - Yes
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
HDMI Input/Output connectors - 2
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
M.2 Expansion slots - 1
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 2
Memory type - DDR4
Model - H610M-H2/M.2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
producerCode - H610M-H2/M.2
productName - ASRock H610M-H2/M.2 motherboard
productSize - Normal
PS/2 Input/Output connectors - 1

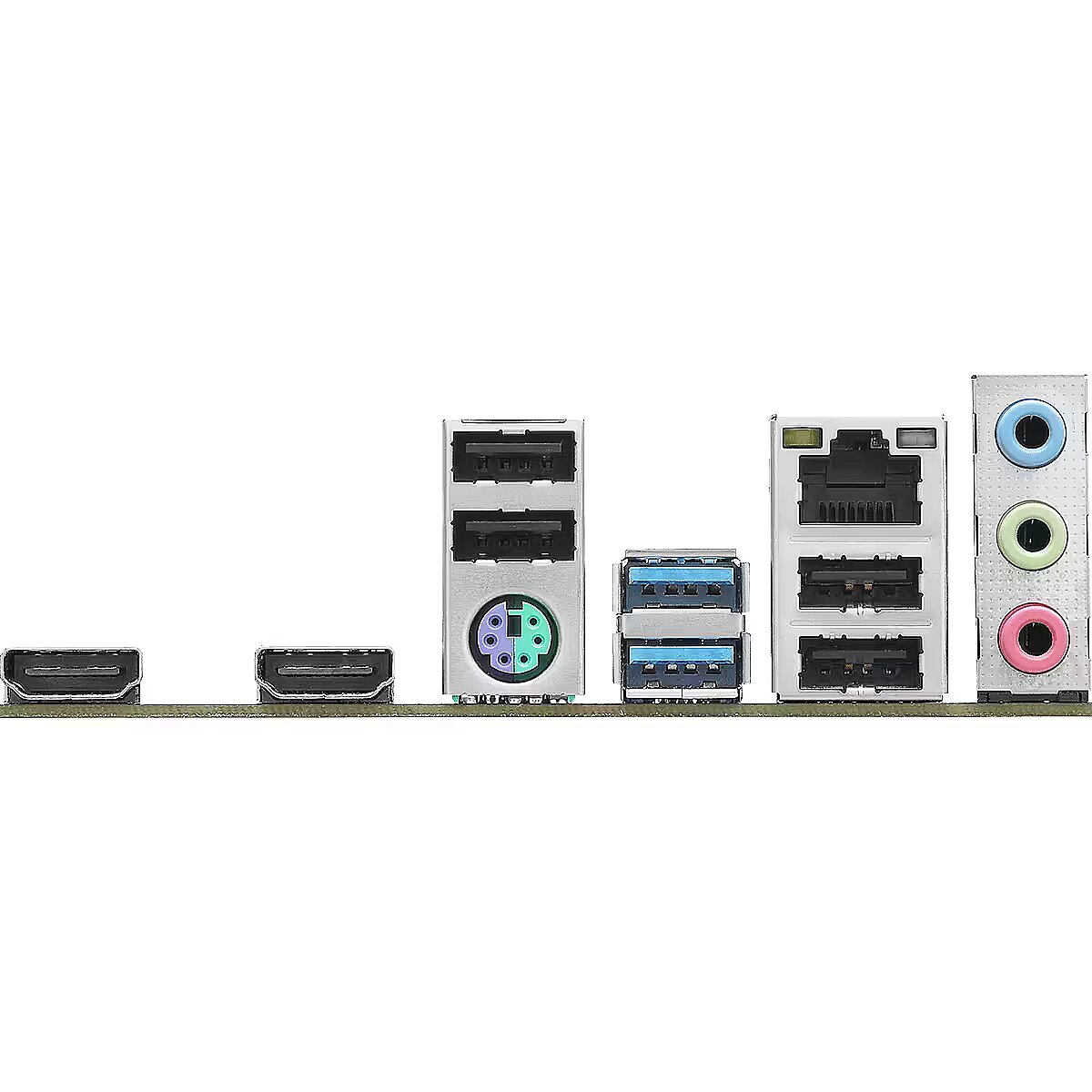

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
sizeX - 275
sizeY - 240
sizeZ - 58
Socket - LGA1700
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TPM - Header
Unit Brutto Volume - 0.004544 cubm
Unit Gross Weight - 0.76 kg
Unit Net Weight - 0.5 kg
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.asrock.com/mb/Intel/H610M-H2M.2/index.asp
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 670
Weight & dimensions - Depth - 193 mm
Weight & dimensions - Width - 220 mm
