ID: 1012588
Tootekood: Z790 AORUS ELITE AX ICE
Laos 2 üksused
Garantii: 3 aastat

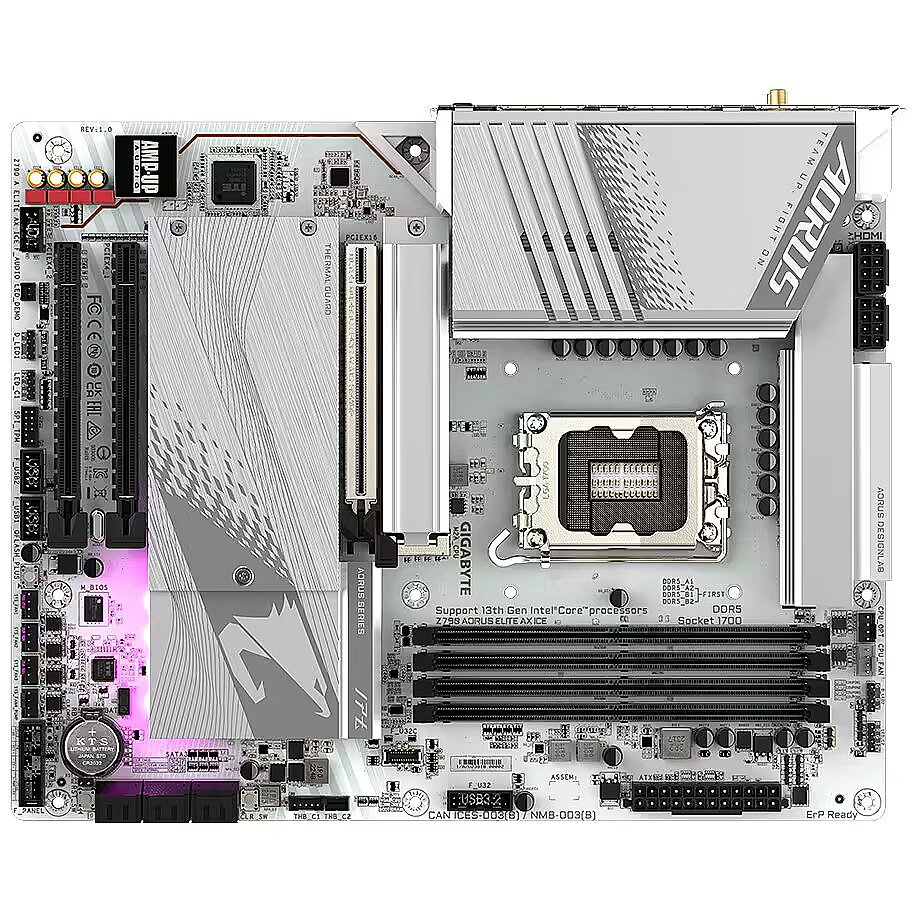

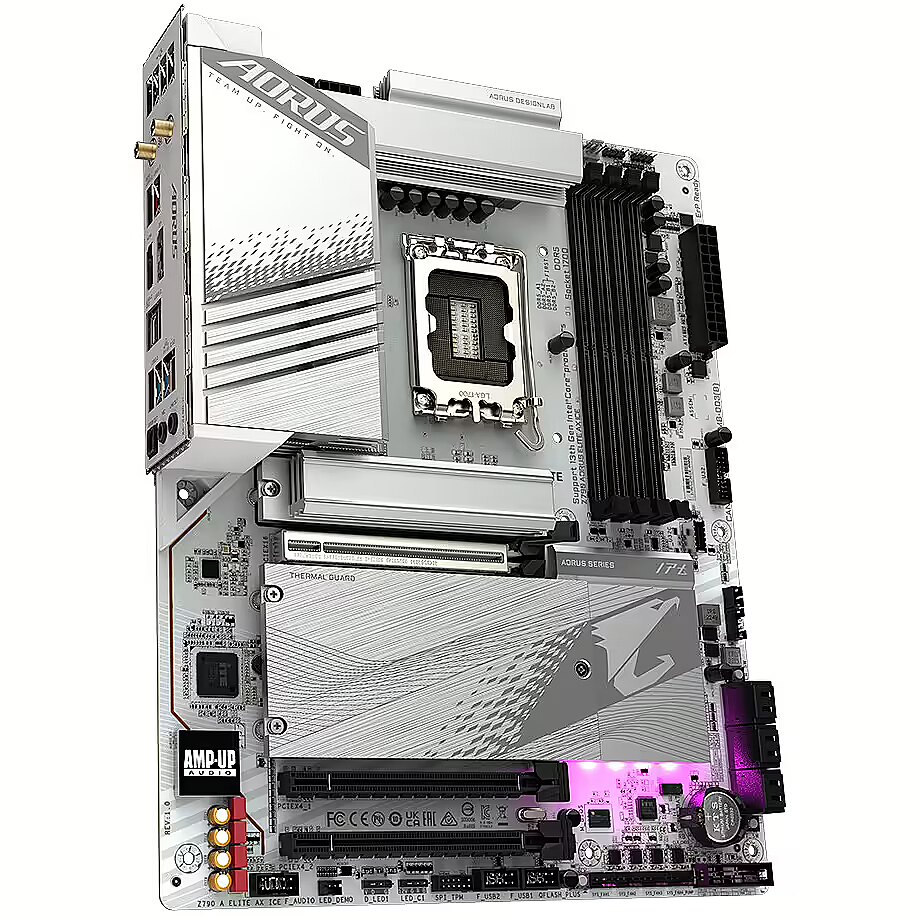

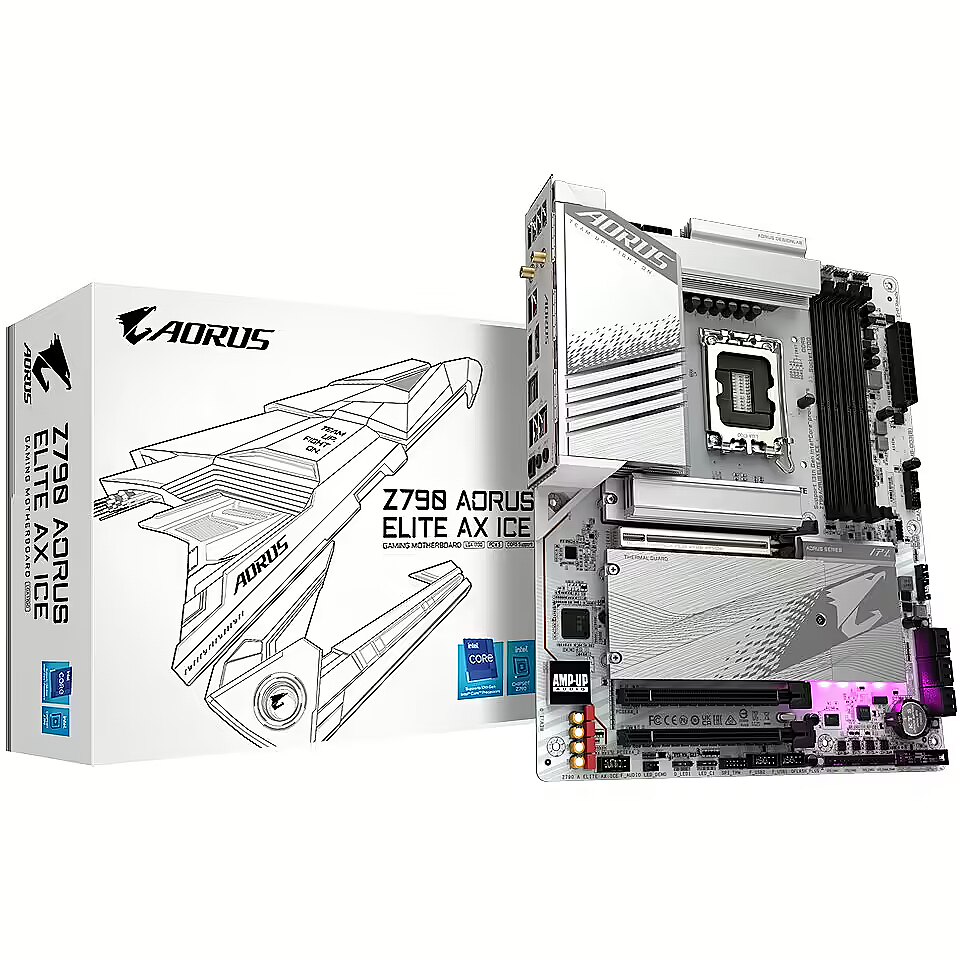

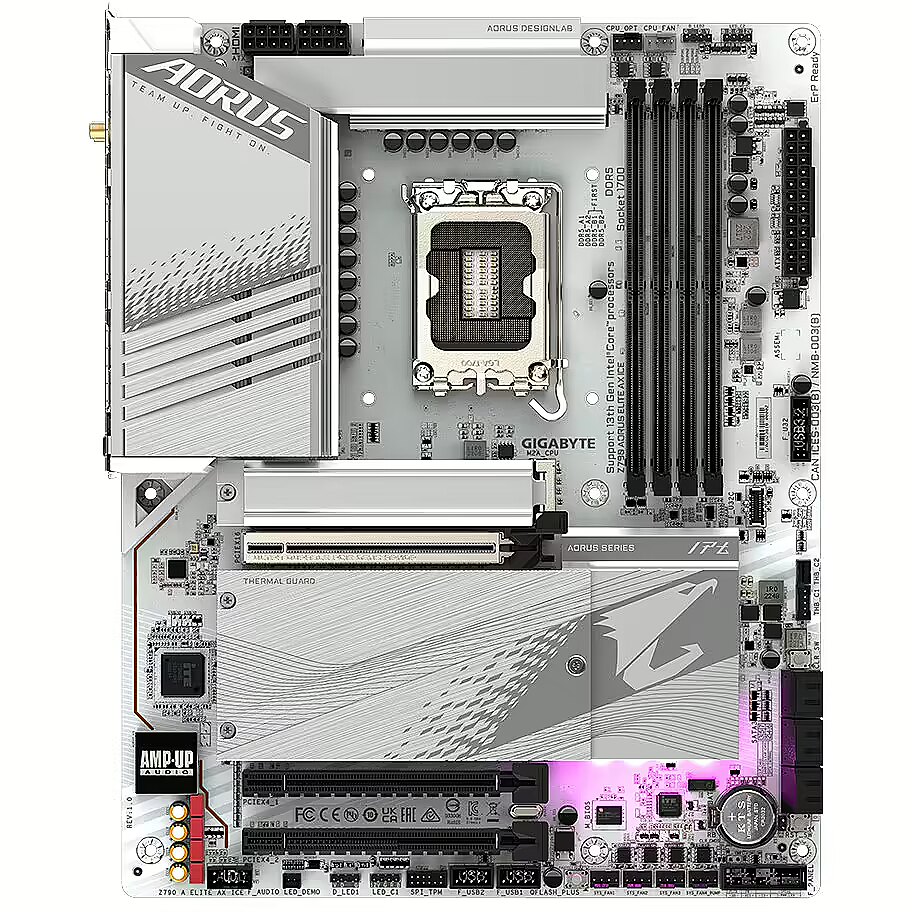

Gigabyte Z790 AORUS ELITE AX ICE
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Peamised tooteparameetrid Kõik parameetrid
- Seeria: Gigabyte AORUS
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel Z790
- Plaadi mõõtmed: ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: On
Põhiteave
Seeria
: Gigabyte AORUS
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel Z790
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 4800 (OC 7600)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek 7.1 CODEC
Traadita ühendused
Sisseehitatud Bluetooth
: Ir
Sisseehitatud Wi-Fi
: On
Välised sadamad
Väline USB Type-C
: 1
Väline USB 2.0
: 2
Väline USB 3.0 (USB 3.2 Gen1)
: 3
Väline USB 3.1 (USB 3.2 Gen2)
: 2
Siseportid
Sisemine A-RGB 5V (3-pin)
: 2
Sisemine RGB 12V (4-pin)
: 2
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 4
SATA 3 Portid
: 6
Täpsem spetsifikatsioon
Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z790 AORUS ELITE AX ICE
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express Chipset
CnCode CnCode - 84733020
code - Z790 A ELITE AX ICE
Code - Z790 A ELITE AX ICE
COM connector / port - No
CPU socket - LGA1700
Description - Z790 AORUS ELITE AX ICE Intel Socket LGA 1700: Supports 13th and 12th generation processors Unrivaled performance: 16+1+2 phase digital VRM solution Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP 3.0 memory modules Next-generation storage: 4 PCIe 4.0 x4 M.2 Advanced M.2 III thermal design and thermal shield: to ensure VRM power stability and M.2 SSD performance EZ-Latch Plus: M.2 connectors with quick release and screwless design Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax Enhanced connectivity: DP, HDMI, USB-C front 10Gbps, USB-C rear 20Gbps Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Description - Z790 AORUS ELITE AX ICE Key Features - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Twin 16+1+2 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design - Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax - Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * If you are installing a single PCI Express graphics card, please ensure that the card is connected to the PCIEX16 connector for optimal performance. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Processor 1 x M.2 connector (Socket 3, M key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M key, support for PCIe 4.0 x4/x2 SSDs type 22110/2280) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, support SATA 22110/2280 and PCIe 4.0 x4 SSD) (M2M_SB) 6 SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA storage devices For information on installing M.2 and SATA connectors, see Internal Connectors 2-8.
dimensionalWeight - 1652
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 x 24.4cm
dimension weight - 180 g
dimension width - 330 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331858896
ean - 4719331858896
Eans - 4719331858896
EAN_code - 4719331858896
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 slots - 3

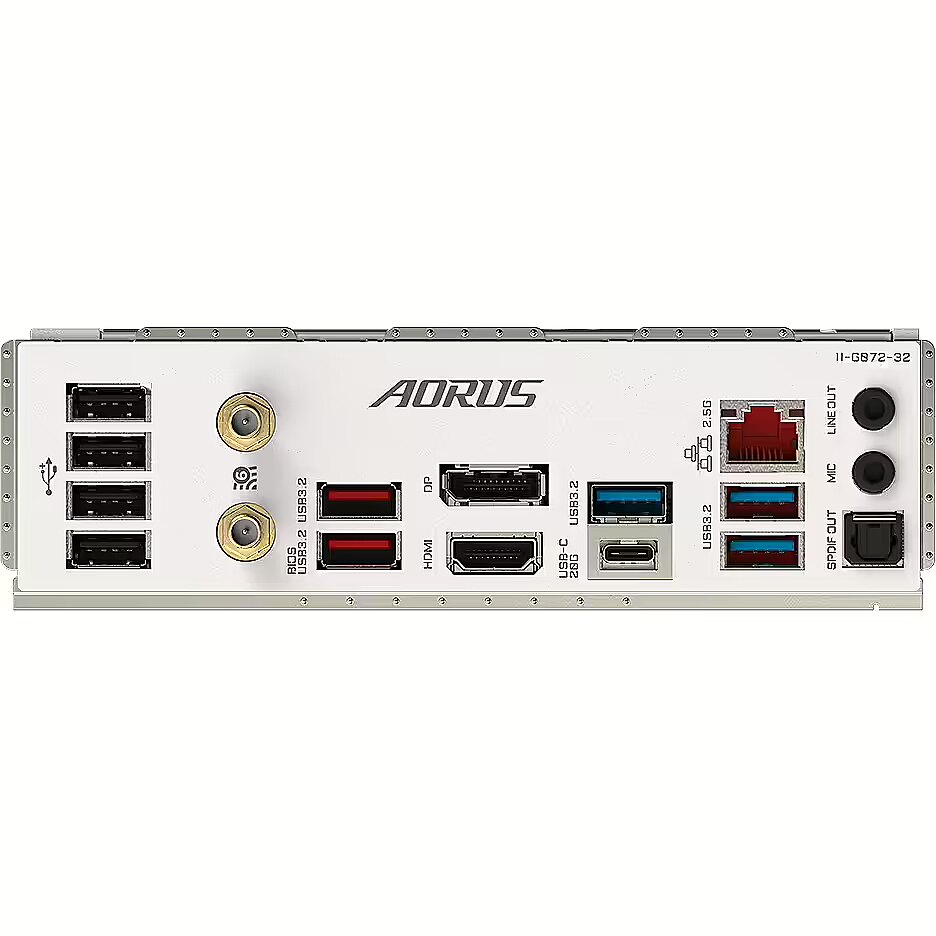

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,32
GTIN - 0889523039922
GTIN - 889523039922
GTIN - 4719331858896
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR5 DIMM, Wi-Fi 6E, Bluetooth 5.3, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer Code - Z790 AORUS ELITE AX ICE
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 A ELITE AX ICE
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 AORUS ELITE AX ICE
Model - Z790 AORUS ELITE AX ICE
Name - Gigabyte Z790 A ELITE AX ICE
Name - GIGABYTE Z790 A ELITE AX ICE 1.0 M/B | Gigabyte
name - GIGABYTE Z790 Aorus Elite AX ICE, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - GIGABYTE Z790 AORUS ELITE AX ICE - Socket 1700 - motherboard
name - Motherboard Z790 AORUS ELITE AX ICE S1700 4DDR5 USB/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Intel Wi-Fi 6E AX211 (for PCB version 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps Realtek Wi-Fi 6E RTL8852CE (for PCB version 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rate may vary depending on environment and hardware.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) installed.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.3 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
ProducerCode - Z790 A ELITE AX ICE
producerCode - Z790 AORUS ELITE AX ICE
productName - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
ProductName - Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA Z790 AORUS ELITE AX ICE S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 340
sizeY - 270
sizeZ - 90
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions - GIGABYTE Control Center (GCC) Support *Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus Smart backup support
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.13 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.375
Unit Box Length - 0.53
Unit Box Width - 0.31
Unit Brutto Volume - 0.01027 cubm
Unit Gross Weight - 2.55 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE#kf
vendpn - Z790 A ELITE AX ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 2,06
weight - 2000
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - Z790 AORUS ELITE AX ICE
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express Chipset
CnCode CnCode - 84733020
code - Z790 A ELITE AX ICE
Code - Z790 A ELITE AX ICE
COM connector / port - No
CPU socket - LGA1700
Description - Z790 AORUS ELITE AX ICE Intel Socket LGA 1700: Supports 13th and 12th generation processors Unrivaled performance: 16+1+2 phase digital VRM solution Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP 3.0 memory modules Next-generation storage: 4 PCIe 4.0 x4 M.2 Advanced M.2 III thermal design and thermal shield: to ensure VRM power stability and M.2 SSD performance EZ-Latch Plus: M.2 connectors with quick release and screwless design Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax Enhanced connectivity: DP, HDMI, USB-C front 10Gbps, USB-C rear 20Gbps Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Description - Z790 AORUS ELITE AX ICE Key Features - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Twin 16+1+2 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design - Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax - Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * If you are installing a single PCI Express graphics card, please ensure that the card is connected to the PCIEX16 connector for optimal performance. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Processor 1 x M.2 connector (Socket 3, M key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M key, support for PCIe 4.0 x4/x2 SSDs type 22110/2280) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, support SATA 22110/2280 and PCIe 4.0 x4 SSD) (M2M_SB) 6 SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA storage devices For information on installing M.2 and SATA connectors, see Internal Connectors 2-8.
dimensionalWeight - 1652
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 x 24.4cm
dimension weight - 180 g
dimension width - 330 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331858896
ean - 4719331858896
Eans - 4719331858896
EAN_code - 4719331858896
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,32
GTIN - 0889523039922
GTIN - 889523039922
GTIN - 4719331858896
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR5 DIMM, Wi-Fi 6E, Bluetooth 5.3, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer Code - Z790 AORUS ELITE AX ICE
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 A ELITE AX ICE
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 AORUS ELITE AX ICE
Model - Z790 AORUS ELITE AX ICE
Name - Gigabyte Z790 A ELITE AX ICE
Name - GIGABYTE Z790 A ELITE AX ICE 1.0 M/B | Gigabyte
name - GIGABYTE Z790 Aorus Elite AX ICE, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - GIGABYTE Z790 AORUS ELITE AX ICE - Socket 1700 - motherboard
name - Motherboard Z790 AORUS ELITE AX ICE S1700 4DDR5 USB/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Intel Wi-Fi 6E AX211 (for PCB version 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps Realtek Wi-Fi 6E RTL8852CE (for PCB version 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rate may vary depending on environment and hardware.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) installed.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.3 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
ProducerCode - Z790 A ELITE AX ICE
producerCode - Z790 AORUS ELITE AX ICE
productName - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
ProductName - Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
Short description - GIGA Z790 AORUS ELITE AX ICE S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 340
sizeY - 270
sizeZ - 90
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions - GIGABYTE Control Center (GCC) Support *Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus Smart backup support
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.13 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE Z790 AORUS ELITE AX ICE Motherboard - Supports Intel Core 13th CPUs, 16+1+2 Phases Digital VRM, up to 7600MHz DDR5, 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN , USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.375
Unit Box Length - 0.53
Unit Box Width - 0.31
Unit Brutto Volume - 0.01027 cubm
Unit Gross Weight - 2.55 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-ICE#kf
vendpn - Z790 A ELITE AX ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 2,06
weight - 2000
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
