ID: 974620
Tootekood: 90MB1EK0-M0EAYC
Saab tellida 37 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 3 aastat

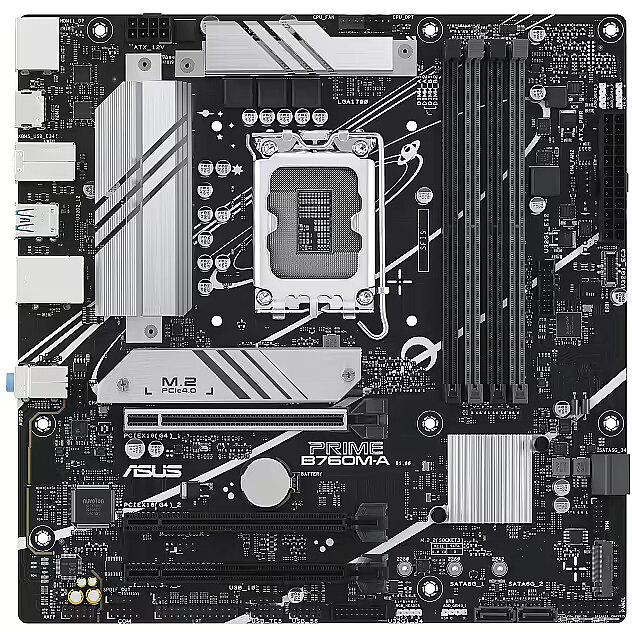

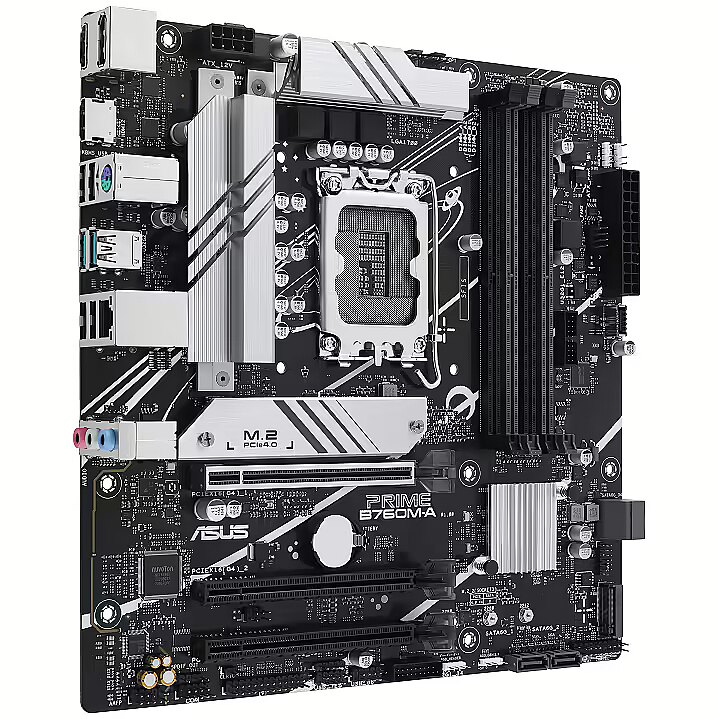

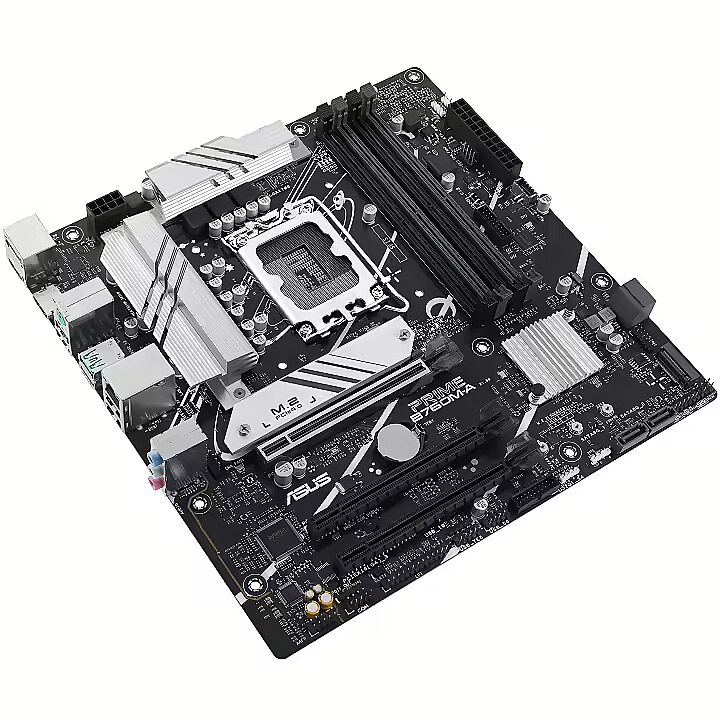

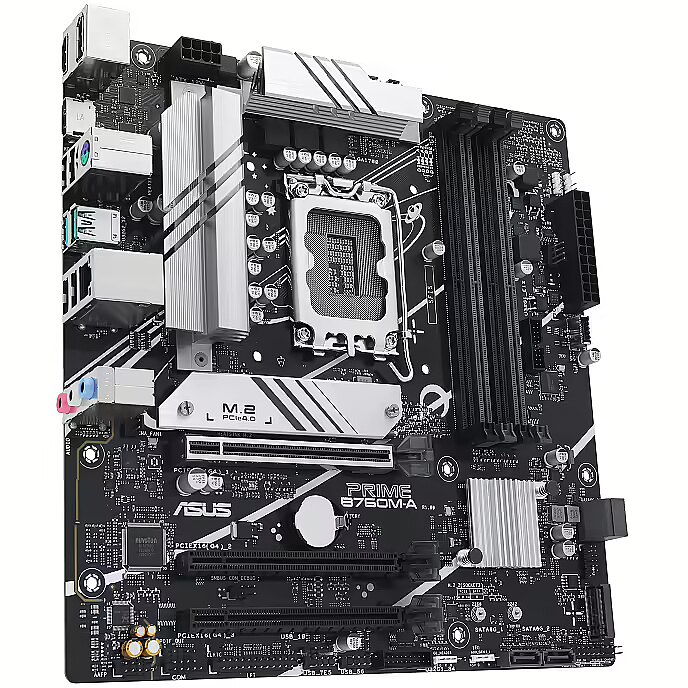

Asus Prime B760M-A-CSM
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 09.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 09.12.2024
- Kulleri kohaletoimetamine 3,99 €: 09.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Seeria: ASUS Prime
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel B760
- Plaadi mõõtmed: Micro ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: On
Põhiteave
Seeria
: ASUS Prime
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel B760
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
Micro ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 5600 (OC 7200)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 2
DisplayPort
: 1
Integreeritud helikaart
: Realtek Audio CODEC
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: On
Välised sadamad
Väline USB Type-C
: 0
Väline USB 2.0
: 4
Väline USB 3.0 (USB 3.2 Gen1)
: 0
Väline USB 3.1 (USB 3.2 Gen2)
: 2
Siseportid
Sisemine A-RGB 5V (3-pin)
: 3
Sisemine RGB 12V (4-pin)
: 1
Sisemine USB 2.0
: 3
Sisemine USB 3.0
: 2
Sisemine USB Type-C
: 1
M.2 Sadam
: 2
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1EK0-M0EAYC
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
code - 90MB1EK0-M0EAYC
description_en - Processor
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Graphics
Parallel processing technology support: Not supported
Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10 x64
Memory
Supported memory clock speeds: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 MHz, 5600, 7200, 7000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 7200 MHz
Weight & dimensions
Height: 40 mm
Width: 244 mm
Depth: 244 mm
Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 3
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
12V power connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
Packaging data
Package weight: 1.14 kg
Package height: 52 mm
Package width: 270 mm
Package depth: 263 mm

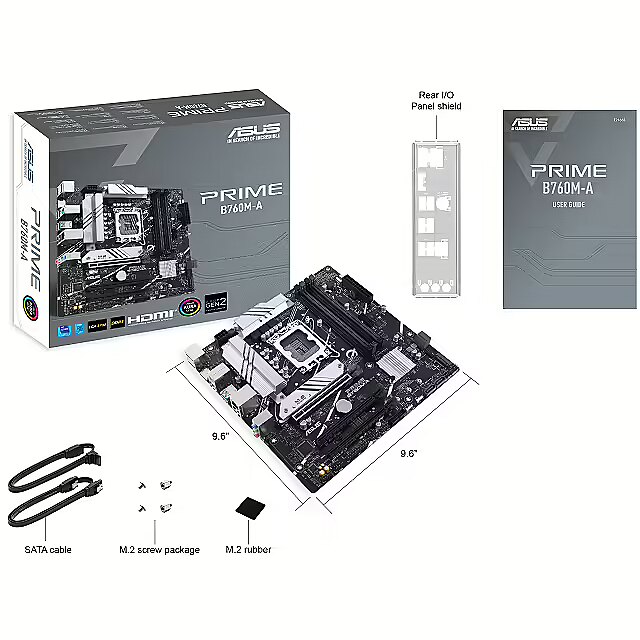

Packaging content
Cables included: SATA
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Number of HDDs supported: 4

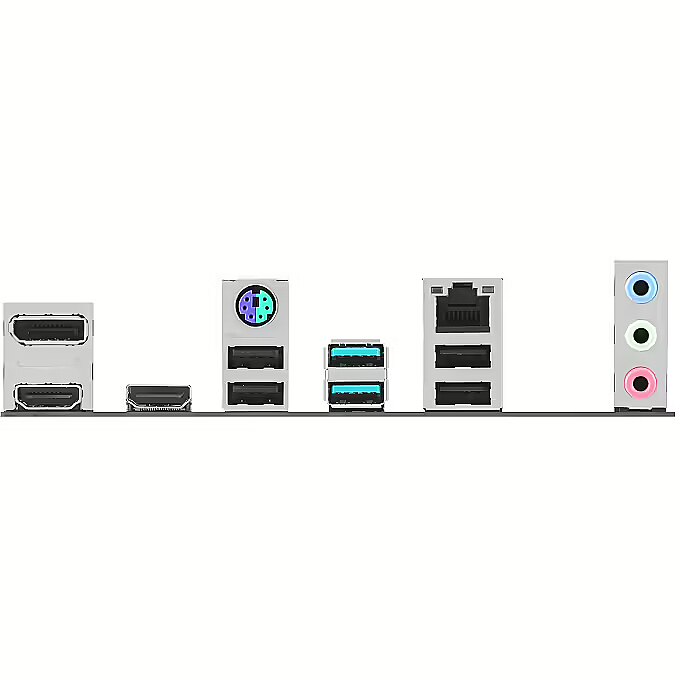

Rear panel I/O ports
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
WiFi-AP antenna jack: 1
PS/2 ports quantity: 1
Headphone outputs: 1
HDMI ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
description_lv - Procesors
Procesora ligzda: LGA 1700
Saderīgās procesoru sērijas: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Procesora ražotājs: Intel
Atbalstītās procesora ligzdas: LGA 1700
Grafika
Paralēlās apstrādes tehnoloģijas atbalsts: netiek atbalstīts
Funkcijas
Audio izvades kanāli: 7.1 kanāli
Mātesplates mikroshēmojums: Intel B760
Mātesplates formas faktors: micro ATX
Mātesplates mikroshēmojumu saime: Intel
Atbalstītās Windows operētājsistēmas: Windows 11, Windows 10 x64
Atmiņa
Atbalstītie atmiņas pulksteņa ātrumi: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 MHz, 5600, 7200, 7000
Maksimālā iekšējā atmiņa: 128 GB
Nebuferētā atmiņa: jā
Atmiņas kanāli: Divu kanālu
Atbalstītie atmiņas veidi: DDR5-SDRAM
Atmiņas slotu tips: DIMM
Atmiņas slotu skaits: 4
Atbalstītais atmiņas pulksteņa ātrums (maks.): 7200 MHz
Svars un izmēri
Augstums: 40 mm
Platums: 244 mm
Dziļums: 244 mm
Tīkls
Ethernet LAN: Jā
Ethernet interfeisa tips: 2,5 Gigabit Ethernet
Iekšējā I/O
Priekšējā paneļa audio savienotājs: Jā
USB 2.0 savienotāji: 3
SATA III savienotāju skaits: 4
ATX strāvas savienotājs (24 kontaktu): Jā
S/PDIF izejas savienotājs: Jā
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji: 3
12V strāvas savienotājs: Jā
Šasijas ventilatora savienotāju skaits: 2
COM savienotāju skaits: 1
EPS strāvas savienotājs (8 kontaktu): Jā
RGB LED tapas galvene: Jā
TPM savienotājs: Jā
Priekšējā paneļa savienotājs: Jā
CPU ventilatora savienotājs: Jā
BIOS
BIOS tips: UEFI AMI
CMOS notīrīšanas poga: Jā
Iepakojuma dati
Iepakojuma svars: 1,14 kg
Iepakojuma augstums: 52 mm
Iepakojuma platums: 270 mm
Iepakojuma dziļums: 263 mm
Iepakojuma saturs
Komplektā iekļauti kabeļi: SATA
Krātuves kontrolieri
Atbalstītās atmiņas disku saskarnes: M.2, SATA III
Atbalstītie atmiņas disku veidi: HDD un SSD
Atbalstīto atmiņas disku skaits: 6
Atbalstīto cieto disku skaits: 4
Aizmugurējā paneļa I/O porti
DisplayPorts daudzums: 1
USB 2.0 portu skaits: 4
Ethernet LAN (RJ-45) porti: 1
Line-in: Jā
WiFi-AP antenas ligzda: 1
PS/2 portu daudzums: 1
Austiņu izejas: 1
HDMI portu skaits: 2
USB 3.2 Gen 2 (3.1 Gen 2) A tipa portu skaits: 2
Mikrofons iekšā: Jā
Paplašināšanas sloti
M.2 (M) slotu skaits: 2
PCI Express x16 (Gen 4.x) sloti: 3
description_ru - Процессор
Разъем процессора: LGA 1700
Совместимые серии процессоров: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Производитель процессора: Intel
Поддерживаемые разъемы процессора: LGA 1700
Графика
Поддержка технологии параллельной обработки: Не поддерживается
Функции
Каналы аудиовыхода: 7.1 каналов
Набор микросхем материнской платы: Intel B760
Форм-фактор материнской платы: micro ATX
Семейство чипсетов материнской платы: Intel
Поддерживаемые операционные системы Windows: Windows 11, Windows 10 x64
Память
Поддерживаемые тактовые частоты памяти: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 МГц, 5600, 7200, 7000
Максимальный объем внутренней памяти: 128 ГБ
Небуферизованная память: Да
Каналы памяти: Двухканальные
Поддерживаемые типы памяти: DDR5-SDRAM
Тип слотов памяти: DIMM
Количество слотов памяти: 4
Поддерживаемая тактовая частота памяти (макс.): 7200 МГц
Вес и размеры
Высота: 40 мм
Ширина: 244 мм
Глубина: 244 мм
Сеть
Ethernet LAN: Да
Тип интерфейса Ethernet: 2.5 Gigabit Ethernet
Внутренний ввод-вывод
Аудиоразъем на передней панели: Да
Разъемы USB 2.0: 3
Количество разъемов SATA III: 4
Разъем питания ATX (24-контактный): Да
Выходной разъем S/PDIF: Да
USB Разъемы 3.2 Gen 1 (3.1 Gen 1): 3
Разъем питания 12 В: Да
Количество разъемов для вентиляторов корпуса: 2
Количество разъемов COM: 1
Разъем питания EPS (8-контактный): Да
Разъем RGB LED: Да
Разъем TPM: Да
Разъем передней панели: Да
Разъем вентилятора ЦП: Да
BIOS
Тип BIOS: UEFI AMI
Кнопка очистки CMOS: Да
Данные упаковки
Вес упаковки: 1,14 кг
Высота упаковки: 52 мм
Ширина упаковки: 270 мм
Глубина упаковки: 263 мм
Содержимое упаковки
Включенные кабели: SATA
Контроллеры накопителей
Поддерживаемые интерфейсы накопителей: M.2, SATA III
Поддерживаемые типы накопителей: HDD и SSD
Количество поддерживаемых накопителей: 6
Количество поддерживаемых жестких дисков: 4
Ввод-вывод на задней панели порты
DisplayPorts количество: 1
USB 2.0 порты количество: 4
Ethernet LAN (RJ-45) порты: 1
Line-in: Да
WiFi-AP антенный разъем: 1
PS/2 порты количество: 1
Выходы для наушников: 1
HDMI порты количество: 2
USB 3.2 Gen 2 (3.1 Gen 2) порты Type-A количество: 2
Микрофонный вход: Да
Слоты расширения
Количество слотов M.2 (M): 2
PCI Express x16 (Gen 4.x) слоты: 3
dimensionalWeight - 787
ean - 4711387140710
EAN - 4711387140710
Eans - 4711387140710
EAN_code - 4711387140710
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
gross_weight - 2 kg
GTIN - 4711387140710
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LongDesc - B760M-A-CSMASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.ASUS Corporate Stable ModelASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.ASUS Control Center ExpressASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
LongProductName - Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
LongSummaryDescription - ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1EK0-M0EAYC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Model - Prime B760M-A-CSM
Name - ASUS PRIME B760M-A-CSM
name - ASUS Prime B760M-A-CSM, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS PRIME B760M-A-CSM - Socket 1700 - motherboard
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 263 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 1.14 kg
Packaging data - Package width - 270 mm
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Producer - ASUS
Producer - Asus
producerCode - 90MB1EK0-M1EAYC
ProducerCode - PRIME B760M-A-CSM
productName - ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
ProductName - PRIME B760M-A-CSM
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - ASUS PRIME B760M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 270
sizeY - 265
sizeZ - 55
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
title_en - Asus Prime B760M-A-CSM Intel B760 LGA Motherboard
title_lv - Asus Prime B760M-A-CSM Intel B760 LGA Mātesplate
title_ru - Asus Prime B760M-A-CSM Intel B760 LGA Материнская Плата
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,09
weight - 1.14 kg
weight - 1085
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Width - 244 mm
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1EK0-M0EAYC
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
code - 90MB1EK0-M0EAYC
description_en - Processor
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Graphics
Parallel processing technology support: Not supported
Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10 x64
Memory
Supported memory clock speeds: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 MHz, 5600, 7200, 7000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 7200 MHz
Weight & dimensions
Height: 40 mm
Width: 244 mm
Depth: 244 mm
Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 3
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
12V power connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
Packaging data
Package weight: 1.14 kg
Package height: 52 mm
Package width: 270 mm
Package depth: 263 mm
Packaging content
Cables included: SATA
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Number of HDDs supported: 4
Rear panel I/O ports
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
WiFi-AP antenna jack: 1
PS/2 ports quantity: 1
Headphone outputs: 1
HDMI ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
description_lv - Procesors
Procesora ligzda: LGA 1700
Saderīgās procesoru sērijas: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Procesora ražotājs: Intel
Atbalstītās procesora ligzdas: LGA 1700
Grafika
Paralēlās apstrādes tehnoloģijas atbalsts: netiek atbalstīts
Funkcijas
Audio izvades kanāli: 7.1 kanāli
Mātesplates mikroshēmojums: Intel B760
Mātesplates formas faktors: micro ATX
Mātesplates mikroshēmojumu saime: Intel
Atbalstītās Windows operētājsistēmas: Windows 11, Windows 10 x64
Atmiņa
Atbalstītie atmiņas pulksteņa ātrumi: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 MHz, 5600, 7200, 7000
Maksimālā iekšējā atmiņa: 128 GB
Nebuferētā atmiņa: jā
Atmiņas kanāli: Divu kanālu
Atbalstītie atmiņas veidi: DDR5-SDRAM
Atmiņas slotu tips: DIMM
Atmiņas slotu skaits: 4
Atbalstītais atmiņas pulksteņa ātrums (maks.): 7200 MHz
Svars un izmēri
Augstums: 40 mm
Platums: 244 mm
Dziļums: 244 mm
Tīkls
Ethernet LAN: Jā
Ethernet interfeisa tips: 2,5 Gigabit Ethernet
Iekšējā I/O
Priekšējā paneļa audio savienotājs: Jā
USB 2.0 savienotāji: 3
SATA III savienotāju skaits: 4
ATX strāvas savienotājs (24 kontaktu): Jā
S/PDIF izejas savienotājs: Jā
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji: 3
12V strāvas savienotājs: Jā
Šasijas ventilatora savienotāju skaits: 2
COM savienotāju skaits: 1
EPS strāvas savienotājs (8 kontaktu): Jā
RGB LED tapas galvene: Jā
TPM savienotājs: Jā
Priekšējā paneļa savienotājs: Jā
CPU ventilatora savienotājs: Jā
BIOS
BIOS tips: UEFI AMI
CMOS notīrīšanas poga: Jā
Iepakojuma dati
Iepakojuma svars: 1,14 kg
Iepakojuma augstums: 52 mm
Iepakojuma platums: 270 mm
Iepakojuma dziļums: 263 mm
Iepakojuma saturs
Komplektā iekļauti kabeļi: SATA
Krātuves kontrolieri
Atbalstītās atmiņas disku saskarnes: M.2, SATA III
Atbalstītie atmiņas disku veidi: HDD un SSD
Atbalstīto atmiņas disku skaits: 6
Atbalstīto cieto disku skaits: 4
Aizmugurējā paneļa I/O porti
DisplayPorts daudzums: 1
USB 2.0 portu skaits: 4
Ethernet LAN (RJ-45) porti: 1
Line-in: Jā
WiFi-AP antenas ligzda: 1
PS/2 portu daudzums: 1
Austiņu izejas: 1
HDMI portu skaits: 2
USB 3.2 Gen 2 (3.1 Gen 2) A tipa portu skaits: 2
Mikrofons iekšā: Jā
Paplašināšanas sloti
M.2 (M) slotu skaits: 2
PCI Express x16 (Gen 4.x) sloti: 3
description_ru - Процессор
Разъем процессора: LGA 1700
Совместимые серии процессоров: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Производитель процессора: Intel
Поддерживаемые разъемы процессора: LGA 1700
Графика
Поддержка технологии параллельной обработки: Не поддерживается
Функции
Каналы аудиовыхода: 7.1 каналов
Набор микросхем материнской платы: Intel B760
Форм-фактор материнской платы: micro ATX
Семейство чипсетов материнской платы: Intel
Поддерживаемые операционные системы Windows: Windows 11, Windows 10 x64
Память
Поддерживаемые тактовые частоты памяти: 5800, 5400, 6800, 5000, 5200, 6000, 6600, 4800, 6200, 6400 МГц, 5600, 7200, 7000
Максимальный объем внутренней памяти: 128 ГБ
Небуферизованная память: Да
Каналы памяти: Двухканальные
Поддерживаемые типы памяти: DDR5-SDRAM
Тип слотов памяти: DIMM
Количество слотов памяти: 4
Поддерживаемая тактовая частота памяти (макс.): 7200 МГц
Вес и размеры
Высота: 40 мм
Ширина: 244 мм
Глубина: 244 мм
Сеть
Ethernet LAN: Да
Тип интерфейса Ethernet: 2.5 Gigabit Ethernet
Внутренний ввод-вывод
Аудиоразъем на передней панели: Да
Разъемы USB 2.0: 3
Количество разъемов SATA III: 4
Разъем питания ATX (24-контактный): Да
Выходной разъем S/PDIF: Да
USB Разъемы 3.2 Gen 1 (3.1 Gen 1): 3
Разъем питания 12 В: Да
Количество разъемов для вентиляторов корпуса: 2
Количество разъемов COM: 1
Разъем питания EPS (8-контактный): Да
Разъем RGB LED: Да
Разъем TPM: Да
Разъем передней панели: Да
Разъем вентилятора ЦП: Да
BIOS
Тип BIOS: UEFI AMI
Кнопка очистки CMOS: Да
Данные упаковки
Вес упаковки: 1,14 кг
Высота упаковки: 52 мм
Ширина упаковки: 270 мм
Глубина упаковки: 263 мм
Содержимое упаковки
Включенные кабели: SATA
Контроллеры накопителей
Поддерживаемые интерфейсы накопителей: M.2, SATA III
Поддерживаемые типы накопителей: HDD и SSD
Количество поддерживаемых накопителей: 6
Количество поддерживаемых жестких дисков: 4
Ввод-вывод на задней панели порты
DisplayPorts количество: 1
USB 2.0 порты количество: 4
Ethernet LAN (RJ-45) порты: 1
Line-in: Да
WiFi-AP антенный разъем: 1
PS/2 порты количество: 1
Выходы для наушников: 1
HDMI порты количество: 2
USB 3.2 Gen 2 (3.1 Gen 2) порты Type-A количество: 2
Микрофонный вход: Да
Слоты расширения
Количество слотов M.2 (M): 2
PCI Express x16 (Gen 4.x) слоты: 3
dimensionalWeight - 787
ean - 4711387140710
EAN - 4711387140710
Eans - 4711387140710
EAN_code - 4711387140710
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
gross_weight - 2 kg
GTIN - 4711387140710
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
LongDesc - B760M-A-CSMASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.ASUS Corporate Stable ModelASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.ASUS Control Center ExpressASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
LongProductName - Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
LongSummaryDescription - ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1EK0-M0EAYC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Model - Prime B760M-A-CSM
Name - ASUS PRIME B760M-A-CSM
name - ASUS Prime B760M-A-CSM, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS PRIME B760M-A-CSM - Socket 1700 - motherboard
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 263 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 1.14 kg
Packaging data - Package width - 270 mm
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Producer - ASUS
Producer - Asus
producerCode - 90MB1EK0-M1EAYC
ProducerCode - PRIME B760M-A-CSM
productName - ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
ProductName - PRIME B760M-A-CSM
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - ASUS PRIME B760M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 270
sizeY - 265
sizeZ - 55
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
title_en - Asus Prime B760M-A-CSM Intel B760 LGA Motherboard
title_lv - Asus Prime B760M-A-CSM Intel B760 LGA Mātesplate
title_ru - Asus Prime B760M-A-CSM Intel B760 LGA Материнская Плата
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,09
weight - 1.14 kg
weight - 1085
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Width - 244 mm
