ID: 972703
Tootekood: PRO H510M-B
Saab tellida 40 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 3 aastat

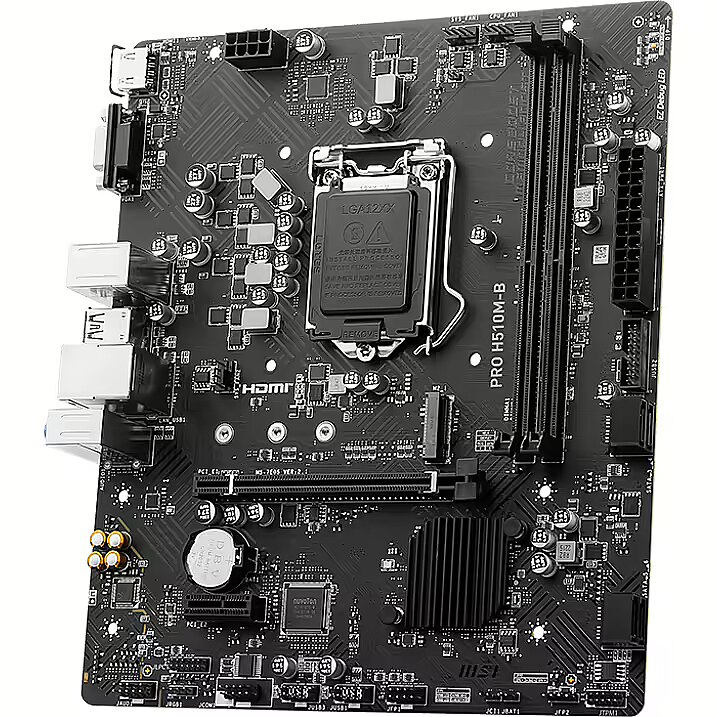

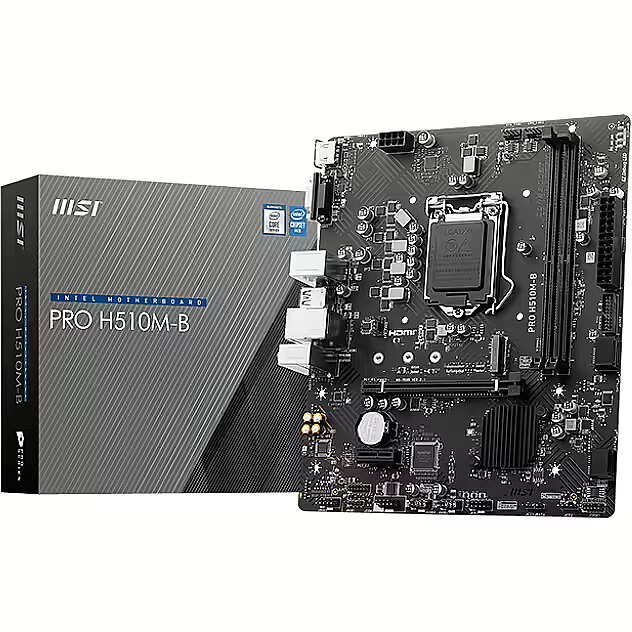

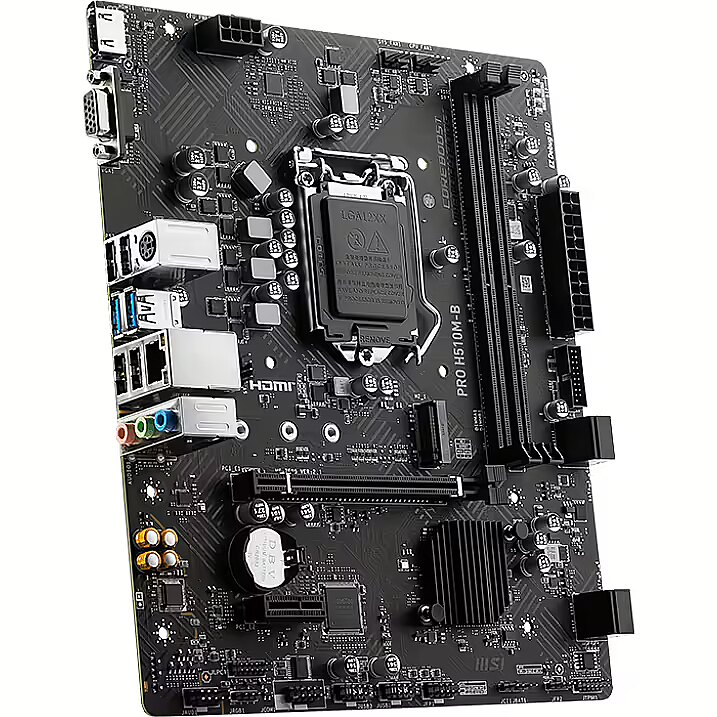

MSI PRO H510M-B
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 09.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 09.12.2024
- Kulleri kohaletoimetamine 3,99 €: 09.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Seeria: MSI PRO
- Pesa (Socket): LGA 1200
- Mikroskeemide siin (chipset): Intel H470
- Plaadi mõõtmed: Micro ATX
- Mälutüüp: DDR4
- Mäluslott: 2
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: MSI PRO
Pesa (Socket)
LGA 1200
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel H470
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
Micro ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR4
Mäluslott
2
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR4 2933
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integreeritud helikaart
: Realtek ALC897
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 0
Väline USB 2.0
: 4
Väline USB 3.0 (USB 3.2 Gen1)
: 2
Väline USB 3.1 (USB 3.2 Gen2)
: 0
Siseportid
Sisemine A-RGB 5V (3-pin)
: 0
Sisemine RGB 12V (4-pin)
: 1
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 0
M.2 Sadam
: 1
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
BrandPartCode - PRO H510M-B
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
code - 7E05-002R
Code - PRO H510M-B
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket - Supports DDR4 Memory, up to 2933MHz (MAX) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Description - MSI PRO H510M-B motherboard. Supports Intel 10th generation Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 memory, up to 2933 MHz (MAX) Core Boost: with premium chip and digital power design to support more cores and deliver better performance Memory Boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Audio Boost: reward your ears with studio-quality sound Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 source (from chipset) supports up to PCIe 3.0 x4/SATA mode, supports 2280/2260/2242 devices 4xSATA 6G
dimensionalWeight - 826
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 202 x 236 mm
dimension weight - 678 g
dimension width - 265 mm
EAN - 4711377078870
ean - 4711377078870
Eans - 4711377078870
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H470
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.0|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - 1x HDMI Support HDMI 1.4, maximum resolution 4K 30Hz 1xVGA VGA support, maximum resolution 2048x1536 50Hz, 1920x1200 60Hz
Gross weight - 0.75 kg
GTIN - 0824142317358
GTIN - 824142317358
GTIN - 4711377078870
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
LongDesc -
LongProductName - Intel® H470. LGA 1200, 2 DIMMs, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, HDMI 1.4, VGA, Realtek® RTL8111H Gigabit LAN, 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gbps, 8-Channel (7.1) HD Audio with Audio Boost
LongSummaryDescription - MSI PRO H510M-B. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - PRO H510M-B
MPN - 7E05-002R
Name - 1200 MSI H510M-B
name - H510M-B s1200 2DDR4 HDMI/VGA mATX
Name - MSI PRO H510M-B
name - MSI Pro H510M-B, Intel H510 Mainboard - Sockel 1200, DDR4
Name - MSI | PRO H510M-B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H470 | mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network interface - Realtek 8111H Gigabit LAN
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 60.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 213 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/6/7/6/1/0/4/152a46792a461f0bf39baeade9888064/original.pdf
Performance > Chipset - Intel H470
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
producerCode - 7E05-002R
ProducerCode - PRO H510M-B
Producer product name - PRO H510M-B
productName - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
ProductName - PRO H510M-B
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.664 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200| Chipset Intel H470 | DDR4 |
ShortSummaryDescription - MSI PRO H510M-B, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 265
sizeY - 260
sizeZ - 60
Socket - LGA1200
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.55 kg
Technical details > Producer - MSI
Title - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.26
Unit Box Length - 0.27
Unit Box Width - 0.06
Unit Brutto Volume - 0.004212 cubm
Unit Gross Weight - 0.664 kg
Unit Net Weight - 0.5 kg
URL - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-H510M-B/Overview
vendpn - PRO H510M-B
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.66
weight - 670
Weight & dimensions - Depth - 236 mm
Weight & dimensions - Width - 202 mm
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
BrandPartCode - PRO H510M-B
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Socket 1200
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
code - 7E05-002R
Code - PRO H510M-B
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket - Supports DDR4 Memory, up to 2933MHz (MAX) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Audio Boost: Reward your ears with studio grade sound quality - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Description - MSI PRO H510M-B motherboard. Supports Intel 10th generation Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 memory, up to 2933 MHz (MAX) Core Boost: with premium chip and digital power design to support more cores and deliver better performance Memory Boost: advanced technology to deliver clean data signals for best performance, stability and compatibility Audio Boost: reward your ears with studio-quality sound Steel Armor: protects VGA cards from bending and electromagnetic interference for better performance, stability and durability.
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 source (from chipset) supports up to PCIe 3.0 x4/SATA mode, supports 2280/2260/2242 devices 4xSATA 6G
dimensionalWeight - 826
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 202 x 236 mm
dimension weight - 678 g
dimension width - 265 mm
EAN - 4711377078870
ean - 4711377078870
Eans - 4711377078870
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H470
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.0|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - 1x HDMI Support HDMI 1.4, maximum resolution 4K 30Hz 1xVGA VGA support, maximum resolution 2048x1536 50Hz, 1920x1200 60Hz
Gross weight - 0.75 kg
GTIN - 0824142317358
GTIN - 824142317358
GTIN - 4711377078870
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
LongDesc -
LongProductName - Intel® H470. LGA 1200, 2 DIMMs, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, HDMI 1.4, VGA, Realtek® RTL8111H Gigabit LAN, 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gbps, 8-Channel (7.1) HD Audio with Audio Boost
LongSummaryDescription - MSI PRO H510M-B. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - PRO H510M-B
MPN - 7E05-002R
Name - 1200 MSI H510M-B
name - H510M-B s1200 2DDR4 HDMI/VGA mATX
Name - MSI PRO H510M-B
name - MSI Pro H510M-B, Intel H510 Mainboard - Sockel 1200, DDR4
Name - MSI | PRO H510M-B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H470 | mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network interface - Realtek 8111H Gigabit LAN
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 60.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 213 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/6/7/6/1/0/4/152a46792a461f0bf39baeade9888064/original.pdf
Performance > Chipset - Intel H470
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
producerCode - 7E05-002R
ProducerCode - PRO H510M-B
Producer product name - PRO H510M-B
productName - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
ProductName - PRO H510M-B
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.664 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200| Chipset Intel H470 | DDR4 |
ShortSummaryDescription - MSI PRO H510M-B, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 265
sizeY - 260
sizeZ - 60
Socket - LGA1200
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.55 kg
Technical details > Producer - MSI
Title - MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.26
Unit Box Length - 0.27
Unit Box Width - 0.06
Unit Brutto Volume - 0.004212 cubm
Unit Gross Weight - 0.664 kg
Unit Net Weight - 0.5 kg
URL - https://www.msi.com/Motherboard/PRO-H510M-B/Specification
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-H510M-B/Overview
vendpn - PRO H510M-B
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.66
weight - 670
Weight & dimensions - Depth - 236 mm
Weight & dimensions - Width - 202 mm
