BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1EQ0-M0EAY0
BrandPartCode - 90MB1EQ0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90MB1EQ0-M1EAY0
ean - 4711387120002
EAN_code - 4711387120002
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - SupremeFX S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387120002
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1

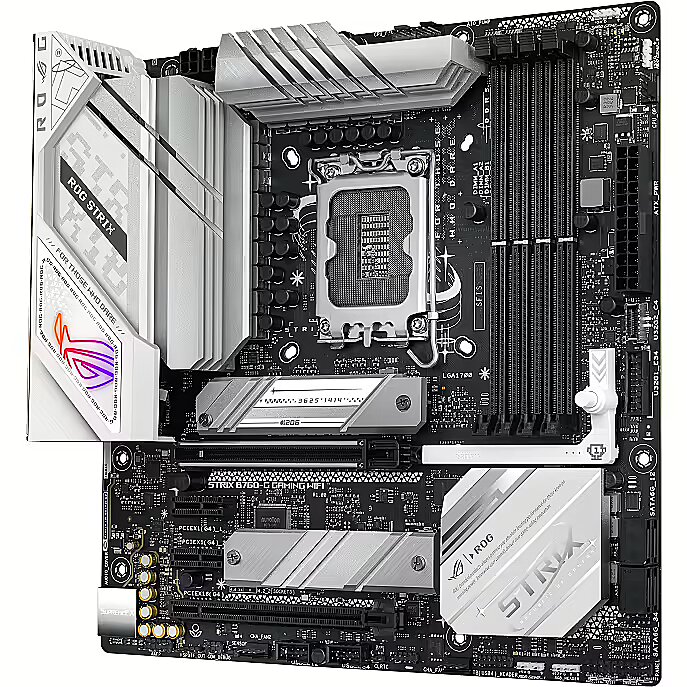

LongDesc - ROG STRIX B760-G GAMING WIFIMidsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCEA finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.TEAMED POWER ARCHITECTURE12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.ALLOY CHOKES AND DURABLE CAPACITORSHigh-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.8+4 PIN PROCOOL POWER CONNECTORSHi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.SIX-LAYER PCBA multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.LEADING CONNECTIVITYThe Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.PLAY IN STYLEThe Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.
LongProductName - LGA 1700, Intel B760 Chipset, 4 x DDR5-SDRAM up to 192GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1EQ0-M1EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
name - ASUS ROG Strix B760-G Gaming WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX B760-G GAMING WIFI, motherboard - 1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
ProductName - ROG STRIX B760-G GAMING WIFI
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS ROG STRIX B760-G GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-g-gaming-wifi/
WarrantyInfo -
Weight - 1,50
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
