ID: 949783
Tootekood: B760 DS3H
Laos 32 üksused
Garantii: 3 aastat

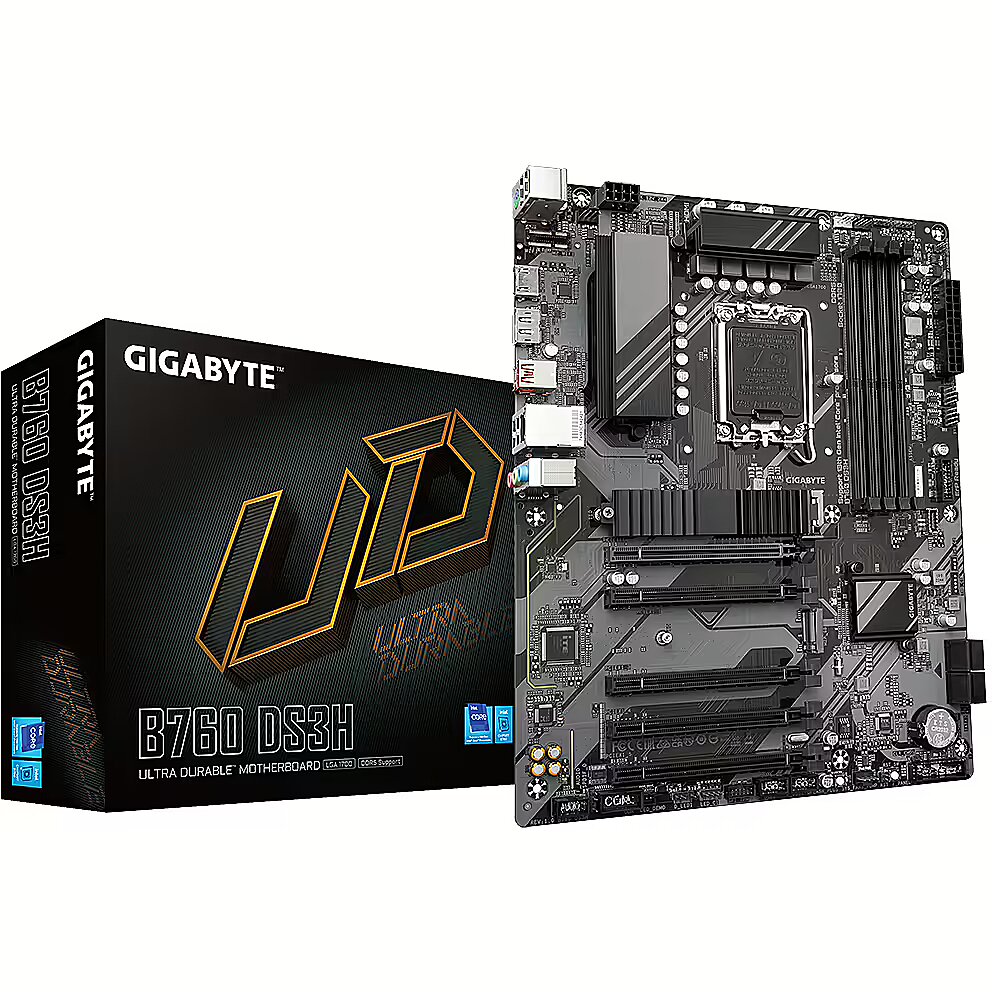

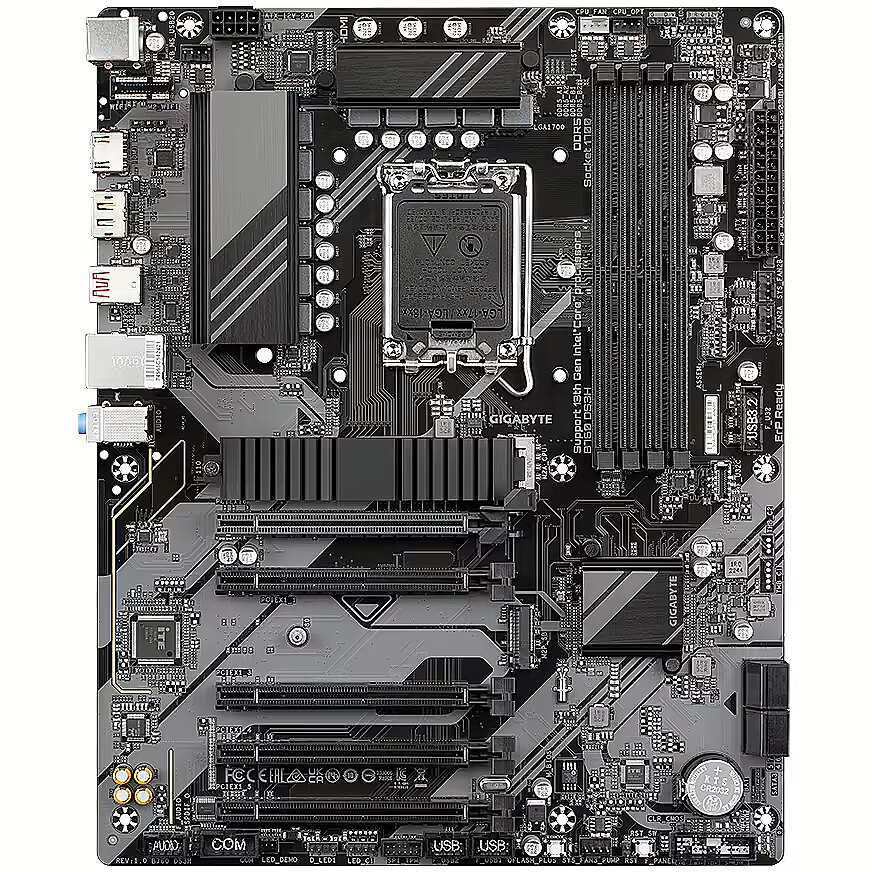

Gigabyte B760 DS3H
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 21.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 21.11.2024
- Kulleri kohaletoimetamine 3,99 €: 21.11.2024
Peamised tooteparameetrid Kõik parameetrid
- Seeria: Gigabyte Ultra Durable
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel B760
- Plaadi mõõtmed: ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: Gigabyte Ultra Durable
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel B760
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 5600 (OC 7600)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek Audio CODEC
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 1
Väline USB 2.0
: 2
Väline USB 3.0 (USB 3.2 Gen1)
: 2
Väline USB 3.1 (USB 3.2 Gen2)
: 1
Siseportid
Sisemine A-RGB 5V (3-pin)
: 2
Sisemine RGB 12V (4-pin)
: 2
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 2
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B760 DS3H
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760 Express Chipset
code - B760 DS3H
Code - B760 DS3H
COM connector / port - No
CPU socket - LGA1700
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution - Dual Channel DDR5:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:GbE LAN - Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - B760 DS3H s1700 4DDR5 DP/HDMI ATX motherboard Supports Intel Core 14/13/12 processors Unrivaled performance: 8+2+1 phase hybrid digital VRM solution Dual-Channel DDR5 Memory: Supports 4*XMP DIMMs Next-generation storage: 2 PCIe 4.0 x4 M.2 EZ-Latch: PCIe 4.0 x 16 slot with quick release design Fast networks: 2.5 GbE LAN Extended connectivity: Rear USB-C 20Gbps, DP, HDMI Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Detailed data on disk/drive interfaces - CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimensionalWeight - 1468
dimension depth - 90 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1300 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331853136
ean - 4719331853136
EAN_code - 4719331853136
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe x 16
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 slots - 5
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - Blond
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. 1 x DisplayPort supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.20 kg
Gross Weight Kg - 1,51
GTIN - 4719331853136
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B760-DS3H-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel B760 Express chipset, 4x DDR5 DIMM, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer Code - B760 DS3H
Manufacturer Name - Gigabyte
Manufacturer_code - B760 DS3H
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3300 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3666 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4300 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4500 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4700 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 4933 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5133 MHz
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760 DS3H
name - GIGABYTE B760 DS3H, Intel B760 Mainboard, Sockel 1700, DDR5
Name - GigaByte B760 DS3H - 1700
Name - Gigabyte | B760 DS3H 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 Express | ATX
name - Motherboards B760 DS3H s1700 4DDR5 DP/HDMI ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps)
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 122 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.27 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 4
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
producerCode - B760 DS3H
Producer product name - B760 DS3H 1.0 M/B
ProductName - B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
productName - Gigabyte B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.277 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA B760 DS3H S1700/DDR5/ATX
ShortSummaryDescription - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 270
sizeY - 340
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 1.28 kg
Unit Net Weight - 0.9 kg
URL - https://www.gigabyte.com/Motherboard/B760-DS3H-rev-10
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B760-DS3H-rev-10
vendpn - B760 DS3H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,30
weight - 1270
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B760 DS3H
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760 Express Chipset
code - B760 DS3H
Code - B760 DS3H
COM connector / port - No
CPU socket - LGA1700
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 8+2+1 Phases Digital VRM Solution - Dual Channel DDR5:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:GbE LAN - Extended Connectivity:Rear USB-C® 20Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - B760 DS3H s1700 4DDR5 DP/HDMI ATX motherboard Supports Intel Core 14/13/12 processors Unrivaled performance: 8+2+1 phase hybrid digital VRM solution Dual-Channel DDR5 Memory: Supports 4*XMP DIMMs Next-generation storage: 2 PCIe 4.0 x4 M.2 EZ-Latch: PCIe 4.0 x 16 slot with quick release design Fast networks: 2.5 GbE LAN Extended connectivity: Rear USB-C 20Gbps, DP, HDMI Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Detailed data on disk/drive interfaces - CPU 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimensionalWeight - 1468
dimension depth - 90 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1300 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331853136
ean - 4719331853136
EAN_code - 4719331853136
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe x 16
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 slots - 5
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Product colour - Blond
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. 1 x DisplayPort supporting a maximum resolution of 4096x2304 at 60 Hz * Support for DisplayPort 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.20 kg
Gross Weight Kg - 1,51
GTIN - 4719331853136
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B760-DS3H-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, LGA 1700 socket, Intel B760 Express chipset, 4x DDR5 DIMM, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer Code - B760 DS3H
Manufacturer Name - Gigabyte
Manufacturer_code - B760 DS3H
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3300 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3666 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4300 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4500 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4700 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 4933 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5133 MHz
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B760 DS3H
name - GIGABYTE B760 DS3H, Intel B760 Mainboard, Sockel 1700, DDR5
Name - GigaByte B760 DS3H - 1700
Name - Gigabyte | B760 DS3H 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 Express | ATX
name - Motherboards B760 DS3H s1700 4DDR5 DP/HDMI ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps)
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 122 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.27 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 4
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760 Express
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Gigabyte
producerCode - B760 DS3H
Producer product name - B760 DS3H 1.0 M/B
ProductName - B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
productName - Gigabyte B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.277 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA B760 DS3H S1700/DDR5/ATX
ShortSummaryDescription - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 270
sizeY - 340
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B760 DS3H Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 1.28 kg
Unit Net Weight - 0.9 kg
URL - https://www.gigabyte.com/Motherboard/B760-DS3H-rev-10
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B760-DS3H-rev-10
vendpn - B760 DS3H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,30
weight - 1270
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
