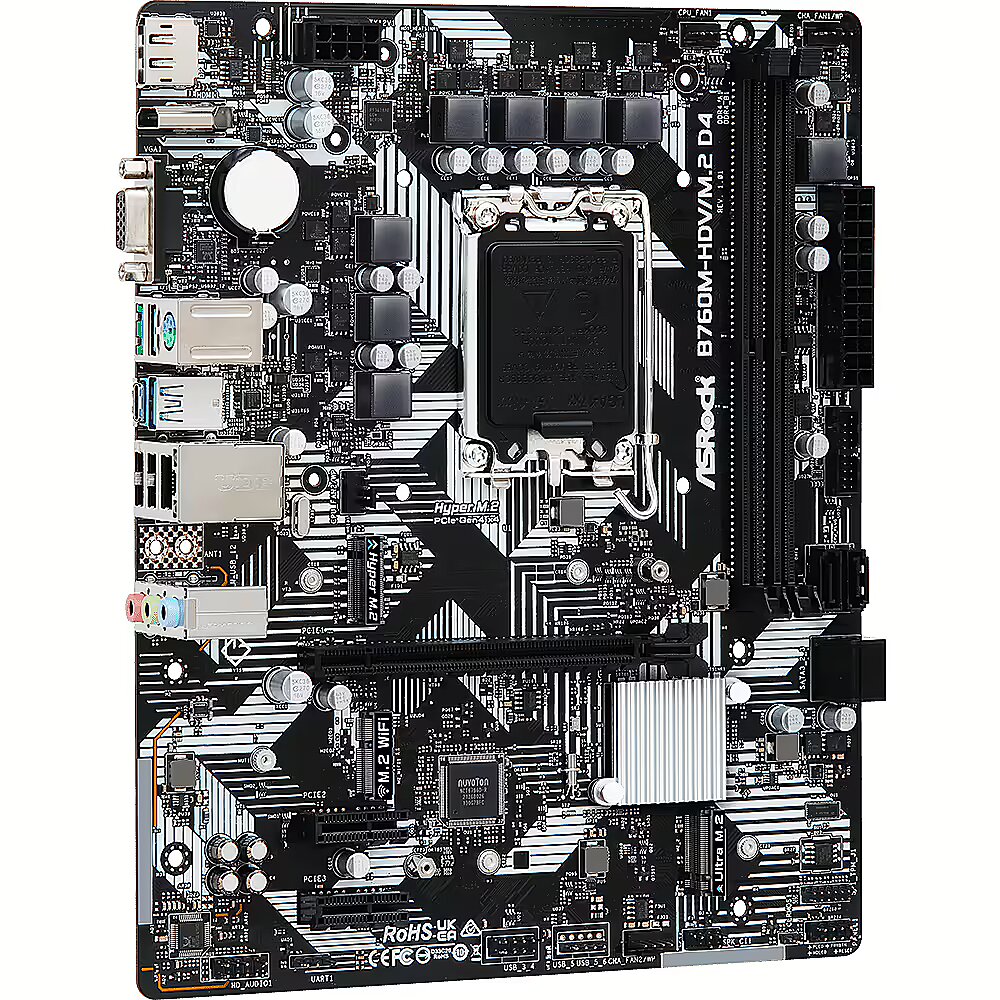

Asrock B760M-HDV/M.2 D4
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 11.12.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 11.12.2024
- Kulleri kohaletoimetamine 3,99 €: 11.12.2024
Peamised tooteparameetrid Kõik parameetrid
- Seeria: ASRock Pro
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel B760
- Plaadi mõõtmed: Micro ATX
- Mälutüüp: DDR4
- Mäluslott: 2
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: ASRock Pro
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel B760
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
Micro ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR4
Mäluslott
2
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR4 3200 (OC 5333)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek ALC887
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 1
Väline USB 2.0
: 2
Väline USB 3.0 (USB 3.2 Gen1)
: 4
Väline USB 3.1 (USB 3.2 Gen2)
: 0
Siseportid
Sisemine A-RGB 5V (3-pin)
: 0
Sisemine RGB 12V (4-pin)
: 0
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 0
M.2 Sadam
: 2
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
15pin D-sub Input/Output connectors - 1
Accessories included - User manual I/O cover 2 x SATA data cable 3 x Screws for M.2 slot
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
code - 90-MXBL40-A0UAYZ
Code - B760M-HDV/M.2 D4
COM connector / port - No
CPU socket - LGA1700
Description - B760M-HDV/M.2 D4 motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Automatic Driver Installer 5+1+1 Phase Power Layout Durable components and smooth power transfer to the CPU translate into enhanced performance for gamers. High Speed M.2 Connections(PCIe Gen4 x4) Support for PCI Express 4.0 M.2 SSDs, which can operate up to twice as fast as the previous 3rd generation for lightning-fast data transfers. M.2 (KEY E) for WiFi In addition to the integrated LAN port, users can also choose 802.11ac wireless connectivity via the M.2 (Key E) slot. *Wi-Fi module not included. 3 graphics outputs This float is equipped with the three most commonly used types of video outputs: D-Sub + DisplayPort + HDMI. *Support only with processors with integrated graphics cards. Please refer to the CPU support lists on the motherboard pages.
Description - ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 765
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 24.4 x 20.1 cm
dimension weight - 490 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483942020
ean - 4710483942020
Eans - 4710483942020
EAN_code - 4710483942020
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Certification - - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10
Graphics - Intel Xe Graphics Architecture (Gen 12) HDMI 2.1 TMDS Compatible, HDCP 2.3 support up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz D-Sub, up to Full HD (1920x1080) 60Hz *Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU.
Graphics - HDCP - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.14 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBL40-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 5333 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - B760M-HDV/M.2 D4
Name - ASRock B760M-HDV/M.2 D4
name - ASRock B760M-HDV/M.2 D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - ASRock B760M-HDV/M.2 D4, motherboard - 1700
Name - ASRock | B760M-HDV/M.2 D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Micro ATX
name - Motherboard B760M-HDV/M.2 D4 s1700 2DDR4 DP/HDMI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x U.2
Onboard connectors - 2 x 4pin case fan liquid cooling
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen and 12th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M-HDV/M.2 D4
ProducerCode - B760M-HDV/M.2 D4
Producer product name - B760M-HDV/M.2 D4
productName - Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.76 kg
Shipping Box Width Shipping/Package Box Dimensions - 24.2 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR4 |
sizeX - 275
sizeY - 240
sizeZ - 58
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatic ASRock Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Special functions - Solid as Rock: 5+1+1 Power Phase EZ Updates: Automatic ASRock Driver Installer
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
Unit Brutto Volume - 0.004066 cubm
Unit Gross Weight - 0.76 kg
Unit Net Weight - 0.65 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 5
Vendor Homepage - www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp
vendpn - B760M-HDV/M.2 D4
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 0,76
weight - 780
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Width - 244 mm
Accessories included - User manual I/O cover 2 x SATA data cable 3 x Screws for M.2 slot
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
code - 90-MXBL40-A0UAYZ
Code - B760M-HDV/M.2 D4
COM connector / port - No
CPU socket - LGA1700
Description - B760M-HDV/M.2 D4 motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Automatic Driver Installer 5+1+1 Phase Power Layout Durable components and smooth power transfer to the CPU translate into enhanced performance for gamers. High Speed M.2 Connections(PCIe Gen4 x4) Support for PCI Express 4.0 M.2 SSDs, which can operate up to twice as fast as the previous 3rd generation for lightning-fast data transfers. M.2 (KEY E) for WiFi In addition to the integrated LAN port, users can also choose 802.11ac wireless connectivity via the M.2 (Key E) slot. *Wi-Fi module not included. 3 graphics outputs This float is equipped with the three most commonly used types of video outputs: D-Sub + DisplayPort + HDMI. *Support only with processors with integrated graphics cards. Please refer to the CPU support lists on the motherboard pages.
Description - ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 5+1+1 Power Phase Supports DDR4 5333MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4 & SATA) 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 5 USB 2.0 (2 Rear, 3 Front) Realtek 1G LAN Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 765
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 24.4 x 20.1 cm
dimension weight - 490 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483942020
ean - 4710483942020
Eans - 4710483942020
EAN_code - 4710483942020
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Certification - - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10
Graphics - Intel Xe Graphics Architecture (Gen 12) HDMI 2.1 TMDS Compatible, HDCP 2.3 support up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz D-Sub, up to Full HD (1920x1080) 60Hz *Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU.
Graphics - HDCP - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.14 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer_code - 90-MXBL40-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 5333 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - B760M-HDV/M.2 D4
Name - ASRock B760M-HDV/M.2 D4
name - ASRock B760M-HDV/M.2 D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - ASRock B760M-HDV/M.2 D4, motherboard - 1700
Name - ASRock | B760M-HDV/M.2 D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Micro ATX
name - Motherboard B760M-HDV/M.2 D4 s1700 2DDR4 DP/HDMI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x U.2
Onboard connectors - 2 x 4pin case fan liquid cooling
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 382.00 mm
Package features > Gross height (mm) - 320.00 mm
Package features > Gross width (mm) - 94.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 150 pc(s)
Package features > Paper/Pasteboard - 380.00 g
Package features > Plastic (No PET) - 95.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen and 12th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - ASRock
Producer - ASRock
producerCode - B760M-HDV/M.2 D4
ProducerCode - B760M-HDV/M.2 D4
Producer product name - B760M-HDV/M.2 D4
productName - Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.76 kg
Shipping Box Width Shipping/Package Box Dimensions - 24.2 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR4 |
sizeX - 275
sizeY - 240
sizeZ - 58
Socket - LGA1700
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatic ASRock Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Special functions - Solid as Rock: 5+1+1 Power Phase EZ Updates: Automatic ASRock Driver Installer
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.67 kg
Technical details > Producer - ASRock
Unit Brutto Volume - 0.004066 cubm
Unit Gross Weight - 0.76 kg
Unit Net Weight - 0.65 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 5
Vendor Homepage - www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp
vendpn - B760M-HDV/M.2 D4
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 0,76
weight - 780
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Width - 244 mm
