ID: 927563
Tootekood: B760M GAMING X DDR4
Laos 30 üksused
Garantii: 3 aastat

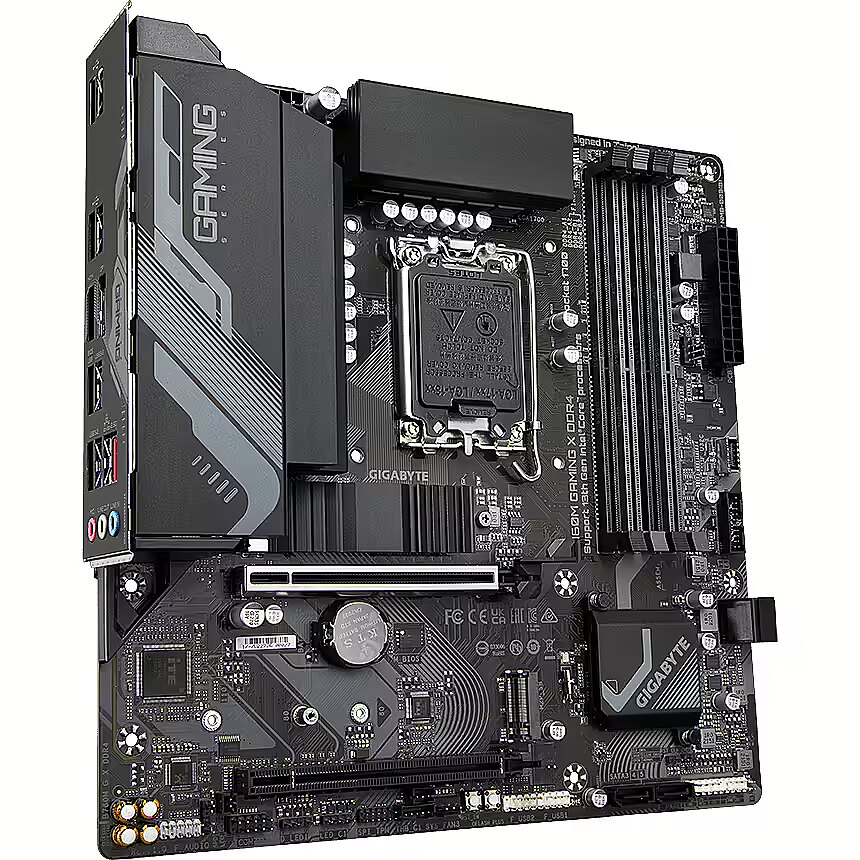

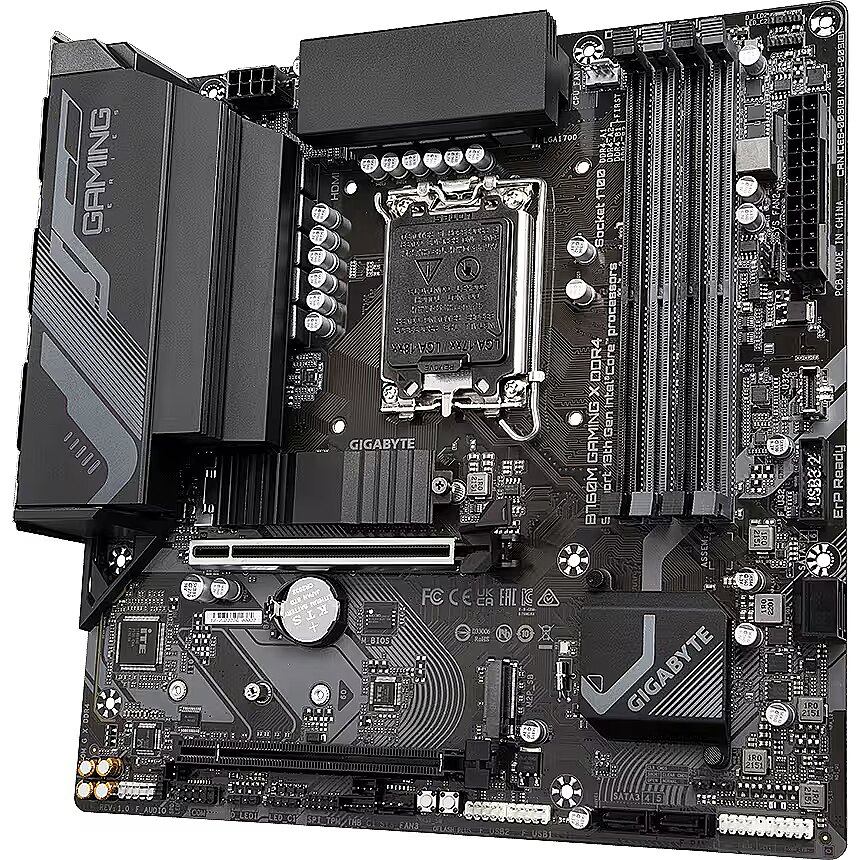

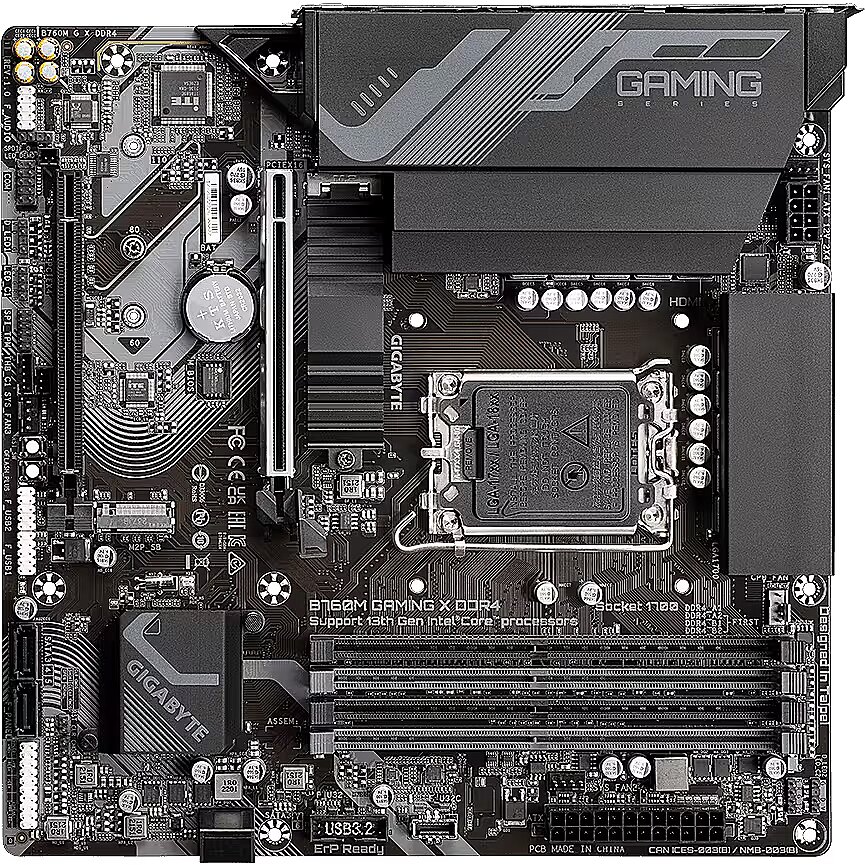

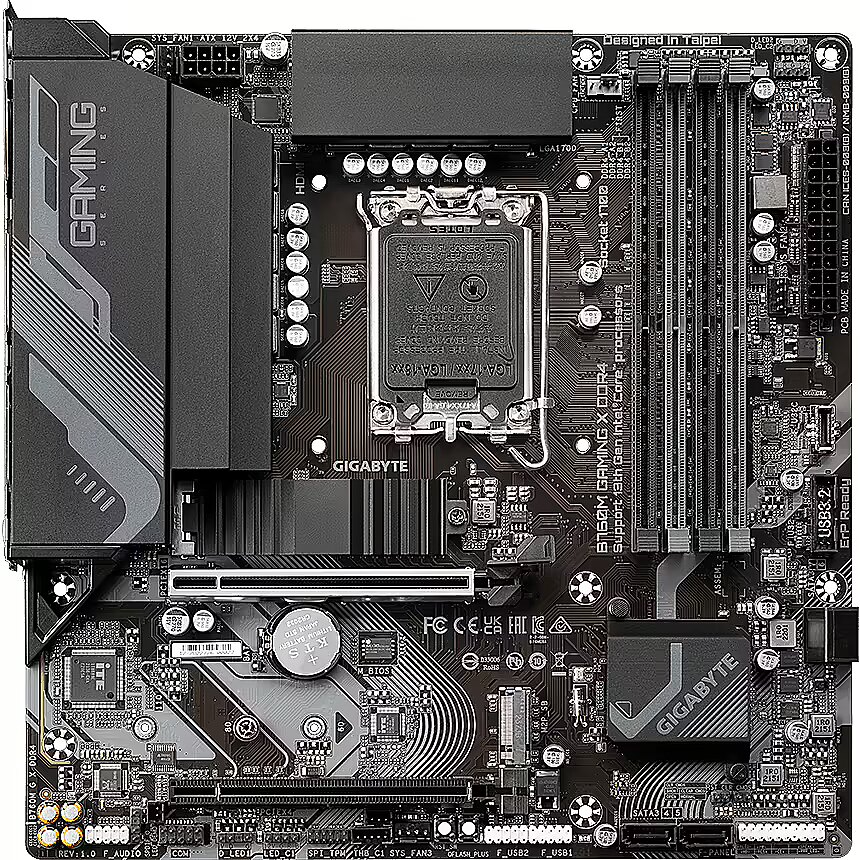

Gigabyte B760M GAMING X DDR4
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Tarnevõimalused
- Kohaletoimetamine Smartposti pakiautomaati 1,99 €: 29.11.2024
- Omniva pakiautomaati kohaletoimetamine 1,99 €: 29.11.2024
- Kulleri kohaletoimetamine 3,99 €: 29.11.2024
Peamised tooteparameetrid Kõik parameetrid
- Seeria: Gigabyte Gaming
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel B760
- Plaadi mõõtmed: Micro ATX
- Mälutüüp: DDR4
- Mäluslott: 4
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: Gigabyte Gaming
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel B760
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
Micro ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR4
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR4 3200 (OC 5333)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek Audio CODEC
Traadita ühendused
Sisseehitatud Bluetooth
: Ir
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 0
Väline USB 2.0
: 5
Väline USB 3.0 (USB 3.2 Gen1)
: 3
Väline USB 3.1 (USB 3.2 Gen2)
: 0
Siseportid
Sisemine A-RGB 5V (3-pin)
: 2
Sisemine RGB 12V (4-pin)
: 2
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 2
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS -
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B760M GAMING X AX DDR4
BrandPartCode - B760M GAMING X DDR4
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel RTP-H (700)/B760
code - B760M GAMING X DDR4
Code - B760M GAMING X DDR4
COM connector / port - Yes
CPU socket - LGA1700
Description -
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:2.5GbE LAN - Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - 1 x M.2 22110 1 x M.2 2280 4 x SATA 6Gb/s
dimensionalWeight - 1058
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 244 x 244 mm
dimension weight - 1400 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331851255
ean - 4719331851255
Eans - 4719331851255
EAN_code - 4719331851255
EAN_code - 4719331851392
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

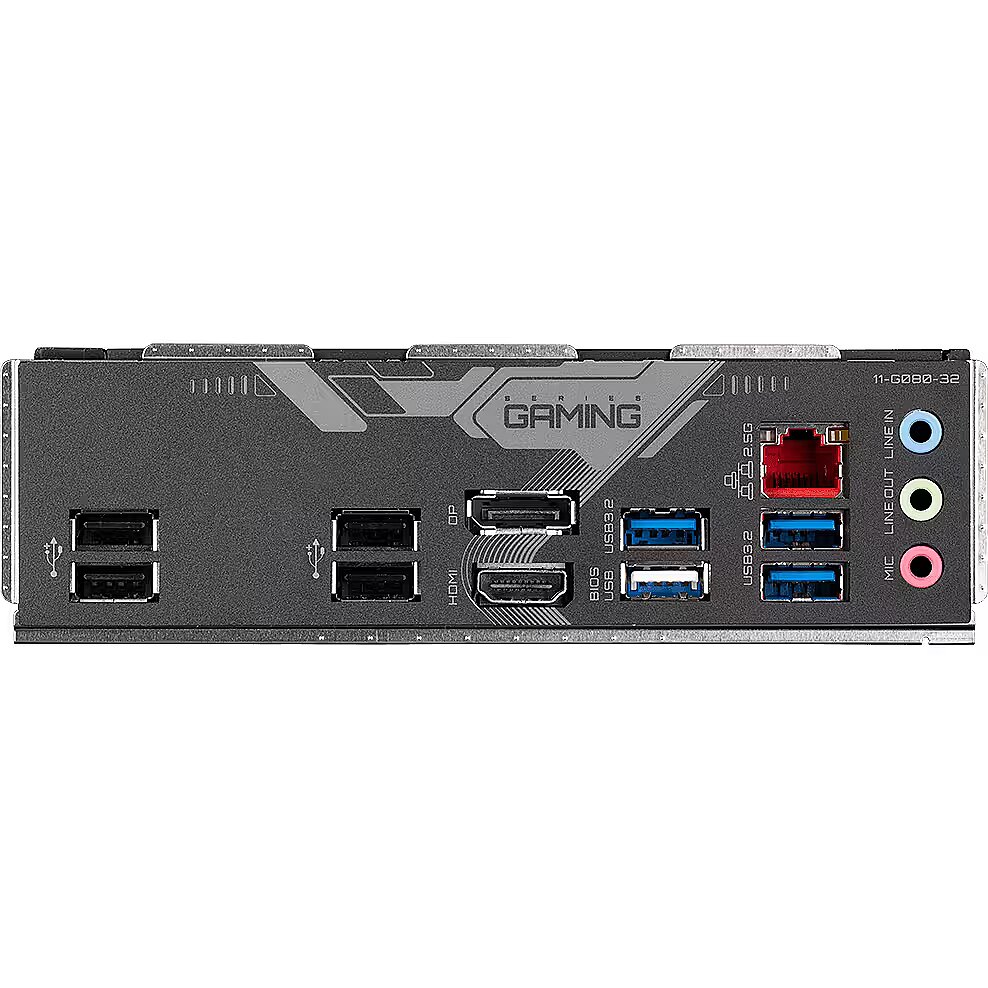

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 3 x USB 3.0
External connectors - 5 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2|3xAudio port|SATA|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Integrated with the processor Intel DVMT (Dynamic Video Memory Technology) DirectX 12
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.38 kg
GTIN - 0889523034705
GTIN - 889523034705
GTIN - 4719331851255
GTIN - 4719331851392
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Micro ATX, Socket LGA 1700, Intel B760 Chipset, 4 x DDR4 DIMM, AMI UEFI BIOS
LongProductName - Micro ATX, Socket LGA 1700, Intel B760 Chipset, 4 x DDR4 DIMM, AMI UEFI BIOS, Wi-Fi 6E (802.11ax), Bluetooth 5.2
LongSummaryDescription - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LongSummaryDescription - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - B760M GAMING X DDR4
Manufacturer_code - B760M G X AX DDR4
Max. number of SATA devices - 4
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4933 MHz
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200,3300,3333,3400,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3300
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4300
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4500
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4700
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4933
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 3200 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760M GAMING X DDR4
MPN - B760M GAMING X DDR4
Name - 1700 Gigabyte B760M Gaming X DDR4
name - B760M GAMING X DDR4 s1700 DDR4 DP/HDMI mATX
Name - GigaByte B760M Gaming X AX DDR4 - 1700
Name - Gigabyte B760M GAMING X DDR4
Name - GigaByte B760M GAMING X DDR4 - 1700
name - GIGABYTE B760M Gaming X DDR4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - Gigabyte | B760M GAMING X DDR4 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 Express | Micro ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - LAN: Realtek RTL8125
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information - 1 x PCI Express x4 slot 1 x PCI Express x16/x8 slot
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 71.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 334 pc(s)
Package features > Paper/Pasteboard - 399.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.46 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.57 kg
Packaging data - Package weight - 1.64 kg
Packaging data - Package width - 270 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - B760M GAMING X DDR4
ProducerCode - B760M GAMING X DDR4
Producer product name - B760M GAMING X DDR4 1.0 M/B
ProductName - B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2
ProductName - B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
productName - Gigabyte B760M GAMING X DDR4 motherboard LGA 1700 micro ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.393 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortSummaryDescription - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
ShortSummaryDescription - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
sizeX - 275
sizeY - 70
sizeZ - 275
Socket - LGA1700
Software -
Sound card - Realtek ALC897 S/PDIF out 7.1 channel
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.92 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2
Title - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.27
Unit Brutto Volume - 0.005197 cubm
Unit Gross Weight - 1.39 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Motherboard/B760M-GAMING-X-AX-DDR4-rev-10#kf
URL - https://www.gigabyte.com/Motherboard/B760M-GAMING-X-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 5
USB 3.2 Input/Output connectors - 3
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B760M-GAMING-X-DDR4-rev-10#ov
vendpn - B760M GAMING X DDR4
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,37
Weight - 1,40
Weight - 1.36
weight - 1350
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 32 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS -
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B760M GAMING X AX DDR4
BrandPartCode - B760M GAMING X DDR4
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel RTP-H (700)/B760
code - B760M GAMING X DDR4
Code - B760M GAMING X DDR4
COM connector / port - Yes
CPU socket - LGA1700
Description -
Description - - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:2.5GbE LAN - Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Detailed data on disk/drive interfaces - 1 x M.2 22110 1 x M.2 2280 4 x SATA 6Gb/s
dimensionalWeight - 1058
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 244 x 244 mm
dimension weight - 1400 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331851255
ean - 4719331851255
Eans - 4719331851255
EAN_code - 4719331851255
EAN_code - 4719331851392
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 3 x USB 3.0
External connectors - 5 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5133/5000/4933/4800/4700/4600/4500/4400/4300/4266/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|3xUSB 3.2|3xAudio port|SATA|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Integrated with the processor Intel DVMT (Dynamic Video Memory Technology) DirectX 12
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.38 kg
GTIN - 0889523034705
GTIN - 889523034705
GTIN - 4719331851255
GTIN - 4719331851392
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Thunderbolt headers - 2
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Micro ATX, Socket LGA 1700, Intel B760 Chipset, 4 x DDR4 DIMM, AMI UEFI BIOS
LongProductName - Micro ATX, Socket LGA 1700, Intel B760 Chipset, 4 x DDR4 DIMM, AMI UEFI BIOS, Wi-Fi 6E (802.11ax), Bluetooth 5.2
LongSummaryDescription - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LongSummaryDescription - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - B760M GAMING X DDR4
Manufacturer_code - B760M G X AX DDR4
Max. number of SATA devices - 4
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4933 MHz
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200,3300,3333,3400,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3300
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4300
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4500
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4700
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4933
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 3200 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760M GAMING X DDR4
MPN - B760M GAMING X DDR4
Name - 1700 Gigabyte B760M Gaming X DDR4
name - B760M GAMING X DDR4 s1700 DDR4 DP/HDMI mATX
Name - GigaByte B760M Gaming X AX DDR4 - 1700
Name - Gigabyte B760M GAMING X DDR4
Name - GigaByte B760M GAMING X DDR4 - 1700
name - GIGABYTE B760M Gaming X DDR4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - Gigabyte | B760M GAMING X DDR4 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 Express | Micro ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - LAN: Realtek RTL8125
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information - 1 x PCI Express x4 slot 1 x PCI Express x16/x8 slot
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 71.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 334 pc(s)
Package features > Paper/Pasteboard - 399.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.46 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.57 kg
Packaging data - Package weight - 1.64 kg
Packaging data - Package width - 270 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel B760 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - B760M GAMING X DDR4
ProducerCode - B760M GAMING X DDR4
Producer product name - B760M GAMING X DDR4 1.0 M/B
ProductName - B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2
ProductName - B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
productName - Gigabyte B760M GAMING X DDR4 motherboard LGA 1700 micro ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.393 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortSummaryDescription - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
ShortSummaryDescription - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 128 GB, DDR4-SDRAM
sizeX - 275
sizeY - 70
sizeZ - 275
Socket - LGA1700
Software -
Sound card - Realtek ALC897 S/PDIF out 7.1 channel
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.92 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B760M GAMING X AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE, USB 3.2 Gen 2
Title - GIGABYTE B760M GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.27
Unit Brutto Volume - 0.005197 cubm
Unit Gross Weight - 1.39 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Motherboard/B760M-GAMING-X-AX-DDR4-rev-10#kf
URL - https://www.gigabyte.com/Motherboard/B760M-GAMING-X-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 5
USB 3.2 Input/Output connectors - 3
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B760M-GAMING-X-DDR4-rev-10#ov
vendpn - B760M GAMING X DDR4
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,37
Weight - 1,40
Weight - 1.36
weight - 1350
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 32 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
