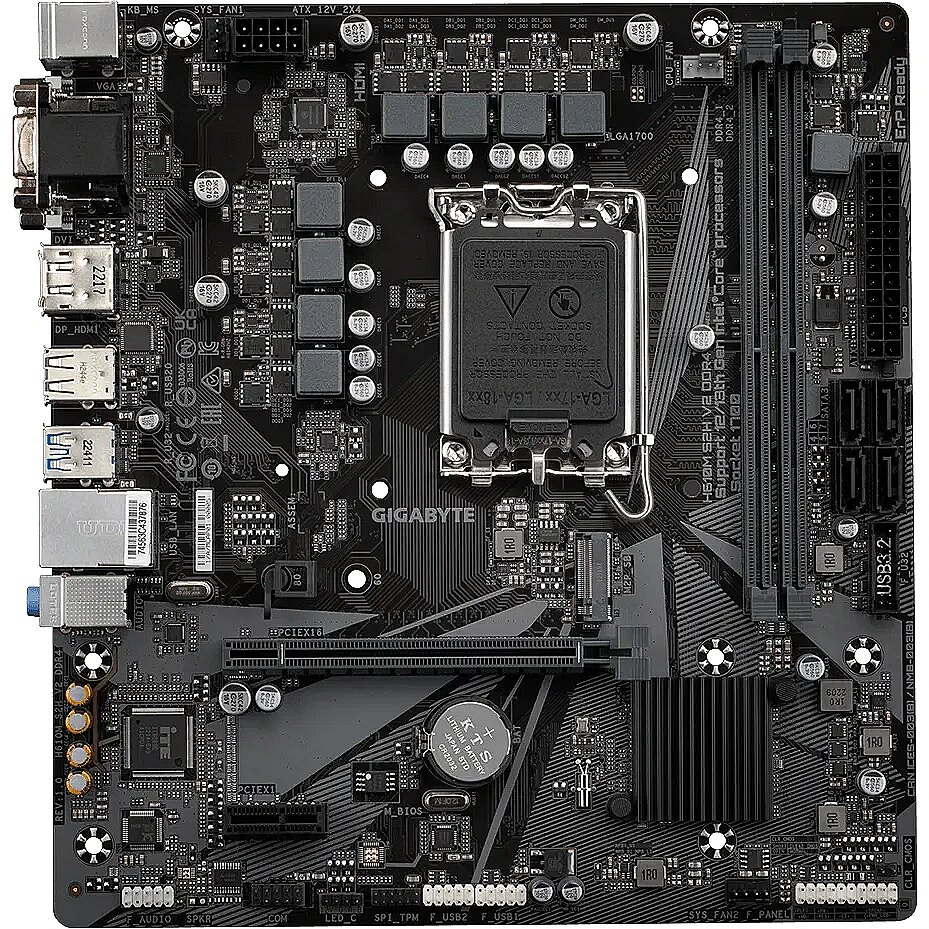

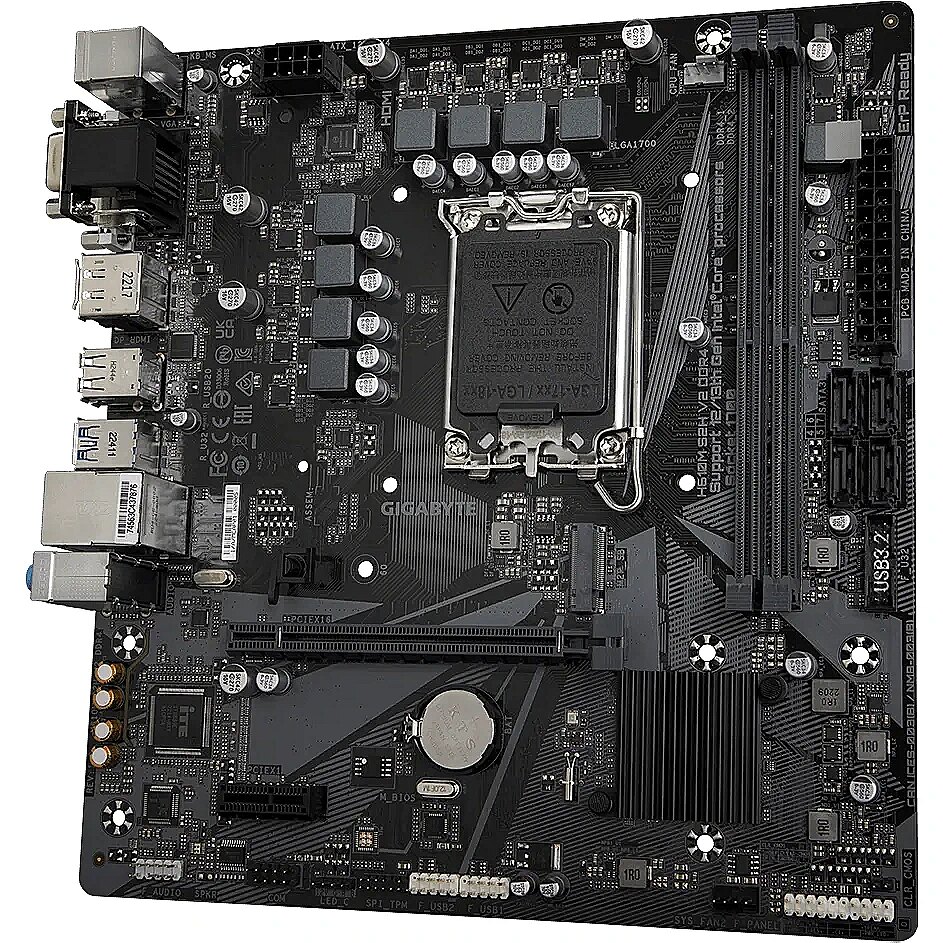

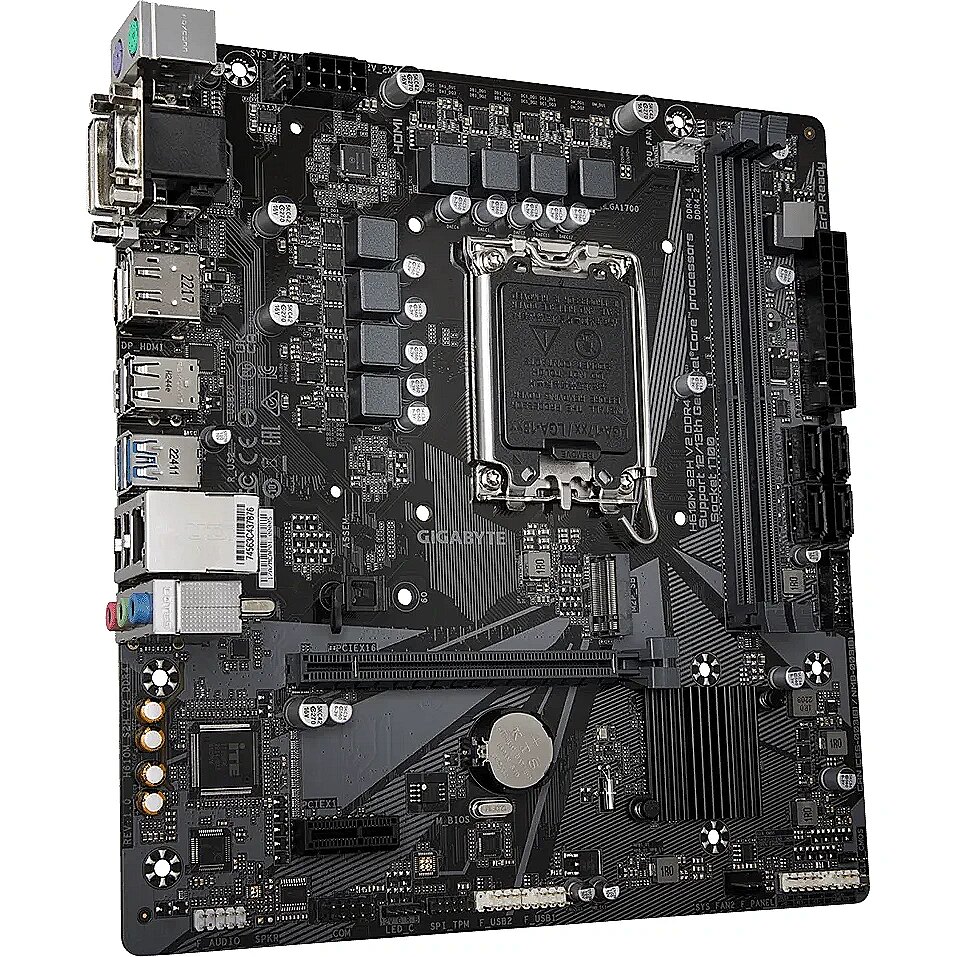

Gigabyte H610M S2H V2 DDR4

Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - H610M S2H V2 DDR4
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
description_en - Motherboard GIGABYTE H610M S2H V2
2x DDR4 3200MHz
1x D-Sub
1x DVI-D
1x HDMI
1x DisplayPort
1x PCIe x16
1x PCIe x1
1x M.2
4x SATA 6Gbps
LAN 1Gbps, mATX
description_lv - Pamatplate GIGABYTE H610M S2H V2
2x DDR4 3200MHz
1x D-Sub
1x DVI-D
1x HDMI
1x DisplayPort
1x PCIe x16
1x PCIe x1
1x M.2
4x SATA 6Gbps
LAN 1Gbps, mATX
description_ru - Материнская Плата GIGABYTE H610M S2H V2
2x DDR4 3200MHz
1x D-Sub
1x DVI-D
1x HDMI
1x DisplayPort
1x PCIe x16
1x PCIe x1
1x M.2
4x SATA 6Gbps
LAN 1Gbps, mATX
EAN - 4719331851958
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, LED, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - DirectX version - 12.0
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® HD Graphics
gross_weight - 0.45 kg
GTIN - 0889523035634
GTIN - 889523035634
GTIN - 4719331851958
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel H610, LGA 1700, 2 x DDR4, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort, Micro ATX, 23.0 x 21.5cm
LongSummaryDescription - GIGABYTE H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, On-board graphics card model: Intel® HD Graphics. Ethernet interface type: Gigabit Ethernet
Manufacturer - Gigabyte
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Model - H610M
MPN - H610M S2H V2 DDR4
Name - 1700 Gigabyte H610M S2H V2 DDR4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Supported DIMM module capacities - 8GB, 16GB
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 857 g
Packaging data - Package width - 265 mm
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Producer - Gigabyte
ProductName - H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - GIGABYTE H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE H610M S2H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
title_en - Gigabyte H610M S2H V2 DDR4 Motherboard (H610 S1700 mATX Intel)
title_lv - Gigabyte H610M S2H V2 DDR4 Pamatplate (H610 S1700 mATX Intel)
title_ru - Gigabyte H610M S2H V2 DDR4 Материнская Плата (H610 S1700 mATX Intel)
URL - https://www.gigabyte.com/Motherboard/H610M-S2H-V2-DDR4-rev-10#kf
WarrantyInfo - 3 years
weight - 0.4 kg
Weight - 0.76
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
