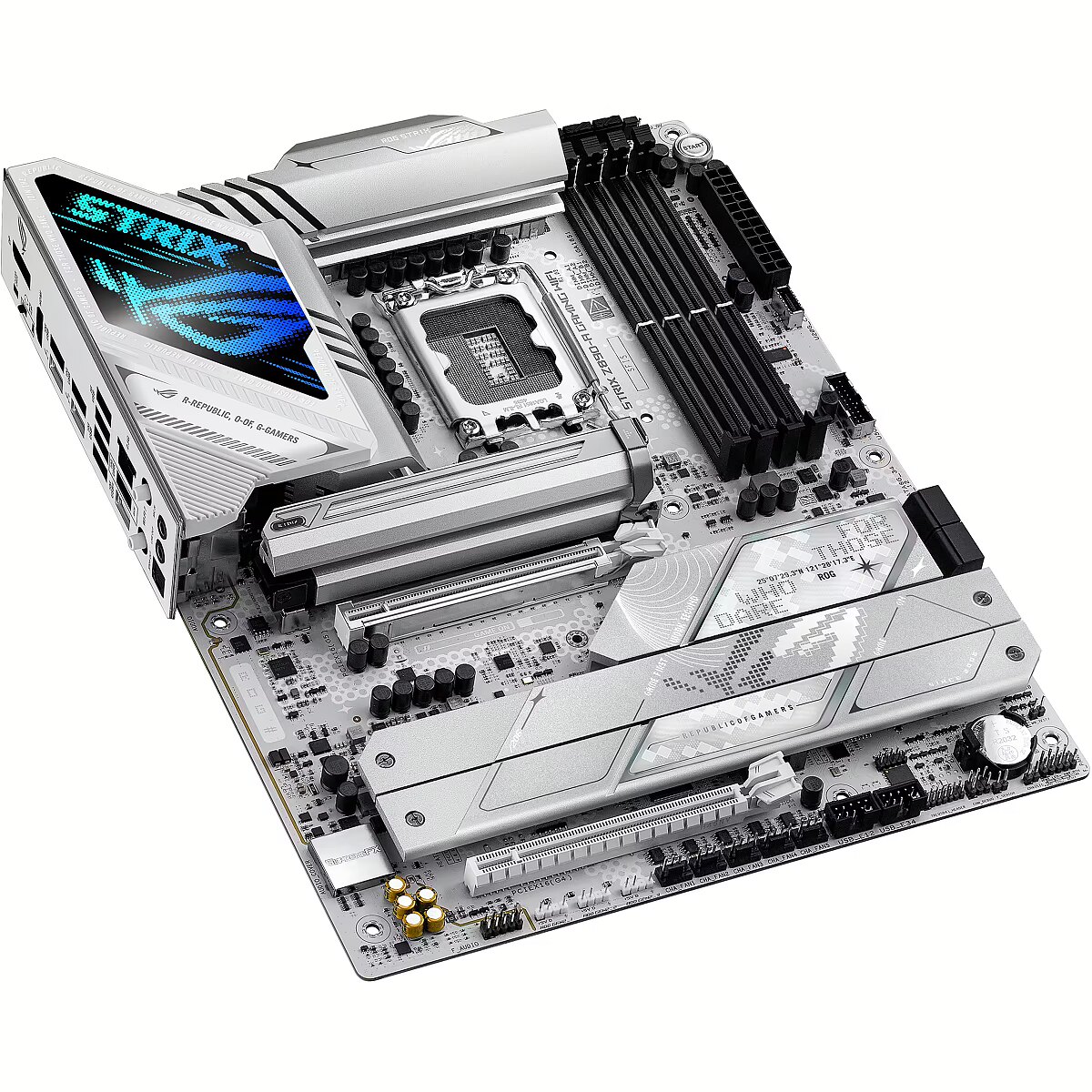

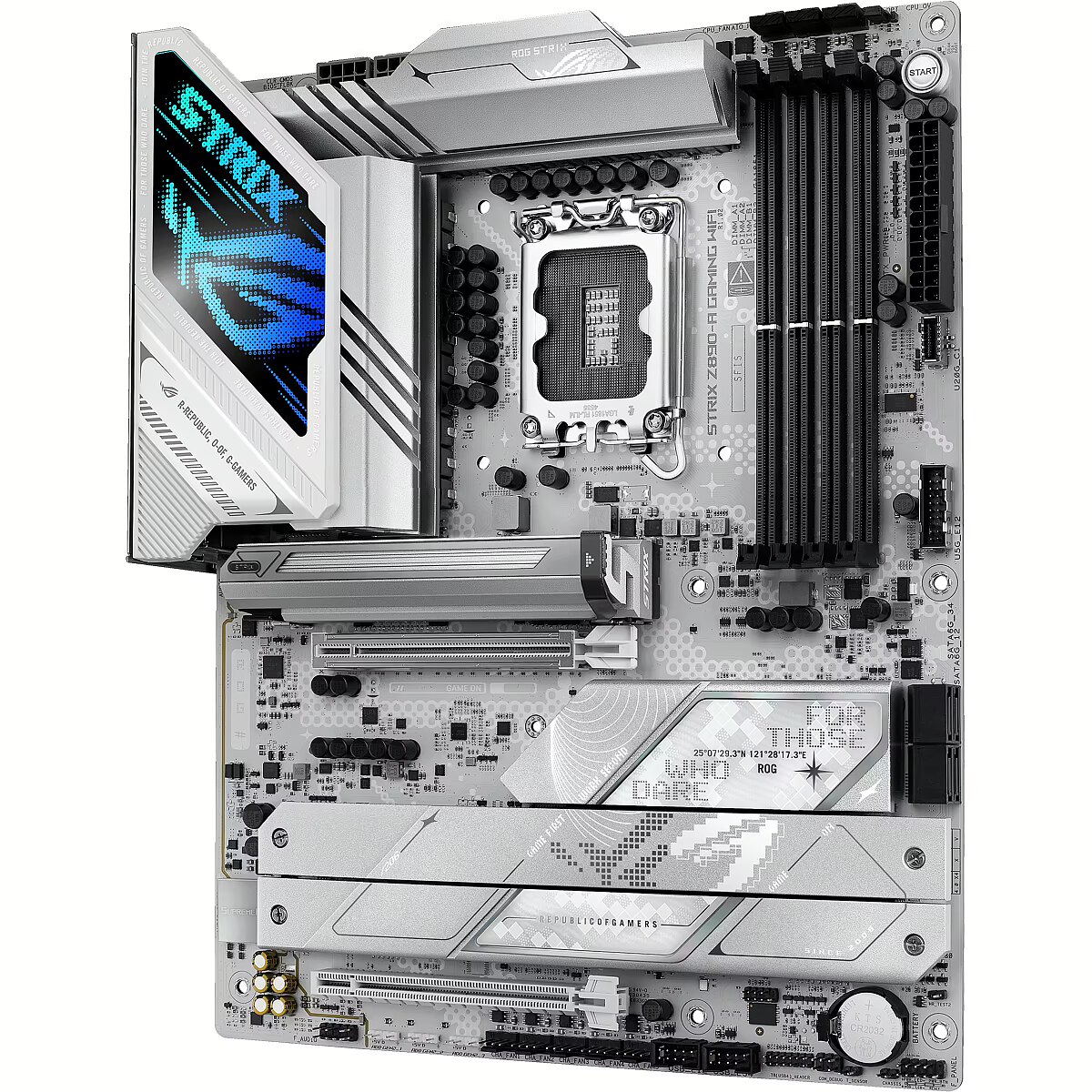

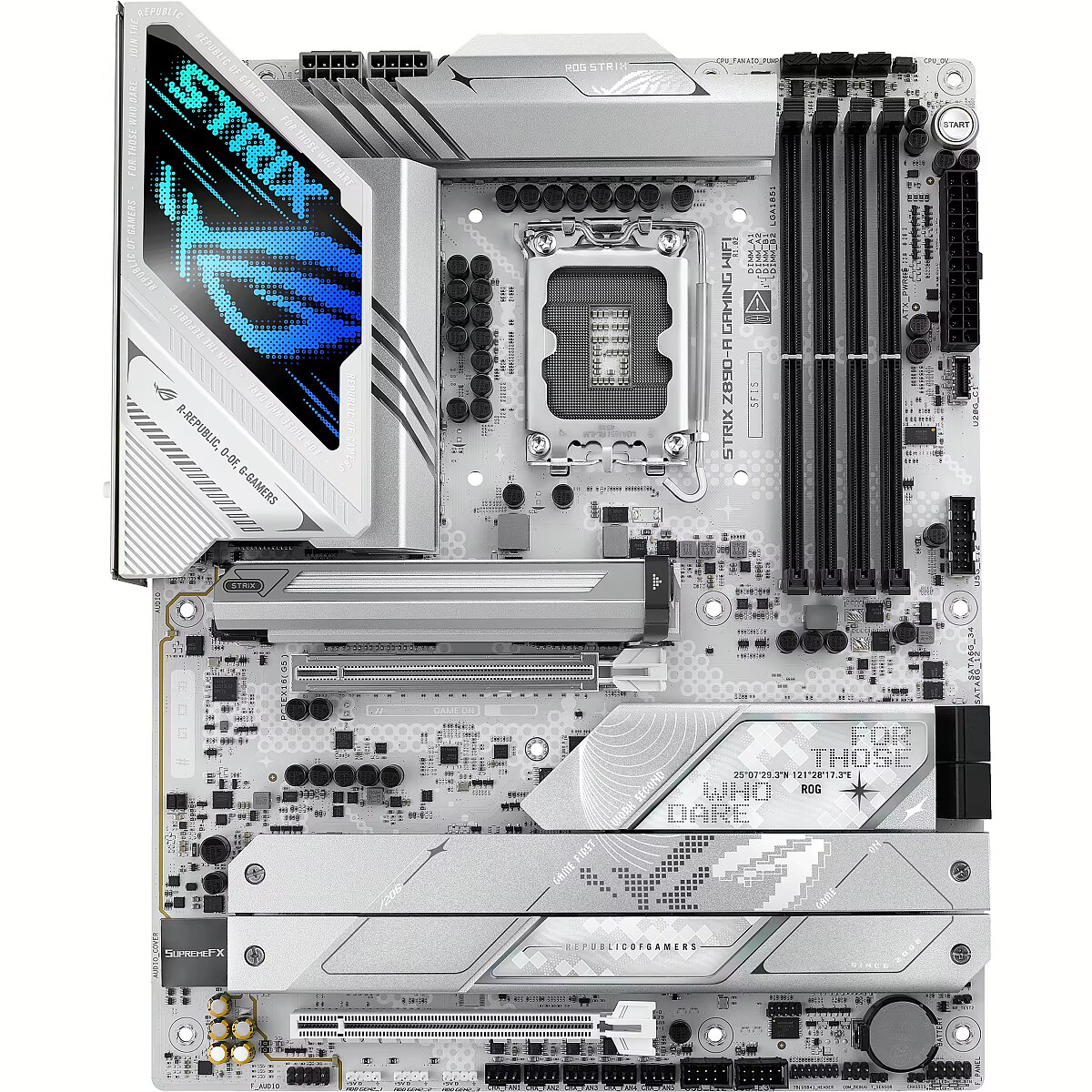

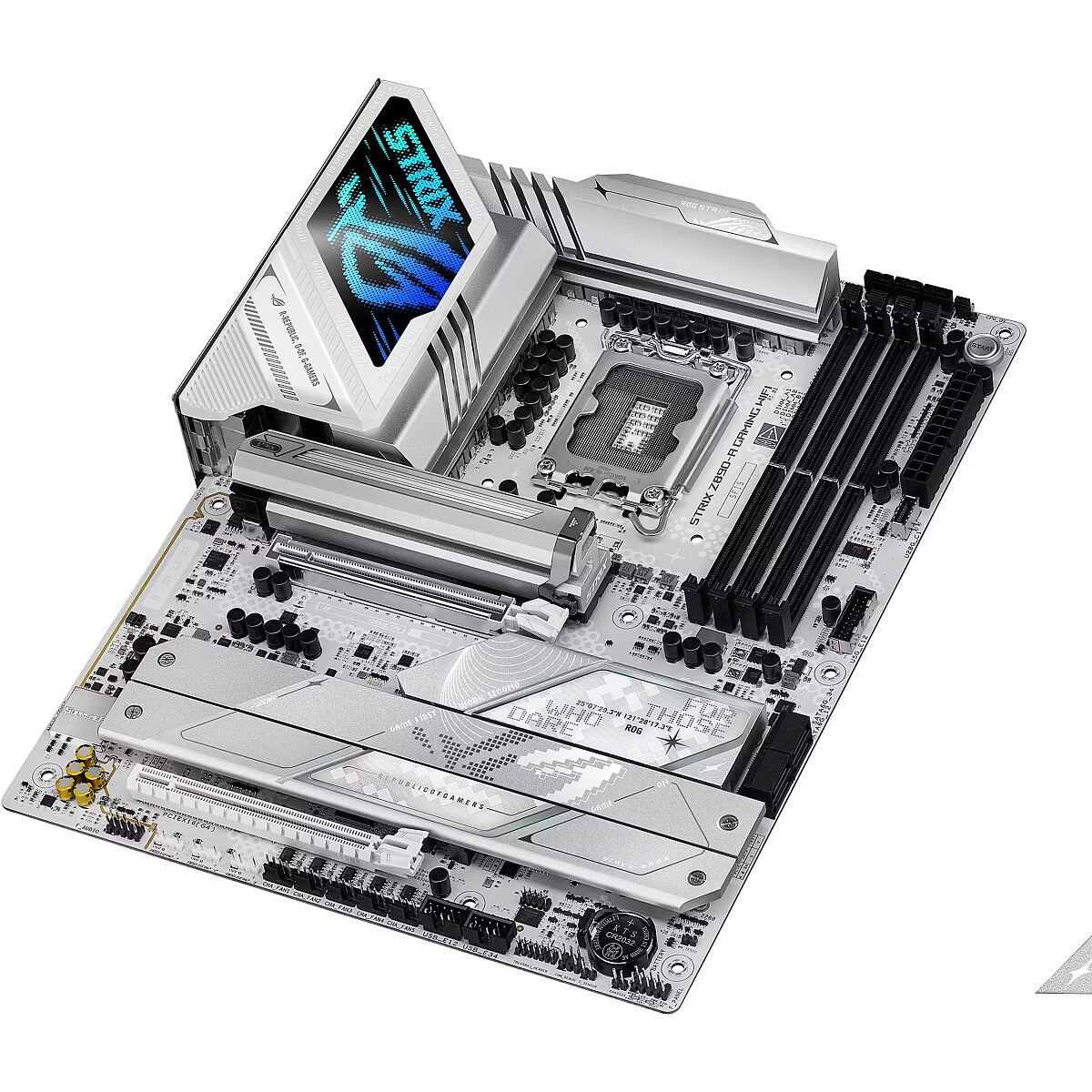

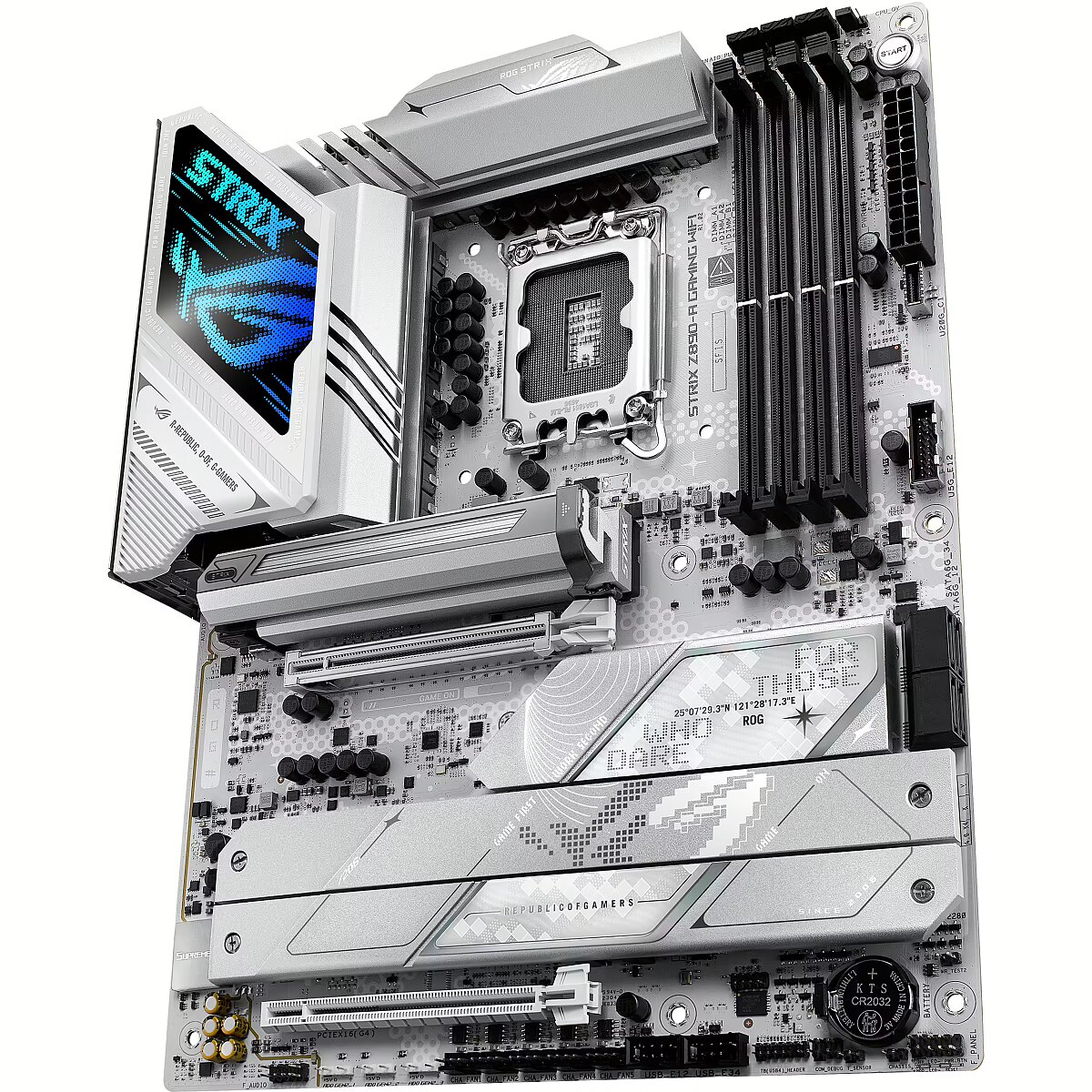

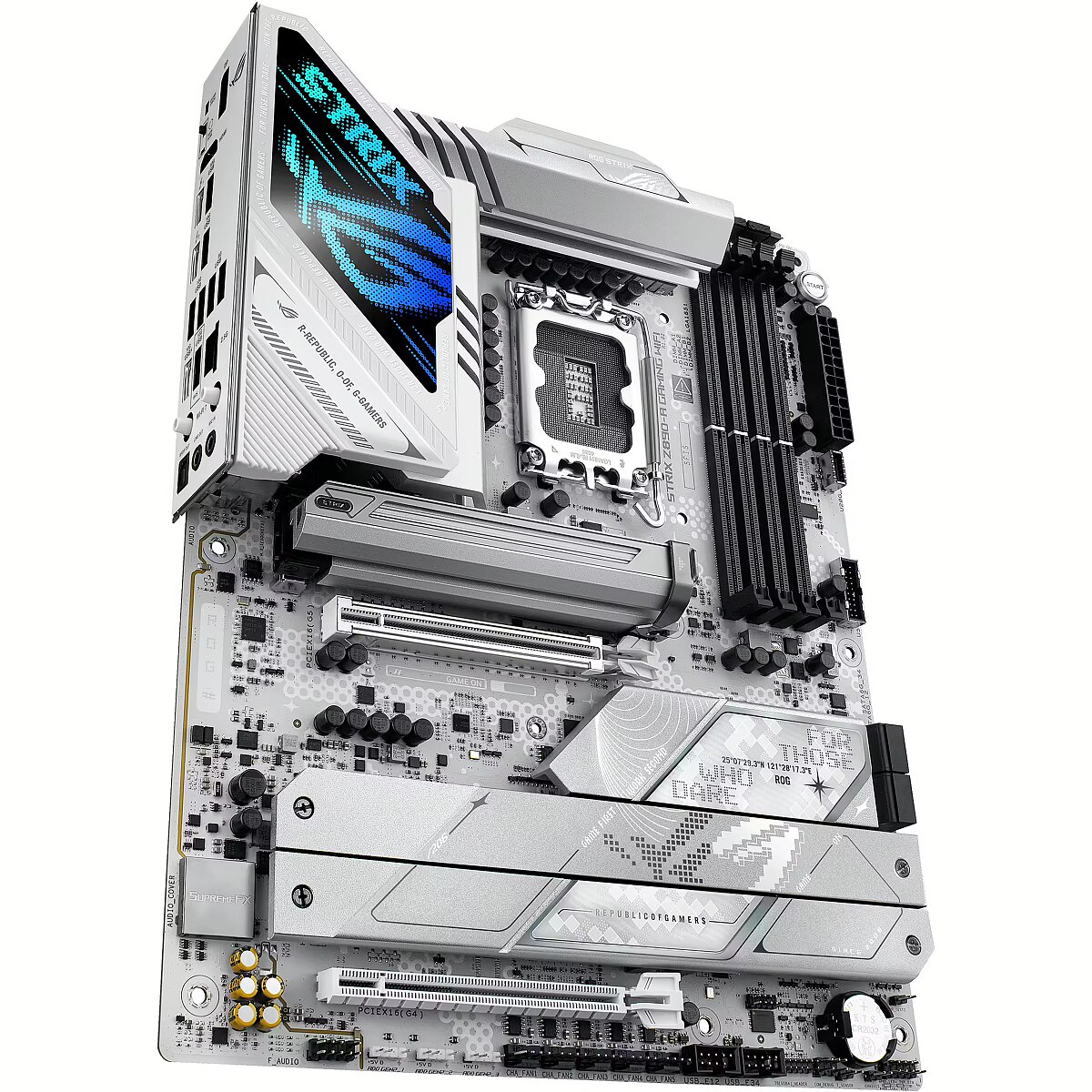

Asus ROG STRIX Z890-A GAMING WIFI

Accessories included - 2 x Kabel SATA 6Gb/s Podkładka termiczna do M.2 22110 Antena ASUS WiFi Q-Antenna Pakiet opasek kablowych Pakiet M.2 Q-Latch Brelok ROG Naklejki ROG Strix 2 x Pakiet gumowy M.2 Skrócona instrukcja obsługi
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256 Mb UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1I90-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Chipset
code - 90MB1I90-M0EAY0
COM connector / port - No
CPU socket - LGA1851
Description - ROG STRIX Z890-A gaming wifi With Thunderbolt 4, PCIe 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
Description - TUF GAMING Z890-PRO WIFI
ASUS TUF GAMING Z890-PRO WIFI wykorzystuje wszystkie niezbędne elementy najnowszych procesorów Intel Core Ultra (seria 2) i łączy je z funkcjami gotowymi do gry i sprawdzoną wytrzymałością. Zaprojektowana z komponentów klasy wojskowej, ulepszonym rozwiązaniem zasilania i kompleksowym systemem chłodzenia, ta płyta główna przekracza oczekiwania dzięki solidnej i stabilnej wydajności podczas maratonów grania. Płyty główne TUF GAMING przechodzą również rygorystyczne testy wytrzymałościowe, aby upewnić się, że poradzą sobie w warunkach, w których inne mogą zawieść. Ta platforma zapewnia moc i łączność, których wymagają zaawansowane aplikacje komputerowe AI.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
dimensionalWeight - 1386
dimension depth - 70 mm
dimension height - 275 mm
Dimensions -  30.5 cm x 24.4 cm
dimension weight - 2428 g
dimension width - 360 mm
DisplayPort Input/Output connectors - 1
ean - 4711387758830
EAN - 4711387758830
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 1 x Wi-Fi Module
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|2xUSB 3.0|5xUSB 3.1|1xUSB-C|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|SATA 3.0|Video|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10
Graphics - 1 x DisplayPort* 1 x port HDMI** 2 x Intel Thunderbolt 4 obsługują wyjścia wideo DisplayPort i Thunderbolt*** * Obsługuje maks. 8K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
*** Obsługuje do 8K@60Hz x1 z DSC lub 4K@60Hz x2, maksymalna całkowita przepustowość do 23,8 Gb/s lub 16 Gb/s/16 Gb/s, aby uzyskać informacje o obsługiwanej rozdzielczości, sprawdź specyfikację DisplayPort 2.1.
***** Obsługa rozdzielczości VGA zależy od rozdzielczości procesorów lub kart graficznych.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 0197105758834
GTIN - 197105758834
GTIN - 4711387758830
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1

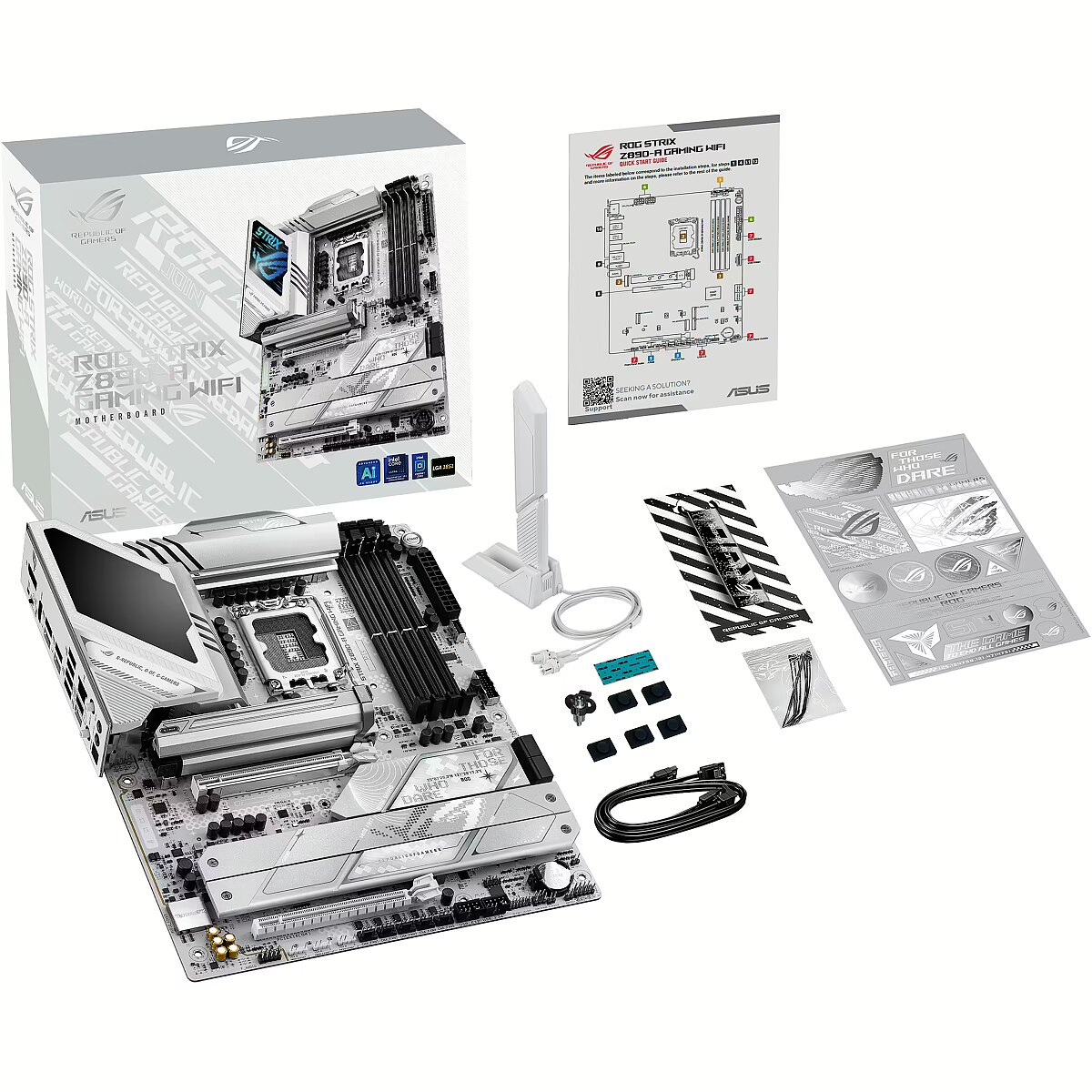

Included Accessories - Cables:
2 x SATA 6Gb/s cables
Additional Cooling Kit:
1 x Thermal pad for M.2 22110
Miscellaneous:
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 rubbers
Documentation:
1 x Quick start guide
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.ASUS AI INTELLIGENCEASUS AI ADVISORUsing AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.* Availability of ASUS AI Advisor may vary by region.AI OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.AI COOLING IIBalance the thermals and acoustics of any build with a single click.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.*Features may vary by model.PerformanceOVERCLOCKINGNPU BOOSTThe integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.* The overclocking performance may vary depending on the CPU series and motherboard used.** Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).PerformanceMEMORYDDR5 DOMINATIONEnhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-A.DIMM FITDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.AEMP IIIASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.DIMM FLEXDIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules.Power solutionROG STRIX ULTIMATE POWER DESIGN16(90A)+1(90A)+2(90A)+2(80A)Power StagesPerformanceCOOLINGM.2 BACKPLATEAn integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.VRM HEATSINK ARRAYTwo thick heatsinks covering the power delivery section provide strategic airflow channels for increased heat dissipation while empowering high-performance Intel® Core™ Ultra Processors (Series 2)CPU FAN HEADERSA dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSThe Strix Z890-A features five chassis fan headers, each supporting auto-detection of PWM or DC fans.​Leading ConnectivityWIFI 7The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.* WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. ** Specifications vary by model. ASUS WiFi Q-AntennaDual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.Disclaimer: The availability of WiFi 7 160 GHz and 320 GHz varies according to regional regulations.Wireless Signal Reception ImprovementVersus previous-generation antennaIntel 2.5Gb EthernetOnboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.PCIE 5.0The Strix Z890-A offers end-to-end PCIe 5.0 support, and the topmost x16 expansion slot is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One onboard M.2 slot is rated for blistering read and write speeds up to 16 GB/s, while the remainder can deliver still-impressive 8 GB/s transfers. And every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.​ TWO THUNDERBOLT 4 TYPE-C® PORTSEach port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.USB WATTAGE WATCHERUSB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 10Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.DOLBY ATMOSROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.SupremeFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z890-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.A specially designed circuit separation reduces electromagnetic interference from the motherboard and attached devices for cleaner audio.The integrated Hi-Fi Savitech amplifier holds up its end of the signal path with imperceptible levels of distortion at -90dB THD+N and a signal-to-noise ratio of 110dB for extremely clean output.Instead of the conventional high definition audio (HDA) interface, the ALC4080 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.A metal cover protects against electromagnetic interference, preserving the integrity of audio signals to ensure the best sound quality.High-quality components produce a warmer, more natural sound with exceptional clarity and fidelity.UNDENIABLY ROG STRIXThe ROG Strix Z890-A features a sleek white surface for a contemporary and stylish appearance that fits effortlessly into most system builds. Metallic heatsinks complement the clean design, while subtle Polymo lighting on the I/O shroud lets you choose between a refined, minimalist look or a vibrant, eye-catching display.OUTSHINE THE COMPETITIONROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.Dare to Be GreenWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
LongProductName - ROG STRIX Z890-A GAMING WIFI motherboard socket Intel LGA 1851 (ATX, Advanced AI, DDR5, WiFi 7, 5x M.2, PCIe 5.0, 2x Thunderbolt 4, Q-Release, DIMM Flex)
LongSummaryDescription - ASUS ROG STRIX Z890-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - ASUS
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG STRIX Z890-A GAMING WIFI
MPN - 90MB1I90-M0EAY0
Name - 1851 ASUS ROG STRIX Z890-A GAMING WIFI
name - ASUS ROG Strix Z890-A Gaming WiFi Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard ROG STRIX Z890-A GAMING WIFI s1851 4DDR5 TB4 ATX/90MB1I90-M0EAY0
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Bezprzewodowe i Bluetooth Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Obsługuje pasmo częstotliwości 2,4/5/6 GHz**
Obsługuje pasmo Wi-Fi 7 320 MHz, do 5,8 Gb/s szybkości transferu.
Bluetooth v5.4***
*Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 obsługiwane jest tylko Wi-Fi 6.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Other features - Quick installation guide - Yes
Other information -
Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.98 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
producer - Asus
producerCode - 90MB1I90-M0EAY0
productName - ASUS ROG STRIX Z890-A GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - ROG STRIX Z890-A GAMING WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes

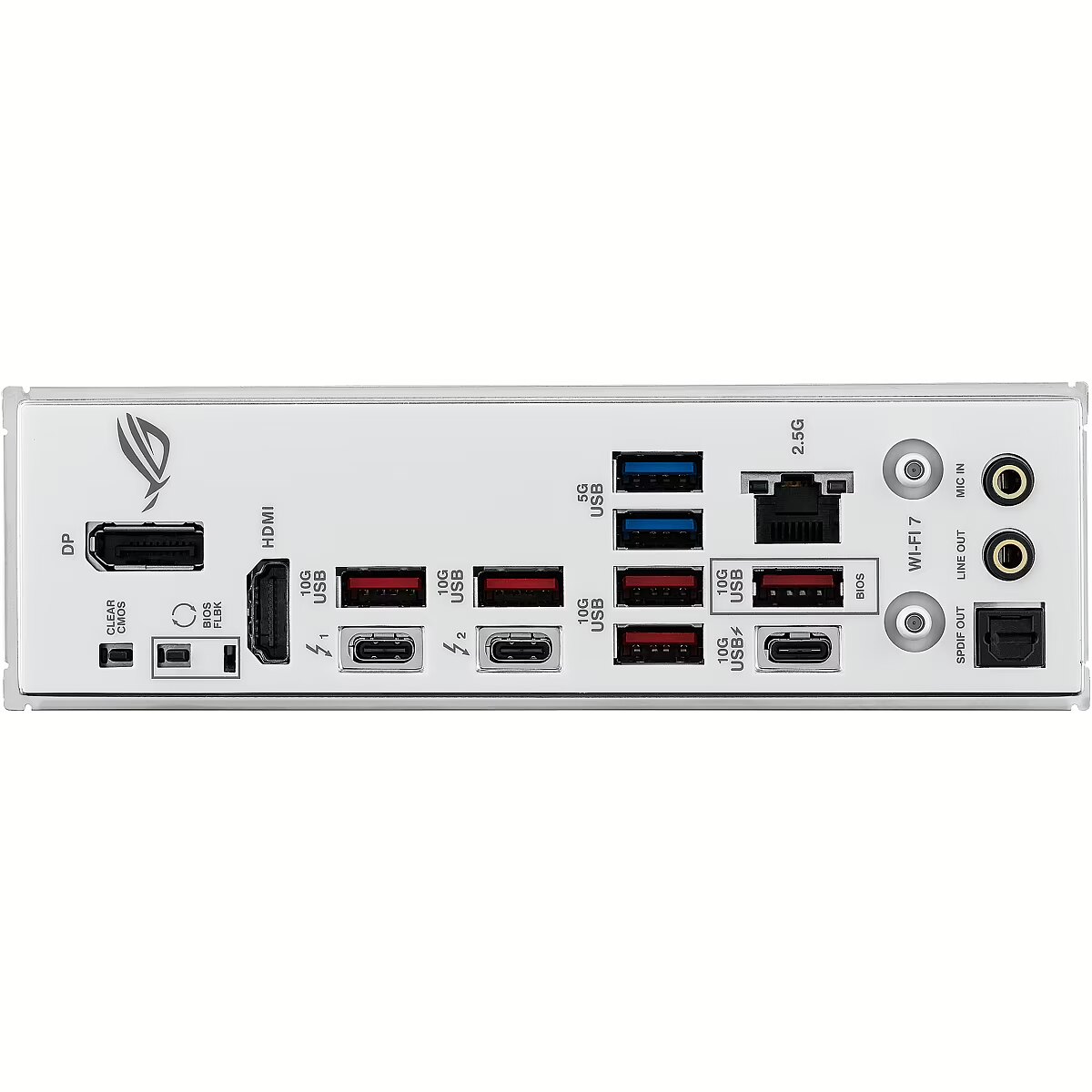

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 10.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ASUS ROG STRIX Z890-A GAMING WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 360
sizeY - 70
sizeZ - 275
Socket - LGA1851
Software - ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
MemTest86
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu Funkcje audio Technologia ekranowania SupremeFX Wzmacniacz Savitech SV3H712 Tylny optyczny port wyjściowy S/PDIF Kondensatory audio klasy premium Osłona audio * Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
** Port LINE OUT na tylnym panelu nie obsługuje dźwięku przestrzennego. Jeśli chcesz korzystać z dźwięku przestrzennego, podłącz urządzenie wyjściowe audio do gniazda audio na przednim panelu obudowy lub użyj urządzenia audio z interfejsem USB.
Special functions - Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX Z890-A GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.355
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.63 kg
Unit Net Weight - 2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 2
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 5
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/
vendpn - ROG STRIX Z890-A GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.46
weight - 2435
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
