15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
BrandPartCode - PRO A620M-E
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD A620
Chipset manufacturer - AMD
Chipset type - AMD A620
code - 7E28-001R
Code - PRO A620M-E
COM connector / port - Yes
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Description - PRO A620M-E Supports AMD Ryzen 7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 6800+MHz (OC) Core Boost: With superior layout and digital power design to support more cores and deliver better performance Memory Boost: Advanced technology to ensure clean data signals for the best performance, stability and compatibility Lightning-fast gaming: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 connector AUDIO ENHANCEMENT: Reward your ears with studio-quality audio for the most immersive gaming experience Steel Armor: Protects VGA cards against bending and electromagnetic interference for better performance, stability and durability
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
dimensionalWeight - 757
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 211 x 243.84 mm
dimension weight - 799 g
dimension width - 260 mm
EAN - 4711377093804
ean - 4711377093804
EAN_code - 4711377093804
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 1

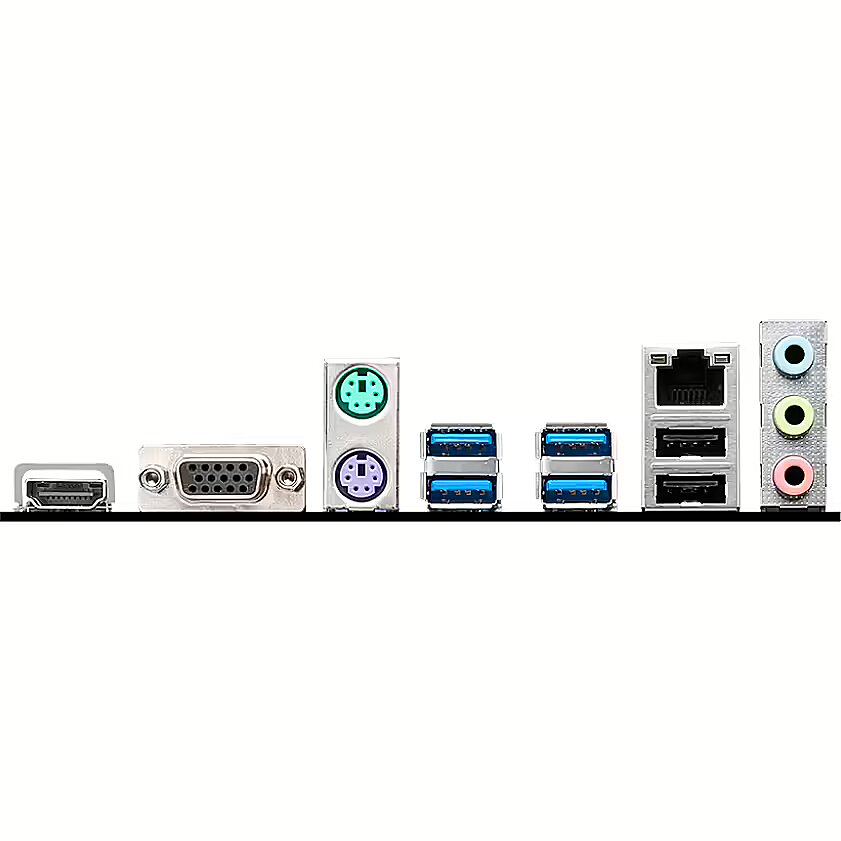

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Product colour - Black
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
Full Description Line - AMD A620|SAM5|Micro-ATX|DDR5|6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN Realtek RTL8111H (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Graphics - 1x HDMI HDMITM 2.1 support, maximum resolution 4K 60 Hz* 1x VGA VGA support, maximum resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Graphics - Discrete graphics support - Yes
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
GTIN - 0824142322406
GTIN - 824142322406
GTIN - 4711377093804
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Realtek RTL8111H (Gigabit)
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 6
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 6
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-A620M-E
LongDesc - BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.MSI DRIVER UTILITY INSTALLEROnce connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.Windows 11 certifiedWith MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.XL ClipThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.EZ debug LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.Keep Out ZoneMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.Doube ESD ProtectionDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.LATEST DDR5 MEMORY WITH SMT SLOTA huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.MSI CENTERMSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.Mystic LightCreate your own colorful masterpiece with ease. Splash any color you want with just a few clicks!True ColorOptimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.User ScenarioOne click for setting your computer, even customize own profile as your preference.Hardware MonitoringGet immediate access to your critical hardware information in real-time.Profile SettingsTune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.Fan CenterAssume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.System DiagnosisRestore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.EXCLUSIVE UI OF AIDA64 EXTREMEMSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.CLICK BIOS 5Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!EXPO(EXTENDED PROFILES FOR OVERCLOCKING)Choose from a preset EXPO profile and automatically overclock compatible DDR memory.M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.MEMORY TRY ITGet extreme speed out of your system memory and get more performance.SEARCH & FAVORITESA permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.SYSTEM SAFETYAll MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.SECURE BOOTSecure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.RESIZABLE BARResizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.EXTEND YOUR RGB EXPERIENCE WITH EASEAdd more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.RGBSupports 12V RGB DevicesAmbient LinkSynchronize lighting theme with compatible ligthting devicesPRO A620M-ESupports AMD Ryzen™ 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
LongProductName - Supports AMD Ryzen 7000 , AM5, 2x DDR5 96GB Max, 1DPC 1R 6800MHz Max, 1DPC 2R 6000MHz Max, Dual-Channel, non-ECC, un-buffered, AMD EXPO, 1x HDMI 2.1, 4k 60Hz, 1x VGA, 2048x1536 50Hz, 1x PCI-E x16 4.0, 1x PCI-E x1 3.0, 1x M.2, 4x SATA 6G, 6x USB 2.0, 6x USB 3.2 Gen.1 Type-A, Realtek ALC897, 7.1-Channel, High Definition Audio, 1x ATX_PWR, 1xCPU_PWR, 1x CPU Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x RGB LED, 1x TPM 2.0, 4x USB 2.0, 2x USB 3.2 Gen1 Type A,4x EZ Debug LED, mATX 211mmx243.84mm
LongSummaryDescription - MSI PRO A620M-E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Manufacturer_code - 7E28-001R
Max. number of SATA devices - 4
Max memory size - 96 GB
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Model - PRO A620M-E
MPN - 7E28-001R
Name - AM5 MSI A620M-E Pro mATX
name - Motherboard PRO A620M-E AM5 2DDR5 HDMI/M2 mATX
name - MSI Pro A620M-E, AMD A620 Mainboard - Sockel AM5, DDR5
Name - MSI PRO A620M-E - Socket AM5 - motherboard
Name - MSI | PRO A620M-E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek RTL8111H Gigabit LAN
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x CPU mode switch
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - AMD Opteron series - 7000
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
producerCode - 7E28-001R
Producer product name - PRO A620M-E
productName - MSI PRO A620M-E motherboard AMD A620 Socket AM5 micro ATX
ProductName - PRO A620M-E
productSize - Normal
PS/2 Input/Output connectors - 2
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - COM ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 59.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 28.5 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 17.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 53.5 cm
ShortSummaryDescription - MSI PRO A620M-E, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 96 GB
sizeX - 260
sizeY - 265
sizeZ - 55
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO A620M-E motherboard AMD A620 Socket AM5 micro ATX
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.26
Unit Box Width - 0.26
Unit Brutto Volume - 0.004536 cubm
Unit Gross Weight - 0.893 kg
Unit Net Weight - 0.6 kg
URL - https://us.msi.com/Motherboard/PRO-A620M-E
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-A620M-E
vendpn - PRO A620M-E
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,82
Weight - 0.82
weight - 805
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 211 mm
