Audio port Input/Output connectors - 2
BIOS - BIOS type - UEFI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
code - 90-MXBJ50-A0UAYZ
Description - B650 LiveMixer - Supports AMD Ryzen™ 8000 and 7000 Series Processors - 14+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 7200+(OC) - 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), - 2 Hyper M.2 (PCIe Gen4x4), - 2 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front), - 1 USB 3.2 Gen2 Type-C (Rear), - 1 USB 3.2 Gen2 Type-A (Rear), - 8 USB 3.2 Gen1 (4 Rear, 4 Front), - 12 USB 2.0 (8 Rear, 4 Front) - Realtek 2.5G LAN
dimensionalWeight - 2481
DisplayPort Input/Output connectors - 1
ean - 4710483941016
Eans - 4710483941016
EAN_code - 4710483941016
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 7200 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 4.0 4x |2xPCI-Express 4.0 16x|4xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|6xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1, 10|TPM Header
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
M.2 Expansion slots - 4
Manufacturer - Asrock
Manufacturer_code - 90-MXBJ50-A0UAYZ
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - B650 LIVEMIXER

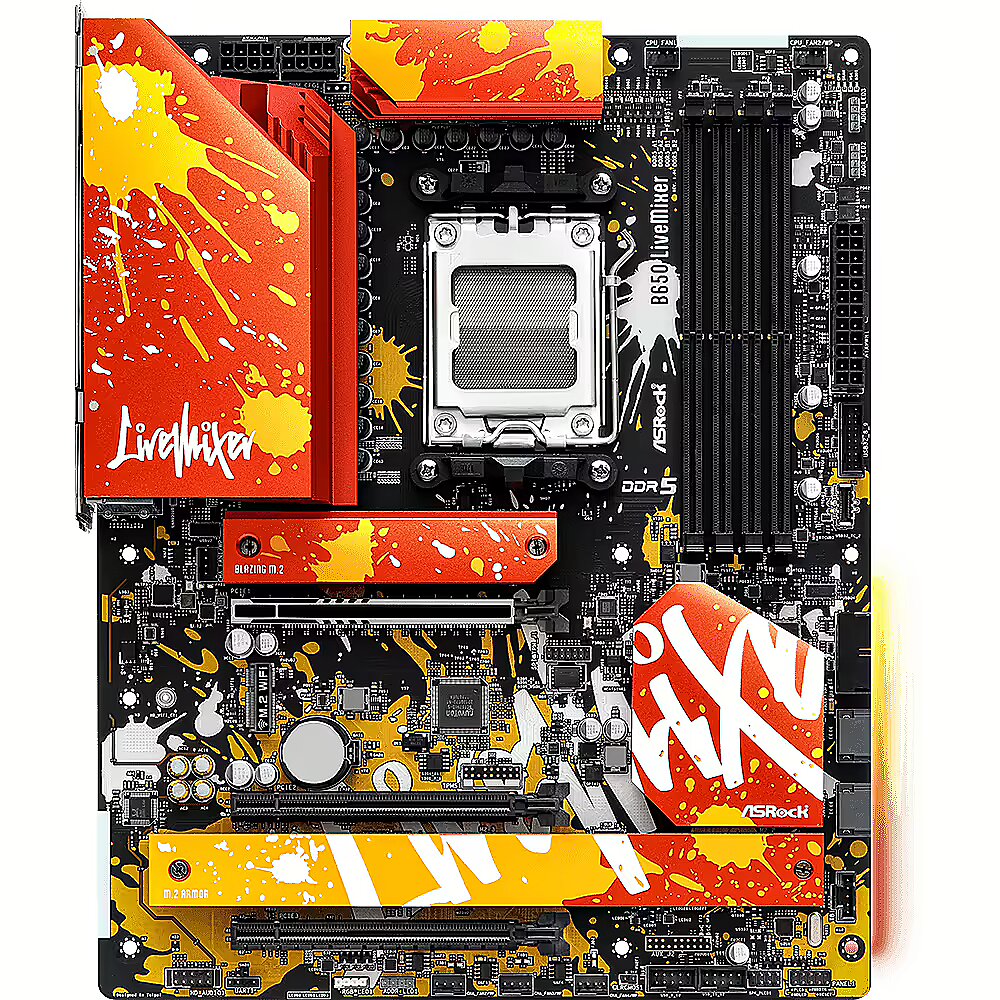

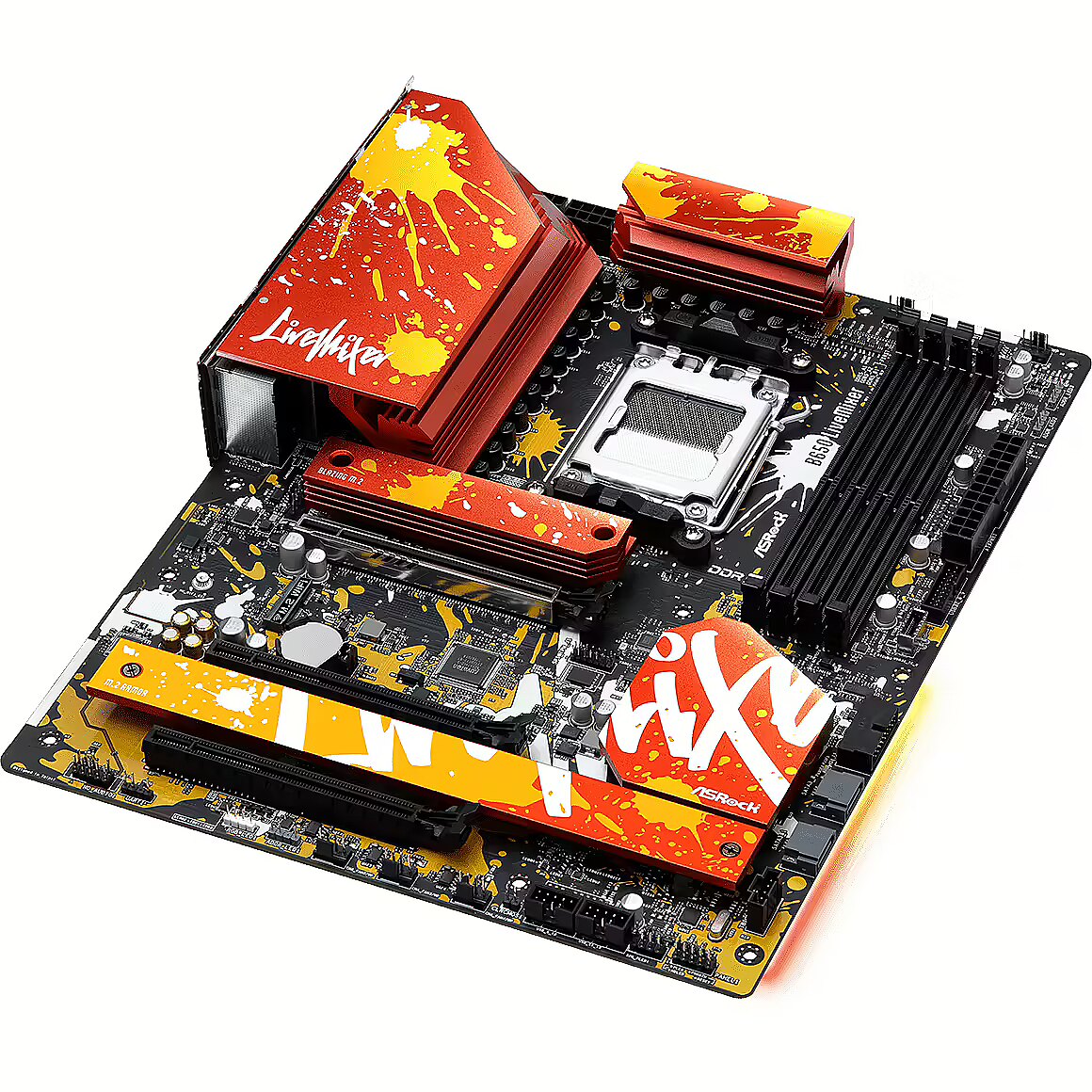

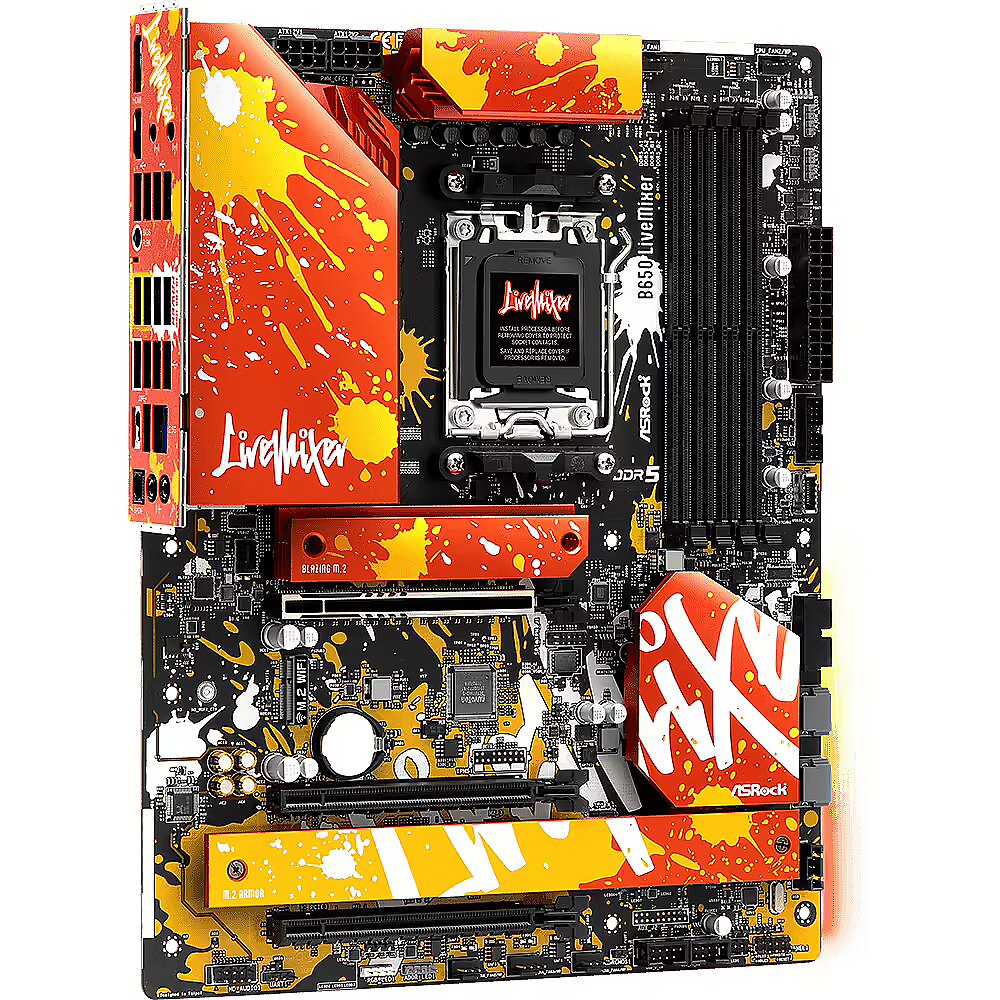

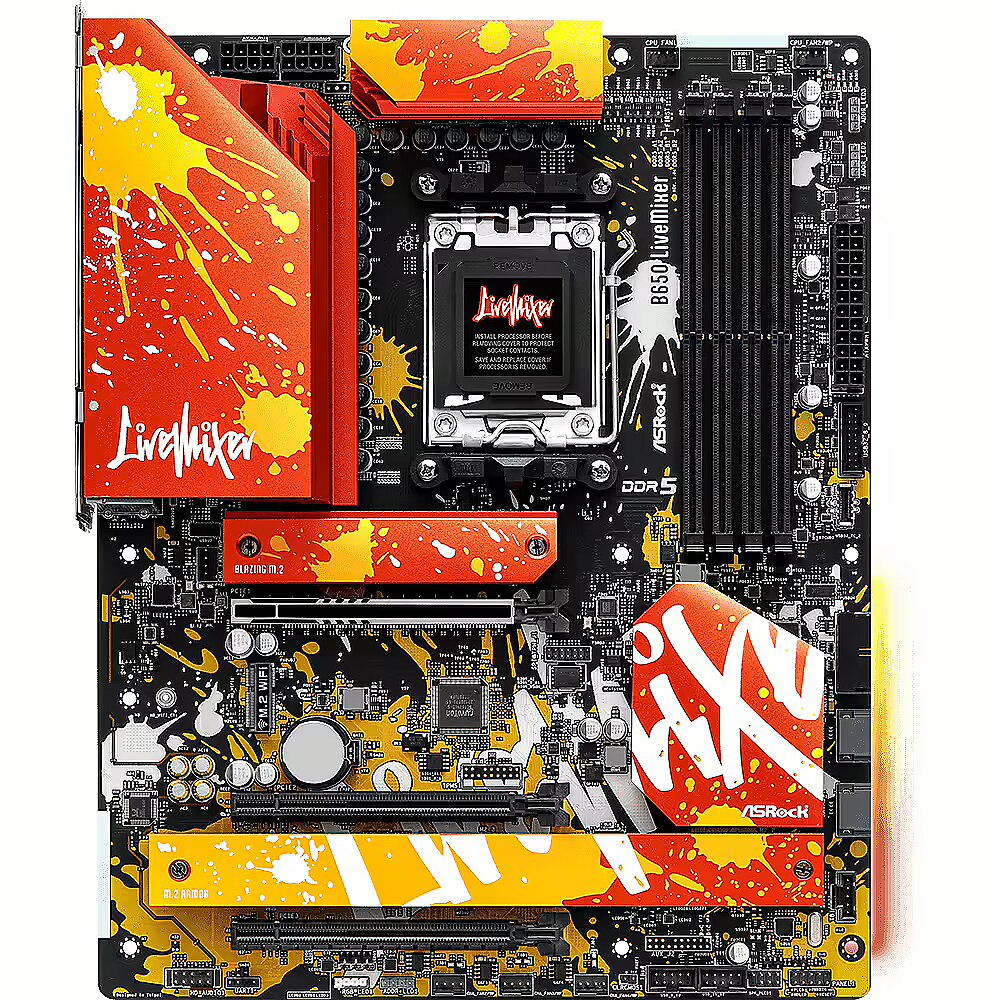

Name - ASRock B650 LIVEMIXER
name - ASRock B650 Live Mixer, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 LIVE MIXER, motherboard - AM5
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Producer - ASRock
producerCode - B650 LIVEMIXER
ProducerCode - B650 LIVEMIXER
productName - Asrock B650 LiveMixer AMD B650 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1; NVMe 0, 1, 10

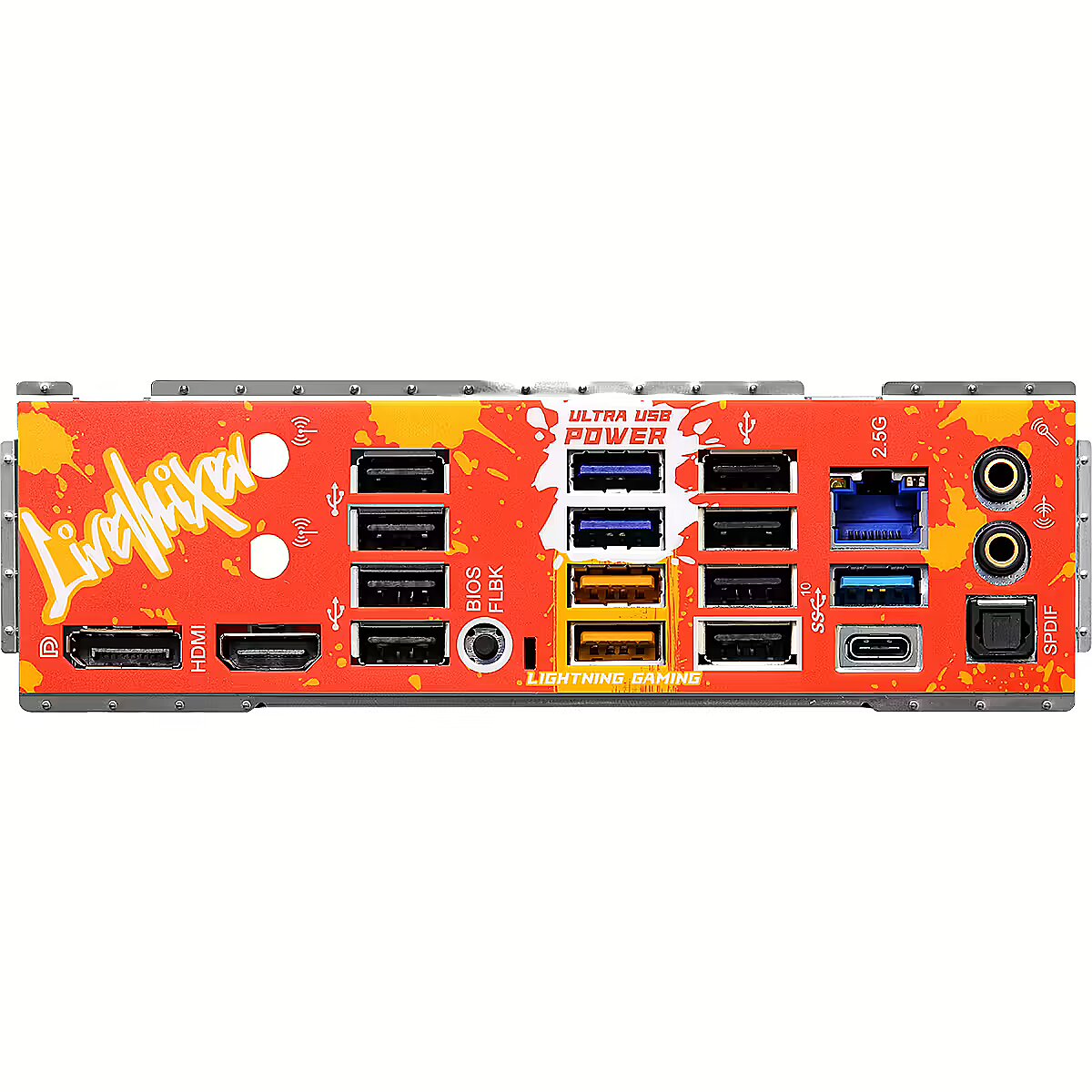

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 12.61 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 388
sizeY - 323
sizeZ - 99
Socket - SAM5
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TPM - Header
Unit Box Height - 0.35
Unit Box Length - 0.5
Unit Box Width - 0.08
Unit Brutto Volume - 0.014 cubm
Unit Gross Weight - 2.52 kg
Unit Net Weight - 0.9 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 8
USB 3.2 Input/Output connectors - 6
Vendor Homepage - www.asrock.com/mb/AMD/B650%20LiveMixer/Specification.asp
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,24
weight - 2248
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
